PPE FX-D4 Series Installation, Operation And Maintenance Manual

Desiccant dehumidifier
Hide thumbs Also See for FX-D4 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

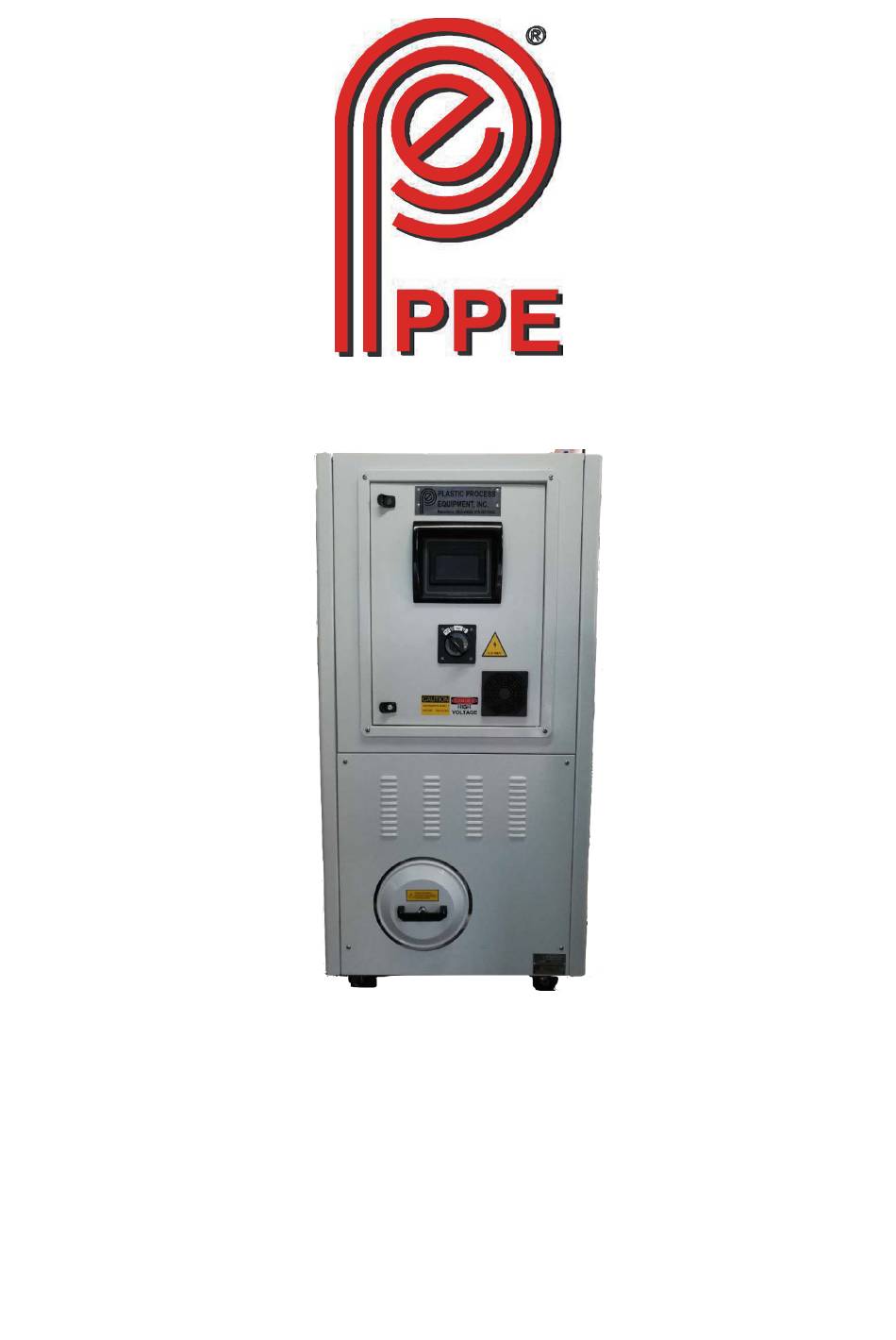

FX-D4 SERIES DESICCANT DEHUMIDIFIER
Installation, Operation, and Maintenance Manual
Plastic Process Equipment, Inc.
8303 Corporate Park Drive
Macedonia, OH 44056
Phone: (216) 367-7000
Fax: (216) 367-7022
E-Mail: ppe@nls.net
For further information visit us on the web at http://www.ppe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-D4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PPE FX-D4 Series

Summary of Contents for PPE FX-D4 Series

  • Page 1 FX-D4 SERIES DESICCANT DEHUMIDIFIER Installation, Operation, and Maintenance Manual Plastic Process Equipment, Inc. 8303 Corporate Park Drive Macedonia, OH 44056 Phone: (216) 367-7000 Fax: (216) 367-7022 E-Mail: ppe@nls.net For further information visit us on the web at http://www.ppe.com...

  • Page 3: Table Of Contents

    Table of Contents 1 INTRODUCTION 1-1 FX SERIES DESICCANT DEHUMIDIFIER INTROCUCTION ............4 1-2 PRINCIPLES OF OPERATION ....................4 1-3 FX-D4 SERIES DESICCANT DEHUMIDIFIER SPECIFICATION ..........5 1-4 FRONT PANEL CONTROLS ....................6 2 INSTALLATION 2-1 INSPECTION UPON RECEIPT ....................8 2-2 PLACING THE EQUIPMENT ....................

  • Page 4: Introduction

    INTRODUCTION 1-1 FX SERIES DESICCANT DEHUMIDIFIER INTROCUCTION Congratulations on your purchase of the PPE FX Series Desiccant Dehumidifier from Plastic Process Equipment, Inc. The FX Series Desiccant Dehumidifier offers the finest in resin drying technology, however, this machine can only provide maximum service if properly installed, operated, and maintained.

  • Page 5: Fx-D4 Series Desiccant Dehumidifier Specification

    Figure 1-1. Air streams 1-3 FX-D4 SERIES DESICCANT DEHUMIDIFIER SPECIFICATION MODEL NO. FX-050 FX-100 FX-180 FX-300 FX-400 Air Flow Dewpoint °C -40° -40° -40° -40° -40° Drying Blower 0.75 Drying Heater Regen. Blower 0.18 0.18 0.75 0.75 Regen. Heater Processing Heater...

  • Page 6: Front Panel Controls

    1-4 FRONT PANEL CONTROLS The front panel of the FX Series Dehumidifier contains all controls and indicators necessary for dehumidifier operation. For a description of the controls and indications, refer to Figure 1-2 and the following list: Power On indicator – This black switch turned to “on” when power has been supplied to the dehumidifier.
  • Page 7 Regeneration Temperature (Desiccant temp)– This selector controls the temperature displayed on the Temperature Controller. The PV of the display shows the currently selected process variable. The SV of the display shows the process outlet temperature set point. (Default value °C /356 °F) Power switch –...

  • Page 8: Installation

    INSTALLATION 2-1 INSPECTION UPON RECEIPT Thoroughly inspect the dehumidifier to ensure no damage has occurred during shipping. Inspect both the inside and outside of the dehumidifier. If any damage is found, a claim should be filed with the shipping company immediately. Please notify Plastic Process Equipment immediately so we may provide whatever assistance we can.

  • Page 9: Duck Work Connections

    ease of servicing. Electrical wiring to the equipment must be adequately sized for the minimum amperage shown on the unit nameplate. 2-4 DUCK WORK CONNECTIONS NOTE All supply and return air ductwork and hose connections for the dehumidifier must be air and vapor tight. Failure to achieve air and vapor tight connections may impact dehumidifier performance.
  • Page 10 Male NPT connection Model Iced water capacity Iced water flow LPM/GPM 1/2" FX-50 1500Kcal/H/10℃/50°F 10/2.6 FX-100 1” 3000Kcal/H/10℃/50°F 20/5.2 FX-180 1” 6000Kcal/H/10℃/50°F 30/7.8 FX-300 1” 9000Kcal/H/10℃/50°F 50/13 FX-400 1” 14000Kcal/H/10℃/50°F 60/16 FX-700 1” 27000Kcal/H/10℃/50°F 100/26 FX-1000 1” 42000Kcal/H/10℃/50°F 140/37 Water connections, rear of unit Water lines inside of unit...

  • Page 11: Operation

    OPERATION 3-1 INITIAL STARTUP After the dehumidifier has been installed it is ready for initial startup. The following items need to be checked when energizing the dehumidifier for the first time:  Verify fan rotation direction per paragraph 3-2.  Set process outlet temperature per paragraph 3-3.
  • Page 12 Figure 3-2. Process Filter Access Door If the process fan motor rotation is not visible, open the process filter access door shown in Figure 3-2. If the process fan is rotating in the proper direction, the dehumidifier should be sucking air in through the filter.

  • Page 13: Set The Process Oulet Temperature

    3-3 SET THE PROCESS OULET TEMPERATURE The process outlet temperature is set using the Temperature Controller on the front panel, shown in Figure 3-3 and is limited by the thermostat circuit board inside the cabinet. The top PORCESS TEMP of PV is displaying indicates the currently selected temperature for dry air.

  • Page 14: Thermal Probe

    3-6 THERMAL PROBE The thermal probe can be connected with hopper dryer. For more information on the thermal probe, refer to the manufacture’s documentation included with your hopper dryer. Figure 3-5. Thermal probe for connecting hopper dryer 3-7 HMI+PCB SETUP AND OPERATION 1.
  • Page 15 Start key area Name Description Remarks Power on/off Green color for on, red color for off Setting parameter Access code for entry Timer for on Blue color for on, red color for off Mute function 3. Setting temperature area Press , show digital keyboard Code indication Value...
  • Page 16  Press , fan motor, desiccant rotor entry running position.  Short after heater start running.  Press ,timer start, entry value.  In the alarm state, press release audible alarm.  Press for setting parameter, need access code. 5. Setting parameter ，...
  • Page 17 00:00~23:59 00:00 Sunday Off ON~OFF 0:00~23:00 ON OR OFF 0: English Language selected 1: Chinese Process temp high alarm PV>SV+[high value] 0~350 Regeneration temp high PV>SV+[high value] 0~350 alarm Temperature low alarm PV<SV-[low value] 0~350 Press 2 seconds, start PID Display input state Back to home page Press...
  • Page 18 4. When Timer closed, the parameter setting shows “OFF” on display. 5. Circuit board has a Low Power Saving function that allows machine to save power under normal operation. Once power cut happens, it will release saving power as emergent use for Timer, power enough for 3 days’...
  • Page 19 1～3 HEAT Roller time 0～9999 Digit filter 1～250 ON~OFF DSP SMOOTH 0～1 IN REVERSE TRIP DELAY 0～999 DEWPOINT AIARM -99～100 ℃/℉ COM ADDR 0-250 COM BPS COM INTERV. 0-100 ON: save OFF: no save CH1 P BAND 20.0 0~999.9 0~9999 CH1 INTGRAL 0~9999 CH1 DERIVATE...

  • Page 20: Maintenance

    CH1 GAIN 0~9.999 1.050 CH2 OFFSET -99.0~100.0 CH2 GAIN 0~9.999 CH3 OFFSET -999.0~1999.9 CH3 GAIN -9.000~19.999 CH3 4ma(2V) 0~8190 1510 CH3 20ma(10V) 0~8190 7516 ** WARNING: Above parameters are for engineering, please don’t use it if not necessary. MAINTENANCE 4-1 DESICCANT ROTOR The desiccant rotor supplied with the dehumidifier, Figure 4-1, will last indefinitely under ideal conditions.

  • Page 21: Desiccant Rotor Seals

    Figure 4-1. Desiccant Rotor Do not place the desiccant rotor on its face. Serious damage can occur to the desiccant. Damage to the desiccant media may cause improper operation and lack of dehumidifier performance. Always set the desiccant rotor on the metal rotor band. Brace the rotor with blocks to prevent rolling.

  • Page 22: Desiccant Rotor Shell

    loosen the seal plate mounting screws. Press the seal plate lightly toward the desiccant rotor, and tighten the seal plate mounting bolts. If no gaps are noticed, slide a piece of thick paper or a thin piece of cardboard, such as a business card, between the desiccant rotor and the desiccant rotor seal.

  • Page 23: Desiccant Rotor Drive Motor

    4-4 DESICCANT ROTOR DRIVE MOTOR The desiccant rotor drive motor is permanently lubricated and requires no maintenance, as shown in Figure 4-4. Figure 4-4. Desiccant Rotor Drive Motor 4-5 FILTERS The FX- Series Resin Dehumidifier include filters for process airflow, regeneration airflow, and two filters on the outside of the control box.

  • Page 24: Maintenance Record Form

    PRPCESS FILTER WING NUT ACCESS DOOR Figure 4-5. Process Filter Replacement Control Box Filter Replacement 1. Turn the dehumidifier off by placing the power switch on the OFF position. Remove the filter guard and filter media, as shown in Figure 4-6. The filter media may be cleaned with soap and water.

  • Page 25: Troubleshooting

    ) Check there is enough space around the machine ) Check the connection pipe connected correctly ) Check voltage _________ V ________HZ ) Fuse size： 1 phase ______ A 3 phase _____ A 3. Checklist MACHINE NAME: DEHUMIDIFIER DAILY WEEK ITEM PORJECT ●...

  • Page 26: Troubleshooting Index

    5-1 TROUBLESHOOTING INDEX Troubleshooting procedures are provided in the form. Refer to the following table to determine which figure to refer to for the proper troubleshooting procedure. TROUBLE POSSIBLE REASON EXCLUSION METHOD SHOOTING E01 DEHUM PROBLE 1. Drying temperature probe is broken or loose contact. 1.
  • Page 27 TROUBLE POSSIBLE REASON EXCLUSION METHOD SHOOTING 1. Regen. contactor got stuck. 1. Check or replace the contactor. E07 REGEN TEMP 2. Regen. filter got stuck. 2. Clean the filter. HIGH 3. Regen. motor is broken. 3. Check or replace the regen. motor. 1.

  • Page 28: Technical Information

    TECHNICAL INFORMATION 6-1 WIRING, MODEL: FX-50/100/180 (230V/3￠/60HZ)
  • Page 30 FX-050230 Code Description of Goods Q’ty No-fuse breaker BO-100EB 50A (w/trigging function) 1 PC Trigger Regen. blower contactor SC-E02PM-C Coil 220V 1 PC Drying blower contactor SC-E02PM-C Coil 220V 1 PC Regen. heater contactor SC-E05PM-C Coil 220V 1 PC Drying heater contactor SC-E1PM-C Coil 220V 1 PC Regen.
  • Page 31 Buzzer PK-27A29EPQ (DC24V) 1 PC Switch (detect rotor) TL-0.5MC1 1 PC CH1+ Drying thermocouple+ 1 PC CH1- Drying thermocouple- 1 PC CH2+ Regen. thermocouple+ 1 PC CH2- Regen. thermocouple- 1 PC M1581 I/O board 230V~480V 1 PC FX-180230 Code Description of Goods Q’ty No-fuse breaker BO-100EB 100A (w/trigging function) 1 PC...

  • Page 32: Wiring, Model: Fx-100/180/300/400 (460V/3￠/60Hz)

    6-2 WIRING, MODEL: FX-100/180/300/400 (460V/3￠/60HZ)
  • Page 34 FX-100460 Code Description of Goods Q’ty No-fuse breaker BO-100EB 50A (w/trigging function) 1 PC Trigger Regen. blower contactor SC-E02PM-C Coil 220V 1 PC Drying blower contactor SC-E02PM-C Coil 220V 1 PC Regen. heater contactor SC-E04PM-C Coil 220V 1 PC Drying heater contactor SC-E05PM-C Coil 220V 1 PC Regen.
  • Page 35 Transformer 460V to 220V/150VA 1 PC Speed regulator TWT SS-22 1 PC Fuse base w/1A fuse 1 PC Buzzer PK-27A29EPQ (DC24V) 1 PC Switch (detect rotor)TL-0.5MC1 1 PC CH1+ Drying thermocouple+ 1 PC CH1- Drying thermocouple- 1 PC CH2+ Regen. thermocouple+ 1 PC CH2- Regen.
  • Page 36 FX-400460 Code Description of Goods Q’ty No-fuse breaker BO-100EB 100A (w/trigging function) 1 PC Trigger Regen. blower contactor SC-E02PM-C Coil 220V 1 PC Drying blower contactor SC-E05PM-C Coil 220V 1 PC Regen. heater contactor SC-E1PM-C Coil 220V 1 PC Drying heater contactor SC-E3PM-C Coil 220V 1 PC Regen.

  • Page 37: Explosion View (Fx Series)

    6-3 EXPLOSION VIEW (FX SERIES) FX-050230 DESCRIPTION FORMAX ITEM-NO Front cover on bottom TM-HCD050-008 Handle TV-A45-0000000120 Filter lid TM-HCD180-PH-026X Drying Filter φ170*L150) TV-A32-0200170150 Filter hopper body TM-HCD050-024 Regen Filter(φ120*L100) TV-A32-0200122100 Air inlet port of regen. blower filter TM-HCD180-PH-033 Ventilation filter 120*120 TV-A32-0101120120 Plastic frame TV-A19-01000010...
  • Page 38 Rotor Bottom Cover ZL50-005 TM-ZL50-005 Rotor Bottom Gasket ZL50-001 TM-ZL50-001 Left cover TM-HCD050-PH-011 Copper nipple 3/8"*3/8" TV-A02-10020303 SUS Ball valve 3/8" TV-A08-00000003 Alarm (yellow flashing) N-3051 DC24V TV-B12-10N3051024 Buzzer PK-27A29EPQ (3~24V /DC) TV-B12-00PK27A29EPQ Thermometer (0-200) 1/4"PT L=50 TV-B07-0010020002 1.5” Process inlet tube TM-HCD050-030 1.5”...
  • Page 39 Contactor SC-E1PM-C 220V TV-B03-00000E1PM0 Rotor speed control TWT SS-22 6W TV-A40-100TWTSS2225W Fuse base FS-10 TV-B10-03000FS-10 PCB MD1581 TV-B01-00010M1581-1 Orange hose φ1.5" TV-A30-066000001504-1 Orange hose φ2" TV-A30-066000002004-15 Key YS-08 TV-A18-200YS-08 MACHINE BODY DOOR FASTENER TV-A18-001000-5-2 MS1000-5(S1B4504) DEPTH:4MM DRYER BLOWER INLET TUBE TM-HCD050-PH-022 DRYER BLOWER OUTLET TUBE TM-HCD050-PH-021...
  • Page 40 Filter hopper body TM-HCD180-024 Regen Filter (φ120*L100) TV-A32-0200122100 Air inlet port of regen. blower filter TM-HCD180-PH-033 Ventilation filter 120*120 TV-A32-0101120120 Plastic frame TV-A19-01000010 LCD display TV-B01-HCD-HMI HMI film TM-HCD180-PH-047 HMI fixed plate TM-HCD180-PH-046 Front movable cover on top 2 TM-HCD180-PH-049 Blinds ventilation filter 105*105 TV-A32-010000105105 Cooling fan (AC220V) 120*120...
  • Page 41 Blower (DG-100-16) 0.18KW TV-A21-03001293 AC200~480V/50/60HZ Fixed plate of filter TM-HCD180-025 TWT motor reducer G-2N36-K TV-A40-1000TWTG2N36K TWT motor mid-reducer G-2N10X-K TV-A40-100TWTG2N10XK TWT motor M-2IK6N-CV TV-A40-10TWTM2IK6NCV Snap for rotor TV-A29-14000001 Proximity switch TL-0.5MC1 TV-B02-210TL05MC1 Synchronous wheel 20MM *20 TV-A29-13000315-1 gears Dew point meter aluminum block TM-SRD-20190529-001 Dew point meter fixed clip LDJ-015 TM-LDJ-015...
  • Page 42 FX-180460 FX-180230 FORMAX DESCRIPTION FORMAX ITEM-NO DESCRIPTION ITEM-NO Front cover on bottom TM-HCD180-PH-008 Handle TV-A45-0000000120 Filter lid TM-HCD180-PH-026X Drying Filter (φ170*L150) TV-A32-0200170150 Filter hopper body TM-HCD180-024 Regen Filter (φ120*L100) TV-A32-0200122100 Air inlet port of regen. blower filter TM-HCD180-PH-033 Ventilation filter 120*120 TV-A32-0101120120 Plastic frame TV-A19-01000010...
  • Page 43 Rotor Bottom Gasket ZL100-001 TM-ZL100-001 Left cover TM-HCD180-PH-011 Copper nipple 3/8"*3/8" TV-A02-10020303 SUS Ball valve 3/8" TV-A08-00000003 Alarm (yellow flashing) N-3051 DC24V TV-B12-10N3051024 Buzzer PK-27A29EPQ (3~24V /DC) TV-B12-00PK27A29EPQ Thermometer (0-200) 1/4"PT L=50 TV-B07-0010020002 2.5"Process inlet tube TM-HCD180-029 2.5"Regen. outlet tube TM-HCD180-032 2.5"Process outlet tube TM-HCD-100-055...
  • Page 44 TK-E02-C(9~13A) 02C-W Breaker BO-100EB TV-B02-0B010 Breaker BO-100EB 50A TV-B02-0B0100EB50 100A 0EB100 Contactor TV-B03-00000 Contactor SC-E05PM-C 220V TV-B03-00000E05PM SC-E2PM-C 220V E2PM0 Contactor TV-B03-00000 Contactor SC-E2PM-C 220V TV-B03-00000E2PM0 SC-E3PM-C 220V E3PM0 Rotor speed control TWT SS-22 6W TV-A40-100TWTSS2225W Fuse base FS-10 TV-B10-03000FS-10 Transformer TP-BK-150VA TV-B04-460220V150-KL PCB MD1581...
  • Page 45 Drying Filter (φ170*L300) TV-A32-0200170300 Air inlet port of regen. blower filter TM-HCD300-024A Ventilation filter 120*120 TV-A32-0101120120 Plastic frame TV-A19-01000010 LCD display TV-B01-HCD-HMI HMI film TM-HCD180-PH-047 HMI fixed plate TM-HCD180-PH-046 Front movable cover on top 2 TM-HCD180-PH-049 Blinds ventilation filter 105*105 TV-A32-010000105105 Cooling fan (AC220V) 120*120 TV-A28-0012001200...
  • Page 46 TWT motor 4IK 25RGN-C TV-A40-1TWT4IK25RGNC Snap for rotor TV-A29-14000001 Proximity switch TL-0.5MC1 TV-B02-210TL05MC1 Synchronous wheel 21 MM * 22 gears TV-A29-13000655-1 Dew point meter aluminum block TM-SRD-20190529-001 Dew point meter fixed clip LDJ-015 TM-LDJ-015 Dew point meter CDT210 TV-A29-202CDT210 CONTROL BOX DOOR FASTENER MS1000-5) S1B4502 TV-A18-001000-5-1 DEPTH:2MM Handwheel switch FG-21E U4...
  • Page 47 FX-400460 DESCRIPTION FORMAX ITEM-NO Front cover on bottom HCD300-008X Handle TV-A45-0000000120 Filter lid TM-HCD180-PH-026X REGEN Filter (φ170*L150) TV-A32-0200170150 Filter hopper body TM-HCD300-024 DRYING Filter (φ170*L300) TV-A32-0200170300 Air inlet port of regen. blower filter TM-HCD300-024A Ventilation filter 120*120 TV-A32-0101120120 Plastic frame TV-A19-01000010 LCD display TV-B01-HCD-HMI...
  • Page 48 Left cover TM-HCD300-PH-011 Copper nipple 3/8"*3/8" TV-A02-10020303 SUS Ball valve 3/8" TV-A08-00000003 Alarm (yellow flashing) N-3051 DC24V TV-B12-10N3051024 Buzzer PK-27A29EPQ (3~24V /DC) TV-B12-00PK27A29EPQ Thermometer (0-200) 1/4"PT L=50 TV-B07-0010020002 3"Process inlet tube HCD300-029 3"Regen. outlet tube TM-HCD300-032 3"Process outlet tube HCD300-PH-015 Drying temperature probe (1/8PT*50L*10M) TV-A14-00105080 Insulation cover of drying heater...
  • Page 49 Transformer TP-BK-150VA TV-B04-460220V150-KL PCB MD1581 TV-B01-00010M1581-1 Orange hose φ2.5" TV-A30-066000002504-15 Orange hose φ3" TV-A30-066000003004-15 Key YS-08 TV-A18-200YS-08 MACHINE BODY DOOR FASTENER MS1000-5(S1B4504) TV-A18-001000-5-2 DEPTH:4MM DRYER BLOWER INLET TUBE TM-HCD400-PH-050 DRYER BLOWER OUTLET TUBE TM-HCD400-031 REGEN BLOWER IN/OUTLET TUBE TM-HCD100-031 Stock Spare Part List PHOTO NAME CMH VOL Q'TY U/M...
  • Page 50 12KW AC230/60HZ TM-SRD-HCD180-045-1 SRD-HCD180-045 12KW AC460/60HZ TM-SRD-HCD180-045 SRD-HCD180-045 TM-SRD-HCD300-PH-045-02 15KW AC460V/60HZ TM-SRD-HCD400-PH-045-02 18KW AC460V/60HZ TV-A42-0025000038 2.5KW 220/480V/60HZ/3P TM-FCD-550D5-052-385 4KW 230V/60HZ/3P TV-A42-0040000046 4KW 460V/60HZ/3P REGEN. TM-HCD180-610-1-26 5.0KW 230V/60HZ/3P HEATER TM-HCD180-610-1-46 5.0KW 460V/60HZ/3P TM-HCD400-610-1-46 8.5KW 460V/60HZ/3P TM-HCD400-610-1-46 8.5KW 460V/60HZ/3P TV-A32-0200170150 D180A-602 170*150mm DRYING FILTER TV-A32-0200170300...
  • Page 51 PP(S+M)R-250*400/old TV-A29-12230020 300*200/new (180CMH) PP(S+M)R-350*200 TV-A29-12234020 (300CMH) PP(S+M)R-350*400 TV-A29-12235040 (400CMH) TV-A40-1000TWTG2N36K G-2N36-K TV-A40-100TWTG2N10XK G-2N10X-K TV-A40-10TWTM2IK6NCV M-2IK6N-CV ROTOR TV-A40-1TWTSS2I6AC6W SS-2I6A-C 6W MOTOR (INCL. SPEED ADJUSTMENT) 4GN 10X (for 400CMH） TV-A40-1000TWT4GN10X 4GN 75K (for 400CMH） TV-A40-1000TWT4GN75K SS-22 25W (for 400CMH） TV-A40-100TWTSS2225W 4IK 25RGN-C (for TV-A40-1TWT4IK25RGNC 400CMH) φ1.5"...
  • Page 52 φ3.0" *4M TV-A30-066000003004-15 φ3.0" *4M TV-A30-066000003004-15 TM-HCD050-603 HCD050-603 DO50A-603 TM-HCD180-603 HCD180-610-3 D180A-603 COOLER TM-HCD300-603 HCD300-610-3 D300A-603 3/4"(50M/ROLL) G.M.H. REINFORCED HOSE TV-A30-080300000006 (CONNECT TV-A30-080300000008 1"(50M/ROLL) COOLING WATER) M1581 TV-B01-00010M1581-1 230V/480V/50HZ/60HZ M1581 TV-B01-00010M1581-1 230V/480V/50HZ/60HZ M1581 TV-B01-00010M1581-1 230V/480V/50HZ/60HZ M1581 TV-B01-00010M1581-1 230V/480V/50HZ/60HZ M1581 TV-B01-00010M1581-1 230V/480V/50HZ/60HZ M1581 TV-B01-00010M1581-1...
  • Page 53 DEWPOINT CDT210(-80..+20°C) TV-A29-202CDT210 METER (PROBE) PROBE (1/8PT*50L*4M) TV-A14-00105040 THERMOCOUPLE （1/8PT*50L*10M） TV-A14-00105080 TV-B04-460220V150-KL 460V TO AC220V/150VA TRANSFORMER TV-B04-460220V150-KL 460V TO AC220V/150VA TV-B04-460220V150-KL 460V TO AC220V/150VA TV-B04-460220V150-KL 460V TO AC220V/150VA BREAKER TV-B02-0B0100EB50 BO-100EB 50A...
  • Page 54 TV-B02-0B0100EB100 BO-100EB 100A TV-B02-0B0100EB50 BO-100EB 50A TV-B02-0B0100EB100 BO-100EB 100A TV-B02-0B0100EB100 BO-100EB 100A VENTILATION FAN (IN TV-A28-0012001200 120*120mm CONTROL BOX) TV-B03-00000E02PM SC-E02PM-C COIL 220V TV-B03-00000E05PM SC-E05PM-C COIL 220V TV-B03-00000E1PM0 SC-E1PM-C COIL 220V TV-B03-00000E02PM SC-E02PM-C COIL 220V TV-B03-00000E1PM0 SC-E1PM-C COIL 220V TV-B03-00000E2PM0 SC-E2PM-C COIL 220V TV-B03-00000E02PM SC-E02PM-C COIL 220V...
  • Page 55 TV-B03-01TKE02C-W TK-E02-C(9~13A) TV-B03-01TKE02C-M TK-E02-C(1.4~2.2A) TV-B03-01TKE02C-T TK-E02-C(5~8A) TV-B03-01TKE02C-R TK-E02-C(2.8~4.2A) TV-B03-01TKE02C-V TK-E02-C(7~11A) TV-B03-01TKE02C-R TK-E02-C(2.8~4.2A) TV-B03-01TKE02C-X TK-E02-C(12~18A) TV-B10-03000FS-10 FS-10 TV-B10-1200010030 1A/30mm TV-B10-03000FS-10 FS-10 TV-B10-1200010030 1A/30mm TV-B10-03000FS-10 FS-10 TV-B10-1200010030 1A/30mm TV-B10-03000FS-10 FS-10 FUSE BASE/FUSE(GLASS) TV-B10-1200010030 1A/30mm TV-B10-03000FS-10 FS-10 TV-B10-1200010030 1A/30mm TV-B10-03000FS-10 FS-10 TV-B10-1200010030 1A/30mm TV-B10-03000FS-10 FS-10 TV-B10-1200010030...
  • Page 56 CASTER (BLACK TV-A26-00003101 BASE W/ BRAKE) PROXIMITY TV-B02-210TL05MC1 TL-0.5MC1 SWITCH (0-200) 1/4"PT L=50 （DEGREE C/F） THERMOMETER TV-B07-0010020002 TV-A29-10022810 50CHM 228XL, W10MM DA18 (348XL, W18M) TV-A29-11034410-1 BELT TV-A29-11048012 DA30 (480L*W12.5), MODEL 480L W11MM(TM-RB-05) TV-A29-13000315 31.5MM DIA. 20 GROOVE W20MM TV-A29-13000315-1 SYNC. WHEEL 31.5MM DIA.
