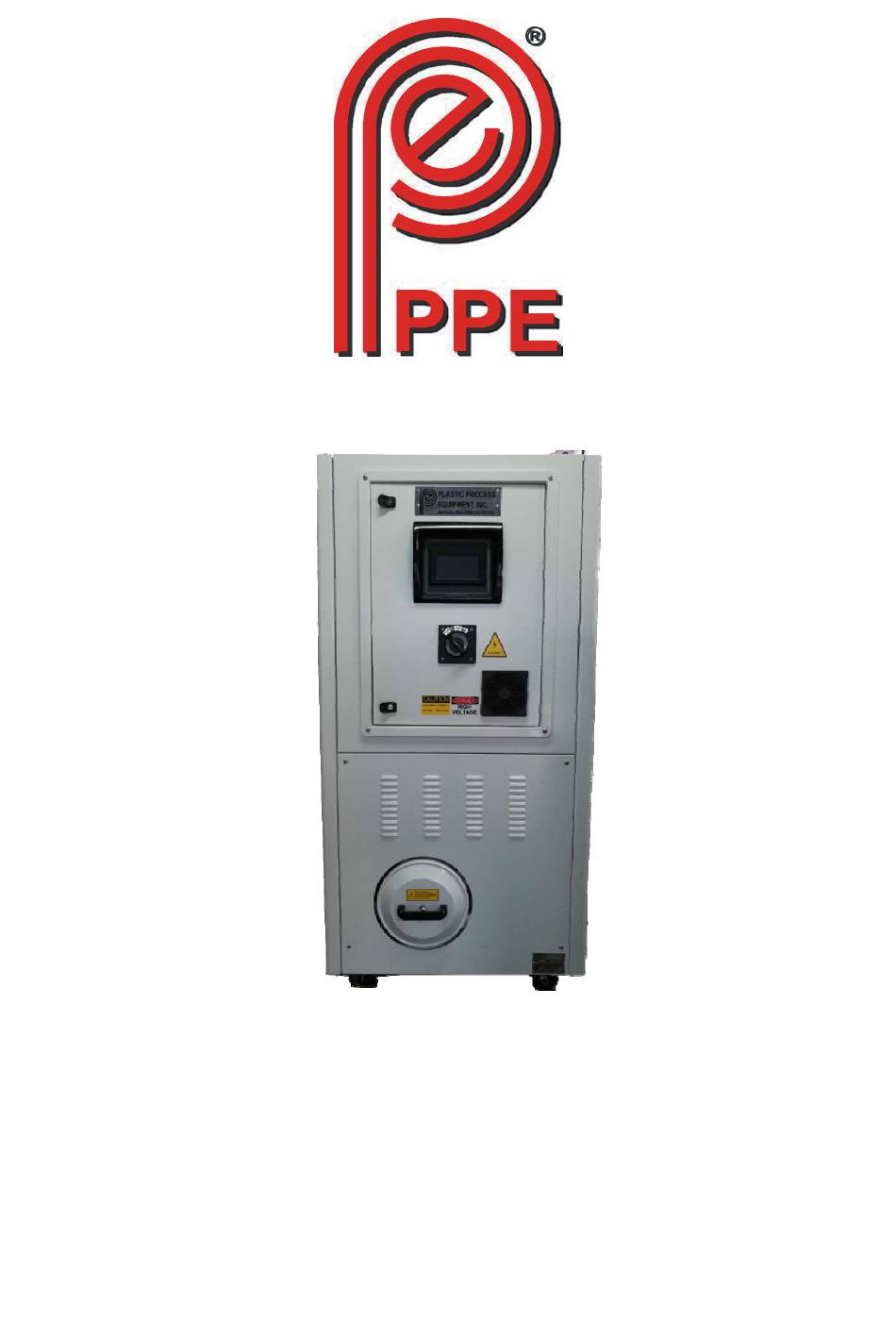

FX-D4 SERIES DESICCANT DEHUMIDIFIER
Installation, Operation, and Maintenance Manual
Plastic Process Equipment, Inc.
8303 Corporate Park Drive
Macedonia, OH 44056
Phone: (216) 367-7000
Fax: (216) 367-7022
E-Mail: ppe@nls.net
For further information visit us on the web at http://www.ppe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-D4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PPE FX-D4 Series

Summary of Contents for PPE FX-D4 Series

  • Page 1 FX-D4 SERIES DESICCANT DEHUMIDIFIER Installation, Operation, and Maintenance Manual Plastic Process Equipment, Inc. 8303 Corporate Park Drive Macedonia, OH 44056 Phone: (216) 367-7000 Fax: (216) 367-7022 E-Mail: ppe@nls.net For further information visit us on the web at http://www.ppe.com...

  • Page 3: Table Of Contents

    Table of Contents 1  INTRODUCTION  1‐1 SERIES DESICCANT DEHUMIDIFIER INTRODUCTION ............. 4            1‐2 PRINCIPLES OPERATION ....................4          1‐3 FX‐D4 SERIES DESICCANT DEHUMIDIFIER SPECIFICATION ..........5              1‐4 FRONT PANEL...

  • Page 4: 1  Introduction

    INTRODUCTION 1-1 FX SERIES DESICCANT DEHUMIDIFIER INTRODUCTION Congratulations on your purchase of the PPE FX Series Desiccant Dehumidifier from Plastic Process Equipment, Inc. The FX Series Desiccant Dehumidifier offers the finest in resin drying technology, however, this machine can only provide maximum service if properly installed, operated, and maintained.

  • Page 5: Fx-D4 Series Desiccant Dehumidifier Specification

    Figure 1-1. Air streams 1-3 FX-D4 SERIES DESICCANT DEHUMIDIFIER SPECIFICATION MODEL NO. FX-050 FX-100 FX-180 FX-300 FX-400 Air Flow Dewpoint °C -40° -40° -40° -40° -40° Drying Blower 0.75 Drying Heater Regen. Blower 0.18 0.18 0.75 0.75 Regen. Heater Processing Heater...

  • Page 6: Front Panel Controls

    1-4 FRONT PANEL CONTROLS The front panel of the FX Series Dehumidifier contains all controls and indicators necessary for dehumidifier operation. For a description of the controls and indications, refer to Figure 1-2 and the following list: Power On indicator – This black switch turned to “on” when power has been supplied to the dehumidifier.
  • Page 7 Regeneration Temperature (Desiccant temp)– This selector controls the temperature displayed on the Temperature Controller. The PV of the display shows the currently selected process variable. The SV of the display shows the process outlet temperature set point. (Default value °C /356 °F) Power switch –...

  • Page 8: 2  Installation

    INSTALLATION 2-1 INSPECTION UPON RECEIPT Thoroughly inspect the dehumidifier to ensure no damage has occurred during shipping. Inspect both the inside and outside of the dehumidifier. If any damage is found, a claim should be filed with the shipping company immediately. Please notify Plastic Process Equipment immediately so we may provide whatever assistance we can.

  • Page 9: Duct Work Connections

    ease of servicing. Electrical wiring to the equipment must be adequately sized for the minimum amperage shown on the unit nameplate. 2-4 DUCT WORK CONNECTIONS NOTE All supply and return air ductwork and hose connections for the dehumidifier must be air and vapor tight. Failure to achieve air and vapor tight connections may impact dehumidifier performance.
  • Page 10 the unit for optimum performance, water temperature required: 40 to 80 degrees F, for flexible tubing and water flow requirements see chart below: Model Flexible tubing diameter Iced water capacity Iced water flow LPM/GPM FX-50 3/4” 1500Kcal/H/10℃/50°F 10/2.6 FX-100 1” 3000Kcal/H/10℃/50°F 20/5.2 FX-180...

  • Page 11: 3  Operation

    OPERATION 3-1 INITIAL STARTUP After the dehumidifier has been installed it is ready for initial startup. The following items need to be checked when energizing the dehumidifier for the first time:  Verify fan rotation direction per paragraph 3-2.  Set process outlet temperature per paragraph 3-3.
  • Page 12 Figure 3-2. Process Filter Access Door If the process fan motor rotation is not visible, open the process filter access door shown in Figure 3-2. If the process fan is rotating in the proper direction, the dehumidifier should be sucking air in through the filter.

  • Page 13: Set The Process Oulet Temperature

    3-3 SET THE PROCESS OULET TEMPERATURE The process outlet temperature is set using the Temperature Controller on the front panel, shown in Figure 3-3 and is limited by the thermostat circuit board inside the cabinet. The top PROCESS TEMP of PV is displaying indicates the currently selected temperature for dry air.

  • Page 14: Thermal Probe

    3-6 THERMAL PROBE The thermal probe can be connected with hopper dryer. For more information on the thermal probe, refer to the manufacture’s documentation included with your hopper dryer. Figure 3-5. Thermal probe for connecting hopper dryer 3-7 HMI+PCB SETUP AND OPERATION 1.
  • Page 15 Start key area Name Description Remarks Power on/off Green color for on, red color for off Setting parameter Access code for entry Timer for on Blue color for on, red color for off Mute function 3. Setting temperature area Press , show digital keyboard Code indication Value...
  • Page 16  Press , fan motor, desiccant rotor entry running position.  Short after heater start running.  Press ,timer start, entry value.  In the alarm state, press release audible alarm.  Press for setting parameter, need access code. 5. Setting parameter In any state, press can be accessed shows entry keyboard, input...
  • Page 17 Press ，and input security code ”55555”, press entry page below Parameter value Name Press times Function description Unit Default Range CH1 setpoint limit 0～350 ℃/℉ CH2 setpoint limit 0～350 ℃/℉ 0: OFF Remote 1: ON Heater delay 0～9999 Motor shutdown delay 0～9999 0: stop as time Motor shutdown method...
  • Page 18 Com add 0-250 Com bps Com interv. 0-100 ON: Save OFF: Unsaved CH1 P band 20.0 0~+999.9 0~+9999 CH1 Intgral 0~+9999 CH1 Derivate CH1 C P band 1000 0~+999.9 0~+100 CH1 Anti wind CH2 P band 20.0 0~+999.9 0~+9999 CH2 Intgral 0~+9999 CH2 Derivate CH2 C P band...
  • Page 19 4300 -999~5000 CH3 Gain Back to previous page ** WARNING: Above parameters are for engineering, please don’t use it if not necessary.

  • Page 20: 4  Maintenance

    MAINTENANCE 4-1 DESICCANT ROTOR The desiccant rotor supplied with the dehumidifier, Figure 4-1, will last indefinitely under ideal conditions. However, by their very nature desiccants make good filters. The life of the desiccant is directly related to the airborne contaminants passed through it. Airborne contaminants, exposure to acidic gases or air streams, and contact with petroleum based airborne particles can reduce the efficiency of the desiccant rotor.

  • Page 21: Desiccant Rotor Seals

    4-2 DESICCANT ROTOR SEALS The top and bottom desiccant rotor seals, Figure 4-2, separate the process, reactivation, and purge air streams. The seals do not normally require service or replacement. Should damage occur, or if poor performance as the result of an air leak is suspected, the seals should be checked and replaced if necessary. Inspect the desiccant rotor seals at the following intervals: ...

  • Page 22: Desiccant Rotor Shell

    4-3 DESICCANT ROTOR SHELL Figure 4-3. Desiccant Rotor Shell 4-4 DESICCANT ROTOR DRIVE MOTOR The desiccant rotor drive motor is permanently lubricated and requires no maintenance, as shown in Figure 4-4. Figure 4-4. Desiccant Rotor Drive Motor 4-5 FILTERS The FX- Series Resin Dehumidifier include filters for process airflow, regeneration airflow, and two filters on the outside of the control box.
  • Page 23 Install replacement process filter into the dehumidifier. Make sure filter fits over the filter retaining tabs. Improper filter installation can lead to reduced performance and shorter life of the desiccant media. Install and tighten the wing nut. 6. Inspect the filter access door seals. Replace the seals if they are dry, brittle, or cracking. 7.

  • Page 24: Maintenance Record Form

    4-6 MAINTENANCE RECORD FORM 1. Machine Data Machine model ____________ Serial NO. _____________ Production date ______________ Voltage _____ ¢ ________ V Frequency ___________HZ Total Power _____________ 2. Installation Checklist ) Check there is enough space around the machine ) Check the connection pipe connected correctly ) Check voltage _________ V ________HZ ) Fuse size：...

  • Page 25: Troubleshooting Index

    TROUBLESHOOTING 5-1 TROUBLESHOOTING INDEX Troubleshooting procedures are provided in the form. Refer to the following table to determine which figure to refer to for the proper troubleshooting procedure. E01 DEHUM. PROBLLE OPEN E01 REGEN. PROBLLE OPEN E02 POWER PHASE FAILURE E03 DEHUM.MOTOR OVERLOAD E03 REGEN.MOTOR OVERLOAD E04 ROLLER FAILURE...

  • Page 26: 6  Technical Information

    TECHNICAL INFORMATION 6-1 WIRING, MODEL: FX-50/100/180 (230V/3￠/60HZ)
  • Page 28 FX-050230 Code Description of Goods Q’ty No-fuse breaker BO-100EB 50A(w/trigging function) 1 PC Trigger Regen. blower contactor SC-E02PM-C Coil 220V 1 PC Drying blower contactor SC-E02PM-C Coil 220V 1 PC Regen. heater contactor SC-E05PM-C Coil 220V 1 PC Drying heater contactor SC-E1PM-C Coil 220V 1 PC Regen.
  • Page 29 Fuse base w/1A fuse 1 PC Buzzer (DC24V) 1 PC DPM-1-S Dewpoint meter(DPM-1-S) 1 PC Switch(detect rotor) 1 PC CH1+ Drying thermocouple+ 1 PC CH1- Drying thermocouple- 1 PC CH2+ Regen. thermocouple+ 1 PC CH2- Regen. thermocouple- 1 PC M1581 I/O board 220V~380V 1 PC FX-180230...

  • Page 30: Wiring, Model: Fx-100/180/300/400 (460V/3￠/60Hz)

    6-2 WIRING, MODEL: FX-100/180/300/400 (460V/3￠/60HZ)
  • Page 32 FX-100460 Code Description of Goods Q’ty No-fuse breaker BO-100EB 50A(w/trigging function) 1 PC Trigger Regen. blower contactor SC-E02PM-C Coil 220V 1 PC Drying blower contactor SC-E02PM-C Coil 220V 1 PC Regen. heater contactor SC-E04PM-C Coil 220V 1 PC Drying heater contactor SC-E05PM-C Coil 220V 1 PC Regen.
  • Page 33 Transformer 460V to 220V/150VA 1 PC Speed regulator 1 PC Fuse base w/1A fuse 1 PC Buzzer (DC24V) 1 PC DPM-1-S Dewpoint meter(DPM-1-S) 1 PC Switch(detect rotor) 1 PC CH1+ Drying thermocouple+ 1 PC CH1- Drying thermocouple- 1 PC CH2+ Regen.
  • Page 34 FX-400460 Code Description of Goods Q’ty No-fuse breaker BO-100EB 100A(w/trigging function) 1 PC Trigger Regen. blower contactor SC-E02PM-C Coil 220V 1 PC Drying blower contactor SC-E05PM-C Coil 220V 1 PC Regen. heater contactor SC-E2PM-C Coil 220V 1 PC Drying heater contactor SC-E3PM-C Coil 220V 1 PC Regen.

  • Page 35: Explosion View (Fx Series)

    6-3 EXPLODED VIEW (FX SERIES)
  • Page 36 Spare Part List Description of Goods Part Number Q’ty Front cover on bottom SRD-HCD180-PH-008 Filter lid HCD180-026 Filter hopper body HCD180-024 Air inlet port of regen. blower filter HCD180-PH-033 Ventilation filter TV-A04-009702 Filter D180A-602 Plastic frame TV-A19-01000010 Circuit board (181+LCD) TV-B01-00010M1479B HMI film HCD180-PH-047...
  • Page 37 Heater D180AA-610 3" Caster w/brake TV-A0004-03001A 2PCS Right cover HCD180-PH-010 Right fixed plate HCD180-PH-015 2PCS Front right fixed column HCD180-PH-002 Cooler D180A-603 Bottom cover HCD180-PH-001 Drying heater SRD-HCD180-PH-045-01 Processing Blower TV-A21-03005293 3" Caster TV-A0004-03001 2PCS Crossed HCD180-017 Intermediate fixed plate HCD180-PH-019 Regen.
  • Page 38 TV-A42-0040000038-6 4KW 230V/60HZ/3P 6.0KW AC230/60HZ TM-HCD100-045-1 HCD100-045 6.0KW AC460/60HZ TM-HCD100-045 HCD100-045 DRYING 12KW AC230/60HZ TM-SRD-HCD180-045-1 HEATER SRD-HCD180-045 12KW AC460/60HZ TM-SRD-HCD180-045 SRD-HCD180-045 TM-CDH400N-019-1 15KW AC460V/60HZ TM-CDH400N-019-2 18KW AC460V/60HZ TV-A42-0025000048 2.5KW 220/480V/60HZ/3P TV-A42-0040000038-6 4KW 230V/60HZ/3P TV-A42-0040000046 4KW 460V/60HZ/3P REGEN. TM-HCD180-610-1-26 5.0KW 230V/60HZ/3P HEATER TM-HCD180-610-1-46 5.0KW 460V/60HZ/3P...
  • Page 39 PP(S+M)R-150*200 TV-A29-12215020 (50CMH) PP(S+M)R-250*200 TV-A29-12225020 (100CMH) DESICCANT ROTOR(W/O PP(S+M)R-250*400/old SHELL) TV-A29-12230020 300*200/new (180CMH) PP(S+M)R-350*200 TV-A29-12234020 (300CMH) PP(S+M)R-350*400 TV-A29-12235040 (400CMH) TV-A40-1000TWTG2N36K G-2N36-K TV-A40-100TWTG2N10XK G-2N10X-K TV-A40-10TWTM2IK6NCV M-2IK6N-CV ROTOR TV-A40-1TWTSS2I6AC6W SS-2I6A-C 6W MOTOR (INCL. SPEED ADJUSTMENT) 4GN 10X (for 400CMH） TV-A40-1000TWT4GN10X 4GN 75K (for 400CMH） TV-A40-1000TWT4GN75K SS-22 25W (for 400CMH）...
  • Page 40 TV-A30-066000002004 φ2" *4M ORANGE HOSE TV-A30-066000002504 φ2.5" *4M (PROCESS OUTLET AND INLET) TV-A30-066000003004 φ3.0" *4M TV-A30-066000003004 φ3.0" *4M TM-HCD050-603 HCD050-603 DO50A-603 HCD180-610-3 TM-HCD180-603 D180A-603 COOLER HCD300-610-3 TM-HCD300-603 D300A-603 3/4"(50M/ROLL) G.M.H. REINFORCED TV-A30-080300000006 HOSE(CONNECT TV-A30-080300000008 COOLING 1"(50M/ROLL) WATER) MD1479B TV-B01-00010M1479B-1 220V/380V/50HZ/60HZ MD1479B TV-B01-00010M1479B-1 220V/380V/50HZ/60HZ...
  • Page 41 DEWPOINT TV-A29-3000DPM1-3 DPM-1-S DISPLAY METER (INCL. TV-A29-3000DPM1-1 HS-2 PROBE PORBE) TV-A14-00105040 （1/8PT*50L*4M) THERMOCOUPLE TV-A14-00105080 （1/8PT*50L*10M） 460V TO TV-B04-3846022018VA AC220V/150VA,AC18V/10VA TRANSFORMER 460V TO TV-B04-3846022018VA AC220V/150VA,AC18V/10VA 460V TO TV-B04-3846022018VA AC220V/150VA,AC18V/10VA 460V TO TV-B04-3846022018VA AC220V/150VA,AC18V/10VA TV-B02-0B0100EB50 BO-100EB 50A BREAKER TV-B02-0B0100EB100 BO-100EB 100A TV-B02-0B0100EB50 BO-100EB 50A TV-B02-0B0100EB50 BO-100EB 50A...
  • Page 42 VENTILATION FAN (IN TV-A32-010000105105 105*105mm CONTROL BOX)
