Page 1

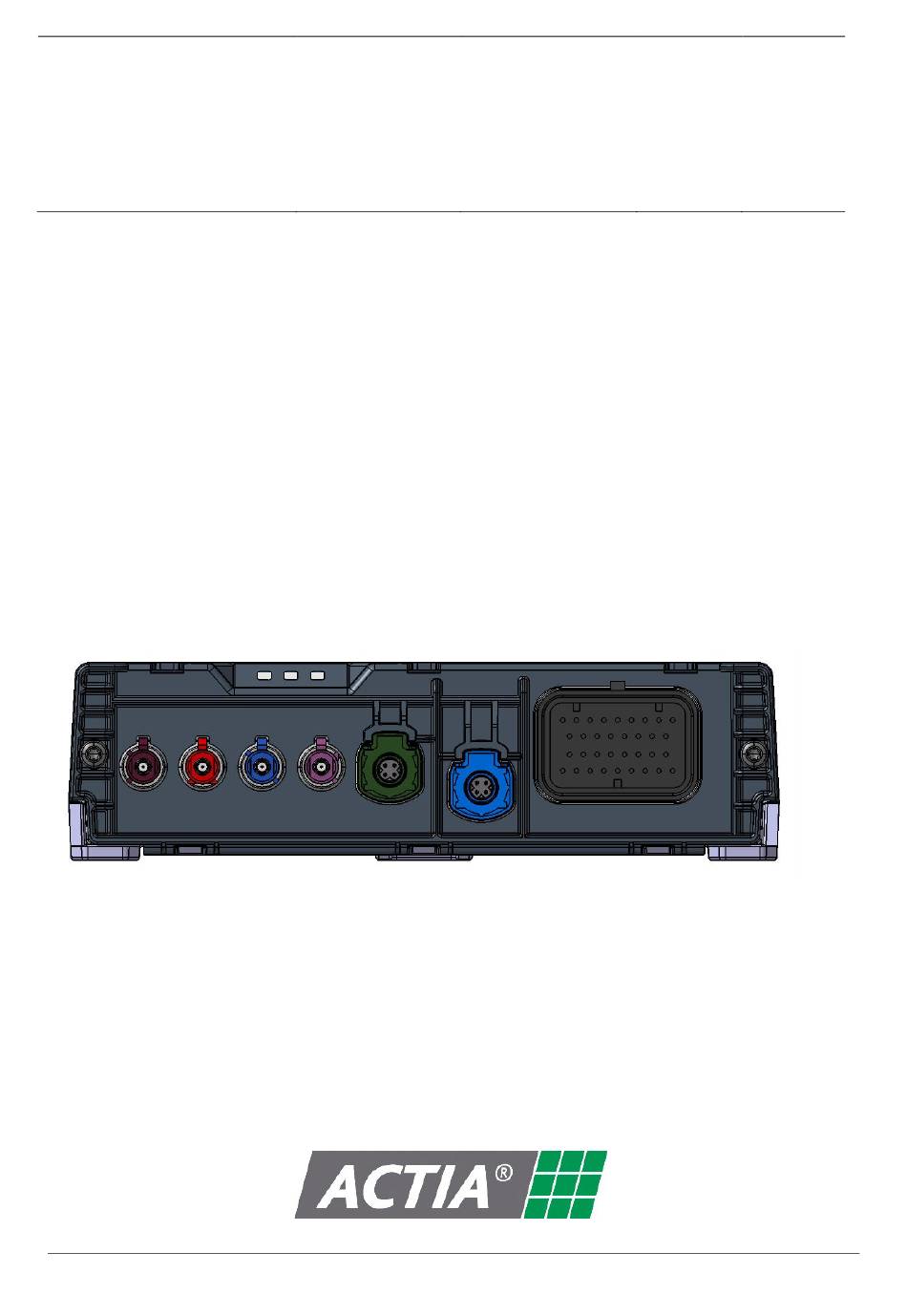

Revision & Status ACU6 Off Highway User Manual - ACTIA Group U - Uncontrolled 104760201 Released ACU6 O IGHWAY ANUAL 104760201 Copyright © 2018 ACTIA NORDIC AB Proprietary & Confidential Actia Nordic AB SWEDEN info@actia.se www.actia.se...
Page 2: Table Of Contents
General ...............................6 Cellular ..............................6 2.2.1 Bands and output power ......................6 WLAN ..............................7 2.3.1 2.4GHz ............................7 2.3.2 5GHz ............................7 COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 3
5.1.2 OEM Requirements ........................11 Canada (ISED) ..........................12 5.2.1 ISED Warnings and Notices ....................... 12 5.2.2 OEM Requirements ........................12 COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...

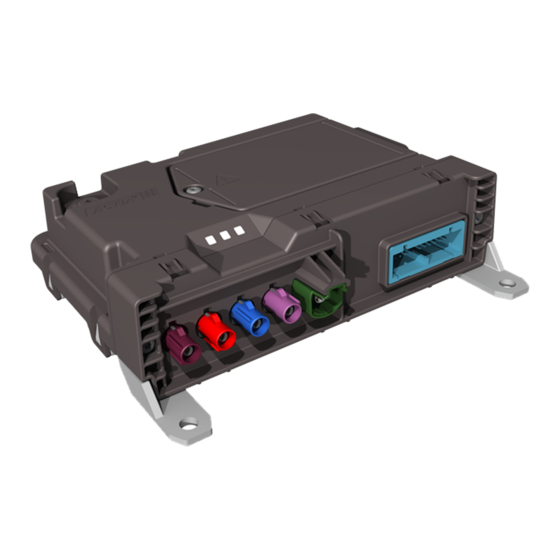

Page 4: Product Description
The product is not designed so that the user can replace the SIM. 1.4 P OWER SUPPLY 1.4.1 External supply Operating voltage range: 7,5V – 60,0V. Nominal 12V, 24V, 48V COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 5: Backup Battery
104760201 can also be operated without external power source using an internal rechargeable battery pack. In this mode some functionality is disabled. 1.5 T EMPERATURE RANGE Operating temperature range: -40 to +70 C. COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 6: Rf Description
Bd26 (850), Bd 28 (700), Bd66 (2100) Bd38 (2600), Bd41 (2600) LTE TDD Class 3 (+23dBm ±2dB) *Bd41 not used in Europe, USA, Canada COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 7: 2.3 Wlan
14 dBm 14 dBm 14 dBm 14 dBm 14 dBm 14 dBm 14 dBm 14 dBm 14 dBm 14 dBm 14 dBm COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 8: 40 Mhz Bandwidth
Both Bluetooth Classic and Bluetooth Low Energy (BLE) is supported. Output power class 1. 2.5 GNSS System Band GLONASS L1 FDMA Galileo Beidou COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 9: Functional Description
The product can send GNSS position data on the CAN bus. The GNSS data can be used by other ECUs in the vehicle, for instance the navigation system. COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 10: Installation And Maintenance
Central Electronic Module in the vehicle is alerted, and will display a warning to the driver. Maintenance and replacement of the product can only be performed by certified workshops. COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
Page 11: Regulatory Certifications
FCC Warnings and Notices WARNING: The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by ACTIA Nordic AB could void the user's authority to operate the equipment.
Page 12: Canada (Ised)
(1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. COPYRIGHT © 2018 ACTIA NORDIC AB PROPRIETARY & CONFIDENTIAL ACTIA Nordic AB SWEDEN info@actia.se www.actia.se...
