Technical Support and E-Warranty Certificate www.vevor.com/support

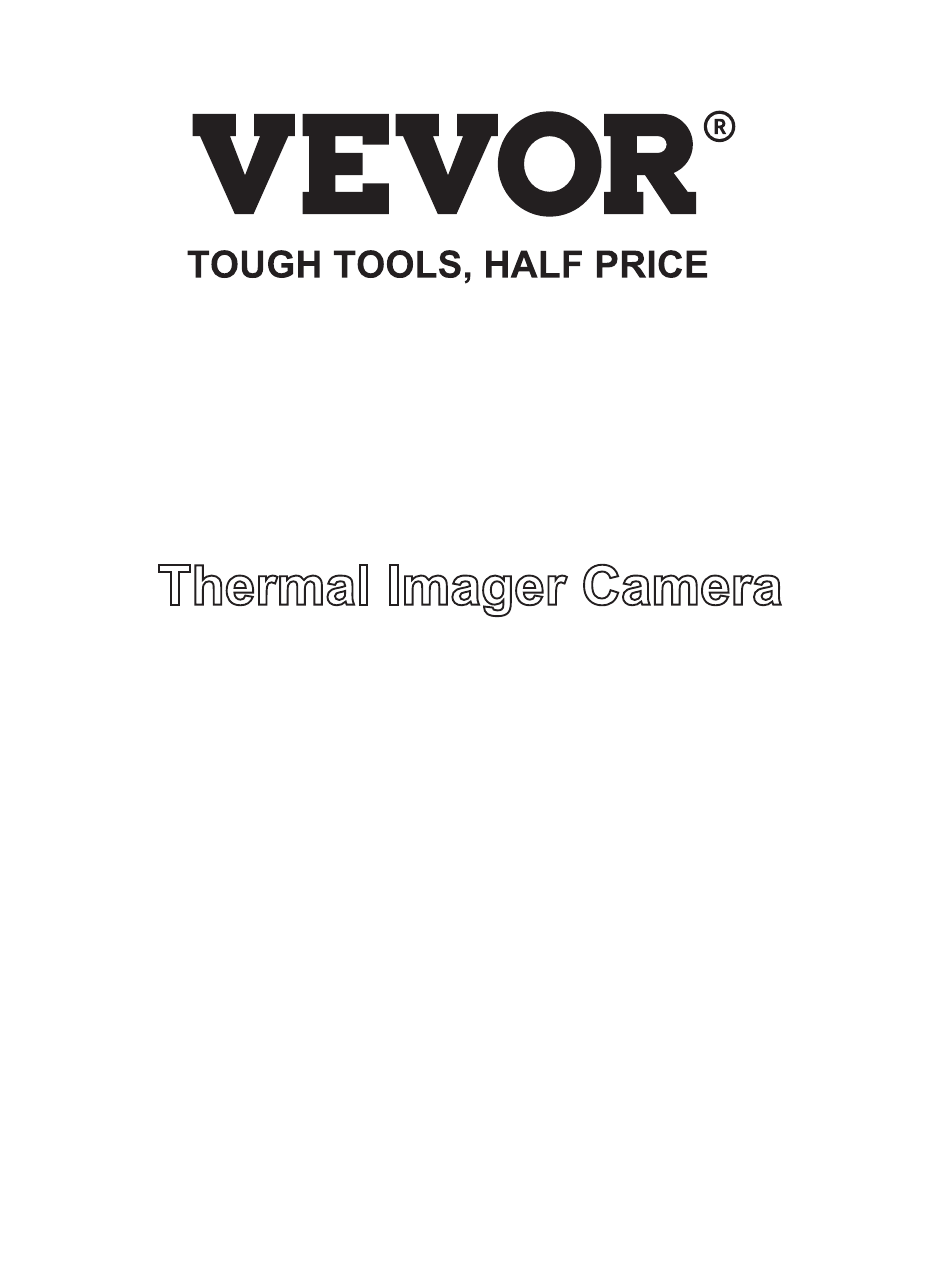

Thermal Imager Camera
MODEL:HT-W01
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us.
You are kindly reminded to verify carefully when you are placing an order with us if you
are actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR HT-W01
Summary of Contents for VEVOR HT-W01
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support Thermal Imager Camera MODEL:HT-W01 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction , please read all manual instructions carefully before operating . VEVOR reserves a clear interpretation of our user manual . The appearance of the product shall be subject to the product you received . Please forgive us that we...
-
Page 4: Table Of Contents
Content 1. Cautions 2. Product Summary 2.1 Application Scenes 2.2 Major Functions 3. Product Structures 3.1 Structure Introduction 3.2 Description of Indicators 4. Product Application 4.1 Equipment Power On 4.2 Equipment Power Off 4.3 Equipment Charging 4.4 Equipment Connection 5. Software Operation 5.1 Software Interface 5.2 Library, Photography and Video Recording 5.3 Shutter Refreshing... -
Page 5: Cautions
To use this mobile phone infrared thermal imager, you need to download and install the mobile phone infrared thermal imager “HT-W01 Wireless WIFI Mobile Thermal Imager” APP. Through this APP, you can achieve infrared observation and tempera- ture measurement functions. -
Page 6: Major Functions
Scan QR code to download the App 2.2 Major functions The following functions are to be achieved: (1) Open the applied software for mobile phone infrared thermal imager to achieve infrared observation and measure- ment; (2) to perform infrared temperature measurement, and temperature analysis;... -
Page 7: Product Structures
3. Product structures 3.1 Structure introduction Infrared thermal image sensor Visible light camera Bottom cover Indicator Power on/ off button Type-c interface 3.2 Description of indicators Status indicator: blue light Power on indicator: green light Charging indicator: red... -
Page 8: Product Application
After it is fully charged, the charging indicator is not on. 4.4 Device connection Connecting WIFI (1) Open your mobile phone WIFI connection screen, and fine the WIFI name prefixed with HT-W01-; (2) Enter WIFI password 12345678 and connect it;... - Page 9 (3) After WIFI connection becomes successful, go to the APP, and click on the “ ” button to start connecting the device. Play button: After it is clicked, it starts to play images, and you can perform related operations. 1. After WIFI connection is successful, and when the device is disconnected, click to connect the device;...
-
Page 10: Software Operation
5. Software operation 5.1 Software interface Temperature Library button setting button Color palette Image capture button allocation button Temperature Video recording button measurement button Shutter refreshing button Playback button Status of device Setting button failure to connect... -
Page 11: Library, Photography And Video Recording
5.2 Library, shooting and video recording (1) “ ” library: Click to view images and videos; Enter the image list page ● Long press the image or click on the icon in the right upper corner to be able to delete image files; ●... -
Page 12: Temperature Measurement Analysis
5.4 Temperature Measurement Analysis Click “ ” to pop out option of temperature measurement. Point temperature measurement Line temperature measurement analysis Regional temperature measurement analysis (1) Point temperature measurement: click the point temperature measurement button, and the screen will display the tempera- ture information of three points, namely the central temperature point, the highest temperature point and the lowest temperature point. - Page 13 Line temperature measurement analysis (3) Regional temperature measurement analysis: drag with your fingers and draw a rectangle on the screen. it will automatically analyze the maximum temperature and minimum temperature in the rectangular area, and identify relevant information, as shown in the following figure: Regional temperature measurement analysis...
-
Page 14: Color Palette
5.5 Color palettes Click on “ ” to pop up the color palette interface. You can switch among 10 color palettes such as white heat, glowing gold, iron red, rainbow, shimmer, aurora, red heat, jungle, medical, and black heat, as shown in the figure below. The display effects of 10 color palettes is shown as follows: White hot Sepia... - Page 15 Ironbow Rainbow Night Aurora Red hot Jungle Medical Black hot...
-
Page 16: Temperature Measurement Setting
5.6 Temperature measurement setting Click on “ ” to pop up the setting interface. You can set temperature unit, temperature measurement range, emissivity, temperature measurement distance, brightness, contrast, fusion, picture in picture, overlap, time-domain noise reduction, spatial noise reduction, and detail enhancement, or reset all parameters, as shown in the figure below: 5.7 Setting Click on “... -
Page 17: Technical Parameters
6.Technical parameters Model HT-W01 Infrared Vanadium Oxide Uncooled Infrared Detector type Focal Plane Infrared image 256×192 resolution Pixel spacing 12μm Focal length 3.2mm Angle of view 56°(H)×42°(V) IFOV 3.75mrad Working band 8~14μm ≤ 50mk@25℃,@F/1.0 NETD Image frame rate ≤25Hz Focusing mode... - Page 18 Temperature measurement function Temperature point, line and regional temperature measurement measurement mode -20℃~120℃， 120℃～ 550℃ Temperature measurement range Temperature 0.25m~30m measuring distance 300℃-550℃:±4% -15℃-300℃:±2℃or ±2% Temperature -20℃-15℃:±4℃ measurement accuracy System function Camera/video Supported JPG/MP4 Picture /Video format Chinese and English Language Overall power ≤1.5W...
- Page 19 CORRECT DISPOSAL This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.
- Page 20 This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of...
- Page 21 说明书印刷要求 尺寸：90x115mm 四色印刷 128g 双铜 骑马订...
