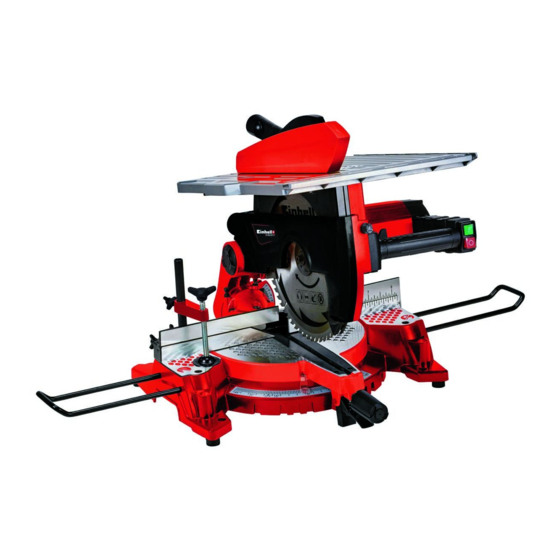

Crosscut and mitre saw with table
Hide thumbs Also See for TC-MS 3017 T:
Table of Contents

Advertisement

Quick Links

Download this manual
D
Originalbetriebsanleitung
Kapp-Gehrungssäge mit Obertisch
GB
Original operating instructions
Crosscut and mitre saw with table
F
Instructions d'origine
Scie tronçonneuse à onglet à table
supérieure
I
Istruzioni per l'uso originali
Troncatrice con piano superiore
DK/
Original betjeningsvejledning
N
Kap-/geringssav med overplade
S
Original-bruksanvisning
Kap- och geringssåg med över-
bord
CZ
Originální návod k obsluze
Kapovací a pokosová pila s horním
stolem
SK
Originálny návod na obsluhu
Kapovacia a pokosová píla
s horným stolom
NL
Originele handleiding
Kap- en verstekzaag met boven-
tafel
E
Manual de instrucciones original
Sierra ingletadora
7
Art.-Nr.: 43.003.47
Anl_TC_MS_3017_T_SPK7.indb 1
TC-MS 3017 T
P
Manual de instruções original
Serra de corte transversal e meia-
esquadria com mesa superior
RUS
Оригинальное руководство по
эксплуатации
Торцово-усорезная пила со
столом
GR
Πρωτότυπες Οδηγίες χρήσης
Φαλτσοπρίονο με πάγκο εργασίας
I.-Nr.: 11015
21.12.2016 17:37:12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-MS 3017 T and is the answer not in the manual?

Questions and answers

Related Manuals for EINHELL TC-MS 3017 T

Summary of Contents for EINHELL TC-MS 3017 T

  • Page 1 TC-MS 3017 T Originalbetriebsanleitung Manual de instruções original Kapp-Gehrungssäge mit Obertisch Serra de corte transversal e meia- esquadria com mesa superior Original operating instructions Crosscut and mitre saw with table Оригинальное руководство по эксплуатации Instructions d’origine Торцово-усорезная пила со Scie tronçonneuse à onglet à table столом...
  • Page 2 - 2 -...
  • Page 3 - 3 -...
  • Page 4 - 4 -...
  • Page 5 - 5 -...
  • Page 6 - 6 -...
  • Page 7 - 7 -...
  • Page 8 Danger! - Read the operating instructions to reduce the risk of injury Caution! Wear ear-muff s. The impact of noise can cause damage to hearing. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials.

  • Page 9: Safety Regulations

    Danger! 25. Screw for miter setting When using the equipment, a few safety pre- 26. Knurled screw cautions must be observed to avoid injuries and 27. Stop rail damage. Please read the complete operating 28. Locking screw for cutting width instructions and safety regulations with due care.

  • Page 10: Proper Use

    3. Proper use applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes. The crosscut and miter saw with table is desig- ned for cross-cutting and for the longitudinal and lateral cutting (with cross stop only) of wood and 4.

  • Page 11: Before Starting The Equipment

    in exceptional circumstances. cessed before, watch out for foreign bodies such as nails or screws etc. • The speci ed vibration value can be used to Before you actuate the On/Off switch, make compare the equipment with other electric power sure that the saw blade is correctly fitted and tools.
  • Page 12 • • Move the machine head upwards and the Fasten the turntable (8) in 0° position. • turntable to the 0° position. Undo the tightening screw (22) and use the • Tighten the locking screw (10) and the tighte- handle (2) to tilt the machine head to the left ning screw (22).

  • Page 13: Operation

    6. Operation 6.1.3 Longitudinal cuts (Figure 20-22) • Undo the knurled screw (25) and set the cross and parallel stop (18) to 90°. Tighten After every new adjustment we recommend the knurled screw (25) again. you to make a trial cut in order to check the •...
  • Page 14 • After completing the cut, switch off the saw again. 6.2.4 Miter cut 0°- 45° and turntable 0° (Fig. 2-3/25) 6.2. Using as a crosscut saw The crosscut and miter saw with table can be Set the saw to crosscut mode (see 5.2.1) used to make miter cuts of 0°...

  • Page 15: Replacing The Power Cable

    7. Replacing the power cable Tip! For good results we recommend high-quality ac- Danger! cessories from If the power cable for this equipment is damaged, www.kwb.eu it must be replaced by the manufacturer or its welcome@kwb.eu after-sales service or similarly trained personnel to avoid danger.
  • Page 16 For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g.

  • Page 17: Service Information

    Service information We have competent service partners in all countries named on the guarantee certi cate whose contact details can also be found on the guarantee certi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
  • Page 18 Warranty certi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card.
