Ortech DHOS Installation Instruction

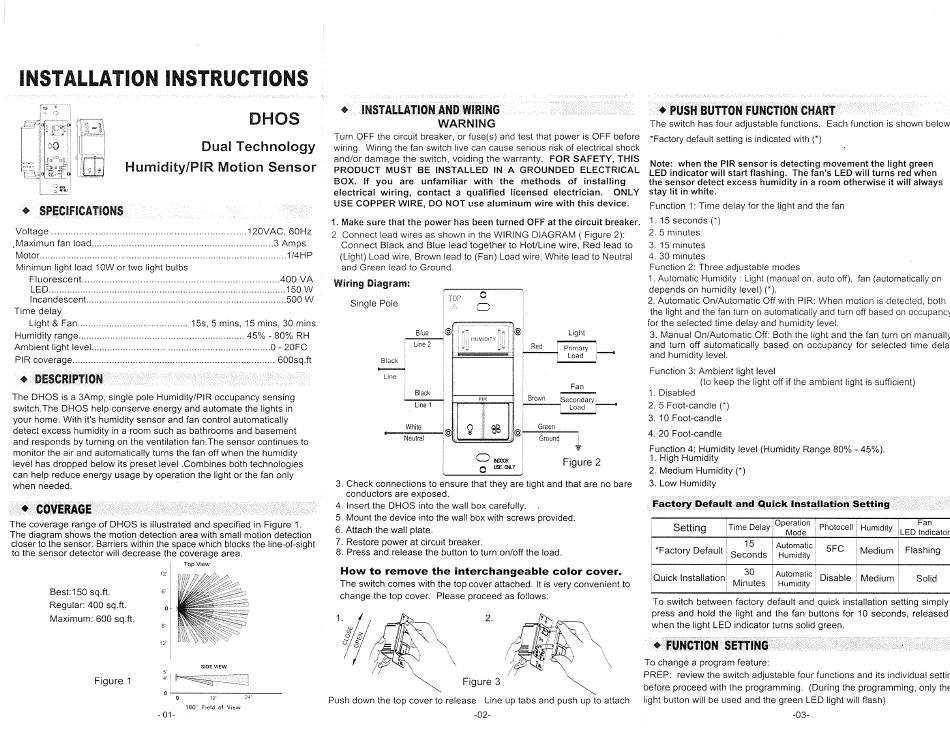

INSTALLATION INSTRUCTIONS
DHOS
Dual Technology
Humidity/PIR Motion Sensor
♦ SPECIFICATIONS
Minimun light load 10W or two light bulbs
Fluorescent..
♦ DESCRIPTION
15s, 5 mins, 15 mins, 30 mins
45%-80% RH
- 20FC
600sq.ft
The OHOS is a 3Amp, single pole Humidity/PIR occupancy sensing
switch.The OHOS help conserve energy and automate the lights in
your home. With it's humidity sensor and fan control automatically
detect excess humidity in a room such as bathrooms and basement
and responds by turning on the ventilation fan.The sensor continues to
monitor the air and automatically turns the fan off when the humidity
level has dropped below its preset level .Combines both technologies
can help reduce energy usage by operation the light or the fan only
when needed.
♦ COVERAGE
The coverage range of OHOS is illustrated and specified in Figure 1.
The diagram shows the motion detection area with small motion detection
closer to the sensor. Barriers within the space which blocks the line-of-sight
to the sensor detector will decrease the coverage area.
Best: 150 sq. ft.
Regular: 400 sq.ft.
Maximum: 600 sq.ft.
Figure 1
12'
6'
6'
12'
- 01-
SIDE VIEW
12'
180'' Field of View
♦ INSTALLATION AND WIRING
WARNING
Turn OFF the circuit breaker, or fuse(s) and test that power is OFF before
wiring. Wiring the fan switch live can cause serious risk of electrical shock
and/or damage the switch, voiding the warranty.
FOR SAFETY, THIS
PRODUCT MUST BE INSTALLED IN A GROUNDED ELECTRICAL
BOX. If you are unfamiliar with the methods of installing
electrical wiring, contact a qualified licensed electrician. ONLY
USE COPPER WIRE, DO NOT use aluminum wire with this device.
1. Make sure that the power has been turned OFF at the circuit breaker.
2. Connect lead wires as shown in the WIRING DIAGRAM ( Figure 2):
Connect Black and Blue lead together to Hot/Line wire, Red lead to
(Light) Load wire, Brown lead to (Fan) Load wire, White lead to Neutral
and Green lead to Ground.
Wiring Diagram:
Single Pole
Blue
c~
Line 2
Black
--
Line
Black
ITriei
White
Neutral
0
"
'----'
HUMIDITY
PIH
"
,, KO:
~ NlOOO
0
USE <>LY
Red
Brown
Green
Ground
Light
Primary
Load
Fan
Secondary;_____.
Load
;;
Figure
2
3. Check connections to ensure that they are tight and that are no bare
conductors are exposed.
4. Insert the OHOS into the wall box carefully.
5. Mount the device into the wall box with screws provided.
6. Attach the wall plate.
7.
Restore power at circuit breaker.
8. Press and release the button to turn on/off the load.
How to remove the interchangeable color cover.
The switch comes with the top cover attached. It is very convenient to
change the top cover. Please proceed as follows:
1.7'
8$
cf
g .
I 7
)t;::-'
/;
2.
Figure 3
...___
Push down the top cover to release Line up tabs and push up to attach
-02-
♦ PUSH BUTTON FUNCTION CHART
The switch has four adjustable functions. Each function is shown below
*Factory default setting is indicated with (*)
Note: when the PIR sensor is detecting movement the light green
LED indicator will start flashing. The fan's LED will turns red when
the sensor detect excess humidity in a room otherwise it will always
stay lit in white.
Function 1: Time delay for the light and the fan
1. 15 seconds(')
2. 5 minutes
3. 15 minutes
4. 30 minutes
Function 2: Three adjustable modes
1. Automatic Humidity : Light (manual on, auto off), fan (automatically on
depends on humidity level) (*).
2. Automatic On/Automatic Off with PIR: When motion is detected, both
the light and the fan turn on automatically and turn off based on occupancy
for the selected time delay and humidity level.
3. Manual On/Automatic Off: Both the light and the fan turn on manually
and turn off automatically based on occupancy for selected time dela:
and humidity level.
Function 3: Ambient light level
(to keep the light off if the ambient light is sufficient)
1. Disabled
2. 5 Foot-candle r)
3. 10 Foot-candle
4. 20 Foot-candle
Function 4: Humidity level (Humidity Range 80% - 45%).
1. High Humidity
2. Medium Humidity (*)
3. Low Humidity
Factory Default and Quick Installation Setting
Setting
T
O I
Operation
: ,me e ay Mode
Photocell
. . Fan
Humcdcty
'LED
Indicator
15
Automatic:
5FC
Flashing *Factory Default
Seconds Humidity
Medium
Quick Installation
30
Automatic
Disable ' Medium Solid
Minutes
Humidity
To switch between factory default and quick installation setting simply
press and hold the light and the fan buttons for 1 O seconds, released
when the light LED indicator turns solid green.
♦ FUNCTION SETTING
To change a program feature:
PREP: review the switch adjustable four functions and its individual settin
before proceed with the programming. (During the programming, only the
light button will be used and the green LED light will flash)
-03-
