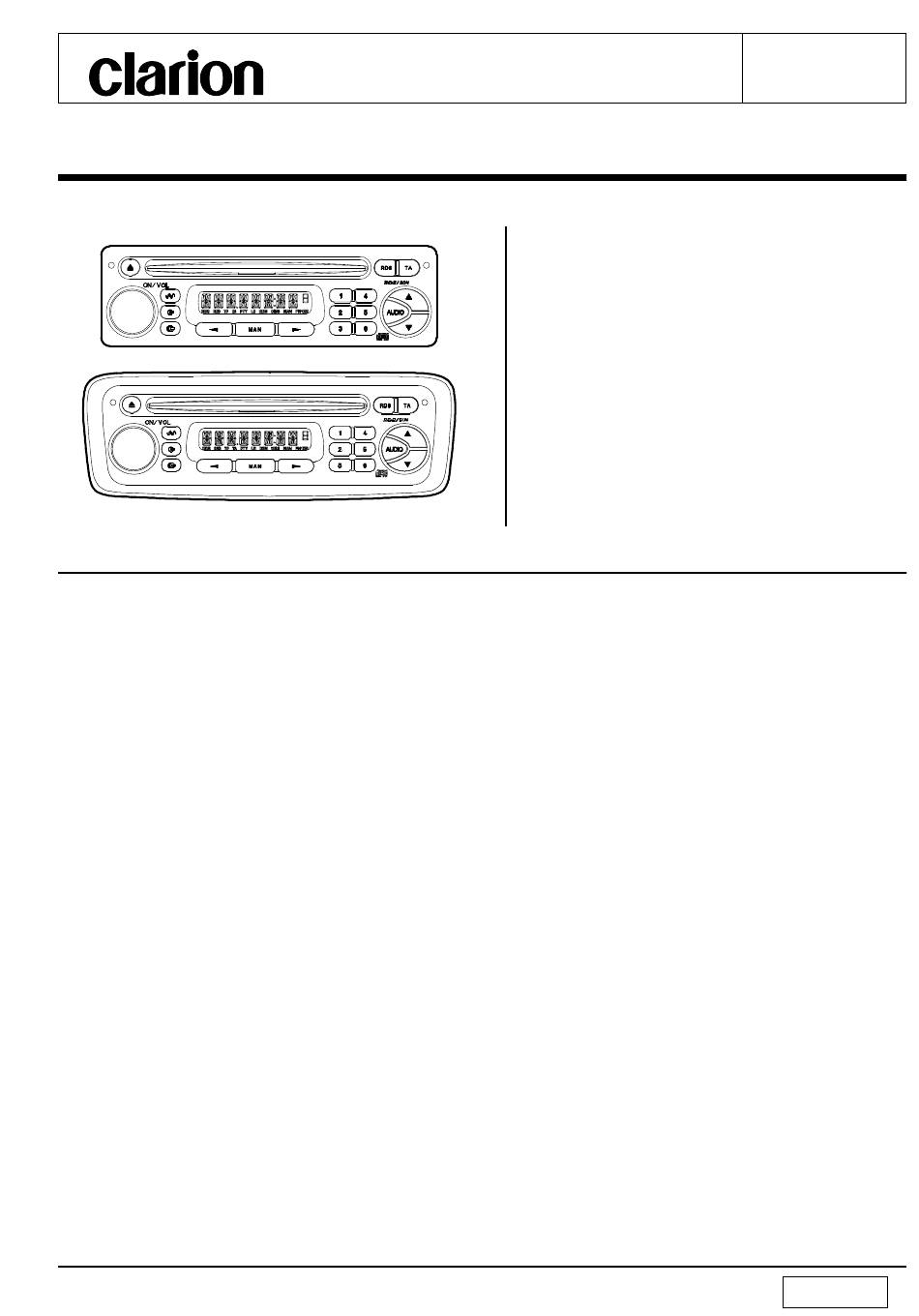

Clarion PU-2294A Service Manual

PU-2294A/B
PU-2325A
■ SPECIFICATIONS
Radio section
Tuning system: PLL frequency synthesizer system
Receive range: FM 87.5MHz to 108.0MHz
MW 531kHz to 1,602kHz
LW 153kHz to 279kHz
Intermediate frequency:
FM 10.7
MW 450
LW 450
Quieting sensitivity: FM Less than 13dB
MW Less than 36dB
LW Less than 43dB
Separation: FM More than 20dB
Auto tuning stop sensitivity:
FM 22
MW 30
LW 30
CD player section
Separation: More than 65dB
S/N ratio: More than 80dB
Distortion: Less than 1.0
General
Load impedance: 4
Output power: More than 10W
Power supply voltage: DC13.5V
Negative ground
Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
± 0.2MHz
± 3kHz
± 3kHz
μ (30dB S/N)
μ (20dB S/N)
μ (20dB S/N)
± 8dB μ (DX)
45 ± 10dB μ (LO)
± 10dB μ (DX)
60 ± 10dB μ (LO)
± 10dB μ (DX)
60 ± 10dB μ (LO)
％
Ω
× 4
Tel: 03-3400-1121
Service Manual
PEUGEOT Automobile Genuine
RDS/FM/MW/LW Radio CD Stereo
PU-2294A
Model
(Genuine No. 96 346 766 80)
PU-2325A
Model
(Genuine No. 96 373 095 80)
CITROEN Automobile Genuine
RDS/FM/MW/LW Radio CD Stereo
PU-2294B
Model
(Genuine No. 96 346 767 80)
Current consumption: Less than 10A
Dimensions(mm):
Weight:
※ Specifications and design are subject to change without
notice for further improvement.
■ COMPONENTS

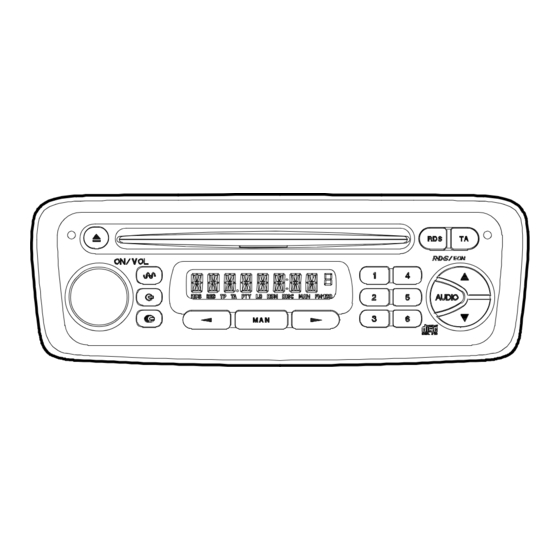

PU-2294A-A/PU-2294B-A/PU-2325A-A
Main unit
■ NOTE
※ We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure , please repair
it by component parts base. Parts which are not men-
tioned in service manual are not supplied.
■ To engineers in charge of repair or
inspection of our products.
Before repair or inspection, make sure to follow
the instructions so that customers and Engineers
in charge of repair or inspection can avoid suf-
fering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent charac-
teristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
- 1 -
Published by Service Dept.
298-5761-00 Aug.1999 P
Printed in Japan
178(W) × 50(H) × 165(D)
1.45kg
−−−−−
PU-2294A/B
PU-2325A
1
