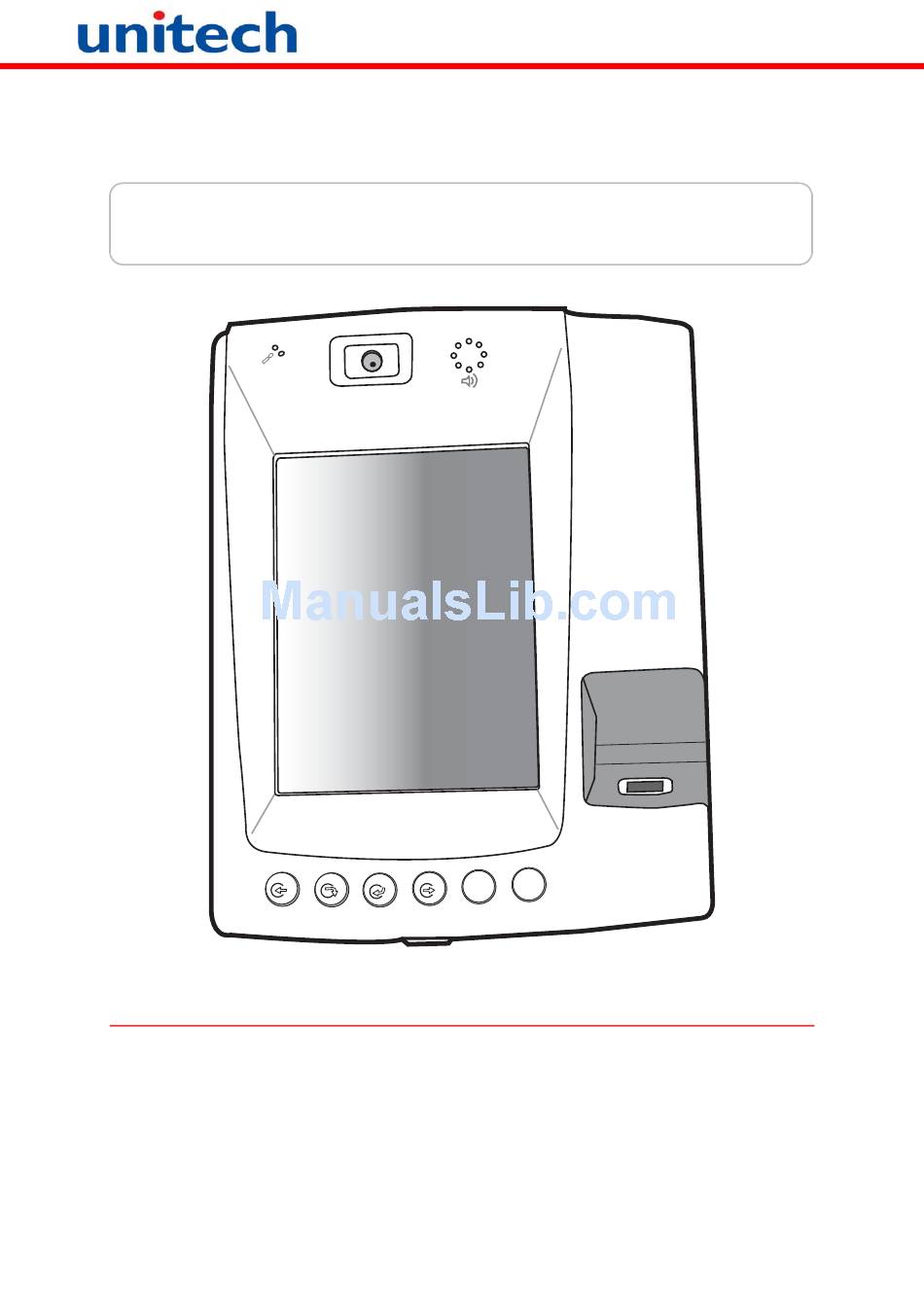

- Page 1 MR650 Video TAS Terminal unitech unitech User’s Manual 400513G Rev. C...
-
Page 3: About This Manual
About This Manual This manual explains how to install, operate and maintain the MR650 Video TAS Terminal. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from the manufacturer. This includes elec- tronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. -
Page 4: Notices
Warranty Under Unitech limited Warranty, the following items are covered: • The MR650 Video TAS Terminal is covered by one-year limited warranty. • Cables are covered by one-year limited warranty. •... -
Page 5: Table Of Contents
... 4 Opening the Back-plate ... 4 Connecting Power ... 5 Charging the Battery... 5 Turning the MR650 on for the First Time Powering On ... 6 Calibrating the MR650 Screen... 6 Setting the Date and Time ... 6 Chapter 2... - Page 6 Using the Camera Testing Imager... 12 Chapter 3 Data Communication Establishing Device-PC Connection Serial Cable ... 13 Ethernet Cable... 13 RF Communication ... 14 Using ActiveSync Additional Capabilities ... 15 Requirements ... 15 Installing Microsoft ActiveSync ... 15 Connecting the Device to Your Computer ... 16 Setting up the Wireless Local Area Network Card...
-
Page 7: Getting Started
The MR650 is a TAS (Time management, access control and security) terminal with a large 240 x 320 pixel color touch screen and the Windows CE operating system. The MR650 was designed to meet the requirements of Time &... -
Page 8: Package Contents
The screen will be more susceptible to scratching without the film, but will be more readable. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. unitech... -
Page 9: A Tour Of The Mr650
A Tour of the MR650 The following sections describe the main components and features of the MR650. Front Microphone 1.3 Megapixel unitech unitech CMOS Camera 5.6-inch Color Touch Panel 6 Key Keypad MR650 Proximity + Finger Print Model Rear Mounting... -
Page 10: Setting Up The Mr650
Setting up the MR650 This section explains how to charge the battery and how to turn on the MR650 for the first time Opening the Back-plate Follow these instructions to open the back-plate for accessing the MR650’s internal components. Insert the key provided into the security lock and then turn the key counterclockwise. -
Page 11: Connecting Power
Switch on the battery switch to charge the battery. Charging the Battery Before using the MR650 for the first time, you need to charge it for about 22 hours. The battery begins charging as soon as you connect the power cable. -
Page 12: Turning The Mr650 On For The First Time
To change the time and date at any time tap tings → Control Panel → Date/Time. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Set date Set time Set time zone →... -
Page 13: Using The Hardware
Using the Hardware Using the Keypad The MR650 features contains six keys. The following table describes the keys. Main Function Clock-in [F1]: Function Key Break-out [F2]: Function Key Break-in [F3]: Function Key Clock-out [F4]: Function Key [ESC] Performs the same function as tapping the screen. -
Page 14: Using Windows Ce Keyboard
Closing the Keyboard Tap the keyboard icon and tap Hide Input Panel to close Windows CE keyboard. Tap to enter special characters Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. -
Page 15: Using The Stylus
Scanner Setting. Testing Reader Data The MR650 has a built-in Scanner Control Panel that enables you to test the device’s barcode scan function. To launch Scanner Control Panel, tap The Scanner Control Panel opens. -
Page 16: Using The Finger Print Reader
The Finger Print Reader comes with 4000 templates. Testing Finger Print Verification The MR650 has a built-in BIO ID Manager program that enables the user to test finger print verification. To test finger print verification. Double-tap the My Device icon on the Windows CE desktop. -
Page 17: Enrolling A Finger Print Stamp
Place the finger on the sensor and tap Is Finger. The message “Finger detected!” appears, indicating that the finger print function is working properly. Enrolling a Finger Print Stamp To enroll a finger print. Tap Enroll. Enter an ID number for the finger print and then tap The following message appears: After placing the finger on the sensor, a stamp with the quality percentage and ID number is entered into... -
Page 18: Using The Camera
Functions as an audio/video intercom Additionally, facial recognition can be incorporated using third party software. The MR650 has a demo program that enables users to capture a still picture with a card number and time stamp when an EM proximity card is read. -
Page 19: Data Communication
Data Communication The MR650 enables users to link to a host computer via RS-232, Ethernet or an RF connection for data communication. Establishing Device-PC Connection The following connection methods are provided. Serial Cable Plug the provided RS232 communication cable into the PC’s 9-pin COM port. -
Page 20: Rf Communication
RF Communication With Windows CE support of the TCP/IP protocol, users can use the MR650 to link to the Internet. → Settings → Network and Dial-Up Connec- tions. Double-tap PRISM1 to set up the IP to connect to Internet. NOTE: Contact your system administrator for the IP settings for this dialog window. -
Page 21: Using Activesync
MR650 terminal. The MR650 terminal ships with ActiveSync already installed. You can download and install the most current version of ActiveSync from www.microsoft.com. Installing Microsoft ActiveSync In order to exchange data between your computer and the MR650, Microsoft ActiveSync must be installed on your computer. NOTE: If you have a previous version of the Microsoft ActiveSync installed in your computer, uninstall it first before installing the latest version of Microsoft ActiveSync. -
Page 22: Connecting The Device To Your Computer
→ Settings → Control Panel → PC Connection. On MR650, tap Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. → Pro-... - Page 23 Check "Enable direct connections to the desktop computer". Tap "Change Connection". Select the type of connection you want to use. → Programs → Communications → PC 10. Tap Link. Chapter 3 Data Communication...
-
Page 24: Setting Up The Wireless Local Area Network Card
Tap the IP Address tab. Tap the radio button next to Obtain an IP address via DHCP and then tap the OK button. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. -
Page 25: Specifying An Ip Address
Specifying an IP Address If there is no DHCP server available/if you want to specify an IP address, assign IP address to each MR650 as follows: → Settings → Control Panel and then double-tap Network and Dial-up Connections. Tap PRISM1. -
Page 26: Wifi Connection
WiFi Connection Unitech terminals come with built-in RF facility.This chapter guides the user on how to setup the RF setting. 1. Double tap the Summit Client Utility. 2. Under “Main” tab, for Active Profile, select “ThirdPartyConfig”. 3. A Power Cycle is required to make settings... - Page 27 4. Tap “OK”. 5. Warm Start the terminal. 6. Once the RF card is detected, you will see the RF setting window pop up. 7. Tap “Add New”(Or double tap your preferred network) to add a new SSID. 8. Enter the SSID. Uncheck “The key is provided automatically”.Enter the network key.
-
Page 28: Barcode Scanner Programs
Scanner Control Panel, then tap To Kpd to access Scan2Key settings. NOTE: For details of using scanner settings, please refer to the Scan2Key Utility Manual. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Chapter 4... -
Page 29: Registry Backup/Restore
Registry Backup/Restore Registry Backup enables users to save current registry settings. If the system malfunctions or settings are lost, the user can go to Registry Restore to retrieve the settings. To use Registry Backup. → Programs → Utilities → RegBackup. Tap Save to save the current registry settings. -
Page 30: Audio Demo Program
Audio Demo Program The audio demo program enables you to test audio input (recording) and output (playback). Double-tap the My Device icon on the Windows CE desktop. Double-tap the Windows folder. Double-tap wavtest to open the program. The testing program is displayed. Do one of the following: –... -
Page 31: Softkeys
Softkeys Softkeys is a numeric onscreen keypad utility to input numeric keys → Programs → Utilities → Softkeys. The Softkeys program appears. Chapter 3 Barcode Scanner Programs... -
Page 32: Power System
MR650 immediately. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Power System appears in the → Settings →... -
Page 33: Extending Battery Life
Changing the Automatic Power Settings The MR650 enters idle mode when there is no task, or all tasks are waiting for input. In the default set- ting, the MR650 enters User Idle mode when there is no user input after one minute. The remains idle for 3 minutes and when there is no external charging power connected. -
Page 34: Adjusting The Backlight
This section describes screen settings and how to conserve battery power by adjusting the backlight. NOTE: The MR650 screen contrast has been preset at the factory for optimum performance The backlight for the color display is user-defined. There are two tabs – one for Battery Power and the other for External Power. -
Page 35: Performing A Hardware Reset
Performing a Hardware Reset You may have to perform a reset if the device freezes (i.e., device no longer responds to the buttons on the screen). Performing a Warm Start A Warm Start is used to reset or re-boot the device without losing SD RAM data. You would perform a warm start in any of the following situations: •... -
Page 36: System Specifications
Proximity Reader EM, 125 kHz HID, 125 kHz Mifare, 13.56MHz Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Appendix A Intel Xscale PXA270 520Mhz SDRAM: 128 MB Flash ROM: 64 MB... -
Page 37: Terminal Block
Terminal Block Overview of the Terminal Block DC OUT GND 12V L DC IN DC IN 12V DC 4 digital power in inputs DI 1 DI 2 DI 3 DI 4 RY 1 RY 2 RY 3 C NC NO C NC NO C NC NO RY 3... -
Page 38: Terminal Block Pin Assignment
RY3-NC Normal Close RY3-NO Normal Open No Use No Use Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. DC OUT DI 1 DI 2 DI 3 GND 12V L... -
Page 39: Appendix C Support
Appendix C Support At Unitech, we have a professional support team to answer your questions or any related technical issues. If the equipment problem occurs, you may contact our regional services representatives to get the quick response. We have six regional services center, and choose your region to get our quick sup- port and their contact information can be found in our websites provided as below.
