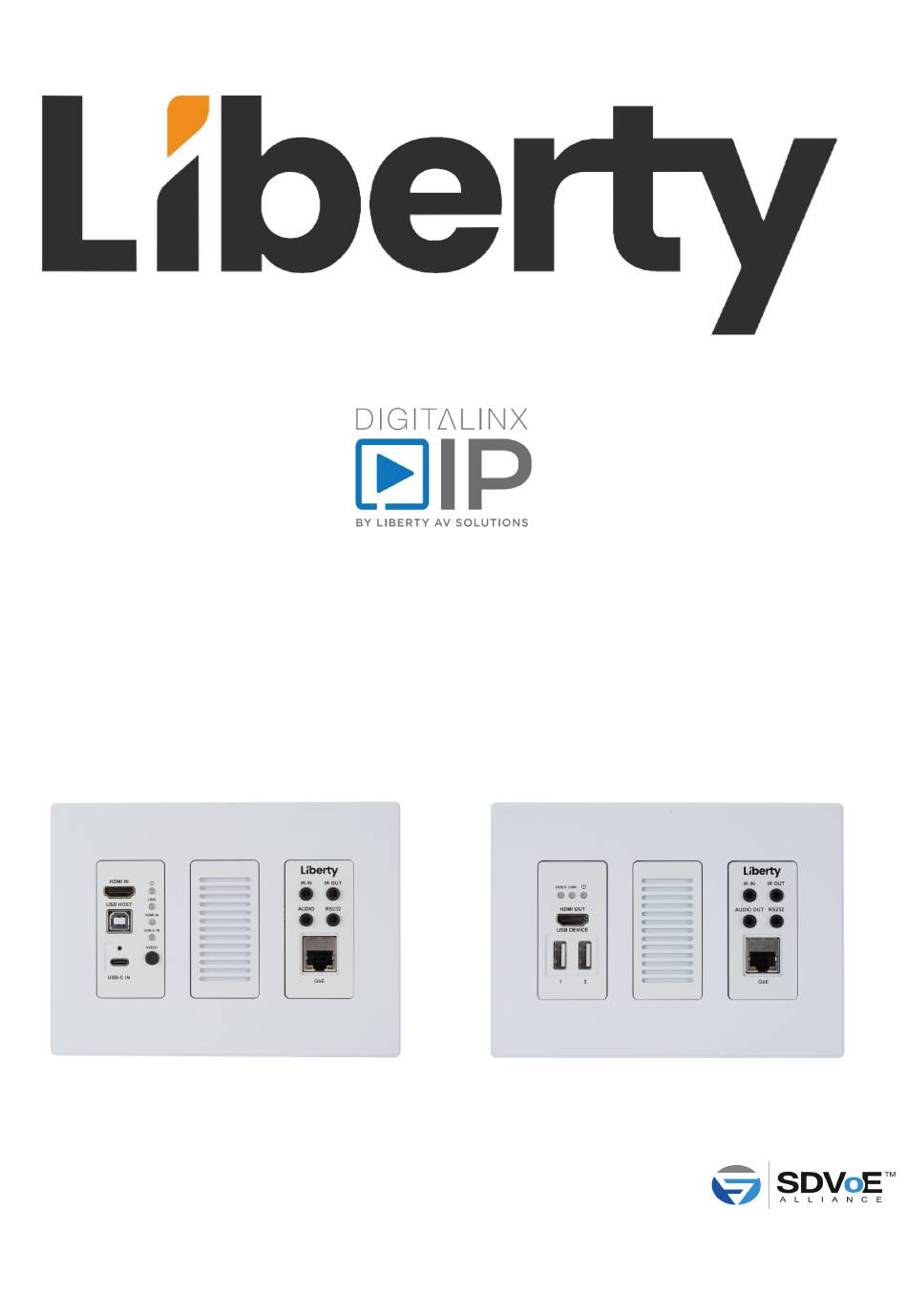

- Page 1 IPEX6001U-WP-W & IPEX6002U-WP-W Install Guide Rev 230313 1490 Garden of the Gods, Suite F. Toll-Free: 800-530-8998 Colorado Springs, CO 80907 Fax: 719-260-0075 supportlibav@libav.com...
-
Page 3: Product Features
IPEX6001U-WP-W IPEX6002U-WP-W Install Guide Product Features IPEX6001U-WP-W The IPEX6001U-WP-W is a 3 gang US wall plate SDVoE AVoIP encoder. The DigitalinxIP IPEX6001U-WP-W supports IP-based switching and extension of 4K/60Hz (4:4:4) video with zero frame latency up to 100 meters when using CAT6A F/UTP cabling. The encoder supports independent routing of all AV, USB 2.0, IR, Ethernet and RS232 signals over a 10Gbps network. - Page 4 IPEX6001U-WP-W IPEX6002U-WP-W Install Guide Product Features IPEX6002U-WP-W The IPEX6002U-WP-W is an AVoIP powered A/V decoder. The DigitalinxIP IPEX6002U-WP-W supports IP-based switching and extension of true 4K/60Hz (4:4:4) video with zero frame latency up to 100 meters when using CAT6A F/UTP cabling. The decoder supports independent routing of all AV, USB 2.0, IR, Ethernet and RS232 signals.
-
Page 5: Front And Rear Panels
IPEX6001U-WP-W IPEX6002U-WP-W Install Guide Front and Rear Panels IPEX6001U-WP-W Front Panel Inputs : (USBC, HDMI) 1gb LAN connection pass through Source button select if in manual mode LEDs: • USBC and HDMI show source active • Link; BLINKING; device is connected to switch and or another device. OFF; device is not connected to switch or another device •... - Page 6 IPEX6001U-WP-W IPEX6002U-WP-W Install Guide IPEX60001U-WP-W Rear Panel 10GBaseT AV Network connection with PoE+ support. Power used to power device (if PoE+ is unavailable) and/or provide charging power for USB-C up to 65w. Optional power supply part number PS-24D-5A...
- Page 7 IPEX6001U-WP-W IPEX6002U-WP-W Install Guide Front and Rear Panels IPEX6002U-WP-W Front Panel LEDs: • Video On; video is passing to display. No video is passing • Link; BLINKING; device is connected to switch and or another device. OFF; device is not connected to switch or another device •...
- Page 8 IPEX6001U-WP-W IPEX6002U-WP-W Install Guide IPEX60002U-WP-W Rear Panel 10GBaseT AV Network connection with PoE+ support. Power used to power device (when PoE+ is unavailable). Optional power supply part number PS-24D-5A...
-
Page 9: System Installation Instructions
Configure a 10GbE managed network switch for multicast video operation. Note: A 1G network switch cannot be used with the 6000 series due to the high port speed requirements of the IPEX6001U-WP-W, IPEX6002U-WP-W a 10GbE managed network switch is required. - Page 10 Log the changed password that you created in your project documentation. Once logged in you can configure, manage and control all signal types for the DigitalinxIP 6000 series transceivers. A complete operation manual and API for the Arranger system is located in the Arranger server application.
- Page 11 IPEX6001U-WP-W IPEX6002U-WP-W Install Guide Connecting HDMI Devices Use only high quality High Speed HDMI cables rated for 18Gbps, do not exceed HDMI cable lengths over 5m/15’ for transceiver HDMI connections to AV sources and displays. Connecting Audio Devices The 3.5mm analog audio I/O connection can be configured as an input or an output and is configured in the Arranger server.
-
Page 12: Application Diagrams
IPEX6001U-WP-W IPEX6002U-WP-W Install Guide Application Diagrams Point to Point AV Extender A/V Network Matrix Note: Transceiver mode (encoder, decoder or both) can be configured by Arranger server... - Page 13 IPEX6001U-WPTechnical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle USBC Input One (1) USBC 10GbE: One (1) 8P8C port (Shielded RJ45) LAN: One (1) 8P8C port (Shielded RJ45) Power One (1) 2 Pin 3.5mm phoenix connector RS232 Port One (1) 3.5 mm TRS Receptacle USB Device One (1) USB Type B Port...
- Page 14 IPEX6002U-WPTechnical Specifications Input/Output Connections HDMI output One (1) HDMI Type A Receptacle 10GbE: One (1) 8P8C port (Shielded RJ45) LAN: One (1) 8P8C port (Shielded RJ45) Power One (1) 2 Pin 3.5mm phoenix connector RS232 Port One (1) 3.5 mm TRS Receptacle USB Device One (2) USB Type A female 01814548 Port Audio Input / Output...
- Page 15 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 1490 Garden of the Gods Suite F Colorado Springs, Colorado 80907 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
