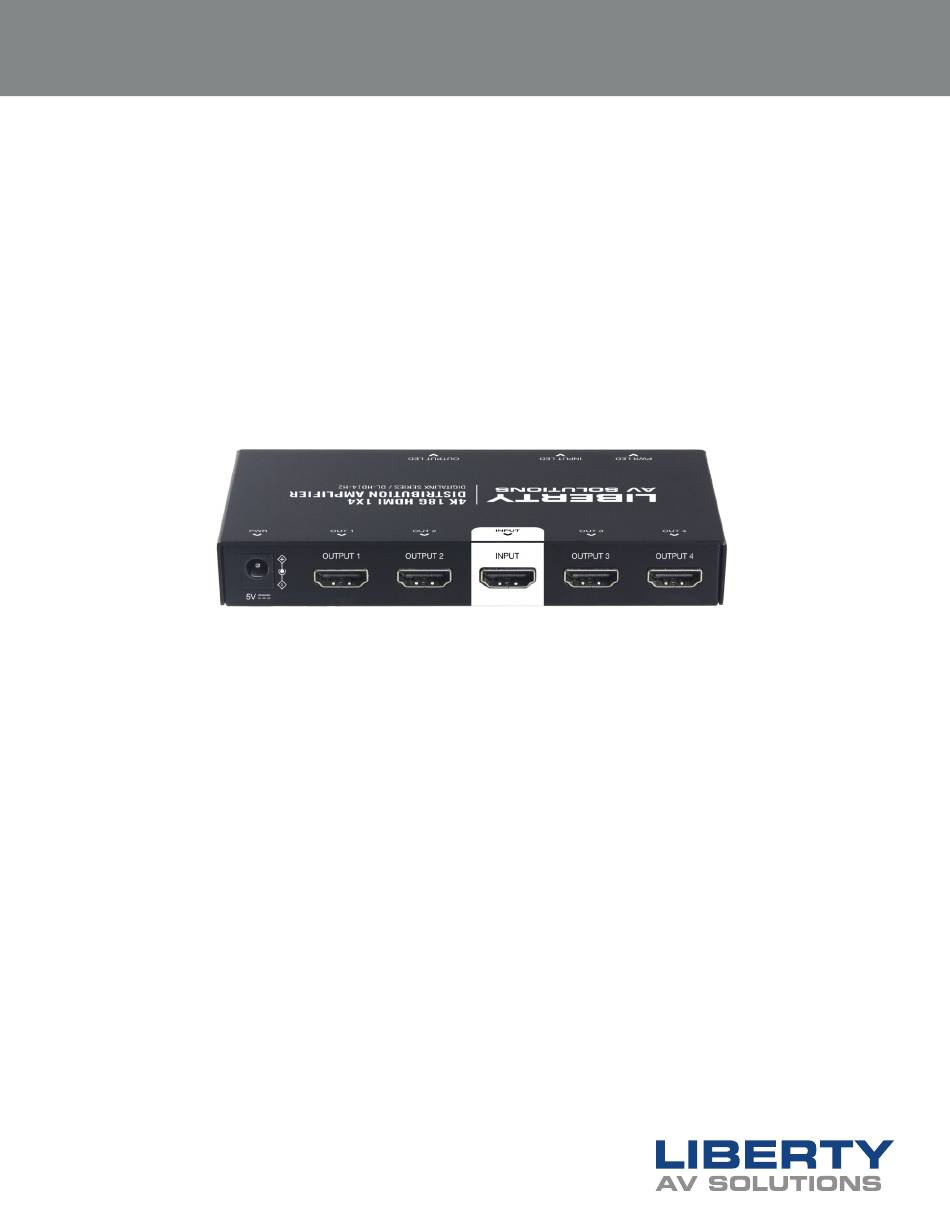

- Page 1 USER MANUAL 1:4 HDMI Distribution Amp / Splitter DL-HD14-H2 REV 220616 www.libav.com 800.530.8998...
-
Page 2: Product Overview
HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display. PACKAGE CONTENTS • (1) HDMI 1:4 Splitter • (1) DC-5V-1A Power Adapter • (2) Mounting Brackets USER MANUAL / DL-HD14-H2... -
Page 3: Product View
1. Power LED: When ON/OFF device is powered ON/OFF 2. HDMI Input LED: When ON, HDMI signal is detected, when OFF no HDMI signal is detected 3. HDMI Output LED: When ON HDMI display is connected, When OFF no HDMI display is connected USER MANUAL / DL-HD14-H2... - Page 4 PRODUCT VIEW Rear Panel 1. 5V: Power adapter connection 2. HDMI OUTPUT: Connect HDMI displays using High Speed HDMI cables 3. HDMI INPUT: Connect HDMI input using High Speed HDMI cable USER MANUAL / DL-HD14-H2...
-
Page 5: Application Example
APPLICATION EXAMPLE USER MANUAL / DL-HD14-H2... -
Page 6: Technical Specifications
Power Supply DC 5V 1A Power Consumption (Maximum) 1.8W Device Dimension (W x H x D) 140mm x 20mm x 65.2mm/ 5.5’’ x 0.8’’ x 2.6’’ Product Weight 0.24kg/0.53lb Warranty 5 Years Certification CE, FCC, RoHS USER MANUAL / DL-HD14-H2... - Page 7 Thank you for your purchase. For technical support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 800-530-8998...
