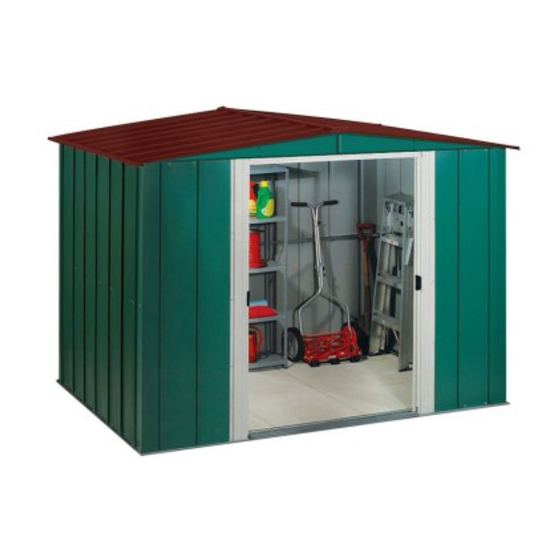

Arrow Storage Products RMGRA86 Owner's Manual & Assembly Manual

Steel shed
Hide thumbs

Advertisement

Quick Links

Download this manual
731470821
Owner's Manual
& Assembly Guide
Gloves must be worn
at all times to reduce
risk of injury!
Register • Enregistrer • Regístrate
/
ShelterLogic.com
product-registration
BUILDING DIMENSIONS
†
†
Approx.
Size
8' x 6'
43 Sq. Ft. 255 Cu. Ft.
2,4 m x 1,8 m
4,0 m
* See Inside for Detailed Safety Information.
†
Size rounded off to the nearest foot
Exterior Dimensions
Storage
(Roof Edge to Roof Edge)
Area
Width
99 3/4"
2
7,2 m 3
253,4 cm
Model No. RMGRA86
Depth
Height
Width
71 1/4"
74 7/8"
94 3/4"
181,0 cm
190,2 cm
240,7 cm
Steel Shed
Steel Shed
8' x 6'
97 1/2" x 68 3/4"
Base
247,7 cm x 174,6 cm
Size
For proper base construction see page 12
Interior Dimensions
(Wall to Wall)
Depth
Height
66"
73 5/8"
167,6 cm
187,0 cm
EN-01JT
Nominal Size
Door
Opening
Width
Height
43 1/2"
65"
110,5 cm
165,1 cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the RMGRA86 and is the answer not in the manual?

Questions and answers

Related Manuals for Arrow Storage Products RMGRA86

Summary of Contents for Arrow Storage Products RMGRA86

  • Page 1 731470821 Owner’s Manual & Assembly Guide Steel Shed Steel Shed Gloves must be worn Model No. RMGRA86 at all times to reduce risk of injury! 8’ x 6’ Nominal Size Register • Enregistrer • Regístrate 97 1/2” x 68 3/4”...
  • Page 3 EN-04HN CAUTION • Care must be taken when handling various pieces of your building since many contain sharp edges. • Do NOT attempt to assemble your building before double checking that you have all the parts indicated in the parts lists. Any building left partially assembled may be seriously damaged by even light winds.
  • Page 4 EN-05HN ASSEMBLY • The best location is a level area with good drainage. • Allow enough space outside the building to be able to access the roof with a ladder. • Use Teamwork: Two or more people are required to assemble your building. CARE &...

  • Page 5: Hardware List

    HARDWARE LIST ARG EN-05HY Part Qty. Part Views Part No. Description 65103 Hex Nut (#8-32) 65923 Small Bolt (#8-32 x 3/8) (10 mm) 65004 Small Screw (#8AB x 5/16) (8 mm) 65900 Black Screw (#10B x 1/2) (13 mm) 65109 Acorn Nut (#8-32) The fasteners used in each step are shown actual size at the top of each page.
  • Page 6 HARDWARE LIST EN-06HY Part Qty. Part Views Part No. Description 66045 Handle 67468 Peak Cap 66769 Door Slide 66646 Washer Sheet 10 66382 Lower Door Guide 11 66183L Left Roof Trim Cap 12 66183R Right Roof Trim Cap 7916 Roof Beam Bracket 6228 Track Support 15 67293...

  • Page 7: Parts List

    PARTS LIST EN-07JT Part Qty. Part Views Part No. Description 8946 Side Floor Frame 11481 Rear Floor Frame 8941 Ramp 9379 Front Floor Frame 8471 Corner Panel 9382 Front Corner Panel 6627 Wall Panel Wall Panel 26 10535 27 11484 Rear Wall Channel 9920 Side Wall Channel 80247 Door Panel...
  • Page 8 PARTS LIST EN-08JT Part Qty. Part Views Part No. Description 6617 Door Track Splice 9378 Door Track 6658 Gable Brace 7906 Right Gable 7907 Left Gable 8474 Roof Beam 8466 Right Roof Panel 8467 Left Roof Panel 7875 Roof Panel 8482 Roof Trim 8461 Ridge Cap 6300 Vertical Door Channel...
  • Page 9 PARTS LIST EN-09aHY Part Qty. Part Views Part No. Description 10498 Horizontal Door Brace 69836 Edge Trim(Purple)
  • Page 10 ASSEMBLY BY KEY NO. PIÈCES PAR N° DE REPÈRE MONTAGE NACH LFD. NR. 10bHY MONTAJE POR N.º DE REFERENCIA 6 10...
  • Page 11 ASSEMBLY BY KEY NO. EN-11aHY 6 11...
  • Page 12 CONSTRUCTING A FOUNDATION ARG EN-12HY Wood Platform Concrete Slab IMPORTANT The base MUST be fl at and level to provide adequate support for your building, otherwise the PRE-DRILLED HOLES WILL NOT ALIGN AND IT CANNOT BE ASSEMBLED. OPTION 1: Build directly on the ground OPTION 2: Wood Platform NOTE: Pressure Treated Lumber must NOT be used where it will make contact with your storage building.
  • Page 13 EN-14HY 1: FLOOR FRAME 11481 65923 65103 65004 9379 8941 65923 65103 11481 11481 65103 65923 Overlap Length Finished Length 95 7/8” 243,5 cm 11 7/8” 30,2 cm 65004 9379 8941 9379 Front Finished Length 95 7/8” 243,5 cm...
  • Page 14 1: FLOOR FRAME EN-15HY (2)9379+8941 8946 65004 65923 65103 11481+11481 NOTES: Do NOT fasten your Floor Frames to your Base at this time. You will anchor your 65103 building after it is erected. 9379 The Floor Frame must be BOTH square AND level or the holes will not line up properly.

  • Page 15: Pre-Assembly

    2: PRE-ASSEMBLY EN-16HY 11486 11484 65923 65103 65923 11486 11486 65103 94 5/8” (240,3 cm) Finished Length 65923 11484 11484 65103 94 5/8” (240,3 cm) Finished Length...
  • Page 16 2: PRE-ASSEMBLY EN-17HY 65004 8474 8476 8476 8474 65004 8476 8474...
  • Page 17 2: PRE-ASSEMBLY EN-18HY 65004 9378 66769 6617 9378 6617 Painted Part 94 5/8” (240,3 cm) Finished Length 65004 9378 END VIEW CORRECT INCORRECT Long Leg on top. 66769 Door Slide Slides should be installed in Door Track prior to installation. However, if this step is overlooked or if the Slides need to be removed for maintenance, the following procedure may be used.
  • Page 18 3: CORNER PANELS EN-19JT 6627 65004 66646 65923 66646 65103 8471 65004 65004 66646 6627 8471 66646 6627 8471 65103 65923 65103 66646 65923 66646...
  • Page 19 3: CORNER PANELS EN-20JT 65004 66646 9382 8471+6627 8471 6627 6627 8471 9382 9382 Front 65004 66646...
  • Page 20 4: WALL ANGLE EN-21HY 8476 11486+11486 (2)9378+6617 65004 66646 66646 65004 11486+11486 8476 9378 6617 8476 9378 Long Leg on Top. 9378 Opening Faces In. Short Leg on Bottom. Front...
  • Page 21 5: WALL PANELS EN-22JT 6627 65004 66646 65923 66646 65103 Uncrimped Rib Crimped Rib 65004 66646 Whenever a crimped rib and an uncrimped rib meet, the crimped rib should be placed UNDER the uncrimped rib if possible. 6627 6627 Front 65923 65103 66646...
  • Page 22 5: WALL PANELS EN-23JT 10535 65004 66646 65923 66646 65103 10535 10535 10535 10535 66646 65004 10535 10535 65923 65103 66646 Rear...
  • Page 23 5: WALL PANELS EN-24JT 6627 65004 66646 65923 66646 65103 6627 66646 6627 6627 65004 6627 6627 65923 65103 66646 Front...
  • Page 24 6: DOOR JAMB EN-25JT 66775 65004 66646 65923 66646 65103 65109 9370 Plug (Door Jamb Color/Clear) 9370 9370 9370 66775 9370 65923 66646 65103 65109 Front 66646 65004...
  • Page 25 7: WALL CHANNEL EN-26HY 9920 11484+11484 65004 66646 65004 65004 65004 11484+11484 9920 9920 66646 Front...
  • Page 26 8: GABLES EN-27HY 7906 7907 7916 65923 66646 65103 69836 69836 69836 66646 65923 7906 7907 7916 65103 7916 69836 69836 66646 65923 7906 7907 7916 65103 7916 CAUTION: To avoid mishap on the sharp edge the edge trim must remain in place on the top edge of the gable until right and left roof panels are in place.
  • Page 27 8: GABLES EN-28HY 65004 65923 65103 7907+7916 6658 7906+7916 65004 7906+7916 7907+7916 Rear 6658 65923 65103 Rear...
  • Page 28 8: GABLES EN-29HY 7906+7916 7907+7916 6658 6228 65004 65923 65103 65004 7906+7916 7907+7916 Front 65004 6658 65103 65923 6228 6228 6228 6228 Front...
  • Page 29 9: ROOF BEAMS EN-30HY 67293 8474+8476 65923 65103 Top View of Gables 67293 Tape BOTH Gable joints before installing Roof Beams. 67293 65923 65103 8474 8476 6658...
  • Page 30 9: ROOF BEAMS EN-31HYa 65923 65103 8474 65923 65103 65103 65923 8474 8474 8474 8474...
  • Page 31 10: ROOF PANELS EN-32HYa 8466 7875 65923 66646 65103 65004 66646 8467 67293 65103 66646 65923 Gable 65004 8467 66646 8466 8466 Front 8467 65103 66646 67293 65923 Gable 2” (5,1cm) 67293 65004 7875 66646 65923 7875 66646 7875 65103 7875...
  • Page 32 10: ROOF PANELS EN-33HYa 8461 8482 66183L 65923 66646 65103 65004 66646 65004 65004 66183R 67468 66646 65923 66646 Rear 8461 65103 Front 66183R 67468 8482 65004 65004 66646 66183L 65923 66646 66183L 67468 65103 8482 66183R...

  • Page 33: Door Assembly

    11: DOOR ASSEMBLY EN-34JT 66775 80247 6300 66045 65004 66646 65923 65103 Plug (Door Color) 65004 66646 80247 65923 66045 65103 6300 66775...
  • Page 34 11: DOOR ASSEMBLY EN-35JT 10498 66382 65923 66646 65103 10498 65923 65103 66646 Right Door Assembly 65103 10498 66382 65923 66646 66382 10498 80247 66382 10498...
  • Page 35 11: DOOR ASSEMBLY EN-36JT 30028 80247 6300 66045 65004 66646 65923 65103 30028 65004 6300 66646 80247 65103 65923 66045...
  • Page 36 11: DOOR ASSEMBLY EN-37JT 10498 66382 65923 66646 65103 10498 65103 65923 66646 Left Door Assembly 10498 66382 65923 66646 65103 66382 10498 80247 66382 10498...
  • Page 37 11: DOOR ASSEMBLY EN-38HY 65900 Gable Door Slide Door Track INSIDE BUILDING Door Front Floor Frame Door Adjustment If Doors do not align, raise or lower one side of the Door by placing the Door screws through a diff erent set of holes in the Door Slide.
  • Page 38 EN-48HK ANCHORING OPTIONS IMPORTANT • If you have swing doors, they must hang and swing level before anchoring building. • • Anchor your building at this time. Use appropriate 1/4”(6mm) X 1 1/2”(38,1mm) length Anchor your building this time. approprate 1/4”...
