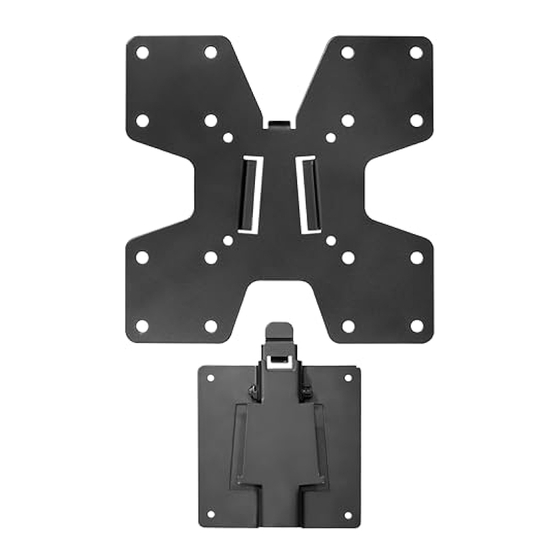

Large VESA Quick Release Adapter
Instruction Manual
SKU: STAND-VAD2H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-vad2h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-VAD2H
Summary of Contents for Vivo STAND-VAD2H
- Page 1 Large VESA Quick Release Adapter Instruction Manual SKU: STAND-VAD2H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-vad2h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Pull the tab on Quick Release Bracket (A2) and separate from VESA Plate (A1).
- Page 4 STEP 2 Attach Quick Release Bracket (A2) to a VESA compatible stand using M4x12mm Screws (S-A), M5 Washers (S-B), and a Phillips screwdriver.
- Page 5 STEP 3 - Option #1 VESA 75x75mm Attach VESA Plate (A1) to your display using the assorted Screws (M-A, M-C), M8 Washers (M-E), Spacers (M-F,M-G), and a Phillips screwdriver, using smallest holes in center. VESA 75x75mm Note: The tab on VESA Plate (A1) should be positioned towards the top of the display.
- Page 6 STEP 3 - Option #2 VESA 100x100, 100x200, 200x100, 200x200 Attach VESA Plate (A1) to your display using the assorted Screws (M-A,M-B,M-C,M-D), M8 Washers (M-E), Spacers (M-F,M-G), and a Phillips screwdriver. 100x100, 100x200, 200x100, 200x200 USE HOLES THAT MATCH YOUR VESA PATTERN Note: The tab on VESA Plate (A1) should be positioned...
- Page 7 STEP 4 Slide your display with VESA Plate (A1) onto Quick Release Bracket (A2).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
