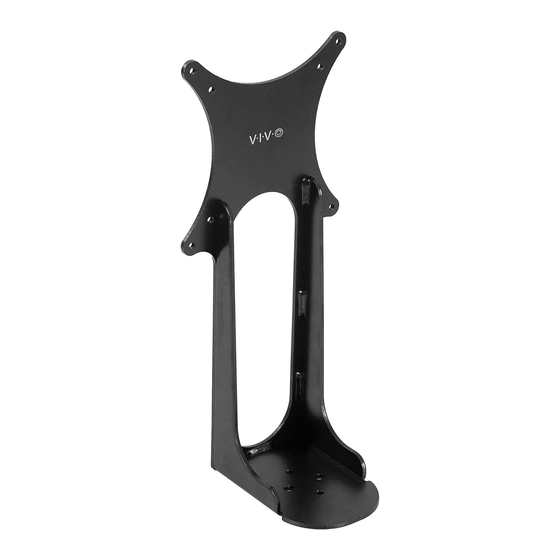

VESA Adapter for Compatible Samsung Monitors
Instruction Manual
SKU: MOUNT-SG001A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-sg001a
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-SG001A
Summary of Contents for Vivo MOUNT-SG001A
- Page 1 VESA Adapter for Compatible Samsung Monitors Instruction Manual SKU: MOUNT-SG001A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-sg001a help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Tools Needed
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. - Page 3 ASSEMBLY STEPS STEP 1 With the original base removed, install the VESA adapter (A) to the monitor using the screw from the monitor’s base. STEP 2 Mount the adapter with monitor to your VESA mount using M4x12mm thumbscrews (B). NOTE: Once the thumbscrews are finger-tight, it is not necessary, but recommended to tighten slightly more with a phillips screwdriver.
- Page 4 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
