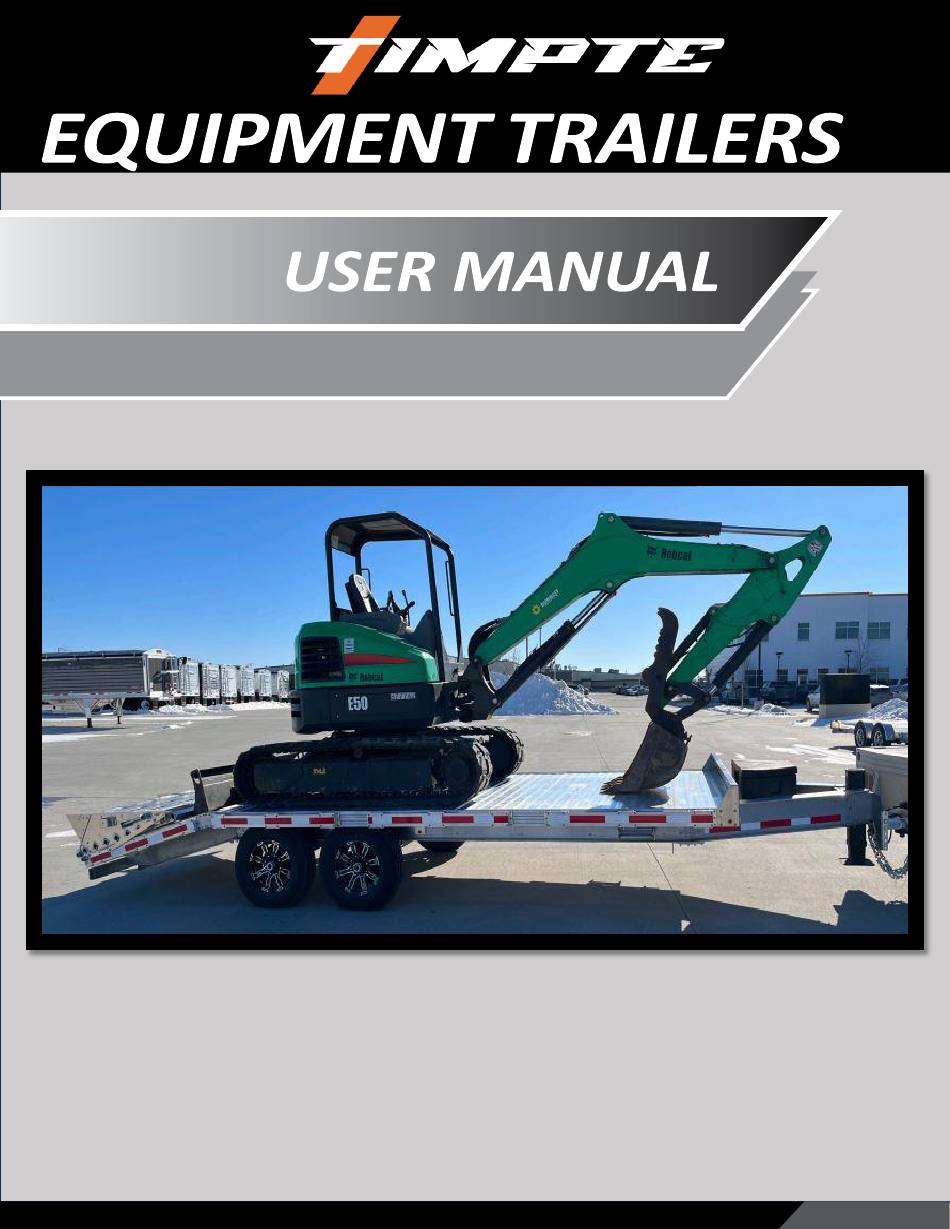

  • Page 1 1420/1424 STDO Model 10 / 23...
  • Page 2 REPORTING SAFETY DEFECTS & OTHER CLAIMS If you believe that this vehicle contains a safety defect you may contact Timpte, Inc., the National Highway Traffic Safety Administration (NHTSA) or both. The trailer was designed and inspected to conform to industry standards and all applicable NHTSA safety standards.
  • Page 3 Changes are continually being made to improve our product lines. We want to thank you for purchasing a Timpte trailer and to let you know that it was built for long life and low cost of operation. However, regular and proper maintenance of the trailer and your commonsense use of it are required to extend the life of the trailer.

  • Page 4: Normal Trailer Operation

    NORMAL TRAILER OPERATION This Timpte trailer is designed for operation within legal posted speed limits on reasonable road surfaces for the type of service it was built to perform, in accordance with the noted weight restrictions. “Normal Service” means the loading and transportation of uniformly distributed loads of properly secured, noncorrosive cargo, in accordance with any applicable factory instructions and in a manner which does not subject the trailer or parts of the trailer to (a) concentrated loads;...
  • Page 5 IMPROPER OPERATION OR UNSAFE PRACTICES. BE SURE TO READ AND FOLLOW ALL DECALS AND EMBLEMS CAREFULLY. The following section contains the decals and emblems used on the Timpte Equipment Trailers. Due to differences in configurations and equipment, your trailer may or may not use all the decals and emblems shown.
  • Page 6 Timpte Equipment Trailers | User Manual...
  • Page 7 The best driving practice is to decelerate to a safe conservative speed before entering a corner or approaching congested traffic, and then to apply only moderate power until a straight path has been re-established. www.timpte.com...
  • Page 8 Congratulations on your recent purchase of the Timpte 1420/1424 Deck Over Powerhouse Equipment Trailer. Here at Timpte, we take pride in the quality of our trailers and hope your experience with our company meets all expectations and standards. If at any time you experience issues, please do not hesitate to contact your Authorized Dealer for service or warranty.
  • Page 9 4. Uncouple trailer from tow vehicle. See Coupling and Uncoupling. 5. Remove the lock nuts and bolts on hitch. Discard lock nuts. Inspect bolts for damage and replace if necessary. Contact your dealer for the correct size and grade of bolts. Reinstall hitch using specified nuts and bolts. www.timpte.com...

  • Page 10: Ball Hitch Coupler

    The ball size and load rating (capacity) are marked on the ball; hitch capacity is marked on the hitch. With the tow vehicle park brake engaged, connect the tow vehicle to the trailer and install the provided hitch pin. Timpte Equipment Trailers | User Manual...
  • Page 11 -Fasten chains to frame of tow vehicle. -Do not fasten chains to any part of the hitch unless the hitch has holes or loops specifically for that purpose. Connect the trailers electrical hookup to the tow vehicle. www.timpte.com...
  • Page 12 -Before towing trailer, test function of the breakaway brake system. If the breakaway brake system is not working, do not tow the trailer. Have it serviced or repaired. Release the jack handle by unhooking safety pin from jack. Timpte Equipment Trailers | User Manual...
  • Page 13 Hooking Up the Tow Vehicle Raise jack leg by cranking jack handle. Once weight has been transferred to hitch, pull lower jack lever to raise jack plate all the way up. (Keep fingers out of way of jack plate). www.timpte.com...
  • Page 14 Using the grab handle, swing ramp towards the rear of trailer. BE CAUTIOUS OF PINCH POINTS AND RAMP PATH OF MOTION. DO NOT STAND DIRECTLY BEHIND RAMP WHEN LOWERING Timpte Equipment Trailers | User Manual...
  • Page 15 POINTS AND RAMP PATH OF MOTION. Place ramps in vertical or horizontal locking position. Install lock arm on pin and reinstall snap ring. Ensure lock mechanism is engaged and pull manual ramp lock lever towards the rear of the trailer, install clevis pin. www.timpte.com...

  • Page 16: Loading The Trailer

    2. Inspect the tie down rings and track system for damage, looseness, or signs of bending before loading trailer. 3. Park the tow vehicle and trailer on a firm level surface. 4. Clear the area around the trailer. Timpte Equipment Trailers | User Manual...
  • Page 17 Before loading, unlock both ramps and place in the loading position. Load equipment in a safe and controlled manner to avoid damage to trailer and equipment. Position load so 10-15% of total load is on coupler. Proper weight distribution is IMPORTANT. www.timpte.com...
  • Page 18 WARNING Shifting cargo can result in loss of control of the trailer, and can lead to death or serious injury. Tie down all loads with proper sized fasteners, chains, straps, etc. Timpte Equipment Trailers | User Manual...
  • Page 19 FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH. Grab step rung and pull towards outside of trailer. Ensure slide tube locks into place. To reinstall step, pull up on step rung and push towards trailer. Ensure slide tube locks into place. www.timpte.com...
  • Page 20 When loading your equipment make sure to raise any attachments to ensure you do not hit the trailer. Do not tow trailer without verifying the ramp locks are in place. Damage may occur to trailer, equipment, etc. during travel. Timpte Equipment Trailers | User Manual...

  • Page 21: Service And Maintenance

    Check wheel bearings for heat and excessive play at 10, 25, and 50 miles and before each tow. Check tire pressure before each tow. Lubricate wheel bearings every 12 months or 10,000 miles. Check lights are in working order. Check breakaway switch operation before each tow. Check ramp springs for wear or fractures. www.timpte.com...
  • Page 22 Service Brake, including trailer brake connections Parking Brake Steering Mechanism Lighting devices and reflectors Tires/Tire Pressure Horn Windshield Wiper or wipers Rear-vision mirror or mirrors Coupling devices Hoses Hub Maintenance Timpte Equipment Trailers | User Manual...
  • Page 23 There are many different types of chemicals used today to de-ice the roadways. Many of these can cause severe damage to the steel componentry of the trailer and diminish the appearance of the aluminum and stainless-steel components if not kept properly and regularly washed away. www.timpte.com...
  • Page 24 Timpte Equipment Trailers | User Manual...

  • Page 25: Liability Limitations

    MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TIMPTE’S OBLIGATION In the event of a defect in material or workmanship covered by this warranty, Timpte Inc. in its sole discretion will: • Correct the defective work or replace the defective parts at Timpte’s factory or at a Timpte CSC or dealer assigned by Timpte.

  • Page 26: Filing A Warranty Claim

    Filing a Warranty Claim To file a warranty claim with Timpte Trailer Co. pursuant to the Timpte Limited Warranty – contact the Warranty Department at Timpte Trailer Co. at 402-367-3056 or write; Timpte Inc. Warranty Department 100 Timpte Parkway David City, NE 68632 When filing a warranty claim several steps can be taken to aid the quick response to your request.
