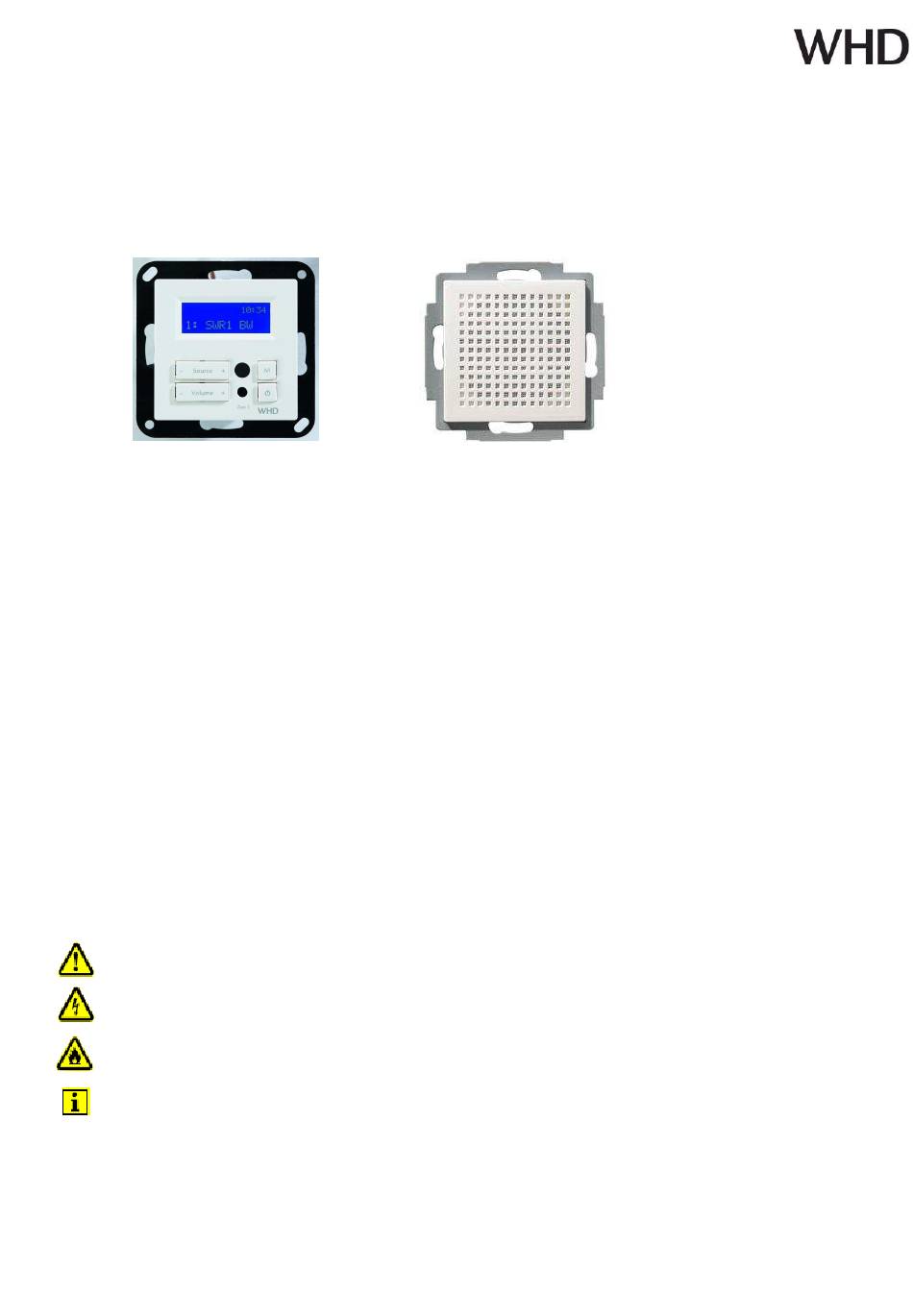

Manual
Fitting to
1. Welcome
Thank you for buying this quality WHD product. Please read this manual carefully, especially the safety
and security information.
Please check that you have the correct manual for your product. To do this, please compare the product
code number shown above with the product code number displayed on your product.
2. Contents Check List
- RDS Radio
- KEL 55-4 Music with metal front plate
- PT screws 3x16
- Silicone tube (length: 250 mm)
- cardboard distance rings
- IR Remote Control
- Battery for IR Remote Control
- Manual
3. Safety & Security
General Information
In addition to this guidance please adhere to your own country-specific safety & security regulations.
3.1. How to use this guide:
Read these instructions carefully before use and use this product only in accordance with the instructions
listed here.
3.2. Signs & symbols used
This sign warns of danger of injury and property damage.
This sign warns of injury from electricity.
This sign warns of injury and/or explosion.
This symbol refers to additional information.
Version (modifications reseverd)
RDS Radio Set KEL 55
113-010-03-007-00
Seite 1 von 14
06.05.2014
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WHD KEL 55
Summary of Contents for WHD KEL 55
- Page 1 113-010-03-007-00 1. Welcome Thank you for buying this quality WHD product. Please read this manual carefully, especially the safety and security information. Please check that you have the correct manual for your product. To do this, please compare the product code number shown above with the product code number displayed on your product.
- Page 2 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 3.3. Signal words and their meaning Danger: Potential severe physical damage and acute danger. Warning: Potential electrical shock physical damage and severe property damage. Caution: Potential fire hazard physical damage or property damage as a result of.
- Page 3 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 7.2. KEL 55-4 Music Specifications Rated-/Music power 3 / 4 W Impedance 4 Ohms Sound pressure level 1W/1m: 78 dB at 3W: 83 dB Frequency range (-3dB) 140-21.000 Hz 8. Preparatory work before installation...
- Page 4 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 9.2. Connections 9.2.1. Connecting antenna Connecting antenna cable: Connect the outer screen at (-) and the inner conductor at (+)and screw it firmly with the screws on the front. If there is no external antenna cable then slide the included antenna into the installation pipe and fix the one end of the cable at Ant(+).
- Page 5 Adopt the distance between the mounting plate and the control unit with the designated cardboard templates. With the KEL 55-4 Music make sure that you press the two plastic pins so in the appropriate holes, the front grill plate is fixed.
- Page 6 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 Note: The device context is not supplied but must be obtained directly from the manufacturer of the switch program. Suitable are frames with an outburst of 55 x 55 mm. 10. Operation 10.1.
- Page 7 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 10.5. Display (Operation Mode) There are 2 display lines Upper line: TIME Lower line: Source / RDS-Informations 11. Configuration 11.1. Configuration menu - Basics On/Off: Pressing the ‘On/Off’ button shortly switches on the RDS Radio Pressing the ‘On/Off’...
- Page 8 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 Configuration menu steps Menu A1 (configure radio stations) Press then the button „M“ between 2 and 4 seconds to start this configuration item. Display as shown: Line 1: Frequency Line 2: Frequency in MHz Press button „Volume -“...
- Page 9 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 Menu B (Device time) Press then the button „M“ approximately 5 seconds to start this configuration item. Display as shown: Line 1: Time Line 2: HRS : MIN …. Hours:Minutes Set the time on your current time zone.
- Page 10 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 Configuration Examples Example: Set alarm at 7:30 am Press the ‘M’ button Press the ‘Source +’ button ALARM is activated now. Display line 2 switches to ON. Now press the ‘Volume -’ button 7 times.
- Page 11 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 Menu D2 (Menu Blocking) Display as shown: Line 1: Access Line 2: free / locked Press button „Volume -“ … free (menu enabled) Press button „Volume +“ … locked (menu disabled)
- Page 12 Manual RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 12.2. Buttons of the remote control AUX 1-2 … switches to the external audio sources 1, 2 FM … switches to tuner function VOL +/- … volume buttons 1 - 9 … radio station/frequency settings button 0 …...
- Page 13 No radio station receive with the included antenna Connect an external antenna (home antenna, indoor antenna, …) 14. Disposal WHD are members of the INTERSEROH association. We participate in the dual system as well as some industry-specific solutions therefore the plastic, metal and electronic parts can all be recycled.
- Page 14 RDS Radio Set KEL 55 Fitting to 113-010-03-007-00 15. Declaration of Conformity This product supports all CE criteria. The certificate can be requested at WHD 16. Name and address of the manufacturer CONTACT WHD - Wilhelm Huber+Söhne GmbH+Co.KG Bismarckstr. 19 D-78652 Deißlingen...
