Manual
Valid for
1. Welcome
Thank you for buying this quality WHD product. Please read this manual carefully, especially the safety
and security information.
Please check that you have the correct manual for your product. To do this, please compare the product
code number shown above with the product code number displayed on your product.
2. Contents Check List
- DAB Radio UP
- PT screws 3x16
- silicon tube 250 mm
- Compensation frames for cover
- Microphone cable, 150 mm (AUX in)
- option: remote control RC DAB
- battery for remote control
- sets: KEL 55
- manual
3. Safety & Security
General Information
In addition to this guidance please adhere to your own country-specific safety & security regulations.
3.1. How to use this guide:
Read these instructions carefully before use and use this product only in accordance with the instructions
listed here.
3.2. Signs & symbols used
This sign warns of danger of injury and property damage.
This sign warns of injury from electricity.
This sign warns of injury and/or explosion.
This symbol refers to additional information.
3.3. Signal words and their meaning
Version
(modifications reseverd)

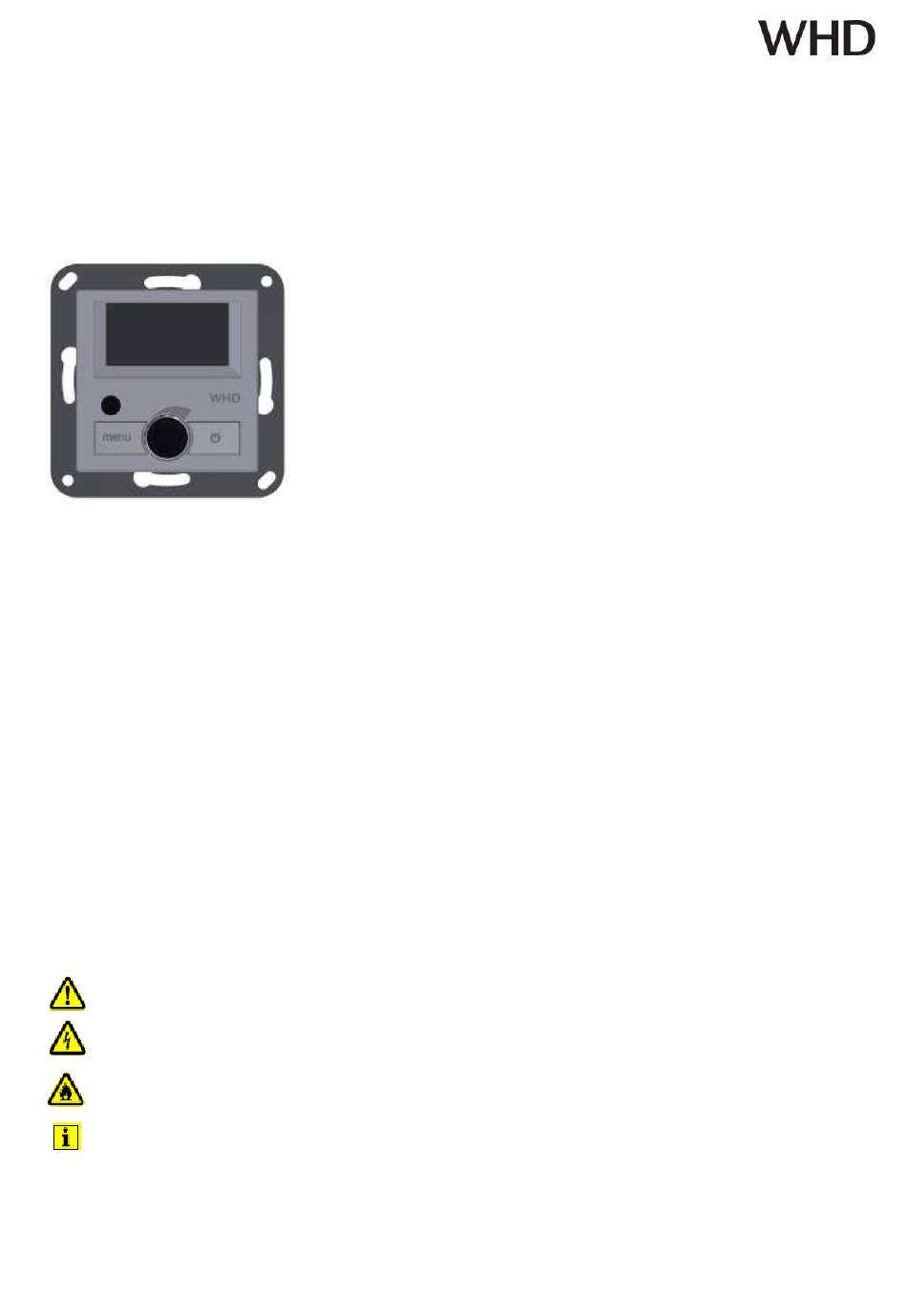

DAB Radio UP
113-015-0X-00Y-0Z / sets & accessories
Valid for all components:
113-015-03-001-01 DAB+ UP-Radio, white, without remote control
113-015-08-001-01 DAB+ UP-Radio, silver, without remote control
113-015-04-001-01 DAB+ UP-Radio, black, without remote control
113-015-03-001-00 DAB+ UP-Radio-RC, white, with remote control RC DAB, silver
113-015-08-001-00 DAB+ UP-Radio-RC, silver, with remote control RC DAB, silver
113-015-04-001-00 DAB+ UP-Radio-RC, black, with remote control RC DAB, silver
113-015-03-002-01 DAB+ UP-RadioSet KEL 55, white, consisting of DAB+ UP-
Radio,white, KEL 55 Music white, without remote control
113-015-03-002-00 DAB+ UP-RadioSet KEL 55 RC, white, consisting of DAB+ UP-
Radio,white, KEL 55 Music white, with remote control RC DAB, siver
112-001-04-015-00 IR remote control RC DAB, silver, valid for DAB-Radio
X=3 ... Color: white
X=4 ... Color: black
X=8 ... Color: silver
Y=1 ... DAB Radio UP
Y=2 ... DAB Radio UP Set (incl. KEL 55)
Z=0 ... incl. remote control RC DAB, silver
Z=1 ... without remote control
Seite 1 of 22
25.03.2019
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WHD 113-015-0 00 0 Series
Summary of Contents for WHD 113-015-0 00 0 Series
- Page 1 113-015-0X-00Y-0Z / sets & accessories 1. Welcome Thank you for buying this quality WHD product. Please read this manual carefully, especially the safety and security information. Please check that you have the correct manual for your product. To do this, please compare the product code number shown above with the product code number displayed on your product.
- Page 2 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories Danger: Potential severe physical damage and acute danger. Warning: Potential electrical shock physical damage and severe property damage. Caution: Potential fire hazard physical damage or property damage as a result of. Attention: Advisory notes only.
- Page 3 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories 9. Installing the device 9.1. General The device has an installation depth of 58 mm. For the UP-electronics box is a minimum depth of 60 mm prerequisite for correct installation (e.g. KAISER electronics box 1068-02).
- Page 4 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories Connection Unit: 4pin flat ribbon cable Switch for LineIn/LineOut (e.g. OUT) Terminal LI/LO Terminal Loudspeaker Laterally: 230 VAC Connecting external antenna (screw clamp, detachable) 0 … GND / screen (-) wire (+) …...
- Page 5 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories 9.3. Installation of the device in the wall Carefully insert the electronics insert with the connected cables into the flush-mounted socket. Make sure that the cables are not overly bent or pulled out of the terminals. The antenna can be inserted in an empty pipe.
- Page 6 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories Display in ON Mode: Current settings of the alarms, the time and the last set radio station (DAB / FM, no AUX!). Configuration Mode: Device is ON Display of the menu items after selection. The System Settings are made here.
- Page 7 Adjustable values are highlighted in the display by light background. Please note the menu structure (attachment to the main document). 10.4. Configuration of the basic settings Pre-configuration by the WHD partner (customer): Note: Please ask the following parameters beforehand: - Is AUX active?
- Page 8 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories The following screen appears: Number of stations (11) Station list favourite memory no. (FREQ) (No.) Rotate encoder to the desired fecuency and acknowledge by pressing encoder Now you can make the memory allocation. Rotate encoder to the desired memory number and acknowledge by pressing...
- Page 9 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories Repeat as many times as desired. Save the complete station list by pressing / ON/OFF button. 10.4.3. Seting FM/DAB stations (DAB is ON) Switch ON the device / ON Press menu button / MENU Check display for...
- Page 10 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories 10.4.5. Alarm settings (Alarm 1/2) Alarm 1: single alarm Alarm 2: repetitive alarm Switch OFF the device / OFF Press menu button / MENU Check display for ALARM 1 / ALARM 2 Rotate encoder to the desired setting and acknowledge by pressing encoder The following screen appears (1/2)
- Page 11 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories 10.4.6. Setting Sleep and Alarm-timers Switch OFF the device / OFF Press menu button / MENU Check display for Dauer Rotate encoder to the desired setting and acknowledge by pressing encoder The following screen appears: The first changeable value is displayed (light background).
- Page 12 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories The following screen appears: The first changeable value is displayed (light background). => hell (brightness of the display in use/ON) Select your desired luminous strenth by rotating the encoder (font will be lighter/darker) and acknowledge your setting by pressing encoder...
- Page 13 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories The following screen appears: Rotate the encoder to the selection field SCAN (ein/aus) and choose your setting by rotating ecoder Save the complete settings by pressing / ON/OFF button. 10.4.10.
- Page 14 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories 10.5. Operation 10.5.1. Listen to radio stations (FM/DAB) Switch ON the device / ON The device starts with the last heard radio station (FM or DAB!) Setting VOLUME: By rotating the encodes you can change volume setting.
- Page 15 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories Turn OFF the device (OFF) Press button / OFF The actual alarms and time status is displayed. Note: Depending on the configuration, the screen may darken. Change Basic and System Settings You can change the settings as described in section 10.4.1.
- Page 16 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories 12. Remote Control 12.1. Functions of the remote control The DAB-UP radio can also be controlled via the remote control RC DAB (Item No. 112-001-04-015). Note: - Programming with the remote control is not possible. - When you start the device with the remote control, the first FM station of the station list is switched on (not DAB or AUX).
- Page 17 No radio station receives with the included antenna Connect an external antenna (home antenna, indoor antenna, …) 14. Disposal WHD are members of the INTERSEROH association. We participate in the dual system as well as some industry- specific solutions therefore the plastic, metal and electronic parts can all be recycled.
- Page 18 Valid for 113-015-0X-00Y-0Z / sets & accessories 16. Name and address of the manufacturer CONTACT WHD - Wilhelm Huber+Söhne GmbH+Co.KG Bismarckstr. 19 78652 Deißlingen Tel. Zentrale 0 74 20 / 8 89-0 Fax Zentrale 0 74 20 / 8 89-51 E-Mail: info@whd.de...
- Page 19 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories D O C U M E N T A T I O N P R E S E T T I N G S Customer Executive Name __________________________ __________________________ Address __________________________ __________________________...
- Page 20 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories M E N U Basic Settings Device is OFF Version (modifications reseverd) 25.03.2019 Seite 20 of 22...
- Page 21 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories M E N U System Settings Device is ON Version (modifications reseverd) 25.03.2019 Seite 21 of 22...
- Page 22 Manual DAB Radio UP Valid for 113-015-0X-00Y-0Z / sets & accessories M E N U Operation Device is ON Version (modifications reseverd) 25.03.2019 Seite 22 of 22...
