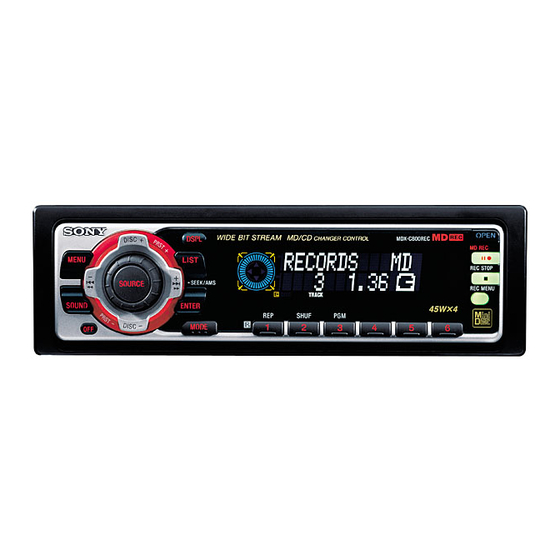

Sony MDX-C800REC Service Manual

Fm/am mini disc recorder
Hide thumbs Also See for MDX-C800REC:
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
19 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 1% total harmonic distortion.
Other Specifications
MD recoder section
Signal-to-noise ratio
92 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Laser Diode Properties
Material
GaAlAs
Wavelength
790 nm
Emission Duration
Continuous
Laser output power
Less than 5 mW*
* This output is the value measured at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block.
Tuner section
FM
Tuning range
87.5 – 107.9 MHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
8 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
66 dB (stereo),
72 dB (mono)
Harmonic distortion at 1 kHz
0.6% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
AM
Tuning range
530 – 1,710 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
30 µV
Power amplifier section
Outputs
Speaker outputs
(sure seal connectors)
Speaker impedance
4 – 8 ohms
Maximum power output 45 W × 4 (at 4 ohms)
MDX-C800REC
SPECIFICATIONS
General
Outputs
Inputs
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
U.S. and foreign patents licensed from Dolby
laboratories Licensing Corporation.
Design and specifications are subject to change without
notice.
Canadian Model
Model Name Using Similar Mechanism
Mini Disc Mechanism Type
Optical Pick-up Name
Audio outputs
Power antenna relay
control lead
Power amplifier control
lead
Telephone ATT control
lead
Digital input connector
BUS audio input connector
BUS control input connector
Bass ±9 dB at 100 Hz
Treble ±9 dB at 10 kHz
12 V DC car battery
(negative ground)
Approx. 178 × 50 × 184 mm
× 2 × 7
(7
in.)
1/8
1/4
(w/h/d)
Approx. 182 × 53 × 163 mm
× 2
× 6
(7
in.)
1/4
1/8
1/2
(w/h/d)
Approx. 1.5 kg (3 lb. 1 oz.)
Parts for installation and
connections (1 set)
Front panel case (1)
FM/AM MINI DISC RECORDER
US Model
NEW
MG-715B-160
KMS-263A
1

Advertisement

Table of Contents
loading

Related Manuals for Sony MDX-C800REC

Summary of Contents for Sony MDX-C800REC

  • Page 1 MDX-C800REC SERVICE MANUAL US Model Canadian Model Model Name Using Similar Mechanism Mini Disc Mechanism Type MG-715B-160 Optical Pick-up Name KMS-263A SPECIFICATIONS AUDIO POWER SPECIFICATIONS General Outputs Audio outputs POWER OUTPUT AND TOTAL HARMONIC DISTORTION Power antenna relay 19 watts per channel minimum continuous average power into...
  • Page 2 REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL IN SUPPLEMENTS PUBLISHED BY SONY. OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL 4. EXPLODED VIEWS Location of controls ..............4 4-1. Sub Panel Section .............. 57 Getting Started ................. 4 4-2. Front Panel Section ............58 Setting the clock ..............4 4-3. Chassis Section ..............59 MD player CD/MD unit ............5 4-4.

  • Page 4: General

    SECTION 1 GENERAL This section is extracted from instruction manual.

  • Page 16: Disassembly

    SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. SUB PANEL ASSY 4 two claws 5 CN700 3 claw 2 PTT 2.6x6 6 sub panel assy 1 PTT 2.6x6 2-2. MD MECHANISM BLOCK 7 PTT 2.6x6 5 ground point screw (PTT 2.6x6) 0 MD mechanism block...

  • Page 17: Main Board, Digital Board

    2-3. MAIN BOARD, DIGITAL BOARD 3 ground point screw 5 MAIN board (PTT 2.6x6) 8 DIGITAL board 4 ground point screws (PTT 2.6x6) 6 CN821 2 PTT 2.6x10 7 PTT 2.6x10 1 PTT 2.6x10 2-4. HEAT SINK (REC) 6 heat sink (REC) 5 PTT 2.6x10 4 PTT 2.6x10 3 PTT 2.6x10...

  • Page 18: Md Mechanism

    2-5. MD MECHANISM 2 P 2x3 1 P 2x3 9 CN561 3 shield case (U) 8 CN400 7 bracket (F) (MD) 0 MD mechanism 6 P 2x3 4 P 2x3 5 shield case (77) 2-6. COMPUTER BOARD 3 CN401 4 COMPUTER board 2 PS 2x4 1 PS 2x4...

  • Page 19: Servo Board

    2-7. SERVO BOARD 1 PS 2x4 2 PS 2x4 6 SERVO board 5 CN440 3 CN510 4 CN520 2-8. TENSION SPRING (B) 1 tension spring (B) 2 tension spring (B)

  • Page 20: Chassis (L), (R) Assy

    2-9. CHASSIS (L), (R) ASSY qa chassis (L) assy 0 damper (T) 8 chassis (R) assy 9 tension spring (F) 7 damper (T) 6 tension spring (F) 3 P 2x3 1 P 2x3 5 P 2x3 4 P 2x3 2 P 2x3 2-10.

  • Page 21: Sled Motor Assy

    2-11. SLED MOTOR ASSY 2 wire 5 PS 2x4 1 OWH flexible board 7 sled motor assy 6 CN551 3 P 1.7x2 4 spring (SL), leaf 2-12. SENSOR BOARD 4 PS 2x4 1 Removal the solders 3 CN551 2 CN552 5 PS 2x4 7 SENSOR board claw...

  • Page 22: Spindle Motor Assy

    2-13. SPINDLE MOTOR ASSY 2 P 1.7x2 1 P 1.7x2 3 spindle motor assy 2-14. OVER WRITE HEAD 1 P 1.7x6 2 over write head (RF325-74A)

  • Page 23: Optical Pick-Up

    2-15. OPTICAL PICK-UP 4 K 2x3 2 OWH flexible board 6 main shaft 5 optical pick-up 3 K 2x3 1 OWH flexible board...

  • Page 24: Diagrams

    MD mechanism deck power supply control output LNKOFF LINK OFF output to SONY BUS (“H”: LINK OFF, “L”: LINK ON) UNIREQ Request output to SONY BUS (“H”: Request ON) (Not used in this set.) — Power supply pin (+5 V) 9, 10 —...
  • Page 25 Input for sub clock oscillation (Connect to ground pin in this set) CC-XINT XINT interruption input from MD servo IC BUS-ON BUS ON input of SONY BUS BU-IN Power instantaneously cut off check port of system SQ-SY SUBQ SYNC interruption input from MD servo IC...
  • Page 26 Pin No. Pin Name Pin Description MDLAT Latch output to MD servo IC SERVO-ON Power control output to MD servo IC 115 – 118 MNT3 – 0 Monitor 3 – 0 input of CXD2652AR — Ground pin SENS Sens input from MD servo IC...
  • Page 27 Not used in this set (Open) 35, 36 — Ground pin P65/IRQ1 Not used in this set (Open) BUS ON SONY BUS on input “L”: Active — Power supply pin (+5 V) CD/MD Not used in this set (Open) 41 – 43 PE1 –...
  • Page 28 Not used in this set (Open) — Power supply pin (+5 V) 90 – 96 PF6 – 0 Not used in this set (Open) UNI-SO SONY BUS system serial data output UNI-SI SONY BUS system serial data input 99, 100 — Ground pin UNI-SCK...
  • Page 29 Not used in this set (Open) RAM BU RAM reset detection input EEDATA EEPROM data output II DATA I2C BUS serial data input/output (SONY BUS interface to tuner, electron volume, RDS.) EECLK EEPROM CLK output DOOR SW/RXD Door open/close detection input “L”: close, “H”: open II CLK I2C BUS serial clock input/output (SONY BUS interface to tuner, electron volume, RDS.)

  • Page 30: Block Diagram -Md Section

    MDX-C800REC 3-2. BLOCK DIAGRAM — MD SECTION — RF AMP DSSP & DSP DAC/ADC OPTICAL PICK-UP IC440 IC400 IC300 KMS-263A SDTI DADT CONV. R-CH PEAK PEAK LRCK LRCK TUNER BOTM BOTM XBCK SCLK SECTION ADDT ABCD ABCD SDTO CONV. (Page 31)

  • Page 31: Block Diagram -Tuner Section

    MDX-C800REC 3-3. BLOCK DIAGRAM — TUNER SECTION — CNP101 CNP101 MUTE Q102 FRONT ELECTRONIC VOLUME AUDIO AUDIO IC102 R-CH R-CH SECTION SEIL R-CH R-CH SEIR MUTE (Page 30) REAR Q102 AUDIO SE 3L R-CH TUNER UNIT R-CH R-CH SE 3R...

  • Page 32: Block Diagram -Display Section

    MDX-C800REC 3-4. BLOCK DIAGRAM — DISPLAY SECTION — SPECTRUM ANALYZER DISPLAY CONTROL IC652 IC650 TUNER S/P SIG A OUT LINK OFF A IN SECTION (Page 31) BUS ON BATT CHECK BATT BU IN Q781 EXTAL X650 IC651 18.432MHz XTAL RESET...

  • Page 33: Circuit Boards Location

    • Waveforms (MODE:PLAY) 3-5. CIRCUIT BOARDS LOCATION THIS NOTE IS COMMON FOR PRINTED WIRING (SERVO/COMPUTER BLOCK) BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) For schematic diagrams Approx. • All capacitors are in µF unless otherwise noted. pF: µµF 0.5Vp-p 50 WV or less are not indicated except for electrolytics DIGITAL board...

  • Page 34: Printed Wiring Board -Servo Section

    MDX-C800REC 3-6. PRINTED WIRING BOARD — SERVO SECTION — • Semiconductor Location Ref. No. Location C510 D440 D441 D510 D511 IC510 D520 OVER WRITE D521 HEAD IC400 C516 C513 IC401 R516 IC402 (IC403) SERVO BOARD (SIDE A) Q512 IC440 D511...
  • Page 35 MDX-C800REC SERVO BOARD (SIDE B) C410 C411 RB405 RB404 L401 R403 C417 C416 R409 C419 R408 C420 C404 IC403 C423 R412 C403 Q400 C406 C402 C428 C400 C424 C401 R413 R414 1-672-770-...

  • Page 36: Schematic Diagram -Servo Section (1/3)

    MDX-C800REC • Refer to page 33 for Waveforms. 3-7. SCHEMATIC DIAGRAM — SERVO SECTION (1/3) — • Refer to page 52 for IC Block Diagrams. Note: • Voltage is dc with respect to ground under no-signal condition. no mark : MD PLAY...

  • Page 37: Schematic Diagram -Servo Section (2/3)

    MDX-C800REC • Refer to page 33 for Waveforms. 3-8. SCHEMATIC DIAGRAM — SERVO SECTION (2/3) — • Refer to page 52 for IC Block Diagrams. Note: (Page 38) • Voltage is dc with respect to ground under no-signal condition. no mark : MD PLAY ) : MD REC ∗...

  • Page 38: Schematic Diagram -Servo Section (3/3)

    MDX-C800REC • Refer to page 33 for Waveforms. 3-9. SCHEMATIC DIAGRAM — SERVO SECTION (3/3) — • Refer to page 52 for IC Block Diagrams. (Page 37) (Page 36) Note: • Voltage is dc with respect to ground under no-signal condition.

  • Page 39: Printed Wiring Board -Sensor Section

    MDX-C800REC 3-10. PRINTED WIRING BOARD — SENSOR SECTION — 3-11. SCHEMATIC DIAGRAM — SENSOR SECTION — (Page 34) SERVO BOARD CN520 SW550 (LIMIT-IN) SENSOR BOARD (SIDE A) C553 M503 (SPINDLE) M501 (SLED) (Page 38) M502 C558 C559 C554 C555 C556...

  • Page 40: Printed Wiring Board -Computer Section

    MDX-C800REC 3-12. PRINTED WIRING BOARD — COMPUTER SECTION — COMPUTER BOARD (SIDE A) • Semiconductor Location Ref. No. Location R574 D560 (D561) R572 CN561 R573 IC560 IC561 (IC562) (IC563) (IC564) (Q561) IC560 (Q562) R563 D560 R561 ) : SIDE B...

  • Page 41: Schematic Diagram -Computer Section

    MDX-C800REC • Refer to page 33 for Waveforms. 3-13. SCHEMATIC DIAGRAM — COMPUTER SECTION — • Refer to page 52 for IC Block Diagrams.

  • Page 42: Printed Wiring Boards -Main Section

    MDX-C800REC 3-14. PRINTED WIRING BOARDS — MAIN SECTION — • Semiconductor Location (SIDE A) Ref. No. Location F-12 D100 D101 D102 D103 D200 D201 D202 D203 D650 D700 J-13 (Page 40) D701 D714 D716 D719 D721 D722 C-10 D723 D780...
  • Page 43 MDX-C800REC • Semiconductor Location (SIDE B) Ref. No. Location D702 D717 D718 D785 D786 D820 D821 D839 D840 D841 IC104 IC280 Q102 B-11 Q200 B-11 Q782 Q783 Q821 Q824 Q827 Q828 Q829 Q832 Q834 Q835 Q836 (Page 48)

  • Page 44: Schematic Diagram -Main Section (1/4)

    MDX-C800REC • Refer to page 49 for Waveforms. 3-15. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 52 for IC Block Diagrams. (Page 46) Note: • Voltage is dc with respect to ground under no-signal (detuned) condition.

  • Page 45: Schematic Diagram -Main Section (2/4)

    MDX-C800REC 3-16. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 52 for IC Block Diagrams. Note: • Voltage is dc with respect to ground under no-signal (detuned) condition. (Page 47) no mark : FM...

  • Page 46: Schematic Diagram -Main Section (3/4)

    MDX-C800REC • Refer to page 49 for Waveforms. 3-17. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — • Refer to page 52 for IC Block Diagrams. (Page 44) Note: • Voltage is dc with respect to ground under no-signal (detuned) condition.

  • Page 47: Schematic Diagram -Main Section (4/4)

    MDX-C800REC • Refer to page 49 for Waveforms. 3-18. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — • Refer to page 52 for IC Block Diagrams. (Page 45) (Page 49) Note: • Voltage is dc with respect to ground under no-signal (detuned) condition.

  • Page 48: Printed Wiring Board -Relay Section

    MDX-C800REC 3-19. PRINTED WIRING BOARD — RELAY SECTION — (Page 43) • Semiconductor Location Ref. No. Location (D800) (D801) (D802) (D803) (D804) (D805) (D806) (Page 50) (D807) (D808) (D809) (D810) (D811) LED800 ) : SIDE B...

  • Page 49: Schematic Diagram -Relay Section

    MDX-C800REC 3-20. SCHEMATIC DIAGRAM — RELAY SECTION — • Waveforms (MODE:MD PLAY) (MAIN BLOCK) 0.8Vp-p IC301 (2A) 3.6Vp-p 24µsec IC300 (LRCK) 4.7Vp-p (Page 51) (Page 47) 0.35µsec (SCLK) IC300 0.9Vp-p 18.432MHz IC650 (EXTAL) 1.8Vp-p 32.768kHz IC700 (XOA) 2.5Vp-p 3.6864MHz (XO)

  • Page 50: Printed Wiring Board -Key Section

    MDX-C800REC 3-21. PRINTED WIRING BOARD — KEY SECTION — • Semiconductor Location Ref. No. Location Ref. No. Location (Page 48) (D901) B-10 LED903 (D902) B-10 LED951 (D903) B-12 LED952 (D904) B-12 LED953 (D950) LED954 A-12 D961 LED955 B-12 LED956 B-12...

  • Page 51: Schematic Diagram -Key Section

    MDX-C800REC 3-22. SCHEMATIC DIAGRAM — KEY SECTION — Note: • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM...
  • Page 52 IC440 CXA2523AR • IC Block Diagrams IC400 CXD2652AR 43 42 USROP – 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 RF AGC – USRC RFA1 BPF3T...
  • Page 53 IC402 AT24C16N-10SI-TR IC780 BA8270F BUS ON BUS ON SWITCH START STOP RESET LOGIC SERIAL SWITCH BUS ON CONTROL H.V. PUMP/TIMING LOGIC CLK IN BATTERY 8 VCC LOAD BATT BU IN SWITCH COMP DEVICE DATA RECOVERY ADDRESS COMPARATOR LOAD INC VREF DATA WORD DATA DATA IN...
  • Page 54 IC102 TDA7402TR 33 32 31 24 23 MIXER MONO- MONO- MONO- MONO- MONO- MONO- FADER FADER FADER FADER FADER FADER ACINLF FRONT SUBWOOFER SWINR ACIN +PHASE OUTPUT SWINL REAR CONTROL SELECTOR ACOUTR MAIN ACOUTL SECOND CREF VOICE BANDPASS BASS SUPPLY TREBLE HIGH-CUT VOLUME...
  • Page 55 IC300 AK4523VF-E2 COMMON VOLTAGE VCOM VREFH ∆Σ ∆Σ AINR+ DECIMATION AOUTR MODULATOR FILTER INTERPOLATOR MODULATOR AINR- ∆Σ ∆Σ AINL+ DECIMATION AOUTL MODULATOR FILTER INTERPOLATOR MODULATOR AINL- CMODE AGND SERIAL I/O DGND INTERFACE DIF0 CLOCK MCKI DIF1 DIVIDER DEM1 LRCK DEM0 SCLK SMUTE SDTI...
  • Page 56 IC801 TL1451ACDB VERF. +2.5V – REFERENCE VOLTAGE ERROR COMPA- AMP2 RATOR2 +2.5V VERF OUTPUT2 SHORT CIRCUIT VERF VERF PROTECTION COMPARATOR OUTPUT1 – LATCH U.V.L.O VREF/2 COMPA- RATOR1 TRIANGLE – OSCILLATOR ERROR AMP1...

  • Page 57: Exploded Views

    SECTION 4 EXPLODED VIEWS NOTE: • The mechanical parts with no reference • Color Indication of Appearance Parts The components identified by number in the exploded views are not supplied. mark 0 or dotted line with mark Example : • Items marked “*” are not stocked since 0 are critical for safety.

  • Page 58: Front Panel Section

    4-2. FRONT PANEL SECTION not supplied (KEY board) LCD900 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-040-980-01 BUTTON (SOURCE) 3-041-003-01 BUTTON (LIST/ENTER) 3-042-458-01 KNOB (VOL-DSO) 3-040-987-02 BUTTON (OFF) * 53 3-040-992-01 HOLDER (LCD) 3-040-986-01 BUTTON (MENU/SOUND) X-3378-498-1 PANEL ASSY, FRONT BACK * 64 3-040-997-01 PLATE (LCD), GROUND...

  • Page 59: Chassis Section

    4-3. CHASSIS SECTION F901 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 3-022-311-41 CHASSIS * 108 3-043-421-01 BRACKET (PC BOARD) * 102 3-047-309-01 SHEET, INSULATING * 109 1-678-398-11 DIGITAL BOARD 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT * 110 3-048-454-01 SHIELD (COVER) * 104...

  • Page 60: Md Mechanism Section (1)

    4-4. MD MECHANISM SECTION (1) (MG-715B-160) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-321-813-21 WASHER, COTTER POLYETHYLENE 3-931-897-31 DAMPER (T) 3-038-515-01 RING, RETAINING * 162 X-3376-409-1 CHASSIS (L) ASSY 3-030-222-01 SPRING (T), TENSION 3-030-194-02 SPRING (F), TENSION 3-030-191-01 SLIDER (T) * 164 X-3376-410-1 CHASSIS (R) ASSY...

  • Page 61: Md Mechanism Section (2)

    4-5. MD MECHANISM SECTION (2) (MG-715B-160) M502 M501 M503 The components identified by Les composants identifiés par une mark 0 or dotted line with mark marque 0 sont critiques pour la 0 are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une piéce specified.

  • Page 62: Md Mechanism Section (3)

    4-6. MD MECHANISM SECTION (3) (MG-715B-160) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark X-3376-418-7 HOLDER ASSY 3-880-990-00 SCREW (1.7X3), FLAT, (+) SPECIAL X-3376-413-2 SLIDER (LK) ASSY X-3376-420-4 SLIDER (L) ASSY 3-321-813-21 WASHER, COTTER POLYETHYLENE 3-038-514-01 RING, RETAINING 3-030-180-01 GEAR (CAM) 3-030-189-01 LEVER (HOOK) 3-030-178-03 GEAR (LD2)

  • Page 63: Electrical Parts List

    SECTION 5 COMPUTER ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by mark 0 or dotted line with mark the parts list may be different from the they are seldom required for routine service.
  • Page 64 COMPUTER DIGITAL CONNECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R624 1-216-825-11 METAL CHIP 2.2K 1/16W C973 1-165-176-11 CERAMIC CHIP 0.047uF R625 1-216-825-11 METAL CHIP 2.2K 1/16W C974 1-115-412-11 CERAMIC CHIP 680PF R627 1-216-825-11 METAL CHIP 2.2K 1/16W C975...
  • Page 65 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < SWITCH > R948 1-216-021-00 METAL CHIP 1/10W R949 1-216-033-00 METAL CHIP 1/10W LSW900 1-771-883-11 SWITCH, TACTILE (WITH LED) (OFF) R950 1-216-041-00 METAL CHIP 1/10W LSW901 1-771-476-11 SWITCH, KEY BOARD (WITH LED) (SOURCE) R951 1-216-825-11 METAL CHIP 2.2K...
  • Page 66 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-164-227-11 CERAMIC CHIP 0.022uF C302 1-107-826-11 CERAMIC CHIP 0.1uF 1-164-346-11 CERAMIC CHIP C304 1-126-603-11 ELECT CHIP 4.7uF 1-163-233-11 CERAMIC CHIP 18PF C305 1-107-826-11 CERAMIC CHIP 0.1uF 1-162-970-11 CERAMIC CHIP 0.01uF C307 1-126-603-11 ELECT CHIP...
  • Page 67 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C724 1-107-826-11 CERAMIC CHIP 0.1uF CN700 1-794-364-11 CONNECTOR (PLUG) 16P C725 1-117-681-11 ELECT CHIP 100uF CN821 1-750-862-21 PIN, CONNECTOR (PC BOARD) 5P C726 1-109-982-11 CERAMIC CHIP CN823 1-573-355-11 CONNECTOR, FFC/FPC 15P C780 1-163-038-00 CERAMIC CHIP...
  • Page 68 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D833 8-719-420-51 DIODE MA729-TX Q103 8-729-047-71 TRANSISTOR FMG12-T-148 D834 8-719-420-51 DIODE MA729-TX Q201 8-729-047-71 TRANSISTOR FMG12-T-148 D835 8-719-976-96 DIODE MA8047-H-TX Q300 8-729-900-53 TRANSISTOR DTC114EKA-T146 D836 8-719-055-30 DIODE D1FS4A-TA Q651 8-729-020-67 TRANSISTOR XN1A312-TX D837...
  • Page 69 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R110 1-216-033-00 METAL CHIP 1/10W R672 1-216-864-11 METAL CHIP 1/16W R111 1-216-081-00 METAL CHIP 1/10W R702 1-216-809-11 METAL CHIP 1/16W R112 1-216-033-00 METAL CHIP 1/10W R703 1-216-097-11 RES-CHIP 100K 1/10W R113...
  • Page 70 MAIN RELAY Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R758 1-218-716-11 METAL CHIP 0.5% 1/16W R856 1-216-033-00 METAL CHIP 1/10W R759 1-216-025-11 RES-CHIP 1/10W R857 1-216-061-00 METAL CHIP 3.3K 1/10W R760 1-218-716-11 METAL CHIP 0.5% 1/16W R858 1-216-061-00 METAL CHIP...
  • Page 71 RELAY SENSOR SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > C410 1-107-826-11 CERAMIC CHIP 0.1uF C411 1-107-826-11 CERAMIC CHIP 0.1uF LED800 8-719-077-75 LED BR1101F-TR (DISC IN) C414 1-162-970-11 CERAMIC CHIP 0.01uF C415 1-107-823-11 CERAMIC CHIP 0.47uF <...
  • Page 72 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > < RESISTOR > CN400 1-785-771-21 CONNECTOR, FFC/FPC (ZIF) 35P R400 1-216-809-11 METAL CHIP 1/16W CN401 1-774-930-21 CONNECTOR, FFC/FPC 51P R401 1-216-833-11 RES-CHIP 1/16W CN440 1-573-361-11 CONNECTOR, FFC/FPC 21P R402 1-216-845-11 METAL CHIP...
  • Page 73 SERVO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R480 1-216-863-11 RES-CHIP 3.3M 1/16W ************** R482 1-216-821-11 METAL CHIP 1/16W HARDWARE LIST R483 1-216-821-11 METAL CHIP 1/16W ************** R484 1-216-841-11 METAL CHIP 1/16W R485 1-216-821-11 METAL CHIP 1/16W 7-685-792-09 SCREW +PTT 2.6X6 (S) 7-621-255-35 SCREW +P 2X5...
  • Page 74 MDX-C800REC Sony Corporation 9-870-144-31 2000C0416-1 Mobile Electronics Division Company Printed in Japan ©2000. 3 Published by General Engineering Dept.
