• For use with 12V systems
• Input DC voltage range: DC 10V‐15V
• Overload and short‐circuit protection
• Built‐in cooling fan
• (2) 110V AC 3‐prong grounded receptacles and overload indicator
• Modified sine wave
• (8) replaceable 30 Amp fuses
• Maximum Continuous Power: 2000W
• Peak Load Power Rate: Up to 4000W
• No Load Current Draw: Up to 1.2 Amp

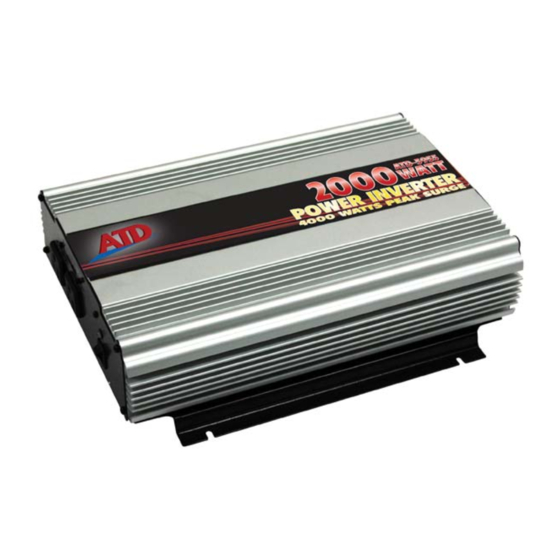

ATD‐5955
2000 WATT INVERTER
REV 03‐13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools 5955
Summary of Contents for ATD Tools 5955

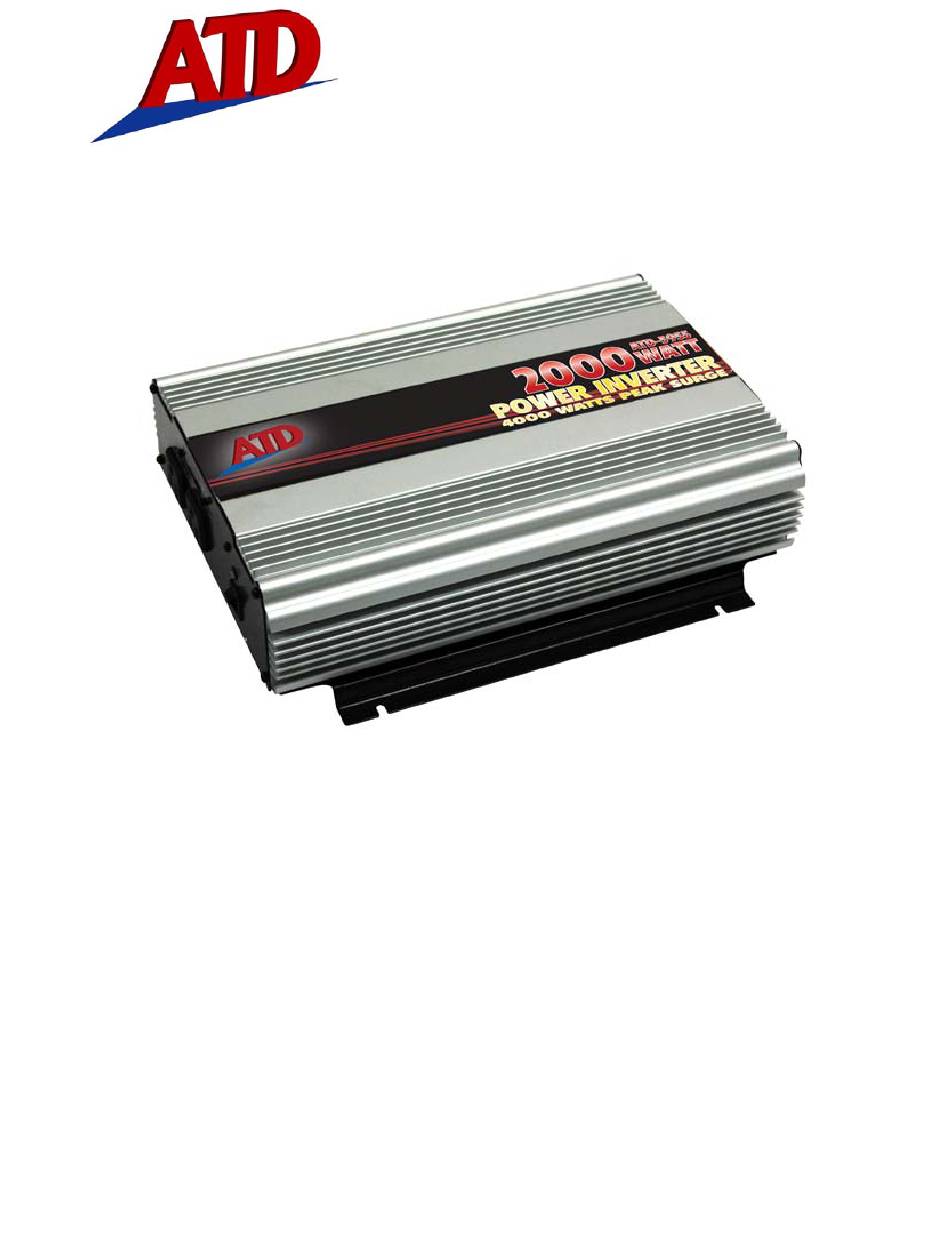

- Page 1 ATD‐5955 2000 WATT INVERTER • For use with 12V systems • Input DC voltage range: DC 10V‐15V • Overload and short‐circuit protection • Built‐in cooling fan • (2) 110V AC 3‐prong grounded receptacles and overload indicator • Modified sine wave • (8) replaceable 30 Amp fuses • Maximum Continuous Power: 2000W • Peak Load Power Rate: Up to 4000W • No Load Current Draw: Up to 1.2 Amp REV 03‐13 ...
-
Page 2: General Safety Warnings
Welcome This ATD product has been carefully engineered and manufactured to give you dependable operation. Please read this manual thoroughly before operating your new ATD product, as it contains the information you need to become familiar with its features and obtain the performance that will bring you continued enjoyment for many years. Please keep this manual on file for future reference. About ATD Inverters ATD, an innovator in portable inverter design, has developed a new line of super‐efficient power inverters with the highest surge capability in the industry. These extremely advanced, microprocessor controlled units run cooler and more reliable than any in their class. Their superior surge capability allows them to start even the most difficult loads, including color televisions, TV/VCR combinations, microwaves, refrigeration units, even small air conditioners! They also have the highest efficiency available (up to 90%) which translates into longer running time and extended battery life. Inverters ... - Page 3 Lead Acid Battery Safety Warnings CA Prop 65 WARNING: Batteries contain lead and other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Wash hands after handling. WARNING: WORKING AROUND LEAD‐ACID BATTERIES MAY BE DANGEROUS. • Lead‐acid batteries release explosive gases during normal operation, charging and jump starting. • All lead‐acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in the presence of fire or sparks. Do not smoke, use matches or a cigarette lighter while near batteries. • Only work with lead‐acid batteries in a well‐ventilated area. Do not handle the battery while wearing vinyl clothing because static electricity sparks are generated when vinyl clothing is rubbed. • To reduce risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on engine. EYE PROTECTION: • User and bystanders should always wear eye protection, appropriate protective clothing and other safety equipment when working near lead‐acid batteries. Do not touch eyes while working on or around lead‐ acid batteries. • IF SPLASHED WITH BATTERY ACID, IMMEDIATELY FLUSH AFFECTED AREA SUCH AS FACE AND PARTICULARLY THE EYES WITH CLEAN WATER. SEEK MEDICAL ATTENTION AND CONTINUE FLUSHING FACE AND EYES UNTIL MEDICAL HELP ARRIVES. WORKING IN ENGINE COMPARTMENT: • Use extreme caution while working within the engine compartment, because moving parts may cause severe injury. Read and follow all safety instructions published in the vehicle’s Owner’s Manual. GENERAL PRECAUTIONS / PERSONAL PRECAUTIONS: • Never work alone with lead‐acid batteries. Make sure that someone is around to give assistance if you need help. •...
-
Page 4: Electrical Safety Warnings
Electrical Safety Warnings WARNING: Read all safety warnings and instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury or death. WARNING: Before connecting a tool to a power supply, always check to ensure the power supply corresponds to the voltage on the nameplate of the tool. A power supply with a voltage greater than that specified for the tool can result in serious injury to the user, as well as damage to the tool. Using a power supply with a voltage less than the nameplate rating is harmful to the motor. If in doubt, do not plug in the tool. WARNING: Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. This tool is equipped with a 3‐prong plug and a 3‐wire grounding system. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. NOTE : Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still doesn’t fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. WARNING: To reduce the risk of electric shock, DO NOT use in damp conditions, on wet surfaces, or expose to rain. Do not plug in this tool or operate it with wet hands or while standing in water. WARNING: Never use the cord for carrying, pulling or unplugging the power tool. Grasp plug and pull to disconnect from outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. WARNING: Do not carry the power tool with your finger on the switch. Ensure the switch is in the off position before plugging the tool into the power outlet. In the event of a power failure while a tool is being used, turn the switch off to prevent surprise starting when the power is restored. WARNING: Always remove the power cord from the electric outlet when making adjustments, changing parts, cleaning or working on the tool. WARNING: Care should be taken to arrange the cord so it will not be stepped on, tripped over, or otherwise subjected to damage or stress. WARNING: Never attempt to plug in or operate equipment with defective or damaged wires, power cord or power cord plug. Have any defective or damaged parts replaced immediately by qualified personnel. WARNING: Avoid body contact with electrically grounded surfaces. There is an increased risk of electric shock if your body is grounded. ... - Page 5 Electrical Safety Warnings (Continued) WARNING: If the work area is not equipped with a permanently installed Ground Fault Circuit Interrupter outlet (GFCI), use a plug‐in GFCI between the power tool or extension cord and the power receptacle. WARNING: If an extension cord is necessary, use only ‘Listed’ extension cords. If used outdoors, they must be marked “For Outdoor Use”. Those cords having a 3‐prong grounding type plugs and mating receptacles are to be used with grounded tools. WARNING: Use of improper size or gauge of extension cord may cause unsafe or inefficient operation of your tool, or cause damage to your tool. Be sure your extension cord is rated to allow sufficient current flow to the motor. If in doubt, always use a larger gauge cord. Be sure to check the voltage requirements of the tool to your incoming power source. NOTE : The table below shows the correct size to use according to cord length and the amperage draw of the tool (specified on the nameplate). When in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. (AWG = American Wire Gauge). Minimum Gauge for Extension Cords (AWG) (when using 120 volts only) Ampere Rating Total Length of Cord in Feet (meters) More Than Not More Than 25' (7.6m) 50' (15m) 100' (30.4m) 150' (45.7m) 0 6 18 16 16 14 6 10 18 16 14 12 ...
- Page 6 Inverter Safety Warnings (Continued) WARNING: Handling the cord on this product or cords associated with accessories sold with this product, may expose you to lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. WARNING: With use, the inverter will become warm and possibly hot. Keep it away from any heat sensitive materials. Make sure the inverter is not close to any potential source of flammable fumes, gases or clothing. Keep the unit away from flammable material or in any location which may accumulate flammable fumes ...
-
Page 7: Getting Started
Getting Started When you turn on an appliance or a tool that operates using a motor or tubes, it requires an initial surge of power to start up. This surge of power is referred to as the "starting load" or "peak load". Once started, the tool or appliance requires less power to continue to operate. This is referred to as "continuous load" in terms of power requirements. You will need to determine how much power your tool or appliance requires to start up (starting load) and it's continued running power requirements (continuous load). Power consumption is rated either in wattage (watts) or in amperes (amps) and this information is usually stamped or printed on most appliances and ... -
Page 8: Selecting A Power Supply
ON/OFF Switch. The current flowing from the power source to the inverter is controlled by this switch. It does not control the current flowing from the inverter to the appliance. Overload LED Indicator Light. If the continuous power draw of the appliance(s) being operated exceeds 1500 watts, this light will turn Red and the inverter will automatically shut down. When this occurs turn off the inverter and determine the cause of the over load before turning the inverter and the appliance back on. Two Standard North American 110V AC Outlets. D. High‐Speed Cooling Fan. When the temperature inside the inverter exceeds the limits of safe operation condition the Cooling Fan automatically turns on to cool the inverter. When the temperature has lowered to a safe operating condition, the fan will shut off. The fan is not designed to run continuously. Positive Power Input Terminal. Deep Cycle (marine) batteries generally have the highest reserve ratings. They are also capable of withstanding repeated complete drains of power and recharging. If you do not have a deep cycle battery we recommend that you run the engine of your vehicle when operating the inverter. ... - Page 9 Conclusion: The reserve power of a battery with a 150 reserve minutes rating is sufficient to satisfy the continuous load demand placed on the inverter for a maximum of about one hour. (45 amps/hour‐amp draw = 1 hour). Note: • When the inverter will be operating appliances with high continuous load ratings for extended periods, it is not advisable to power the inverter with the same battery used to power your car or truck. If the car or truck battery is utilized for an extended period, it is possible that the battery voltage may be drained to the point where the battery has insufficient reserve power to start the vehicle. • It may be advisable to operate the inverter from a bank of batteries of the same type in a "parallel" configuration. ...
-
Page 10: Television And Audio Suggestions
• If the cables supplied with your power inverter are too short to allow for placement of the inverter in a desired location, see the last page of this manual for recommended wire gauges and lengths to be used. The steps outlined for making the connection and the related safety precautions remain unchanged. • The audible alarm may make a momentary "chirp” when the inverter is turned OFF (0). This same alarm may also sound when the inverter is being connected to or disconnected from the 12‐volt power source. • Use of an extension cord from the inverter to the appliance or equipment being operated will not significantly decrease the power being generated by the inverter. For best operating results, the extension cord should be no more than 50 feet long. Television and Audio Suggestions Although these inverters are shielded and filtered to minimize signal interference, some interference with your television picture may be unavoidable, especially with weak signals. However, here are some suggestions that may improve reception. First, make sure that television antenna produces a clear signal under normal operating conditions (i.e., at home plugged into a standard 110V AC wall outlet). Also, ensure that the antenna cable is properly shielded and of good quality. Change the positions of the inverter, antenna cables and television power cord. Isolate the television, its power cord and antenna cables from the 12‐volt power source by running an extension cord from the inverter to the television set. Coil the television power cord and the input cables running from the 12‐volt power source to the inverter. Attach a "Ferrite Data Line Filter" to the television power cord. More than one filter may be required. These filters are available at most electronic supply stores. Note ... -
Page 11: How Power Inverters Work
let it run for approximately 10 minutes to recharge the battery. We also recommend that the device plugged into the inverter be turned OFF before starting the vehicle engine. Although it is not necessary to disconnect the inverter when turning over the engine, it may momentarily cease to operate as the battery voltage decreases. When the inverter is not supplying power, it draws very low amperage from the battery and may be left connected to the battery for up to three hours. However, we recommend the inverter always be disconnected when not in use. Inverter Protection Features The RED LED Indicator light will turn on and the inverter will turn itself off automatically when: The power input from the battery drops to 9.5 volts.(When the power input drops to 10.5 volts, an alarm will sound for an extended period). The power input from the battery exceeds 15.5 volts. The continuous draw of the equipment or appliance being operated exceeds 1500 watts. The surge draw of the equipment or appliance being operated exceeds 3000 watts. The circuit temperature exceeds 165°F. Note • The inverter is equipped with a cooling fan which is designed to run continuously while the inverter is operating. Automatic shut down caused by high circuit temperatures will occur when the cooling fan is unable to maintain a cool enough temperature for safe operation of the inverter. • In the event of automatic shut down or continuous audible alarm, turn the inverter rocker switch to the OFF (0) position until the source of the problem has been determined and resolved. How Power Inverters Work There are two stages in which a power inverter changes the 12‐volt DC (or battery) power into 110V AC (household current). ... -
Page 12: Troubleshooting
The modified sine wave produced by our inverters has a root mean square (RMS) voltage of 110 volts. The majority of AC voltmeters are calibrated for RMS voltage and assume that the measured waveform will be a pure sine wave. Consequently, these meters will not read the RMS modified sine wave voltage correctly and, when measuring the inverter output, the meters will read about 20 to 30 volts too low. To accurately measure of the output voltage of the inverter, use a true RMS reading voltmeter such as a Fluke 87 Fluke 8060A Beckman 4410, Triplet 4200 or any multimeter identified as "True RMS" ... - Page 13 PROBLEM: Red LED Indicator On (Continued) _____ Reason: Equipment being operated draws too much power. Solution: Use a higher capacity inverter or do not use this equipment. _____ Reason: Inverter is too hot (thermal shut down mode). Solution: Allow inverter to cool. Check for adequate ventilation. Reduce the load on the inverter to rated continuous power output. _____ Reason: Unit may be defective. Solution: See Warranty and call customer service. PROBLEM: TV Interference Reason: Electrical interference from the inverter. Solution: Add a ferrite data line filter on to the TV power cord. Refer to TV & Audio section of this manual. PROBLEM: Low Battery Alarm On All The Time Reason: Input voltage below 10.5 volts. Solution: Keep input voltage above 10.5 volts to maintain regulation. Reason: Poor or weak battery. Solution: Recharge or Replace battery. Reason: Inadequate power being delivered to the inverter or excessive voltage drop Solution: Check condition of cigarette lighter socket. Clean or replace if necessary, or check cable clamp connections. ...
-
Page 14: Specifications
SPECIFICATIONS Max. Continuous Power...............2000 Watts Surge Capability (Peak Power) .............4000 Watts No Load Current Draw ..............1.2A Waveform ...................Modified Sine Wave Input Voltage Range ..............DC10‐15V AC Receptacles ................110V AC 3 prong grounded Fuse ...................8 x 30 amp (spade type) Dimensions.……………………………………………………………………………………14.84”x9.06”x3.01” (377mmx230mmx76.5mm) Weight…………………………………………………….………...….……....12 Lbs. ( 3.62 kg) Inverter Cables 200W & 400W Inverters come with a cigarette lighter plug/cable & clamp on battery cables. 800W OR GREATER MUST BE HARD WIRED TO BATTERY. Because of the many configurations possible, cables are not supplied with this unit. *USE THE THICKEST WIRE AVAILABLE IN THE SHORTEST LENGTH PRACTICAL Wattage 0'-4' Length 5'-10' Length 800W #2 AWG #0 AWG 1000W #0 AWG #2/0 AWG 1500W #0 AWG #2/0 AWG 2000W #2/0 AWG #4/0 AWG 3000W #2/0 AWG... -
Page 15: Warranty
WARRANTY 1 YEAR REPLACEMENT WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT (S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES The warranty is only made available by returning the product to the point of sale. PURCHASED FROM:________________________________________________ DATE PURCHASED: ________________________________________________ INVOICE/RECIEPT NUMBER:_________________________________________ Your ATD‐5950 is warranted for a period of 12 months from the original date of. Any consumable items, such as carbon brushes, batteries, drill and driver bits and chucks are covered by a 90 day warranty. This warranty is valid for defects in workmanship or materials only, and is handled at the point of sale. The warranty given on this tool is against defects in workmanship and materials only. Any misuse, abuse or accidental damage is not covered by warranty. The following actions will also result in the warranty being void: • If the tool has been operated on a supply voltage other than that specified on the tool. • If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • If the tool is disassembled or tampered with in any way. Note: Warranty excludes consumable parts such as carbon brushes, batteries, drill and driver bits and chucks. [Affix receipt or invoice here for safe keeping] REV 03‐13 ...
