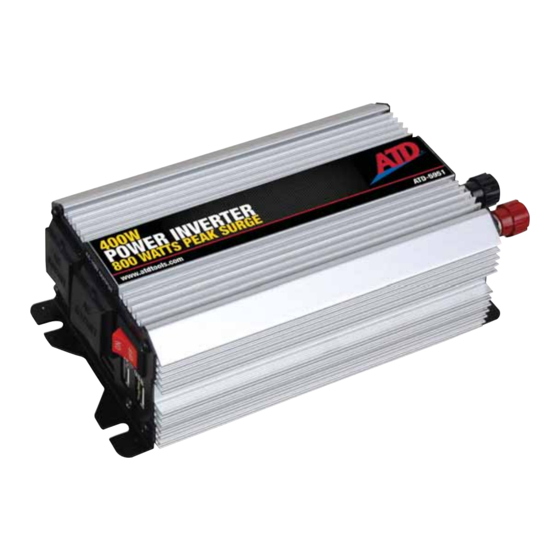

- Page 1 ATD-5951 400W Power Inverter Owner’s Manual ATD5951_rev_0717 Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
-
Page 2: General Safety Warnings
12-Volt automobile and marine ba eries or from portable high power 12-Volt sources. Our ATD-5951 inverter has dual 110V AC outlets, and 2 USB outlets rated at 3.1A for powering laptops, video game systems, DVD players, cell phones, tablets and many other USB devices. -
Page 3: Safety Warnings
Lead Acid Safety Warnings WARNING: WORKING AROUND LEAD-ACID BATTERIES MAY BE DANGEROUS. Lead-acid ba eries release explosive gases during normal oper on, charging and jump star ng. All lead-acid eries (car, truck and boat) produce hydrogen gas which may violently explode in the presence of re or sparks. -
Page 4: Electrical Safety Warnings
115V AC in your house. Keep children away from the unit. WARNING: ATD Tools, Inc. does not authorize or recommend this inverter or any related products to be used with life support devices or systems. - Page 5 Inverter Safety Warnings (Con WARNING: With use, the inverter will become warm and possibly hot. Keep it away from any heat sensi ve materials. Make sure the inverter is not close to any pote source of ammable fumes, gases or clothing.
- Page 6 Ge ng Started When you turn on an appliance or a tool that operates using a motor or tubes, it requires an ini al surge of power to start up. This surge of power is referred to as the "star ng load" or "peak load". Once started, the tool or appliance requires less power to con nue to operate.
- Page 7 External fuses Power indicator (green) DC input “+” terminal (red) DC input “-” terminal (black) 12V DC Input Cable Alligator Clip Cable Connec g Your Inverter Make sure the ON/OFF rocker switch located on the front panel of the inverter is in the OFF (0) posi on. Connect the red terminal of the 12V DC input cable to the “+”...
- Page 8 Television and Audio Sugges ons Although these inverters are shielded and ltered to minimize signal interference, some interference with your television picture may be unavoidable, especially with weak signals. However, here are some sugges ons that may improve rece First, make sure that television antenna produces a clear signal under normal opera ng condi ons (i.e., at home plugged into a standard 110V AC wall outlet).
- Page 9 Inverter Protec n Features corrected, the inverter can be restarted. Note This How Power Inverters Work There are two stages in which a power inverter changes the 12-Volt DC (or ba ery) power into 110V AC (household current). STAGE 1: The inverter uses a DC-to-DC converter to increase the DC input voltage from the power source to 145 volts DC.
- Page 10 In Review Never a empt to operate the inverter from any power source other than a 12-Volt DC volt ba ery. The inverter is designed to be connected to the power source with the 12-Volt power plug. Do not a empt to modify the power cord or plug.
-
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE TROUBLE/INDICATION POSSIBLE CAUSE SUGGESTED REMEDY DC INPUT BELOW 10 VOLTS RECHARGE OR REPLACE BATTERY DC INPUT ABOVE 15 VOLTS REDUCE CHARGING VOLTAGE NO AC OUTPUT - RED LED LIT EXCESSIVE LOAD - THERMAL REDUCE LOAD, WAIT FOR INVERTER SHUTDOWN TO COOL. -
Page 12: Specifications
SPECIFICATIONS Max. Con nuous Power..............400-Wa s Surge Capability (Peak Power) .............800- Wa s No Load Current Draw ..............0.5A Waveform ..................Modi ed Sine Wave Input Voltage Range ..............11-14V DC AC Receptacles ................110V AC 3 prong grounded Fuse .....................25A (x2) Dimensions...................7.28” x 4.05” x 2.36” (185mm x 103mm x 52mm) Weight..................2 lbs. -
Page 13: Year Limited Warranty
Your ATD-5951 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
