Kenwood Chefette Lite HMP32, HMP34 - Hand Mixer Manual

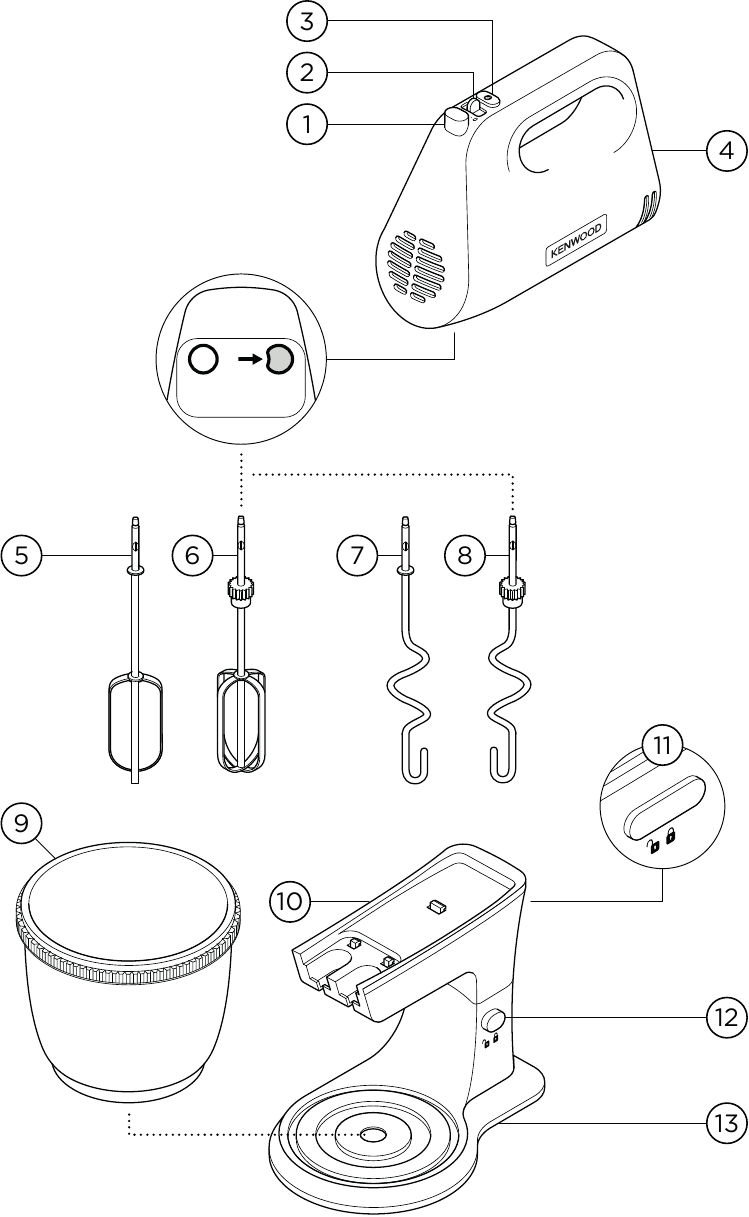

Key
- Tool release button
- Speed selector
- (P) Pulse button
- Mixer
- Beater
- Beater with gear
- Kneader
- Kneader with gear
- Mixing bowl
- Cradle
- Mixer release button
- Cradle release button
- Stand
To Use your Handmixer
Refer to illustrations A – C
Fitting the beaters/kneaders
Insert the beater/kneader with the plastic gear in the socket.

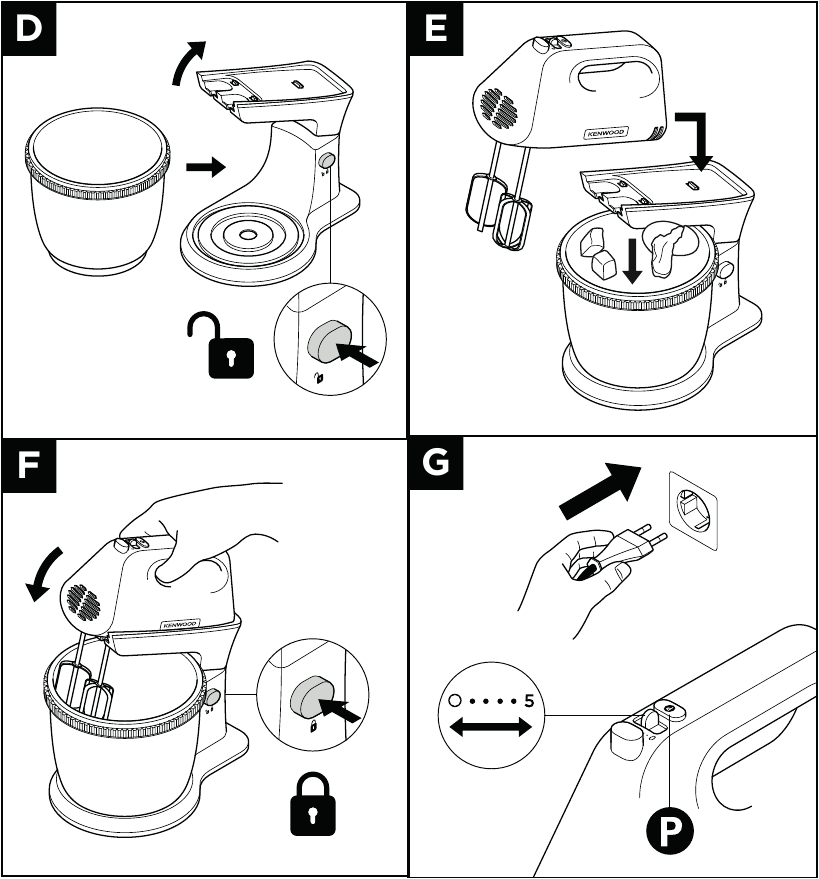

Setting Up the Bowl & Stand
Refer to illustrations D – G
- Fit the beaters/kneaders to the Handmixer.
- Hold the front of the cradle and raise by pressing the cradle release button.
- Place the bowl onto the stand.
- Fit the mixer to the cradle and push down to secure. Note: Check that the beater/ kneader with the plastic gear aligns with the drive gear on the cradle.
- Lower the cradle by holding the Handmixer handle whilst pressing the cradle release button at the same time.
- Plug in and select a speed (Refer to the recommend usage chart).

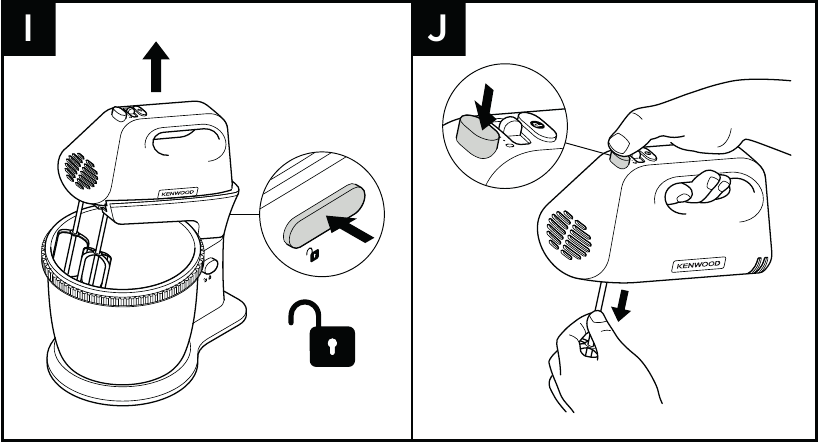

After Use
Refer to illustrations H – J
- Switch the speed selector to the 'O' OFF position.
- Hold by the handle and lift up the cradle by pressing the cradle release button.
- Remove the mixer from the cradle by pressing the mixer release button and lifting off.
- Remove the beaters/kneaders – hold by the shafts and press the tool release button.
Note: they can only be removed when the mixer is released from the cradle and the speed selector is in the 'O' OFF position.
Hints and Tips - As the mixture thickens, increase the speed.
- If the machine starts to slow or labour, increase the speed.
- Press the 'P' pulse button to operate the motor at maximum speed. The motor will operate for as long as the pulse is held in position.
Note: the 'P' pulse button will only operate if a speed is selected first. - Scrape down the sides and bottom of the bowl at regular intervals to assist the mixing operation'
- When creaming for cake mixtures, use butter or margarine at room temperature or soften before use.
- For best results with small quantities, use the handmixer without the stand.
- Large quantities and thick mixtures may require a longer mixing time.
- If you wish to mix larger quantities or heavier mixes, remove the mixer from the stand and use a bowl of an appropriate size.
- To re-knead bread doughs remove the mixer from the stand and use hand held.
|

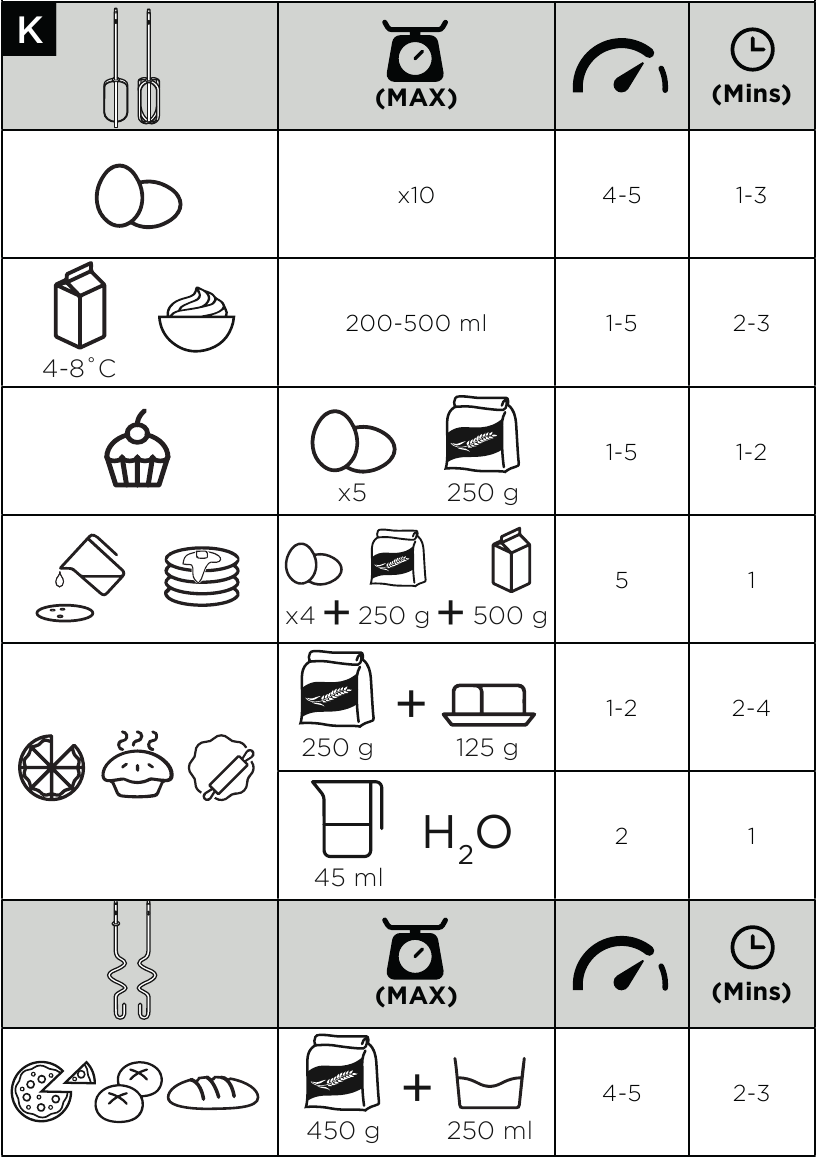

Recommended Usage Chart
Please note that these are recommendations for using the stand and supplied mixing bowl. If using the mixer by hand, the speed you select may depend upon the bowl size (if not using the bowl supplied), quantities, the ingredients you are mixing and personal preference.
Gradually increase to the recommended speeds below.
Optional attachment (not supplied in pack)
Mini chopper - refer to 'Service and Customer Care" section to order.
Service and Customer Care
If you experience any problems with the operation of your appliance, before calling for assistance refer to the Troubleshooting guide or visit www.kenwoodworld.com.
If you need help with:
- Using your appliance or
- Servicing, spare parts or repairs (in or out of guarantee)
Call Kenwood Customer Care on 0345 222 0458 or visit www.kenwoodworld.com. Have your model number (e.g. TYPE: HMP32 & HMP34) and date code (5 digit code e.g. 23T04) ready. They are located on the underside of the power unit. - Spares and attachments
call 0844 557 3653. - Other countries
- If you experience any problems with the operation of your appliance, before requesting assistance refer to the 'Troubleshooting Guide' section in the manual or visit www.kenwoodworld.com.
- Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
- If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
- Designed and engineered by Kenwood in the UK.
- Made in China.
Recipe
White bread dough
10ml/2 tsp dried yeast (the type that requires reconstituting)
5ml/1 tsp sugar
250ml warm water
450g bread flour
5ml/1 tsp salt
15g lard
- Place the dried yeast, with the sugar and water, in a mixing bowl and leave to froth. The correct water temperature should be 43°C and can be achieved by mixing one third boiling water with two thirds cold water.
- Add the remaining ingredients. Fit the kneaders to the handmixer, then combine the ingredients together on a low speed until the flour is incorporated. Then increase the speed and knead for approximately 2-3 minutes, until the dough is smooth and elastic. Cover with oiled cling film and leave the dough to rise in a warm place for 45-60 minutes.
- Re-knead the dough on maximum speed for 30-45 seconds, keeping the kneaders in the mix.
- Shape the dough into a loaf, or rolls, and place on greased baking trays. Cover with oiled cling film and leave somewhere warm until it has doubled in size.
- Bake in a preheated oven at 230°C/450°F/Gas mark 8 for 20-25 minutes (for a loaf) or 10-15 minutes (for rolls). When ready, the dough should sound hollow when tapped on the base.
Troubleshooting Guide
Problem | Cause | Solution |
Handmixer does not operate. | No power. | Check appliance is plugged in. |
Kneader with plastic gear cannot be inserted into the socket. | Fitting kneader to wrong socket | The kneader with the collar will only fit into the socket. |
Handmixer starts to slow or labour during processing. | Speed selected too low. Recommended quantity exceeded. | Increase speed. Refer to recommended usage chart for speeds and quantities to process. Do not operate for longer than 3 minutes without a 15 minute rest period with doughs or heavy cake mixes. |
Excessive splashing or flour spray during processing. | Speed selected too high. Bowl too shallow or too small for ingredients being processed. | Select a lower speed initially and increase as the mixture thickens. Select an appropriate sized mixing bowl. |
Unable to remove tools from sockets. | Speed selector not in 'O' position. | To remove the tools, make sure the speed selector is in the OFF "O" position and unplug the handmixer. Press the tool release button. |
Pulse button does not operate | Speed not selected first. | The Pulse function will only operate if a speed has been selected first. Select a speed and then press the 'P' pulse button. |
Safety
- Read these instructions carefully and retain for future reference.
- Before using for the first time, remove all packaging and any labels. Wash the parts: See 'Cleaning'.
- If the plug or cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer in order to avoid a hazard.
- DO NOT process hot ingredients.
- Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.
Function/ Attachment | Maximum Operation Time | Rest Period Between Operations |
Beaters | 6 mins | Unplug the appliance and allow to cool down for 15 minutes |
Kneaders Heavy cake mixes Bread doughs | 3 mins |
- Never put the handmixer body in water or let the cord or plug get wet.
- Keep fingers, hair, clothing and utensils away from moving parts.
- Never let the cord touch hot surfaces or hang down where a child could grab it.
- Never use a damaged handmixer. Get it checked or repaired: see 'Service and Customer Care'.
- Never use an unauthorised attachment.
- Always switch off the appliance and disconnect from the power supply, if it is left unattended, before assembling, disassembling or cleaning.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Misuse of your appliance can result in injury.
- The rated power is based on the chopper attachment. Other attachments may draw less power.
- Children should be supervised to ensure that they do not play with the appliance.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
Cleaning
Refer to illustration L
- Always switch off, unplug and remove the beaters or kneaders before cleaning.
- Never put the handmixer body in water or let the cord or plug get wet.
- Never use abrasives to clean parts.
(TYPE HMP34 only)
- Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale. Keep away from heat (cooker tops, ovens, microwaves).
Before plugging in - Make sure your electricity supply is the same as the one shown on the underside of the power unit.
Plug and Fuse Information - The wires in the cord are coloured as follows:
Blue = Neutral, Brown = Live. - If the plug is cut off it must be DESTROYED IMMEDIATELY. An electric shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into a socket outlet.
- If the plug supplied with your appliance has a fuse fitted and the fuse fails it must be replaced with one of the same rating.
Note: - For non-rewireable Plug Type G the fuse cover MUST be refitted when replacing the fuse. If the fuse cover is lost then the plug must not be used until a replacement can be obtained. The correct fuse cover is identified by colour and a replacement may be obtained from your Kenwood Authorised Repairer (see Service).
- This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.
|
