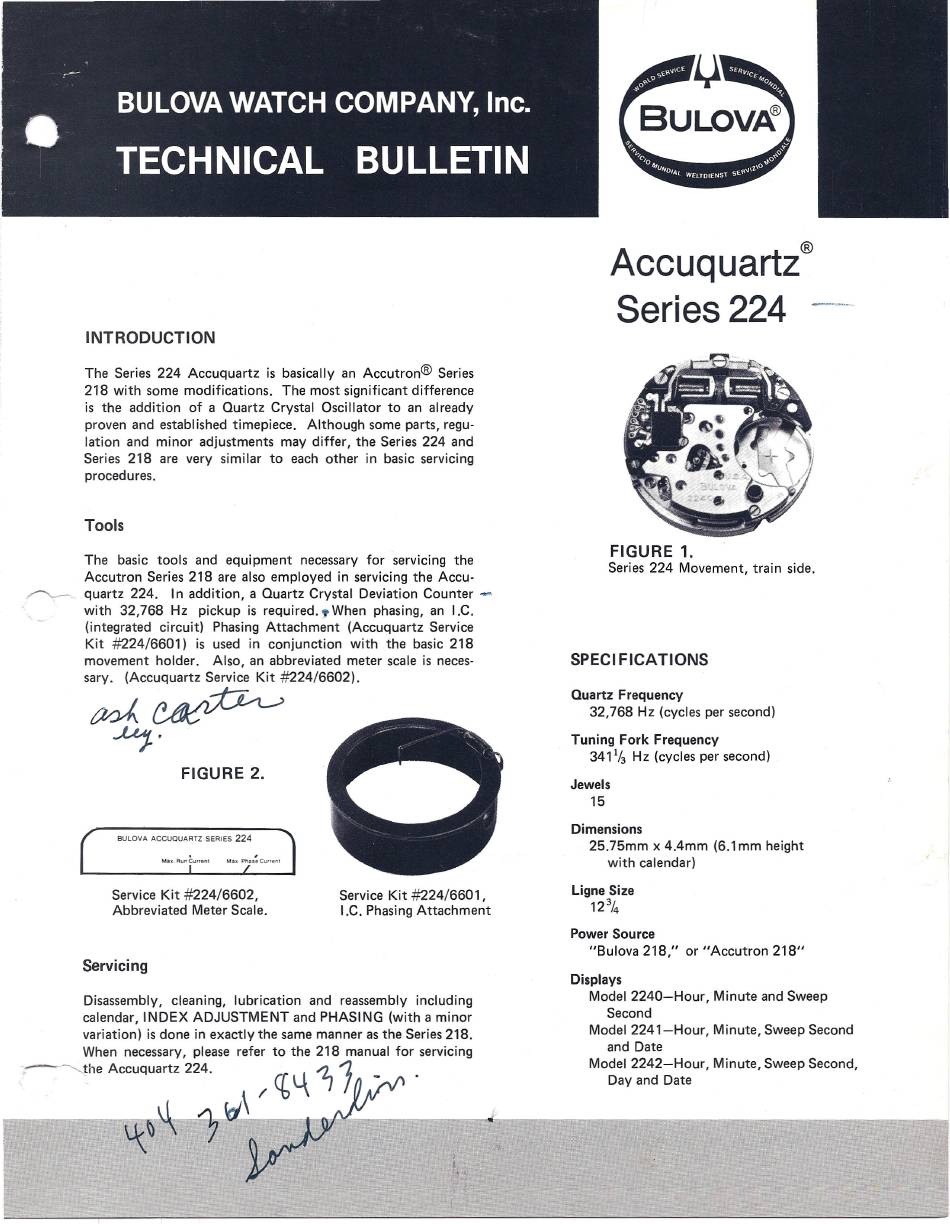

INTRODUCTION
Accuquartz"
Series 224
The Series 224 Accuquartz
is basically an Accutron®
Series
218 with some modifications.
The most significant difference
is the addition
of a Quartz Crystal Oscillator
to an already
proven and established timepiece.
Although
some parts, regu-
lation and minor adjustments
may differ, the Series 224 and
Series 218 are very similar to each other in basic servicing
procedures.
The basic tools and equipment
necessary for servicmq the
Accutron
Series 218 are also employed
in servicing the Accu-
~.
quartz 224.
In
addition,
a Quartz Crystal Deviation Counter
-
with
32,768
Hz pickup
is required .
.,
When phasing, an I.C.
(integrated
circuit)
Phasing Attachment
(Accuquartz
Service
Kit #224/6601)
is used in conjunction
with
the basic 218
movement
holder.
Also, an abbreviated meter scale is neces-
sary.
(Accuquartz
Service Kit
#224/6602).
~~
..u;.
Tools
FIGURE
2.
BUlOVA
ACCUQUARTZ
SERIES
224
Service Kit
#224/6602,
Abbreviated
Meter
Scale.
Servicing
FIGURE
1.
Series 224 Movement, train side.
SPECI FICATIONS
Quartz Frequency
32,768 Hz (cycles per second)
Tuning Fork Frequency
3411/3 Hz (cycles per second)
Jewels
15
Dimensions
25.75mm x 4.4mm (6.1mm height
with calendar)
Service Kit #224/6601,
I.C. Phasing Attachment
Ligne Size
12%
Power Source
"Bulova 218,"
or "Accutron
218"
Displays
Model 2240-Hour,
Minute and Sweep
Second
Model
2241-Hour,
Minute, Sweep Second
and Date
Model 2242-Hour,
Minute, Sweep Second,
Day and Date
Disassembly,
cleaning,
lubrication
and reassembly including
calendar, INDEX ADJUSTMENT
and PHASING (with a minor
variation)
is done in exactly the same manner as the Series
218.
When necessary, please refer to the 218 manual for servicing
'~h'
Accuquartz
224.
\
/
