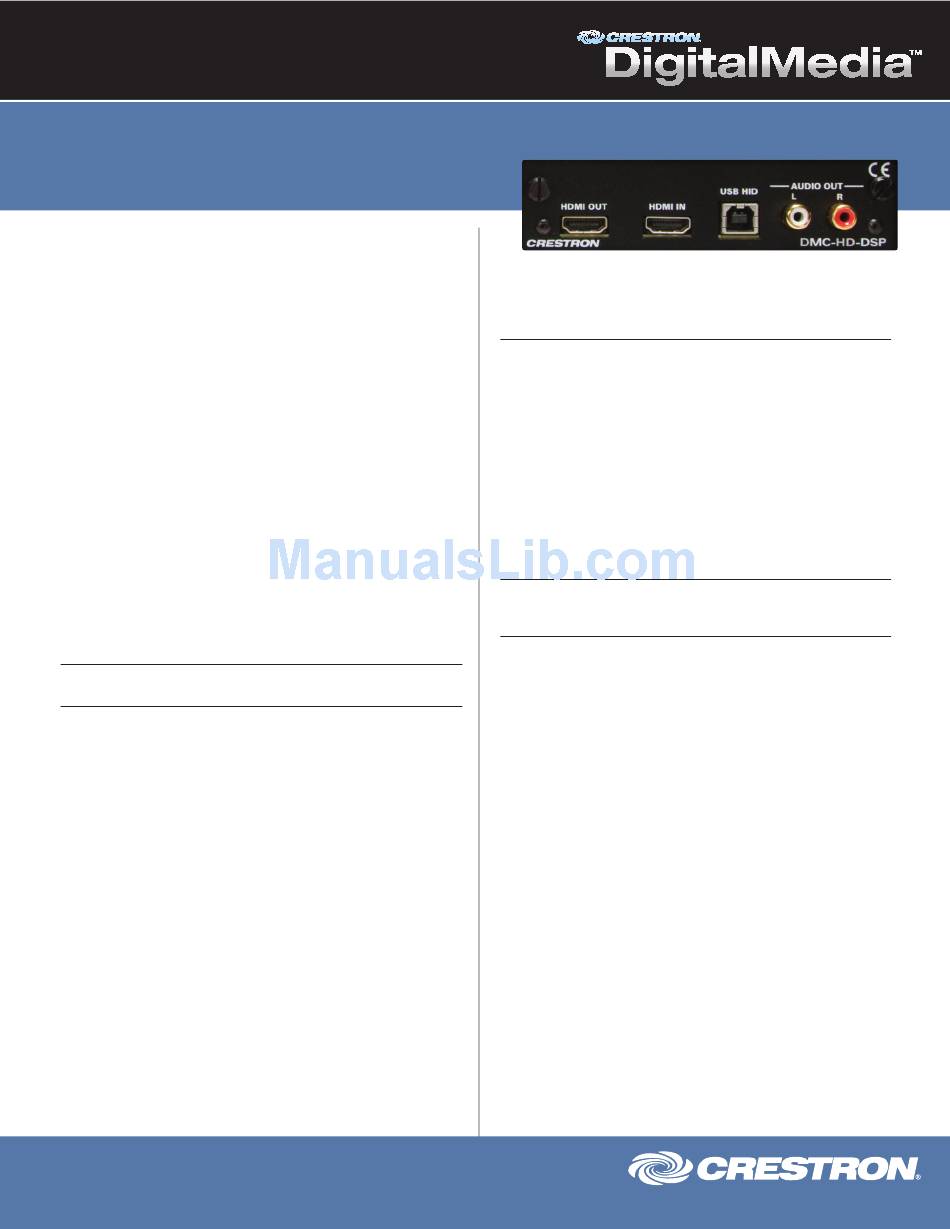

Crestron HDMI Input Card w/ DSP DMC-HD-DSP Specifications

C C r r e e s s t t r r o o n n D D M M C C - - H H D D - - D D S S P P
HDMI Input Card w/DSP
for DM Switchers
The DMC-HD-DSP is an input card for a Crestron DigitalMedia
one HDMI input. The DMC-HD-DSP supports HDMI 1.3 w/Deep Color and HDCP,
handling 1080p/60 HDTV and WUXGA computer resolutions, and multi-channel
HD lossless audio - all through a single HDMI cable.
The DMC-HD-DSP provides all of the features of the DMC-HD with the addition of
internal DSP processing to enable the simultaneous distribution of uncompressed
7.1 channel HD surround sound and 2-channel audio. The DMC-HD-DSP is
recommended for use with Blu-ray Disc™ players and other HD sources that output
multi-channel surround sound audio via HDMI, allowing the multi-channel signal
to reach the surround sound system without requiring any decoding, while also
providing a 2-channel down-mix to feed a stereo zone or audio distribution system.
Additional connections on the card include an HDMI pass-thru output, a stereo
analog audio pass-thru output, and a USB HID port. The HDMI output simply
passes the input signal through to feed a local device, or to feed a second DM
switcher for output expansion purposes. The analog audio output breaks out
the stereo audio signal from the HDMI input and passes it through to feed a
CNX-PAD8A, AAE, or other multi-room audio distribution system.*
The USB HID port allows a remote mouse/keyboard or game controller, connected
at the display location, to control a centralized source device (i.e. computer, game
console, media server, etc.) at the equipment rack.
SPECIFICATIONS
Video
S S i i g g n n a a l l T T y y p p e e s s : : HDMI 1.3 w/Deep Color w/HDCP 1.1 copy protection protocol
Audio
S S i i g g n n a a l l T T y y p p e e s s : : HDMI 1.3 supporting HD lossless multi-channel up to 7.1, analog converted
stereo pass-thru, 2-channel down-mix enabling simultaneous uncompressed multi-channel
and stereo output signals
P P r r o o c c e e s s s s o o r r : : Cirrus Logic ® CS49700 HD Audio Decoder DSP with dual 32-bit cores
S S u u r r r r o o u u n n d d S S o o u u n n d d F F o o r r m m a a t t s s : Bypass, Stereo, PCM 96/24, MLP Lossless
Dolby Digital 5.1, Dolby Digital EX, Dolby TrueHD, DTS Neo:6, DTS Virtual, DTS Digital 5.1
Discrete, DTS ES 6.1 Discrete, DTS ES 6.1 Matrix, DTS 96/24, DTS-HD Master Audio
D D i i g g i i t t a a l l - - T T o o - - A A n n a a l l o o g g C C o o n n v v e e r r s s i i o o n n : : 24-bit 48 kHz
P P e e r r f f o o r r m m a a n n c c e e ( ( a a n n a a l l o o g g ) ) : : Frequency Response: 20Hz to 20kHz ±0.5dB;
S/N Ratio: >95dB, 20Hz to 20kHz A-weighted;
THD+N: <0.005% @ 1kHz;
Stereo Separation: >90dB
Crestron Electronics, Inc. 15 Volvo Drive
l
Tel: 800.237.2041 / 201.767.3400 Fax: 201.767.1903
Specifications subject to change without notice. Doc.4770 01/09
©2009 Crestron Electronics, Inc. All brand names, product names and trademarks are the property of their respective owners.
™ Switcher, providing
™ , Dolby ® Pro Logic IIx,
™
l Rockleigh, NJ 07647
Connectors
H H D D M M I I O O U U T T : : (1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Provides pass-thru signal from HDMI IN for system expansion
H H D D M M I I I I N N : : (1) 19-pin Type A HDMI female;
HDMI digital video/audio input
U U S S B B H H I I D D : : (1) USB Type B female;
USB 1.1 port for connection to source device's mouse, keyboard, or game controller input
A A U U D D I I O O O O U U T T L L – – R R : : (2) RCA female;
Unbalanced stereo line-level audio output;
Provides analog audio pass-thru signal converted from HDMI INPUT to feed multi-room
audio distribution system;
Maximum Output Level: 2 V ;
RMS
Output Impedance: 100 ohms nominal
Construction
Plug-in card, occupies (1) DM Switcher input card slot, includes steel faceplate
w/black matte powder coat finish
Weight
8.0 oz (227 g)
