Crestron DigitalMedia DMC-VID-RCA-D Specifications

C C r r e e s s t t r r o o n n D D M M C C - - V V I I D D - - R R C C A A - - D D

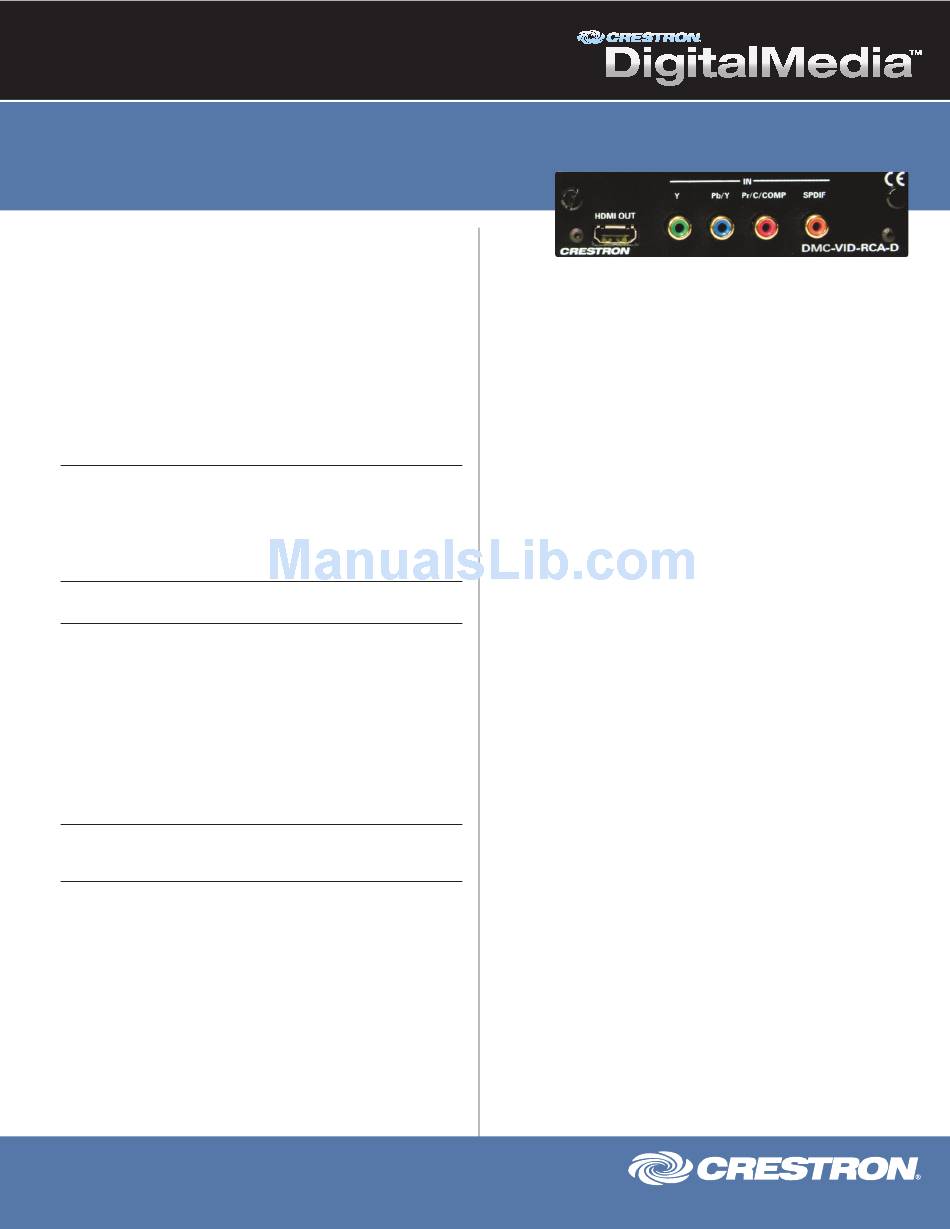

RCA Analog Video Input Card
w/SPDIF Audio for DM Switchers
The DMC-VID-RCA-D is an input card for a Crestron DigitalMedia
providing one analog video input and one S/PDIF coaxial digital audio input.
The DMC-VID-RCA-D accepts component HDTV signals up to 1080p, as well as
standard definition NTSC/PAL composite and S-Video. Its S/PDIF input supports
2-channel stereo and 5.1 surround-encoded digital audio sources up to 24-bit,
96 kHz.
An HDMI pass-thru output connection is also provided, which passes the audio
and video input signals through digitally to feed a local device, or to feed a second
DM switcher for output expansion purposes.

SPECIFICATIONS

Video

S S i i g g n n a a l l T T y y p p e e s s : Component (YP P ), S-Video (Y/C), or composite input;
B R
HDMI converted pass-thru
I I n n p p u u t t F F o o r r m m a a t t s s : : NTSC or PAL
I I n n p p u u t t R R e e s s o o l l u u t t i i o o n n s s : : 480i/p, 576i/p, 720p, 1080i/p
O O u u t t p p u u t t F F o o r r m m a a t t s s / / R R e e s s o o l l u u t t i i o o n n s s : : Matched to input
A A n n a a l l o o g g - - T T o o - - D D i i g g i i t t a a l l C C o o n n v v e e r r s s i i o o n n : : 10-bit 170 MHz

Audio

S S i i g g n n a a l l T T y y p p e e s s : : S/PDIF coaxial input, HDMI converted pass-thru

Connectors

H H D D M M I I O O U U T T : : (1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Provides pass-thru signal from IN connections for system expansion
I I N N - - Y Y , , P P b b / / Y Y , , P P r r / / C C / / C C O O M M P P : : (3) RCA female comprising (1) auto-sensing multi-format
analog video input;
Signal Types: Component (YP P ), S-Video (Y/C), or composite input;
B R
Input Level: 1 V nominal;
P-P
Input Impedance: 75 ohms nominal
I I N N - - S S P P D D I I F F : : (1) RCA female;
S/PDIF coaxial digital audio input;
Input Impedance: 75 ohms

Construction

Plug-in card, occupies (1) DM Switcher input card slot, includes steel faceplate
w/black matte powder coat finish

Weight

7.0 oz (199 g)
Crestron Electronics, Inc. 15 Volvo Drive
l
Tel: 800.237.2041 / 201.767.3400 Fax: 201.767.1903
Specifications subject to change without notice. Doc.4767 01/09
