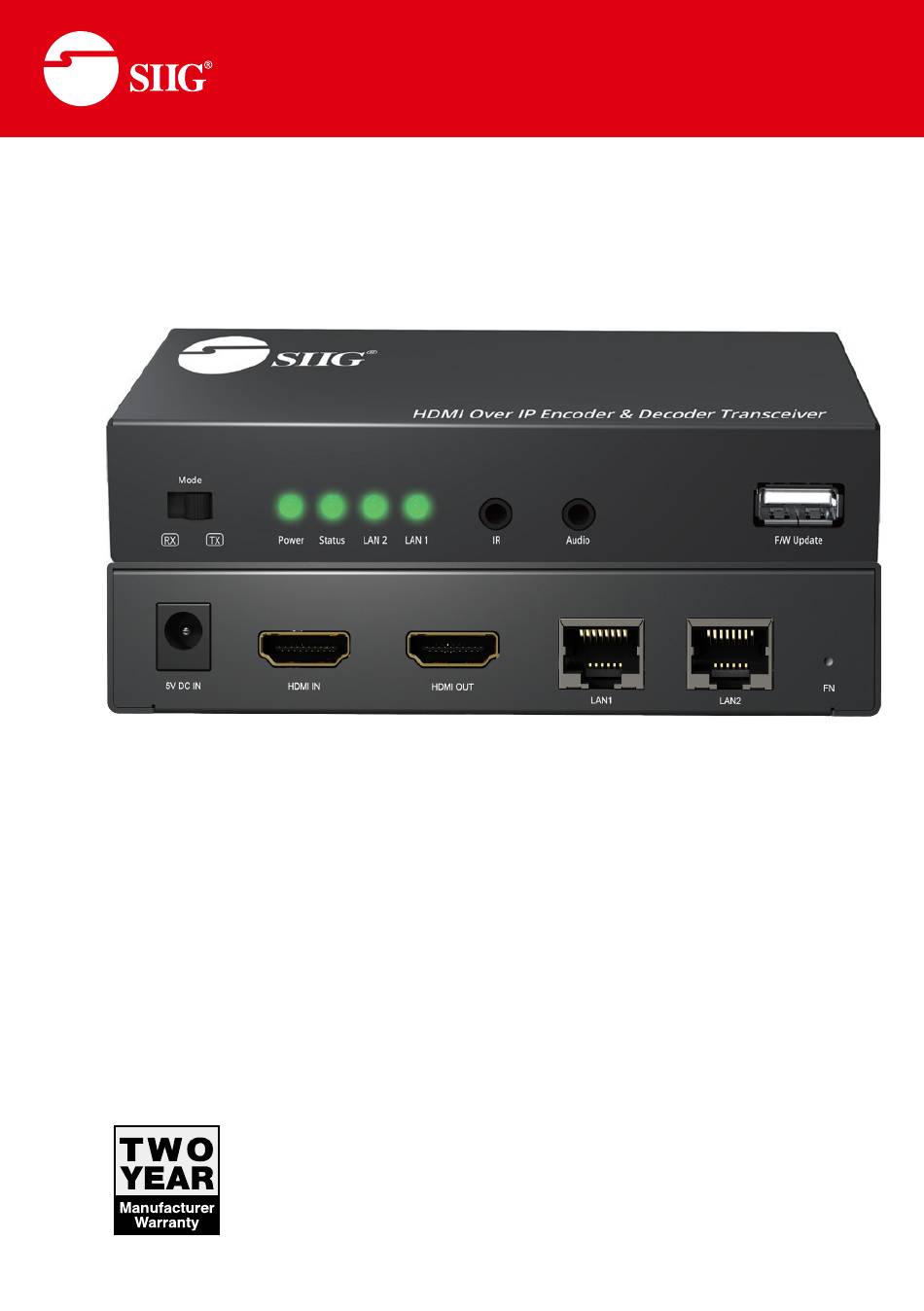

- Page 1 HDMI Over IP Encoder & Decoder Transceiver P/N: CE-H27P11-S1 User's Manual Ver. 04-1414B...
-
Page 2: Table Of Contents
CE-H27P11-S1 Table of Contents 1. Introduction ................... 3 1.1. Features ..................3 1.2. Package Contents ............... 3 1.3. Specifications ................4 1.4. Front Panel ................. 5 2. Application ..................6 2.1. IR Transmission ................6 2.2. Audio Extract ................7 2.3. -
Page 3: Introduction
Built-in ESD protection system 1.2. Package Contents Check the following items in the package. Item Q’ty � CE-H27P11-S1 � Power Adapter DC 5V/2A � USB-A to DC Power Cable � IR Blaster Cable � IR Receiver Cable � HDMI 3ft Cable �... -
Page 4: Specifications
CE-H27P11-S1 1.3. Specifications 1x 19-pin HDMI, Input 1x 19-pin HDMI, Output 2x 8P8C RJ45, Video Signal, Input/Output 1x 3.5mm for IR Input/Output Encoder (TX) or Decoder 1x 3.5mm for Audio Aux In (RX) unit 1x Reset Button, for Default Reset 1x Slider for Encoder (TX) / Decoder (RX) Switch 1x 4-pin, USB 2.0 for FW Update 1x DC Power Jack HDMI Specification HDMI 1.4 &... -

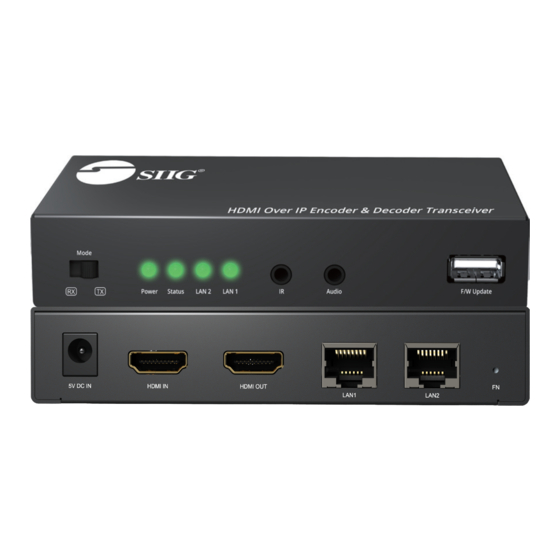

Page 5: Front Panel
CE-H27P11-S1 1.4. Front Panel Slider Switch Switching between Encoder (TX) and Decoder (RX) mode. Power LED Lights green when power on. Status LED Lights green when HDMl input is transmitting data. LAN 2 LED Flashing when LAN 2 port is transmitting data. LAN 1 LED Flashing when LAN 1 port is transmitting data. -
Page 6: Application
CE-H27P11-S1 Application 2.1. IR Transmission SIIG Inc. -
Page 7: Audio Extract
CE-H27P11-S1 2.2. Audio Extract 2.3. Audio Embedded Audio blue still output to TX HDMI output. Audio red will cover to RX HDMI output and 3.5mm audio output. www.siig.com... -
Page 8: To N Extender Mode With Lan
CE-H27P11-S1 2.4. 1 to N Extender Mode with LAN SIIG Inc. -
Page 9: To N Extender Mode With Network Switch
CE-H27P11-S1 2.5. 1 to N Extender Mode with Network Switch www.siig.com... -
Page 10: To N Extender Mode With Hdmi Loop-Out
CE-H27P11-S1 2.6. 1 to N Extender Mode with HDMI Loop-out Please note that this connection can link Up to 5 Encoder (TX). 2.7. Note • We recommend CAT5e/6 with 100% copper wiring and IEEE-568B wiring standard. • We recommend HDMI cable length not over 33ft/10m. • Dedicated IGMP Gigabit Ethernet switches are recommended for the best peformance and reliability. -
Page 11: Q & A
CE-H27P11-S1 Q & A Q 1. Why is the power LED off? • Please check if the power supply is connecting well and the output voltage value is correct as recommended 5V/2A. Q 2. Why is the output image unstable? •... - Page 12 2 Year Warranty About SIIG SIIG, Inc. offers a 2-year manufacturer warranty Since 1985, SIIG Inc. has led the way in creating with this product. This warranty covers the IT and AV connectivity solutions you can trust. original purchaser and guarantees the product...
