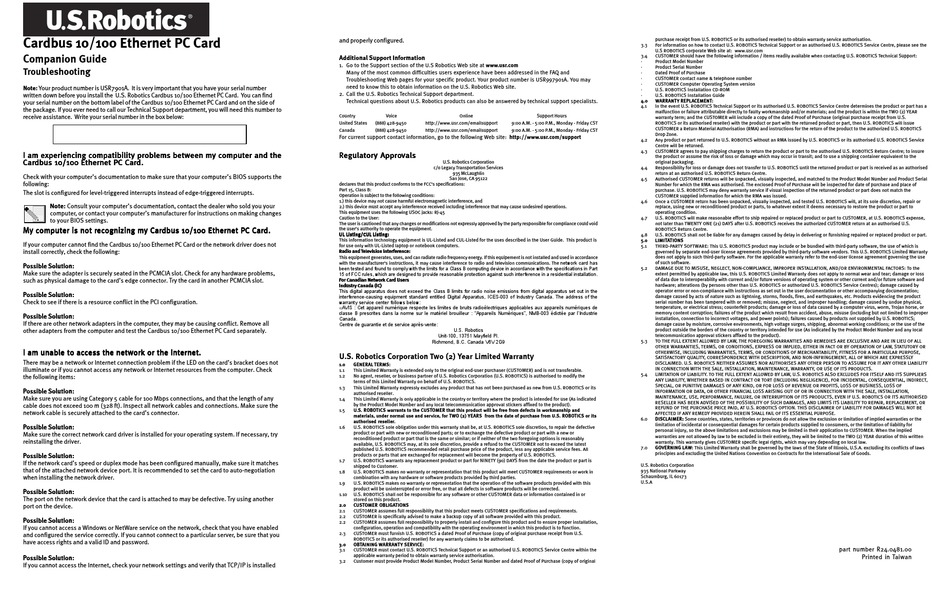

US Robotics USR997901A Troubleshooting Manual

Cardbus 10/100 Ethernet PC Card
Companion Guide
Troubleshooting
Note: Your product number is USR7901A. It is very important that you have your serial number
written down before you install the U.S. Robotics Cardbus 10/100 Ethernet PC Card. You can find
your serial number on the bottom label of the Cardbus 10/100 Ethernet PC Card and on the side of
the package. If you ever need to call our Technical Support department, you will need this number to
receive assistance. Write your serial number in the box below:
I am experiencing compatibility problems between my computer and the I am experiencing compatibility problems between my computer and the I am experiencing compatibility problems between my computer and the I am experiencing compatibility problems between my computer and the I am experiencing compatibility problems between my computer and the
Car Car dbus 10/100 Ethernet PC Card. d. d. d. d. dbus 10/100 Ethernet PC Car dbus 10/100 Ethernet PC Car
Cardbus 10/100 Ethernet PC Car Car Car dbus 10/100 Ethernet PC Car
Check with your computer's documentation to make sure that your computer's BIOS supports the
following:
The slot is configured for level-triggered interrupts instead of edge-triggered interrupts.
Note: Note: Note: Note: Note: Consult your computer's documentation, contact the dealer who sold you your
computer, or contact your computer's manufacturer for instructions on making changes
to your BIOS settings.
M M M M M y computer is not r y computer is not r y computer is not r y computer is not r y computer is not recognizing my Car ecognizing my Cardbus 10/100 Ethernet PC Car ecognizing my Car ecognizing my Car ecognizing my Car dbus 10/100 Ethernet PC Card. d. d. d. d. dbus 10/100 Ethernet PC Car dbus 10/100 Ethernet PC Car dbus 10/100 Ethernet PC Car
If your computer cannot find the Cardbus 10/100 Ethernet PC Card or the network driver does not
install correctly, check the following:
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
Make sure the adapter is securely seated in the PCMCIA slot. Check for any hardware problems,
such as physical damage to the card's edge connector. Try the card in another PCMCIA slot.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
Check to see if there is a resource conflict in the PCI configuration.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
If there are other network adapters in the computer, they may be causing conflict. Remove all
other adapters from the computer and test the Cardbus 10/100 Ethernet PC Card separately.
I am unable to access the network or the Internet. I am unable to access the network or the Internet. I am unable to access the network or the Internet. I am unable to access the network or the Internet. I am unable to access the network or the Internet.
There may be a network or Internet connection problem if the LED on the card's bracket does not
illuminate or if you cannot access any network or Internet resources from the computer. Check
the following items:
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
Make sure you are using Category 5 cable for 100 Mbps connections, and that the length of any
cable does not exceed 100 m (328 ft). Inspect all network cables and connections. Make sure the
network cable is securely attached to the card's connector.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
Make sure the correct network card driver is installed for your operating system. If necessary, try
reinstalling the driver.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution:
ossible Solution:
If the network card's speed or duplex mode has been configured manually, make sure it matches
that of the attached network device port. It is recommended to set the card to auto-negotiation
when installing the network driver.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
The port on the network device that the card is attached to may be defective. Try using another
port on the device.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
If you cannot access a Windows or NetWare service on the network, check that you have enabled
and configured the service correctly. If you cannot connect to a particular server, be sure that you
have access rights and a valid ID and password.
P P P P P ossible Solution: ossible Solution: ossible Solution: ossible Solution: ossible Solution:
If you cannot access the Internet, check your network settings and verify that TCP/IP is installed
and properly configured.
Additional Support Information
1. Go to the Support section of the U.S Robotics Web site at www.usr.com
Many of the most common difficulties users experience have been addressed in the FAQ and
Troubleshooting Web pages for your specific product. Your product number is USR997901A. You may
need to know this to obtain information on the U.S. Robotics Web site.
2. Call the U.S. Robotics Technical Support department.
Technical questions about U.S. Robotics products can also be answered by technical support specialists.
Country Voice Online
United States (888) 428-9450 http://www.usr.com/emailsupport 9:00 A.M. - 5:00 P.M., Monday - Friday CST
Canada (888) 428-9450 http://www.usr.com/emailsupport 9:00 A.M. - 5:00 P.M., Monday - Friday CST
For current support contact information, go to the following Web site: http://www.usr.com/support
