DMC-FX40EB
Model No.
DMC-FX40EE
DMC-FX40EF
DMC-FX40EG
DMC-FX40EP
DMC-FX40SG
DMC-FX48P
DMC-FX48PC
DMC-FX48PU
DMC-FX48GC
DMC-FX48GD
DMC-FX48GH
DMC-FX48GJ
DMC-FX48GK
DMC-FX48GT
Vol. 1
Colour
(S)...........Silver Type (except PC/EF/GD)
(K)...........Black Type
(P)...........Pink Type (except P/PC/PU/EB/EF/EP)
(R)...........Red Type (only PC/EB/EE/EF/EG/EP/SG)
(W)..........White Type (only EF/EG/GH)
(N)...........Gold Type (only EE/ EP/GC/GK/SG)
© Panasonic Corporation 2009. Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC0902011CE
B26

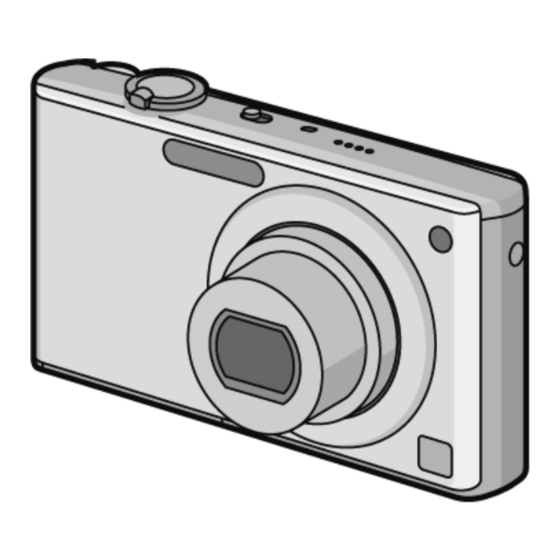

Digital Camera
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic Lumix DMC-FX40EB
Summary of Contents for Panasonic Lumix DMC-FX40EB
- Page 1 Vol. 1 Colour (S)...Silver Type (except PC/EF/GD) (K)...Black Type (P)...Pink Type (except P/PC/PU/EB/EF/EP) (R)...Red Type (only PC/EB/EE/EF/EG/EP/SG) (W)..White Type (only EF/EG/GH) (N)...Gold Type (only EE/ EP/GC/GK/SG) © Panasonic Corporation 2009. Unauthorized copy- ing and distribution is a violation of law.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE PAGE 1 Safety Precaution -------------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 1.4. How to Discharge the Capacitor on Flash Top PCB------------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1. -
Page 3: Safety Precaution
1 Safety Precaution 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure 1.) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check. -
Page 4: How To Discharge The Capacitor On Flash Top Pcb
1.4. How to Discharge the Capacitor on Flash Top PCB CAUTION: 1. Be sure to discharge the capacitor on FLASH TOP PCB. 2. Be careful of the high voltage circuit on FLASH TOP PCB when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and Remove the necessary parts/unit. 2. -
Page 5: Warning
2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD). -
Page 6: Caution For Ac Cord(For Eb/Gc
2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. -
Page 7: How To Replace The Lithium Battery
NOTE: This Lithium battery is a critical component. (Type No.: ML-421S/ZTK Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use. -
Page 8: Service Navigation
3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2. -
Page 9: How To Define The Model Suffix (Ntsc Or Pal Model)
3.4. How to Define the Model Suffix (NTSC or PAL model) There are eight kinds of DMC-FX40/FX48, regardless of the colours. • a) DMC-FX40 (Japan domestic model), DMC-FX40SG • b) DMC-FX48P/PC • c) DMC-FX40EB/EF/EG/EP • d) DMC-FX40EE • e) DMC-FX48GT •... - Page 10 3.4.2. INITIAL SETTINGS: After replacing the MAIN PCB, be sure to perform the initial settings after achieving the adjustment by ordering the following proce- dure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, be sure to read the following CAUTIONS. 2.
- Page 11 [CASE 1. After replacing MAIN P.C.B.] When MAIN P.C.B. has just been replaced, all of the model suffix is displayed as follows. (Four pages in total) [CASE 2. Other than “After replacing MAIN P.C.B.”] • Step 5. Chose the model suffix in “INITIAL SETTINGS”: (Refer to “CAUTION 1”) [Caution: After replacing MAIN P.C.B.] The model suffix can been chosen, JUST ONE TIME.
- Page 12 • Step 7. CONFIRMATION: Confirm the display of “PLEASE SET THE CLOCK” in concernd language when the unit is turned on again. When the unit is connected to PC with USB cable, it is detected as removable media. 1) As for your reference, major default setting condition is as shown in the following table. •...
-
Page 13: Specifications
4 Specifications... -
Page 14: Location Of Controls And Components
22 Card/Battery door 23 Release lever 24 DC coupler cover When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC4; optional) and AC adaptor (DMW-AC5PP; optional) are used. - Page 15 Please be advised that we are not liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used.
-
Page 16: Service Mode
6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the battery is pulled out) The error code is memorized to FLASH ROM when the unit has just before powered off. - Page 17 • 3. Error Code List The error code consists of 8 bits data and it shows the following information.
-
Page 18: Ics (Indication Of Additional Camera Settings When Picture Was Taken) Function
Important notice about "Error Code List" 1) About "*" indication: The third digit from the left is different as follows. - In case of 0 (example: 18001000) When the third digit from the left shows "0", this error occurred under the condition of INITIAL SETTINGS has been completed. - Page 19 3. How to read 4. How to exit: Simply, turn the power off. (Since ICS function is executed under the condition of temporary cancellation of "INITIAL SETTINGS", it wake up with normal condition when turn off the power.)
-
Page 20: Service Fixture & Tools
7 Service Fixture & Tools 7.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit. -
Page 21: When Replacing The Main Pcb
7.2. When Replacing the Main PCB After replacing the MAIN PCB, be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in “TSN system”, together with Maintenance software. 7.3. Service Position This Service Position is used for checking and replacing parts. -
Page 22: Disassembly And Assembly Instructions
8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart 8.2. PCB Location... -
Page 23: Disassembly Procedure
8.3. Disassembly Procedure 8.3.1. Removal of the Rear Case Unit Item Removal Rear Case Unit (Fig.D1) Card Battery 1 Screw (A) 4 Screws (B) Side Ornament (L) Side Ornament (R) (Fig.D2) 1 Lock (A) 1 Lock (B) FP9003(Flex) FP9004(Flex) Rear Case Unit LCD Unit (Fig.D3) 4 Locking tabs... - Page 24 8.3.2. Removal of the LCD Unit (Fig.D3) 8.3.3. Removal of the Front Case Unit (Fig.D4) (Fig.D2)
- Page 25 8.3.4. Removal of the Top Operation Unit (Fig.D5) 8.3.5. Removal of the Flash Top P.C.B. (Fig.D7) (Fig.D6)
- Page 26 8.3.6. Removal of the Lens Unit 8.3.7. Removal of the Main P.C.B. and Sub P.C.B. (Fig.D8) (Fig.D9)
- Page 27 8.3.8. Removal of the Battery Case 8.3.10. Removal of the Battery Door Unit (Fig.D12) NOTE: (When Assembling) Be sure to confirm the following points when assembling. • The Screw is tightened enough. • Assembling conditions are fine. (No distortion, no illegal- space.) (Fig.D10) •...
-
Page 28: Disassembly Procedure For The Lens
8.4. Disassembly Procedure for the 8.4.1. Removal of the Zoom Motor Unit and Lens FPC P.C.B. Unit Lens 1. Remove the 1 solder (A). NOTE: When Disassembling and Assembling for the Lens 2. Remove the 1 solder (B). 1. To minimize the possibility of the CCD being dirt, perform 3. - Page 29 8.4.2. Removal of the Master Flange Unit 8.4.3. Removal of the 1st Lens Frame/2nd Lens Frame Move Unit 8.4.4. Removal of the 2nd Lens Frame Move Unit...
-
Page 30: Assembly Procedure For The Lens
8.5. Assembly Procedure for the 8.5.2. Phase alignment of the Drive/Direct Unit and Fixed Frame Unit Lens 8.5.1. Phase alignment of the Direct Frame and Drive Frame Unit... - Page 31 8.5.3. Assembly for the 1st Lens Frame 8.5.4. Assembly for the 2nd Lens Frame Unit and Fixed/Drive/Direct Frame Move Unit and Fixed/Drive/Direct Unit Frame/1st Lens Frame Unit...
-
Page 32: Removal Of The Ccd Unit
8.6. Removal of the CCD Unit 8.5.5. Assembly for the Master Flange Unit and Fixed/Drive/Direct Frame/ 1st Lens Frame/2nd Lens Frame Move Unit... -
Page 33: Removal Of The Focus Motor Unit
8.7. Removal of the Focus Motor 8.8. Applyment Grease Unit Method The grease apply point of lens unit are as follows. Apply grease additionally in the specified position if necessary. When the grease is applied, use a toothpick and apply thinly. •... -
Page 34: Measurements And Adjustments
9 Measurements and Adjustments 9.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software. The Adjustment software is available at “TSN Website”, therefore, access to “TSN Website”... -
Page 35: Maintenace
10 Maintenace 10.1. Cleaning Lens and LCD Panel Do not touch the surface of lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface. Note: The Lens Cleaning KIT ;... - Page 36 DSC0902011CE S1. About Indication of The Schematic Diagram Service Manual S1.1. Important Safety Notice COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS Diagrams and Replacement FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE. 1.Although reference number of the parts is indicated on the P.C.B. drawing and/or Parts List schematic diagrams, it is NOT mounted on the P.C.B.
-
Page 37: S2. Voltage Chart
S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1. -
Page 38: S3. Block Diagram
S3. Block Diagram S3.1. Overall Block Diagram (25mm ~ 125mm) IC3001 CCD SIGNAL PROCESSOR X6001 (24MHz) 1/2.33" 12 MEGA PIX CDS, AGC, A/D, TG, CCD DRIVER ZOOM OIS UNIT IRIS SHUTTER FOCUS IC3002 CARD REGLATOR IC9101 SYSTEM IC MICROPHONE MOTOR DRIVE, OIS DRIVE&... -
Page 39: S4. Schematic Diagram
S4. Schematic Diagram S4.1. Interconnection Diagram ET8001 FLASH TOP P.C.B. M8001 (COMPONENT SIDE) PS8001 : (FOIL SIDE) P8002 ET8002 BATTERY SPEAKER MICROPHONE LCD UNIT FP9001 CON CHK CCD THERMO SUBSW1 V11A V11L V11R V11B CCD GND CCD GND CCD OUT CCD GND MSUBSW MSUB... -
Page 40: S4.2. Flash Top Schematic Diagram
S4.2. Flash Top Schematic Diagram CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 1.25A 32V FUSE. REPLACE ONLY WITH THE SAME TYPE 1.5A 32V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES 1.25A 32V 1.5A 32V... -
Page 41: S4.3. Ccd Flex Schematic Diagram
S4.3. CCD Flex Schematic Diagram DMC-FX40/FX48 CCD Flex Schematic Diagram... -
Page 42: S4.4. Lens Flex Schematic Diagram
S4.4. Lens Flex Schematic Diagram POSITIVE VOLTAGE LINE ENC VCC LED CONT PHOTO CO. BARREL ENCODER SENSOR XVO+ (FULL RETRACT) XVH- HALL SENSOR (X) XVO- XVH+ OIS UNIT XDRV- DRIVE COIL (X) XDRV+ STAP STAP DC SOLENOID STBN (IRIS) STBN STAN STAN SHUTTER UNIT... -
Page 43: S5. Print Circuit Board
S5. Print Circuit Board S5.1. Flash Top P.C.B. (Component Side) (Foil Side) DMC-FX40/FX48 Flash Top P.C.B. -
Page 44: S5.2. Ccd Flex P.c.b
S5.2. CCD Flex P.C.B. (Component Side) (Foil Side) DMC-FX40/FX48 CCD Flex P.C.B. -
Page 45: S5.3. Lens Flex P.c.b
S5.3. Lens Flex P.C.B. CO. BARREL ENCODER (FULL RETRACT) SHUTTER UNIT ZOOM MOTOR UNIT OIS UNIT Pin 1 ZOOM ENCODER 2 ZOOM ENCODER 1 Pin 45 FOCUS MOTOR UNIT DMC-FX40/FX48 LENS FLEX P.C.B. S-10... -
Page 46: S6. Replacement Parts List
E.S.D. standards for Electrostatically Sensitive Devices, refer to PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES section. Definition of Parts supplier: 1. Parts marked with [ENERGY] in the remarks column are supplied from Panasonic Corporation Energy Company. S-11... - Page 47 DMC-FX40EB/EE/EF/EG/EP/SG/FX48P/PC/PU/GC/GD/GH/GJ/GK/GT VEP58078A / VEK0N50 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks ------ P.C.B. LIST ------ R3101 ERJ2GEJ470 M.RESISTOR CH 1/16W 47 VEP56079A MAIN P.C.B. (RTL) E.S.D. R3102 ERJ2GEJ182 M.RESISTOR CH 1/16W 1.8K VEP56080A SUB P.C.B.
- Page 48 DMC-FX40EB/EE/EF/EG/EP/SG/FX48P/PC/PU/GC/GD/GH/GJ/GK/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP56079A MAIN P.C.B. 1 (RTL) E.S.D. VXW1018 LENS UNIT(W/O CCD) VEP56080A SUB P.C.B. 1 (RTL) E.S.D. VDL2316 OPTICAL FILTER VGQ0B96 PCB SPACER VEK0N50 CCD UNIT 1 E.S.D.
- Page 49 DMC-FX40EB/EE/EF/EG/EP/SG/FX48P/PC/PU/GC/GD/GH/GJ/GK/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPF1317 CAMERA BAG 1 P,PC 202 DE-A59BA BATTERY CHARGER 1 P,PC 203 ----- BATTERY 1 P,PC K1HA08AD0003 USB CABLE W/PLUG 1 P,PC K1HA08CD0020 AV CABLE W/PLUG 1 P,PC VFC4297...
- Page 50 DMC-FX40EB/EE/EF/EG/EP/SG/FX48P/PC/PU/GC/GD/GH/GJ/GK/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPF1317 CAMERA BAG 1 EXCEPT P,PC VQT1W16 O/I SOFTWARE 1 EP 302 DE-A59BA BATTERY CHARGER 1 PU (FINNISH/SWEDISH/DANISH/ 302 DE-A60AA BATTERY CHARGER 1 EB,EF,EG,EP POLISH/CZECH/HUNGARIAN) ...
-
Page 51: S7. Exploded View
S7. Exploded View S7.1. Frame and Casing Section 30-2 30-1 B100 B101 B102 B108 114-3 113-3 B103 B104 114-1 B105 114-2 B107 B106 B109 113-2 113-1 S-16... -
Page 52: S7.2. Packing Parts And Accessories Section (1
S7.2. Packing Parts and Accessories Section (1) S-17... -
Page 53: S7.3. Packing Parts And Accessories Section (2
S7.3. Packing Parts and Accessories Section (2) (DMC-FX40EE/EF/EG/EP) (DMC-FX48GC/GD/GJ) (DMC-FX40EB) (DMC-FX48GC/GH) (DMC-FX40SG) (DMC-FX48GK/GT) (DMC-FX48GN) S-18...
