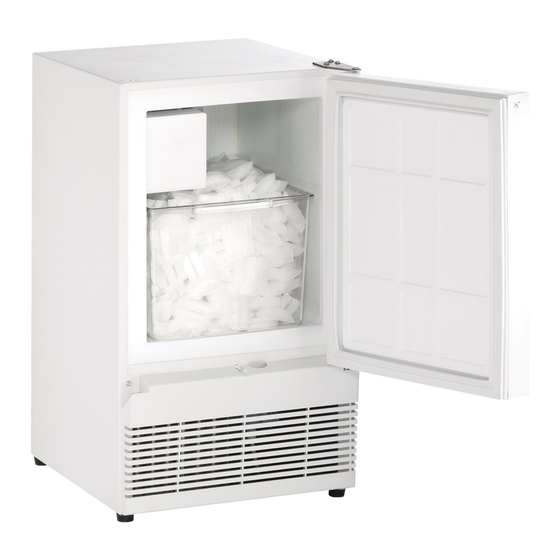

U-Line BCM-95 Specifications

ICE MAKER

Model BCM-95
FEATURES
1. High ice production
2. Requires no drain
3. Conserves water
4. Conserves energy
5. Front vented for built-in installation
6. Field reversible door with zero clearance
door swing
7. Adjustable temperature control
8. 1/2 inch wide flange
ADDITIONAL FEATURES:
• Stores 12 lbs. of ice
• See through, removable ice bucket
• Travel pin keeps door securely closed
• Shipping weight: 65 lbs.
• Black vinyl clad steel cabinet
• Black glass door
KCC Printed in U.S.A.
13-13/16 (35.1)
* POWER
CORD
15-1/16 (38.2)
W/FLANGE
* ON BACK OF UNIT
INCHES (CENTIMETERS)
BENEFITS
Produces up to 23 lbs. of ice per day, compared to 3 lbs. of ice per day by
typical RV refrigerator/ice makers.
Easy and inexpensive to install. Only needs 1/4 inch outside diameter
water line connection.
Only 2-3/4 gallons of water required to produce approximately 22 lbs. of ice.
Uses less electricity than a 75-watt light bulb.
No need for extra fans, air space, or special venting to the outside of the
cabin. Do not obstruct front grille.
Fits any location, easy access.
Permits adjustment of daily ice rate.
Surrounds front of cabinet for easy mounting in surrounding cabinets.
All specifications subject to change without notice.
25-1/4
(64.0)
HT/W FLANGE
24-3/4
(62.9)
8-1/2
(21.6)
* WATER
LINE
INLET ADD 1-1/2" TO DEPTH FOR
WATER LINE CONNECTION
8900 N. 55th Street
Milwaukee, Wisconsin 53223
(414) 354-0300
FAX (414) 354-7905
www.u-line.com
17 (43.2)
14-3/8 (36.5)
FLANGE
P/N SS-BCM-95
