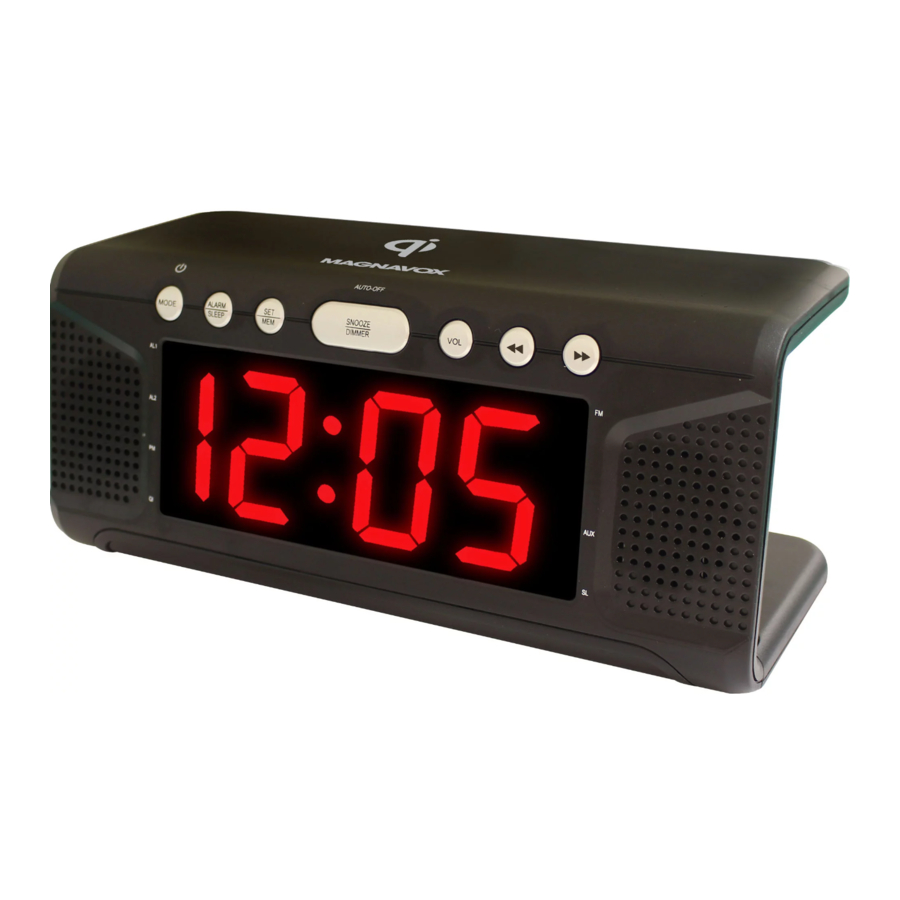

Magnavox MR41807 - Dual Alarm Clock with Qi Charging Pad Manual

LOCATION OF CONTROLS

1. (Standby ) / MODE Button
2. ALARM/SLEEP Button
3. SET/MEM (Memory) Button
4. SNOOZE/DIMMER Button
5. VOL (Volume) Button
6. Button
7. Button
8. QI (Wireless Charging) Area
9. Speakers
10. AL 1 (Alarm 1) Indicator
11. AL 2 (Alarm 2) Indicator
12. PM Indicator
13. QI (Wireless Charging) Indicator
14. LED Display
15. SL (Sleep) Indicator
16. AUX Indicator
17. FM Indicator
18. FM Antenna Wire
19. AUX IN Jack
20. USB CHARGE Port
21. DC 5V (In) Jack
22. Battery Door

POWER SOURCE

Connect the small plug from the supplied AC/DC Adaptor to the DC 5V (In) Jack on the rear of unit. Connect the AC/DC Adaptor into any convenient household outlet has AC 100-240V, 50/60Hz as the illustrated below:

NOTES:

If the AC power fails, this electronic clock is designed to continue operating internally (without showing the time on the Clock Display) with two (2) AAA size batteries (not included). Install the batteries as follows:

• Open the battery door on the rear of the unit by press the tab and then lifting it.
• Insert two (2) AAA size batteries (not included) according to the polarity diagram inside the battery compartment. (Alkaline batteries are recommended.)
• Replace the battery door.

BATTERY PRECAUTIONS

Follow these precautions when using a battery in this device:

1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer's instructions.)
6. Do not dispose of battery in fire. Battery may explode or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.

OPERATION

ACTUAL TIME SETTINGS

To set or reset the actual time:

1. Connect the unit to AC power as previous procedure. The LED Display will illuminate.
2. Press the SET/MEM Button, the digit of hour on the display will blink. Press the or Buttons repeatedly to set hour.
3. Press the SET/MEM Button twice; the digit of minute will blink. Press the or Buttons repeatedly to set minute.
4. Press the SET/MEM Button three times; "12H" or "24H" will appear on the display. Press the or Buttons repeatedly to set the format of hour to 12 hours or 24 hours (Military type) as desired.

   If set to 12 hour format. When set the time to PM, make sure the PM Indicator on the display is illuminate. When set the time to AM, the PM Indicator is not light.
5. Press the SET/MEM Button four times; snooze period "05-60" will appear on the display. Press the or Buttons repeatedly to set snooze period as desired.
6. When finished settings, press the SET/MEM Button repeatedly until the actual time appear on the display.

RADIO

Listening to radio

1. In standby mode, press the /MODE Button to power on the unit.
2. The FM Indicator on the display will illuminate and the radio frequency (87.5 – 108) will appear on the display.
3. Press and holding the or Buttons until the frequency on the display start running to auto search and play the previous or next available FM station. Repeated the same procedures until the desired FM Station is searched and play.
4. If the reception is not good, press and release the or Buttons repeatedly to fine tune.
5. To adjust the volume level, press the VOL (Volume) Button. Volume level "L01 – L15" will appear on the display. Press the or Buttons repeatedly to set the volume level as desired.
6. When finished listening, pressing and holding the /MODE Button to shut off the radio.

Radio stations preset

1. Power on the radio and receive the desired radio station as the previously procedure.
2. Press the SET/MEM Button, "01 - 20" will appear on the display and blink. Press the or Buttons repeatedly to select the program number "01 - 20" you want stored to. Then press the SET/MEM Button again to store it.
3. Repeat the same procedures until all the desired radio stations are stored into the program list.
4. After settings, in radio mode. Press the SET/MEM Button repeatedly to select and play the desired stored radio station.

Notes:

• If the back up batteries had not installed. When the AC power source failure, the preset stations may erase.
• The stored radio station only can be deleted by storing another new radio station.
• Total 20 FM radio stations can be stored in the program.

Antenna

The FM Antenna Wire on the rear of unit is for FM reception. If reception is weak, unwind it to full length and/or relocation.

AUX IN

Listen music from the external Audio Player as follows:

1. Connected the external Audio Player by an audio connection cable with 3.5mm stereo plugs (Cable not included).
2. Insert one end to the AUX IN Jack on the rear of unit.
3. Insert the other end to the Phones Jack; Line Out Jack or AUX Out Jack on the external Audio Player.
4. Power on and play the music on the external Audio Player as usual.
5. Press the /MODE Button to power on the unit.
6. Press the /MODE Button repeatedly until the AUX Indicator on the display is illuminating and "AUX" appear on the display to enter the AUX (in) mode.
7. To adjust the volume level, press theVOL (Volume) Button. Volume level "L01 – L15" will appear on the display. Press the or Buttons repeatedly to set the volume level as desired.
8. When finished listening, press and hold the /MODE Button to shut off it.

ALARM

Alarm 1 settings

1. Press the ALARM/SLEEP Button once, the AL 1 (Alarm 1) Indicator on the display will illuminate. The Alarm 1 time will appear on the display and the hour digit will blink. Press the or Buttons repeatedly to set the hour of it.
2. Press the ALARM/SLEEP Button again, the minute digit will blink. Press the or Buttons repeatedly to set the minute.
3. Press the ALARM/SLEEP Button again; the alarm 1 status will appear on the display. Press the or Buttons repeatedly to activate alarm, turn off alarm and set wake up mode as desired as below:

   Wake up mode:	Display or indicators
   Buzz	"ON" appear on the display and AL 1 Indicator on display will illuminate
   Radio	FM and AL 1 Indicators on display will illuminate
   AUX	AUX and AL 1 Indicators on display will illuminate

4. When finished settings, wait a few seconds. The unit will save the settings and exit (showing actual time on the display) automatically.

Alarm 2 settings

1. Press the ALARM/SLEEP Button four times, the AL 2 (Alarm 2) Indicator on the display will illuminate. The Alarm 2 time will appear on the display and the hour digit will blink. Press the or Buttons repeatedly to set the hour of it.
2. Press the ALARM/SLEEP Button again, the minute digit will blink. Press the or Buttons repeatedly to set the minute.
3. Press the ALARM/SLEEP Button again; the alarm 2 status will appear on the display. Press the or Buttons repeatedly to activate alarm, turn off alarm and set wake up mode as desired as below.

   Wake up mode:	Display or indicators
   Buzz	"ON" appear on the display and AL 2 Indicator on display will illuminate
   Radio	FM and AL 2 Indicators on display will illuminate
   AUX	AUX and AL 2 Indicators on display will illuminate

4. When finished settings, wait a few seconds. The unit will save the settings and exit (showing actual time on the display) automatically.

Notes:

• If radio was selected as wake up mode, received the desired radio station as previous procedure before activate alarm. Otherwise, when Alarm goes off, no sound output from the speaker or sound weak.
• If AUX (in) was selected as wake up mode, make sure the external player was connected to the unit and it will power on and have audio output at the time of alarm goes off. Otherwise, when alarm goes off, no sound output from the speaker.
• If the display mode was set to 12 hour type. When set the alarm time to PM, make sure the PM Indicator on the display is lit. When set the alarm time to AM, the PM Indicator is not lit.

Shut off alarm

• When alarm goes off, press the ALARM/SLEEP Button to turn off alarm, the alarm will be reset for next day. (The correspondence alarm indicator will keep illuminate).
• To turn off the alarm completely (not reset for next day):
  • Alarm 1: Press the ALARM/SLEEP Button three times, the alarm 1 status will appear on the display. Press the or Buttons repeatedly until "OFF" appear on the display. Wait a few seconds, the unit will save the settings and exit (showing actual time on the display) automatically.
  • Alarm 2: Press the ALARM/SLEEP Button six times, the alarm 2 status will appear on the display. Press the or Buttons repeatedly until "OFF" appear on the display. Wait a few seconds, the unit will save the settings and exit (showing actual time on the display) automatically.

SNOOZE

The alarm can be temporarily turned off manually by press the SNOOZE/DIMMER Button. After press the button during alarm goes off, the correspondence alarm indicator will blink and the alarm will turn back on automatically as the snooze period setting 5-60 minutes. This feature can be repeated until the ALARM/SLEEP Button was pressed (The correspondence alarm indicator will stop blinking and the alarm will reset for next day).

SLEEP TIMER

In Radio or Aux (in) playback mode, pressing and holding the ALARM/SLEEP Button until the sleep timer appear on the display to activate the sleep function. The SL (Sleep) Indicator on the display will illuminate. Press the ALARM/SLEEP Button repeatedly to set sleep timer to 05 – 90 minutes as desired. To turn off the sleep timer before time up, pressing and holding the /MODE Button to shut off.

DIMMER

Press the SNOOZE/DIMMER Button repeatedly to set the brightness level of the display as desired.

BUILT-IN QI WIRELESS CHARGER

1. Place a supported mobile device on the center of the charging surface on the top of unit as the illustrated below.QI Indicator on the display will illuminate. Charging will start automatically.

2. When finished, remove the mobile device from the unit.

Notes:

• Check the mobile device's battery charging status using the charging icon displayed on the screen.
• Do not place any other object between the mobile device and the QI wireless charger. The mobile device may not charge properly.
• If you connect a travel adaptor to the mobile device during wireless charging, the wireless charging feature may not be available.

BUILT-IN USB CHARGER

To charging the external USD Device:

1. Connect the USB Plug from the external USB Device to the USB CHARGER Port on the rear of unit.
2. The charging will auto start.
3. When finished charge, disconnect the external USB Device from the USB CHARGER Port.

Notes

• Check the mobile device's battery charging status using the charging icon displayed on the screen.
• The unit has a built-in overload/overheats protector. If the output of the unit is overload (or short circuit). The charger will auto shut off. Unplug the external USB Device from the USB CHARGER Port. The charge will auto reset.

TROUBLE SHOOTING GUIDE

Symptom	Possible Cause	Solution
Power
No power	The AC/DC Adaptor had not connect to the unit and AC wall outlet.	Connect the AC/DC Adaptor to the unit and AC wall outlet.
Radio
No sound	The unit is not in Radio mode.	Press the /Mode Button to enter to Radio mode.
Noise or sound distorted on radio broadcasts	Station not tuned properly.	Retune the radio station.
	The location not good for radio reception.	Unwind the FM Antenna Wire to full length and/or relocation.
	Volume at minimum.	Increase Volume level.
Alarm
No alarm	Alarm had not activated.	Set and activate the alarm.

GENERAL SPECIFICATIONS

Power Source:	DC 5V, 2000mA,
Clock back up:	DC 3V, 2 x AAA size batteries; Not included
Audio Power:	0.5 W per channel (Total 1 W, RMS)
Impedence of Speakers:	8 ohm; 2W
Radio Band Coverage:	87.5 - 108 MHz
Output from USB Charger Port:	DC 5V, 1000mA Maximum
Output from QI Wireless Charger:	DC 5V, 1000mA Maximum

ACCESSORIES

1 x Owner's Manual
1 x AC/DC Adapter (Input: AC 100-240V~, 50/60Hz, 0.5A; Output: DC 5V, 2000mA, )

SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
