KitchenAid KCO124 - Digital Countertop Oven with Air Fry Manual

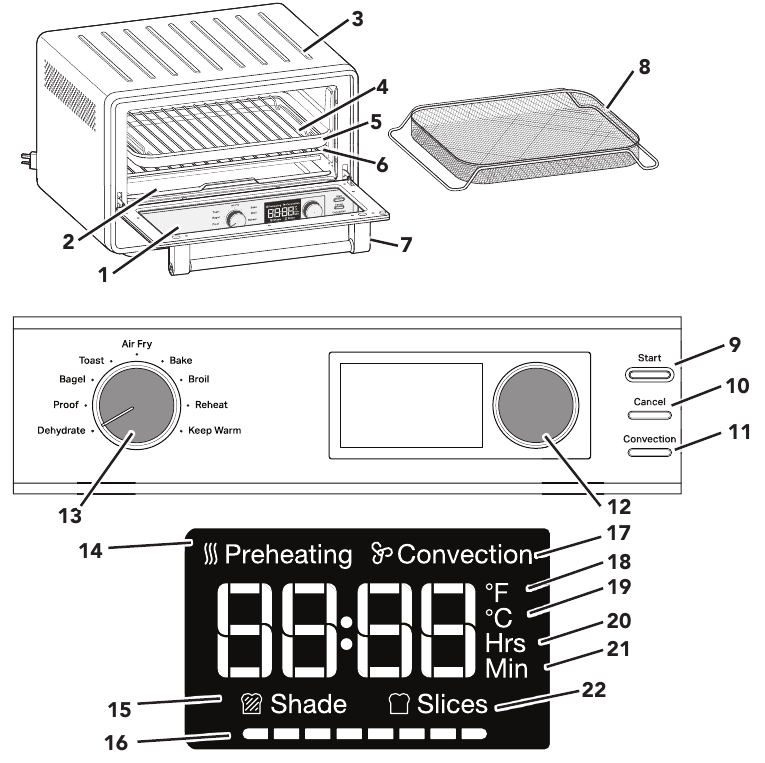

PARTS AND FEATURES

1. Toughened Glass Window
2. Removable Crumb Tray
3. Cool Down Surface for Removable Oven Rack
4. Chrome-plated Steel Broiling Rack
5. Enamel-coated Pan
6. Chrome-plated Steel Oven Rack
7. Door Handle
8. Air Fry Basket
9. Start: Start Selected Cooking Mode
10. Cancel: Stops Selected Cooking Mode

NOTE: Press and hold the Convection button for 3 seconds to switch between the temperature units Fahrenheit ( °F ) and Celsius ( °C).

GETTING STARTED

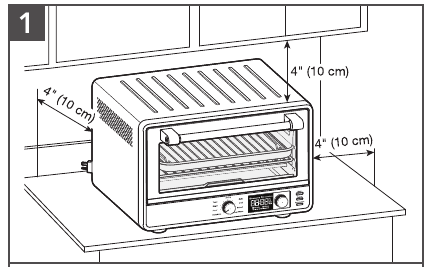

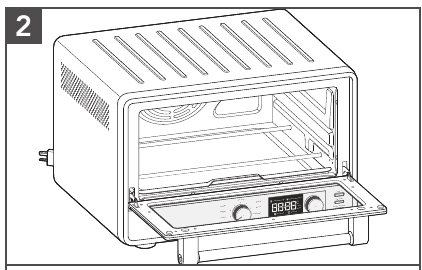

Before first use, clean all parts and accessories (see "Care and Cleaning" section). Place the Air Fryer on a dry and flat level surface. Remove all packaging materials and labels, if present.

Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

3. Plug into a grounded 3 prong outlet. Your Air Fryer is now ready to use.


NOTE: Upon first use, the Air Fryer may produce light smoke. This is normal.

TIME RECOMMENDATION - AIR FRY FUNCTION

NOTE: Gently spray the basket with oil before each batch of food. No more oil is needed. Results may vary with different food brands and sizes. Follow Toaster Oven instructions from the back of the food package and reduce time.

TIP: When cooking fatty foods, such as non breaded poultry with skin, use the baking pan instead of the Air Fry Basket to catch excess oil that may drip from the food.

COOKING FUNCTIONS

PREHEATING

Preheating your Air Fryer is important for consistent and even results. Once you select your desired cooking mode or any other settings, and press Start. The light ring around the Start button will be on, and the Preheat indicator will show on the LCD. Once the oven has reached the set temperature, a tone will sound to let you know that you can insert food and begin cooking. Preheating is NOT necessary in all cooking modes. To skip the Preheat and start the timer directly, push the Start button a second time.

NOTE: Automatic Preheat is not programmed for Dehydrate, Keep Warm, Reheat, Toast and Bagel functions.

CONVECTION

The convection fan is controlled by the Convection button. Pushing the Convection button will toggle the fan on or off for Bake, Broil, Keep Warm, and Reheat functions. A "Convection" label and fan icon will appear on the display when the convection fan is on. The Air Fry function uses a high speed convection fan that cannot be turned off. The Dehydrate function uses the high speed convection fan as preset, but it may be turned off by pushing the Convection button.

Cook all foods to minimum safe internal temperatures. Consuming raw or undercooked meats, poultry, seafood, shellfish, or eggs may increase your risk of food borne illness.

Toasting functions	Rack No.	Preset Shade	Shade Range (Light to Dark)	Preset Slices	Range (# of slices)	Elements Run
Toast	2	4	1-8	2	1-6	Runs 4 elements
Bagel	2	4	1-8	2	1-6	Runs 4 elements

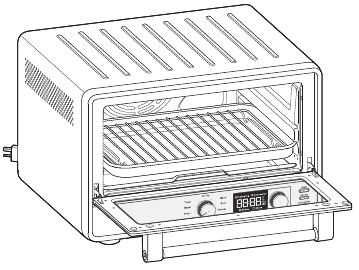

AIR FRY RACK POSITION

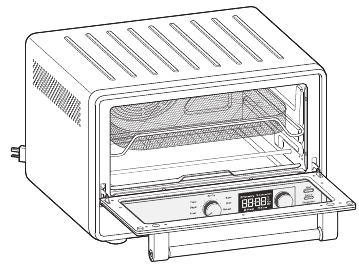

Rack position for Air Fry

Rack position for Bake, Reheat, Dehydrate, Proof, Bagel, Toast, Keep Warm, Broil

Rack position for Baking large items or items that are sensitive to over browning on top

USING THE DEHYDRATE FUNCTION

Dehydrate option is to remove moisture content from veggies or fruits to dry and preserve them.

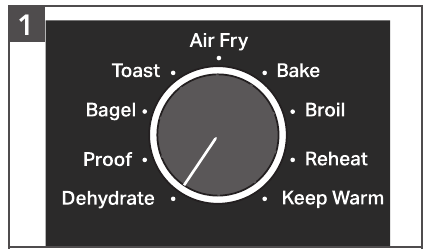

1. Set the function knob to Dehydrate. The preset temperature 150°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 6 hours. If desired, rotate knob to adjust

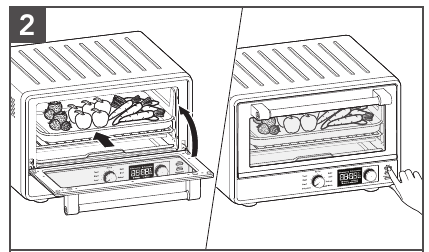

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle

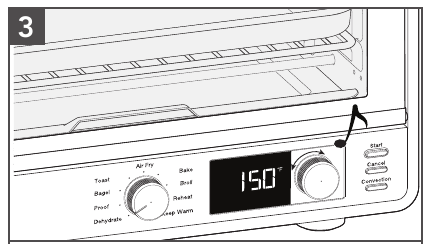

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


Always use oven mitts when removing pans or racks.

USING THE PROOF FUNCTION

The Proof function maintains a warm environment useful for rising yeast.

Use for dough. To speed up bread proofi ng. With a range of 75–90°F temperature and lower heating elements, this setting can be used to accelerate bread proofi ng (rising).

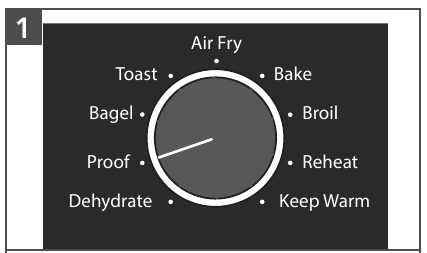

1. Set the function knob to Proof. The preset temperature 90°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 30 minutes. If desired, rotate knob to adjust.

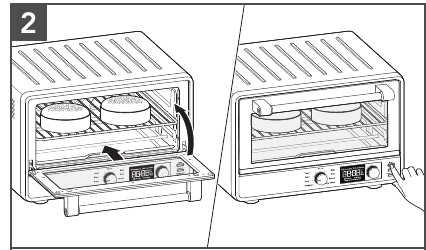

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

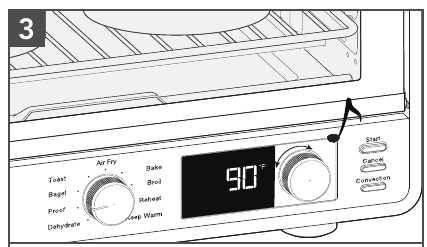

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE BAGEL FUNCTION

In Bagel mode, the oven distributes power between the top and bottom heating elements to nicely brown the top of cut bagels while gently warming the outside.

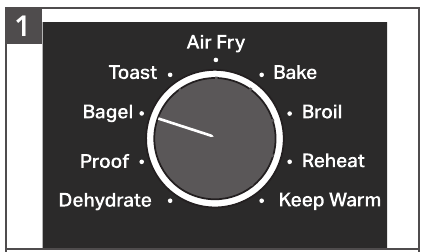

1. Set the function knob to Bagel. Shade and slices will be shown.

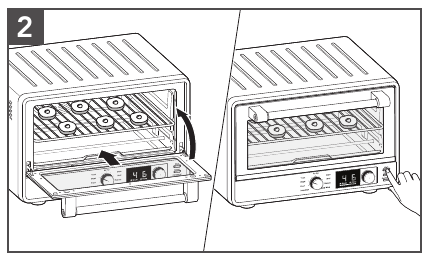

2. Open the door and place the food on the center of the rack. Close the door.

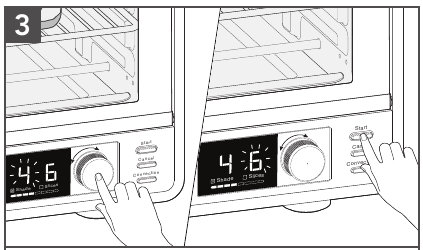

3. The Shade Icon starts flashing. Rotate the knob to adjust shade. Press knob to select slices. The Slices Icon will starts flashing. If desired, rotate knob to adjust number of slices. Press Start to start the cycle

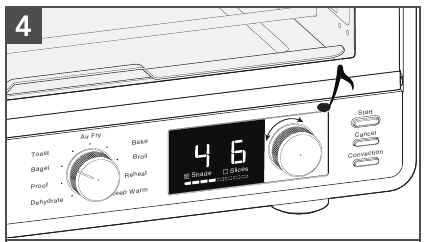

4. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE TOAST FUNCTION

In Toast mode, your oven distributes power to the top and bottom heating elements to maintain the desired oven temperature.

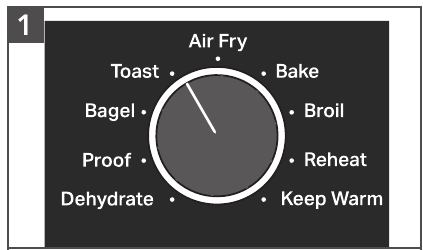

1. Set the function knob to Toast. Shade and slices will be shown

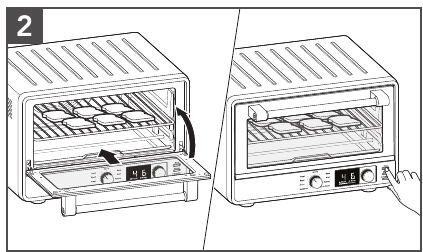

2. Open the door and place the food on the center of the rack. Close the door

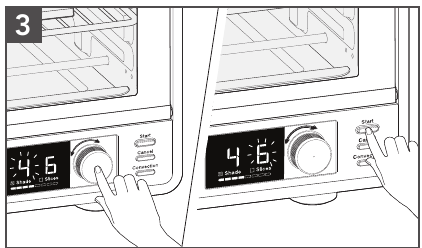

3. The Shade Icon rotate knob to adjust shade. Press knob to select slices. The Slices Icon will starts flashing. If desired, rotate knob to adjust number of slices. Press Start to start the cycle

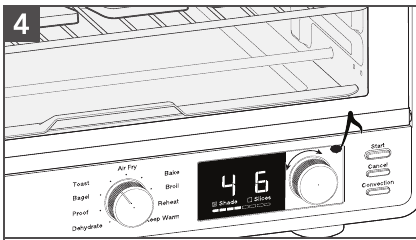

4. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE AIR FRY FUNCTION

The Air Fry function uses a combination of hot air and heating elements to prepare crispy foods.

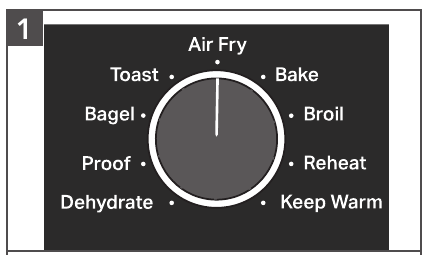

1. Set the function knob to Air Fry. The preset temperature 400°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 17 minutes. If desired, rotate knob to adjust.

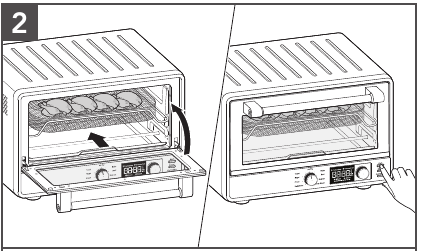

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE BAKE FUNCTION

In Bake mode, food will prepare in dry heat like bread, cake, toast etc. Both the top and bottom cooking elements cycle on and off while baking. Recipes will vary and cooking time should be monitored for desired results. For better cooking results, select the correct cooking pan to allow for proper air circulation.

The convection fan can be turned on or off by pressing the Convection button.

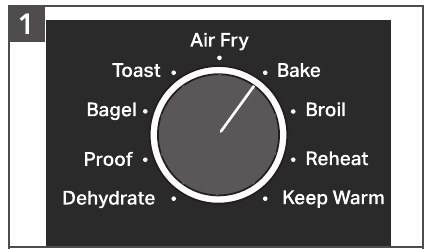

1. Set the function knob to Bake. The preset temperature 350°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 30 minutes. If desired, rotate knob to adjust.

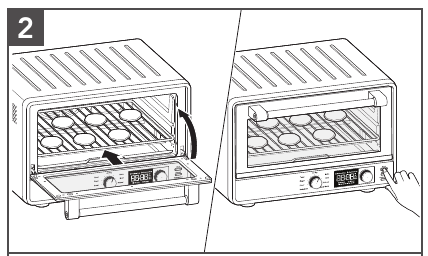

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

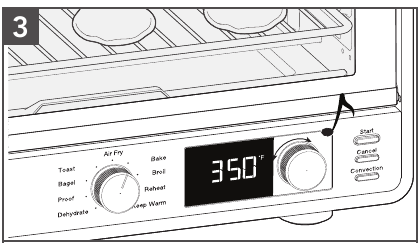

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE BROIL FUNCTION

Only the top cooking elements heat when the Broil function is selected. Use the included broil pan and grill directly on the Oven Rack for even browning and easy cleanup. The broil pan and grill may also be used for the Bake and Warm settings.

The convection fan can be turned on or off by pressing the Convection button.

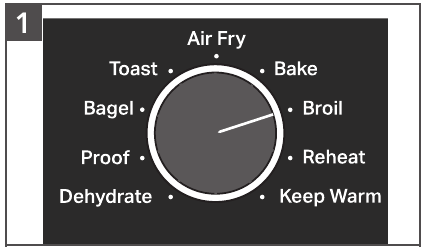

1. Set the function knob to Broil. The preset temperature 450°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 8 minutes. If desired, rotate knob to adjust.

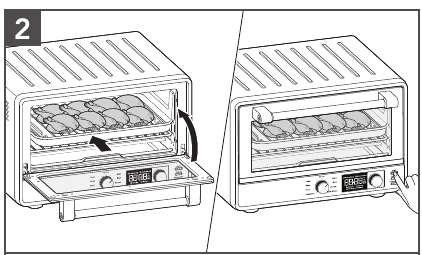

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

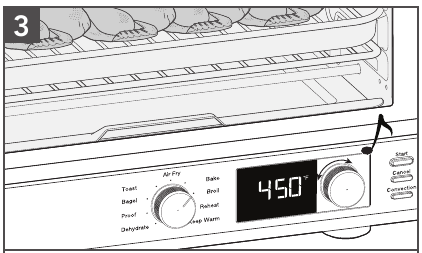

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE REHEAT FUNCTION

In Reheat function oven distributes power to the top and bottom elements to bring food to serving temperature.

The convection fan can be turned on or off by pressing the Convection button.

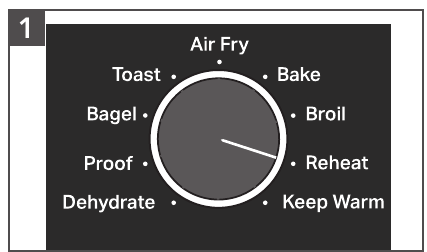

1. Set the function knob to Reheat. The preset temperature 300°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 15 minutes. If desired, rotate knob to adjust.

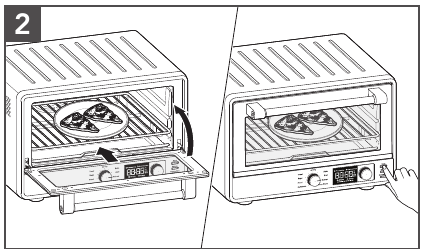

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

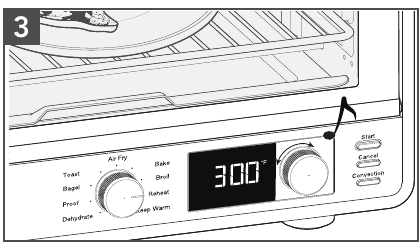

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


USING THE KEEP WARM FUNCTION

Food Poisoning Hazard
Do not let food sit in oven more than one hour before or after cooking.
Doing so can result in food poisoning or sickness.

In Keep Warm mode, your oven distributes power to the bottom elements to keep food warm after cooking, so it may be served hot.

The convection fan can be turned on by pressing the Convection button.

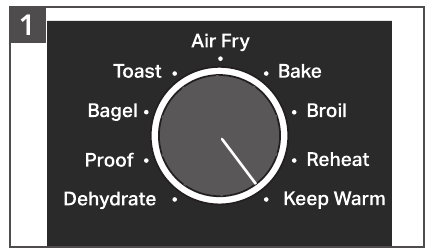

1. Set the function knob Keep Warm. The preset temperature 170°F will be shown. If desired, rotate knob to adjust. Press the knob to show preset time. The preset time is 1 hour. If desired, rotate knob to adjust.

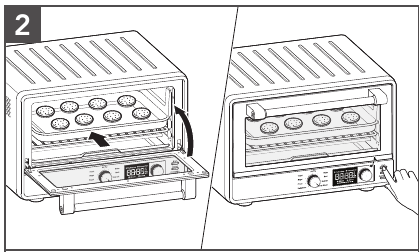

2. Open the door and place the food on the center of the rack. Close the door. Press Start to start the cycle.

3. When the time has elapsed, the end signal will sound and the Air Fryer will shut off automatically.


CARE AND CLEANING

NOTE: Allow the Air Fryer and accessories to cool completely before cleaning.

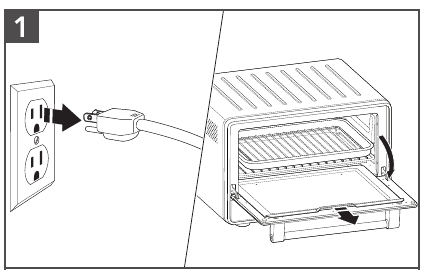

1. Unplug the Air Fryer from the outlet. To remove the Crumb Tray, Air Fry Basket, open the door, grasp the Crumb Tray Handle and slide straight out.

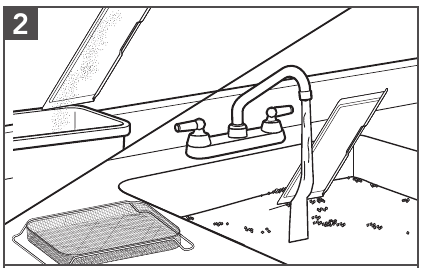

2. Empty and wash in warm, sudsy water, if needed. Dry with a soft cloth. Open the door and slide it back into place. A soft bristle brush can be used to clean the mesh on the Air Fry Basket.

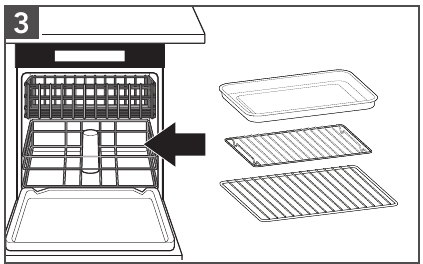

3. The following parts are dish-washer safe, but hand washing is recommended: Oven Rack, Multipurpose Pan, and Broiling Rack.


Do not use cleaning agents, abrasive cleansers, or metal scouring pads on the inner or outer surfaces of the Fryer. They could scratch the surface.

INTERIOR: The inside walls of the oven feature a nonstick coating. Remove heavy spatter with a nylon or polyester mesh pad, sponge, or cloth dampened with warm water. Dry thoroughly.

EXTERIOR: Wipe the outside of the Air Fryer with a clean, damp cloth and dry thoroughly.

Ensure all parts and surfaces are completely dry before re-use.

TROUBLESHOOTING

Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not put cord, plugs, or any parts of the Air Fryer in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.
7. The use of accessories/attachments not recommended or sold by KitchenAid may cause fire, electrical shock, or injury to persons.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
11. Use extreme caution when removing Broiling Rack, Multipurpose Pan, Oven Rack, or disposing of hot grease.
12. Oversize foods or metal utensils must not be inserted in a Air Fryer as they may create a fire or risk of electric shock.
13. A fire may occur if Air Fryer is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation. Do not store any item on top of the appliance when in operation.

14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
15. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
16. Do not store any materials, other than manufacturer's recommended accessories, in this Air Fry when not in use.
17. Do not place any of the following materials in the Air Fry: paper, cardboard, plastic, or anything similar.
18. Do not cover crumb drawer or any part of the Air Fry with metal foil. This will cause overheating of the oven.
19. To disconnect, turn the Air Fry "off" by pressing Cancel button, then remove plug from wall outlet.
20. Do not use the appliance outdoors.
21. Do not use the appliance for other than intended use.

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 120 V~
Frequency: 60 Hz
Power: 1800 W

NOTE: If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way. Do not use an adapter.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician to install an outlet near the appliance.

The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
