- Page 1 RG-PA150I-FS, PA300I-FS, PA460I-FS, PA600I-FS Power Modules Hardware Installation and Reference Guide Document Version: V1.0 Date: 2023-10-09 Copyright © 2023 Ruijie Networks...
- Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
-
Page 3: Intended Audience
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee Technical Support Website: https://www.ruijienetworks.com/support Case Portal: https://caseportal.ruijienetworks.com Community: https://community.ruijienetworks.com... - Page 4 Note This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for cables and connectors. It is intended for users who want to understand the above and have extensive experience in network deployment and management, and assume that users are familiar with related terms and concepts.
-
Page 5: External Ports

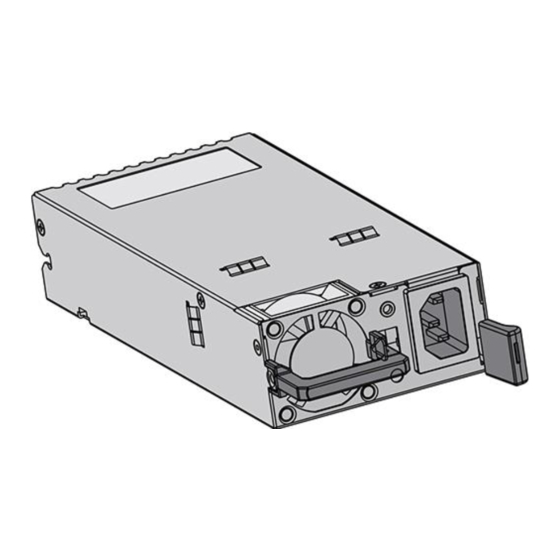

Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA150I-FS RG-PA150I-FS Power module for RG-NBS6002 series switches: AC input: Currently only the RG-NBS6002 series switches support the RG-PA150I-FS power module. Caution The RG-NBS6002 supports power modules in 1+1 redundancy mode. To improve system stability and reliability, you are advised to configure power modules in 1+1 redundancy mode. - Page 6 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA150I-FS Rated Voltage 100 VAC to 240 VAC, 50/60 Hz Range Max. Voltage 90 V to 264 V, 47/63 Hz Range Max. Output 100 V to 240 V, 150 W Power Input Current <...
- Page 7 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA300I-FS RG-PA300I-FS Appearance The label is on the top panel of the power module. 2.1.1 External Ports RG-PA300I-FS is an AC power module that provides AC power input and supplies 12 V voltage to the system.
- Page 8 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA300I-FS ≤ 1.5 mA Ground-Leakage Current Net Weight 0.85 kg (1.87 lbs.) Power Cord 10 A power cord Caution ● When connecting the power cord, make sure to fasten the latch securely to prevent any looseness.
- Page 9 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA460I-FS RG-PA460I-FS Appearance The label is on the top panel of the power module. 3.1.1 External Ports RG-PA460I-FS is an AC power module that provides AC power input to RG-NBS7003 and supplies 12 V voltage to the system.
- Page 10 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA460I-FS Max. Output Power 100 V to 240 V, 460 W ≤ 3 mA Ground-Leakage Current Net Weight 0.9 kg (1.98 lbs.) Power Cord 10 A power cord Caution ● When connecting the power cord, make sure to fasten the latch securely to prevent any looseness.
- Page 11 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA600I-FS RG-PA600I-FS Appearance The label is on the top panel of the power module. 4.1.1 External Ports RG-PA600I-FS is an AC power module that provides AC power input and supplies 12 V voltage to the system.
- Page 12 Ruijie Reyee Power Modules Hardware Installation and Reference Guide RG-PA600I-FS Technical Specifications Model RG-PA600I-FS Rated Voltage Range 100 V to 240 V, 200 V to 240V, 50/60 Hz Max. Voltage Range 90 V to 264 V, 47/63 Hz 90 VAC to 180 VAC, 600 W Max.
