  • Page 1 PumpWave™ Classic Electronic Pump Controller...

  • Page 2: Precautions & Specifications

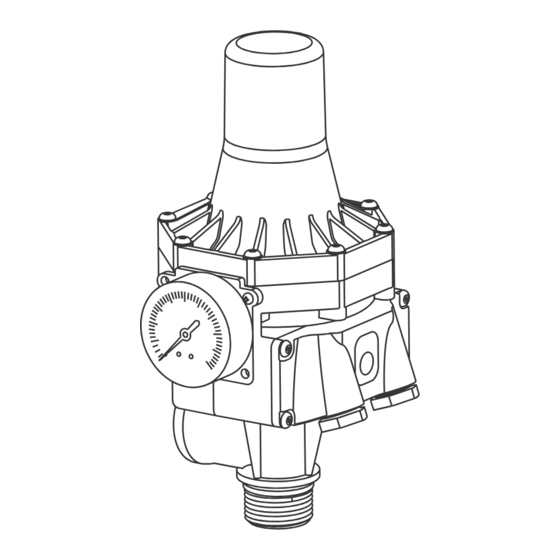

    GENERAL INFORMATION The PumpWave Classic automatic pump controller is completely silent and designed to work with a pump to provide an automatic supply of clean water to one or two dwellings. This compact kit is comprised of a check valve, electronic circuit, and reset button.

  • Page 3: Specifications

    Electronic Pump Controller SPECIFICATIONS Product Series Name PumpWave™ Model number PWClassic-B Supply voltage 110/220-260V AC Frequency 50/60Hz Max. Operating Power 1.1kW 16A Connections 1” BSPP / G1-ISO 228 Protection level IP 65 Min. Flow rate 1L/min (0.25 gal/min) Max. Flow rate 57L/min (15 gal/min) Ambient temperature 1-60°C / 34-140°F (Avoid freezing)

  • Page 4: Installation

    INSTRUCTION MANUAL Pumpwave™ Classic - Electronic Pump Controller INSTALLATION • Designed for indoor use only. • The controller has a threaded male fitting that can be screwed directly into the pump and a female fitting for connection to discharge pipework. •...
  • Page 5 Electronic Pump Controller START UP • Before starting the pump, ensure that the grid voltage and frequency match those featured on the data plate, that the pump shaft turns freely, and that the pump body is primed and full of water. The pump should never be operated dry.

  • Page 6: Installation Diagrams

    INSTALLATION DIAGRAMS Pumpwave™ Classic - Electronic Pump Controller ADJUSTING THE START PRESSURE • To adjust the start pressure, use the adjustment screw located on top of controller. • Open a tap in the installation and read the pressure shown on the pressure gauge when starting. Turn the adjustment screw in the desired direction.

  • Page 7: Warranty

    Any GWS PumpWave Classic™ and PumpWave Press™ products proved to be defective in manufacture will be replaced F.O.B. point of original delivery, or credit will be issued, at the discretion of GWS.
  • Page 8 Have questions or need assistance? www.globalwatersolutions.com rev 1.1 © 2023/04 globalwatersolutions...
