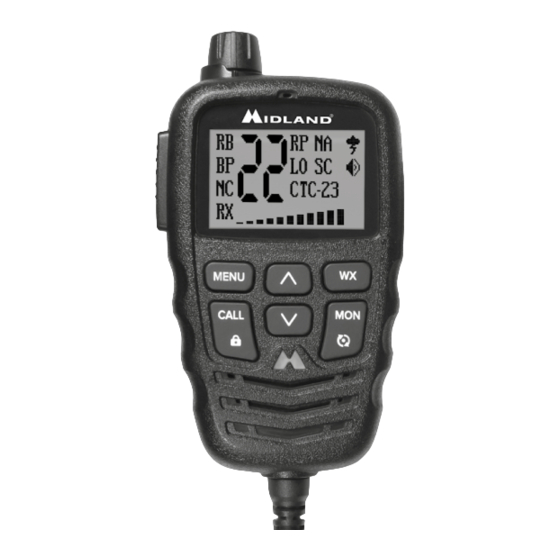

GMRS MICROPHONE
MXMC01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXMC01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midland MXMC01

Summary of Contents for Midland MXMC01

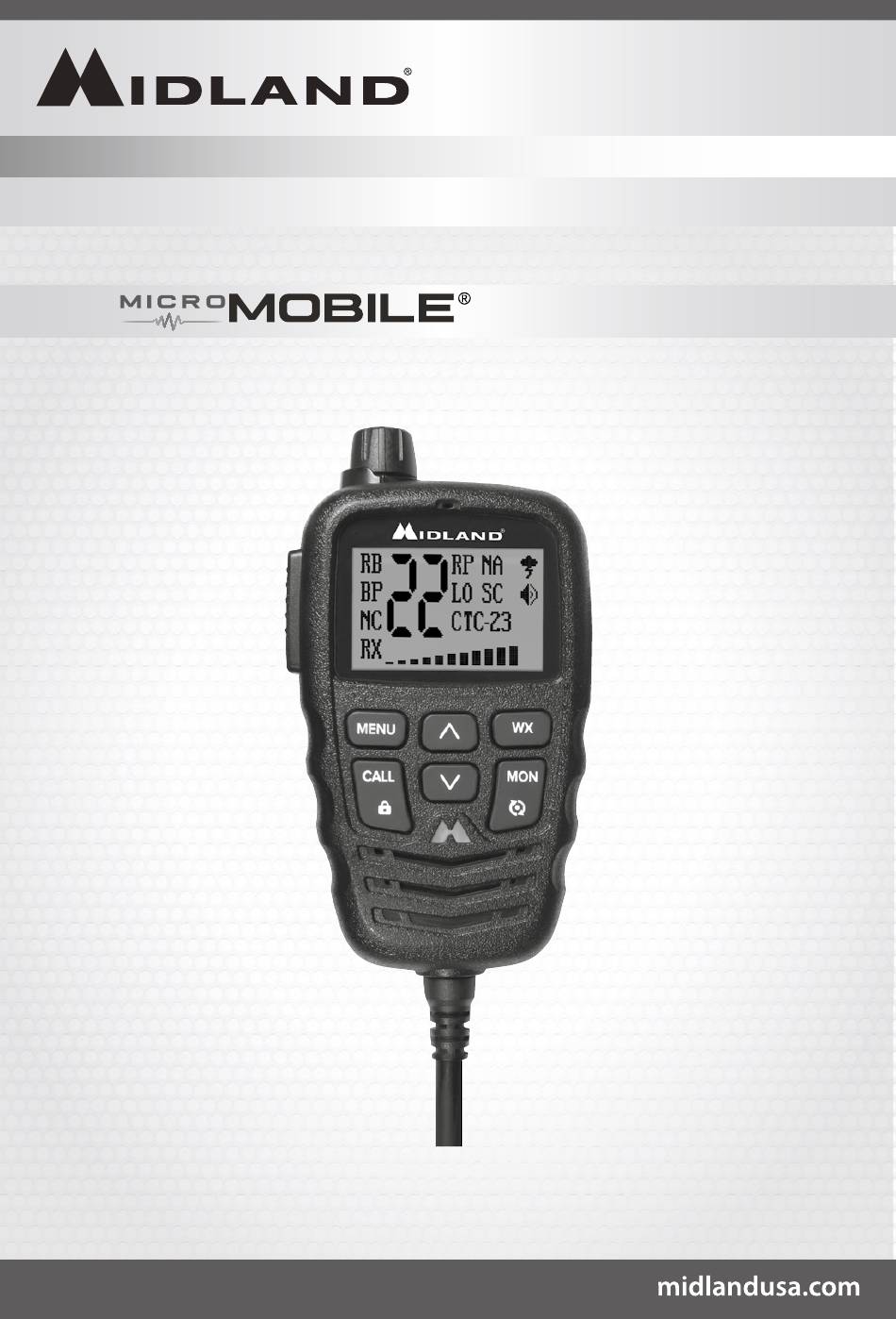

  • Page 1 GMRS MICROPHONE MXMC01...

  • Page 2: Table Of Contents

    Model MXMC01 TABLE OF CONTENTS WELCOME TO THE WORLD OF MIDLAND..……………………..…….3 FEATURES..….……………………………………………………………..3 MIC DESCRIPTION..…….……………………………………………..…..4 LCD DESCRIPTION.......………………………………………..…..5 OPERATION……..…………….……………………………………………..…..5 SELECTING THE ACTIVE CHANNEL...…...……………………………..…..6 ADJUSTING THE VOLUME....…...……………………………..…..6 TRANSMITTING AND RECEIVING A CALL…….………………………..…..6 LOCKING KEY PAD…………......…………………………..…..7 USING MONITOR MODE......……………………………..…..7 SCANNING FOR ACTIVITY CHANNEL………………………….……..…...7 NOAA WEATHER RADIO / SCAN..…...…………….………………….…...8 Enter and Exit Weather Scan....……………………..8...

  • Page 3: Welcome To The World Of Midland

    Model MXMC01 WELCOME TO THE WORLD OF MIDLAND RADIO Congratulations on your purchase of a high quality MIDLAND product. Your MXMC01 Microphone represents state-of-the-art high tech engineering. Designed for General Mobile radio Service (GMRS) operation, this compact package is big on performance. It is a quality piece of electronic equipment, skilfully constructed with the finest components.

  • Page 4: Mic Description

    Model MXMC01 MENU CALL Description Short Press Long Press Switch Push to Talk Channel Up Channel Up Select Channel Continuous Up Select Menu Menu and Select Button Weather Enter Weather Mode Setting Weather Alert Call Call Tone Lock Confirm Key in Menu...

  • Page 5: Lcd Description

    Model MXMC01 Description Description Roger Beep Scan Indicator Key Tone Weather Monitor TX / RX Indicator Hi / Low Power Channel CTCSS / DCS Repeater Channel S-Meter OPERATION 1.1 ON / OFF To turn the radio on and off 1. With the radio off, turn the knob clockwise. You will hear a tone when the radio is on.

  • Page 6: Selecting The Active Channel

    Model MXMC01 Selecting the Active Channel IMPORTANT! To communicate between two radios, both radios must be set to the same channel (see Selecting a Privacy Code) selections. To Select the Active channel 1. Be sure the radio is turned on (See Power On/Off) 2.

  • Page 7: Locking Key Pad

    5. Once the volume has been adjusted to the desired level, press and hold (3 seconds) the Monitor button to exit Monitor mode. Scanning for Active Channels Your MXMC01 includes an “auto-scan” mode that continuously scans all available channels for activity. To enter and exit “auto-scan” mode: 1.

  • Page 8: Noaa Weather Radio/Scan

    • The Scanning icon will turn off when the radio is no longer in “auto-scan” mode NOAA Weather Radio/Scan Your MXMC01 has a NOAA Weather Radio function, to enable the user to receive weather reports from designated NOAA stations. Your radio also has a NOAA Weather Scan function, to enable the user to scan all 10 channels.

  • Page 9: To Enable Weather Alert

    • The weather icon will begin flashing 4. To return to GMRS mode, press and release the WX or PTT button. • When a Weather Alert goes off, the MXMC01 will sound a siren. Pressing any button on the microphone will take you to the assigned weather channel and you will be able to hear the weather alert.

  • Page 10: Squelch

    Model MXMC01 4. Use the Channel Up or Channel Down button to toggle the transmit power setting between HI and LO. 5. When the desired transmit power level is shown on the LCD display, press the Lock button to confirm your selection.

  • Page 11: Call Tone

    Model MXMC01 5.0 CALL TONE 1. Press and release the Menu button to place the radio in “Menu” mode. 2. Use the Channel Up or Channel Down buttons to scroll the menu options until CALL TONE is selected 3. Press the Lock button to confirm your selection.

  • Page 12: Back Light

    Model MXMC01 • When activated the repeater channels will be displayed as the channel number (Ex. 15,16,17,etc.) and the RP icon • Repeater channels will appear immediately following the standard GMRS channels (ex: 20, 21, 22, 15rP, 16rP, 17rP, etc.).

  • Page 13: Reset Function

    Model MXMC01 5. When the noise cancel setting is shown on the LCD display, press the Lock button to confirm your selection. YOU MUST PRESS THE LOCK BUTTON TO CONFIRM YOUR SELECTION OR THE NOISE CANCEL SETTING WILL NOT BE CHANGED.

  • Page 14: Frequency List

    Model MXMC01 GMRS FREQUENCY CHART (MHz) Ch. No. Ch. Freq. (MHz) Ch. No. Ch. Freq. (MHz) 462.5625 462.550 462.5875 462.575 462.6125 .600 462.6375 462 .625 462.6625 462.650 462.6875 462.675 462.7125 462.700 462.725 CH 8-14 Restricted to Portable Use Only GMRS REPEATER FREQUENCY CHART (MHz) Ch.

  • Page 15: Ctcss Privacy Code Chart

    Model MXMC01 CTCSS PRIVACY CODE CHART Code Freq. Code Freq. Code Freq. Code Freq. Code Freq. 67.0 118.8 156.7 210.7 71.9 123.0 162.2 218.1 74.4 97.4 127.3 167.9 225.7 77.0 100.0 131.8 173.8 233.6 79.7 103.5 136.5 179.9 241.8 82.5 107.2...

  • Page 16: Limited Warranty

    LIMITED WARRANTY (United States and Canada) Subject to the exclusions set forth below, Midland Radio Corporation will repair or replace, at its option without charge, any Midland MXMC01 Microphone which fails due to a defect in material or workmanship within 1 year following the initial consumer purchase.
  • Page 17 Model MXMC01 Page 17 midlandusa.com...
  • Page 18 5900 Parretta Drive Kansas City, MO 64120 Call 816.241.8500 We’d love to hear from you! Let us know what you think of your new Midland product at: by visiting us at: midlandusa.com Note: Features and Specifications are subject to change without notice.
