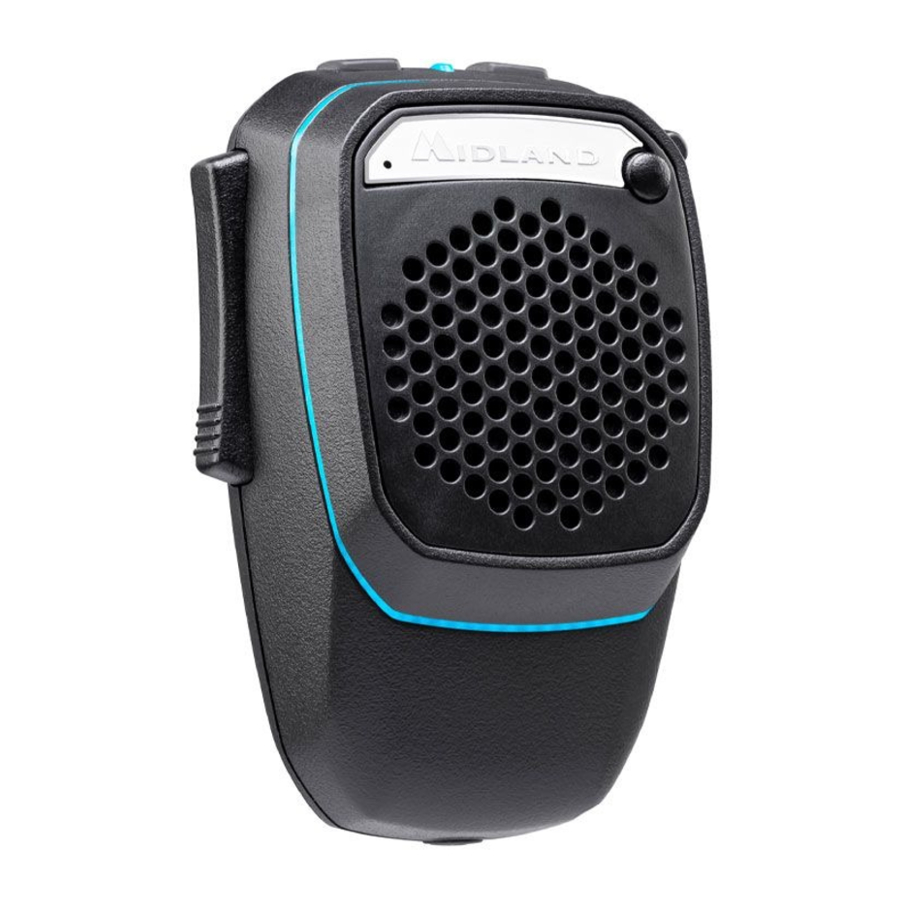

DEVICE OVERVIEW
- Volume -
- Led
- Volume + (Power Off - 3 sec.)
- Emergency key (or customizable)
- Channel up; Channel down (CBTalk)
- Speaker
- USB charging port/FW upgrade port
- Light ring
- Secondary PTT
- PTT CBTalk (Power On - 3 sec.)
- DUAL MIKE WIRELESS is supplied with a metallic plate very useful for magnetic fixing of the microphone and wireless recharge. To use it remove the plastic support fixed with a screw*.
RECHARGE
With USB cable (included)
WIRELESS RECHARGE
Through DK-DUAL, optional Docking Station (The plastic support must be removed, see point 11*)
POWER ON
Power On
Led steady blue 3 sec.
POWER OFF
Power Off
Led steady red 3 sec.
PAIRING WITH SMARTPHONES
PRESS TOGETHER PTT CBTALK and VOL+
STEP 1
Pairing
Red and blue leds alternately blink
STEP 2
Telephone connected
Blue led blinks 3 times
PAIRING WITH OTHER BLUETOOTH DEVICES
PRESS TOGETHER secondary PTT and VOL+
STEP 1
Pairing
Red and blue leds alternately blink
STEP 2
Bluetooth connected
Blue led blinks 3 times
HAND-FREE PHONE CALLS
To answer/to end a call
White light ring
To reject an incoming call
White light ring
To make a voice dial
AUDIO VOLUME
Bop (max vol. Beep)
CBTALK APP
Download the CBTalk APP Android/iOs
PTT CBTALK
Push and talk into CBTalk
CHANGE A CHANNEL ON CBTALK
LED
Turning ON:
Blue led 3 sec.
Turning OFF:
Red led 3 sec.
Pairing:
Red and blue leds alternated
Pairing with Smartphone:
Blue led blinking 3 times
Smartphone's pairing not successful:
red led blinking 3 times
Full charge:
Blue led blinks once
While charging:
Red led blinks once
LIGHT RING
Default color:
Steady blue (it will be set through the CBTalk APP)
Incoming call:
Steady white
Low battery:
blinking red
PTT pressed:
Steady yellow
Produced or imported by:
CTE INTERNATIONAL srl
Via. R.Sevardi 7 42124 Reggio Emilia - Italy.
Read the instructions carefully before installation and use.
