- Page 1 CR 11 B Rammer OPERATING INSTRUCTIONS Translation of the original Instructions...
- Page 2 VERS. 2023.03.15 CR 11 B _MAN_EN...
- Page 3 The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE CR 11 B 70184632595 Declares that this product: Norton clipper Code: Is in conformity with the following Directives: "MACHINES" 2006/42/CE "NOISE" 2000/14/CE And European standard : •...
- Page 4 VERS. 2023.03.15 CR 11 B _MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: 70184632595 Compactor CR 11 B Code: is in conformity with the following standard: •...
-
Page 5: Table Of Contents
VERS. 2023.03.15 CR 11 B _MAN_EN Norton Clipper CR 11 B OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Layout 2.3 Technical DATA... -
Page 6: Basic Safety Instructions
CR 11 B _MAN_EN 1 BASIC SAFETY INSTRUCTIONS The Norton Clipper CR 11 B is exclusively designed for compaction mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 7: Machine Plate
VERS. 2023.03.15 CR 11 B _MAN_EN plate Machine Important data can be found on the following plate located on the machine: Machine code Machine model Serial number Year of production Machine Weight Safety instructions for particular operating phases Before starting the work •... -
Page 8: Machine Description

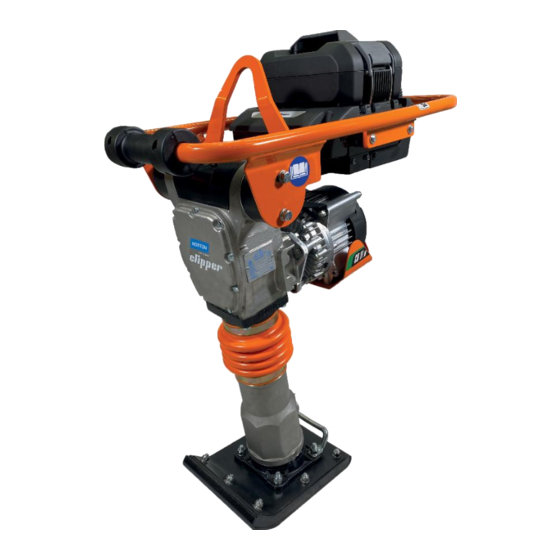

The rammer CR 11 B is suitable for repairing asphalted surfaces, for small compacting jobs and for preparing green areas As with all other NORTON products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are... -
Page 9: Layout
VERS. 2023.03.15 CR 11 B _MAN_EN Layout Handlebar (1) Jig welded steel construction is connected by 4 shock mount on the frame of the machine to reduce the vibrations reach the operator Lifting eye (2) To lift the machine easily and safely, a lifting eye is located over the engine. This allows a balanced lifting of the machine. - Page 10 VERS. 2023.03.15 CR 11 B _MAN_EN...
-
Page 11: Technical Data
VERS. 2023.03.15 CR 11 B _MAN_EN Technical DATA Model Norton Clipper CR 11 B Ramming soleplate Width x 250x330mm Length Operating weight with battery 72 kg Overall Lenth 720mm Overall Heigth 1050mm Overall Wigth 400mm Centrifugal force 11 kN Impact Number per minutes... -
Page 12: Assembly And Commissioning
VERS. 2023.03.15 CR 11 B _MAN_EN 3 ASSEMBLY AND COMMISSIONING Starting the machine Adjust the machine arm to a comfortable position. To do this, loosen the arm handle and adjust the arm to a right angle, then retighten the handle. Quick reference guide for operation... -
Page 13: Battery Fixation And Starting The Machine
VERS. 2023.03.15 CR 11 B _MAN_EN Battery fixation and starting the machine • Switch on the battery by pressing the Power button (1) (the switch must be in the OFF position) the 3 LEDs will lit. • Wait until the green LED on the control panel is the only one lit •... -
Page 14: Charging The Battery
VERS. 2023.03.15 CR 11 B _MAN_EN Charging the battery This machine works with a battery, so you have to think about charging it. A fast charger is available for this. It will take between 1h and 1h30 to recharge a full battery charge. When charging the battery, the charger fan turns on to prevent the battery from heating up. -
Page 15: Maintenance And Service
VERS. 2023.03.15 CR 11 B _MAN_EN 6 MAINTENANCE AND SERVICE Maintenance of the machine To ensure a long-term quality from the use of the Clipper compactors CR11 B, please follow the maintenance plan below: - Check the transfer box cover (daily) - Change the oil in the transfer box after 200 hours Cleaning the machine The life of your machine depends on its maintenance. -
Page 16: Maintenance Of The Egx Honda
VERS. 2023.03.15 CR 11 B _MAN_EN Maintenance of the eGX Honda... -
Page 17: Fault: Causes And Cures
VERS. 2023.03.15 CR 11 B _MAN_EN 7 FAULT: CAUSES AND CURES Fault –finding procedures Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine of the machine can only be carried out by a qualified technician. Troubles-shooting guide TROUBLE POSSIBLE CAUSE... -
Page 18: Customer Service
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by: Saint-Gobain Abrasives S.A. 190, Bd. J. F. Kennedy L- 4930 BASCHARAGE Grand-duché de Luxembourg. Tel.: 00352-50 401-1 Fax: 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com... -
Page 19: Spare Parts
VERS. 2023.03.15 CR 11 B _MAN_EN 7.4 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. - Page 20 VERS. 2023.03.15 CR 11 B _MAN_EN...
