3.12.2 Info Screen

7
1. Batch Stroke Counter: The number of strokes during the batch. Use "RESET" button to reset to
zero.
2. Service Stroke Counter: Number of strokes since last qualified service visit. Can only be reset by
trained MFIC representatives.
3. Number of strokes until next service alarm.
4. Total strokes: Lifetime machine stroke counter.
5. Service Alarm Hour Meter: Hours since last qualified service visit. Can only be reset by trained
MFIC representatives.
6. Hours until next service alarm
7. Lifetime Hour Meter: The lifetime hour meter on the LM20
8. PLC Input/Output Status: Lights indicate status of I/O on PLC.
MANUAL.LM20

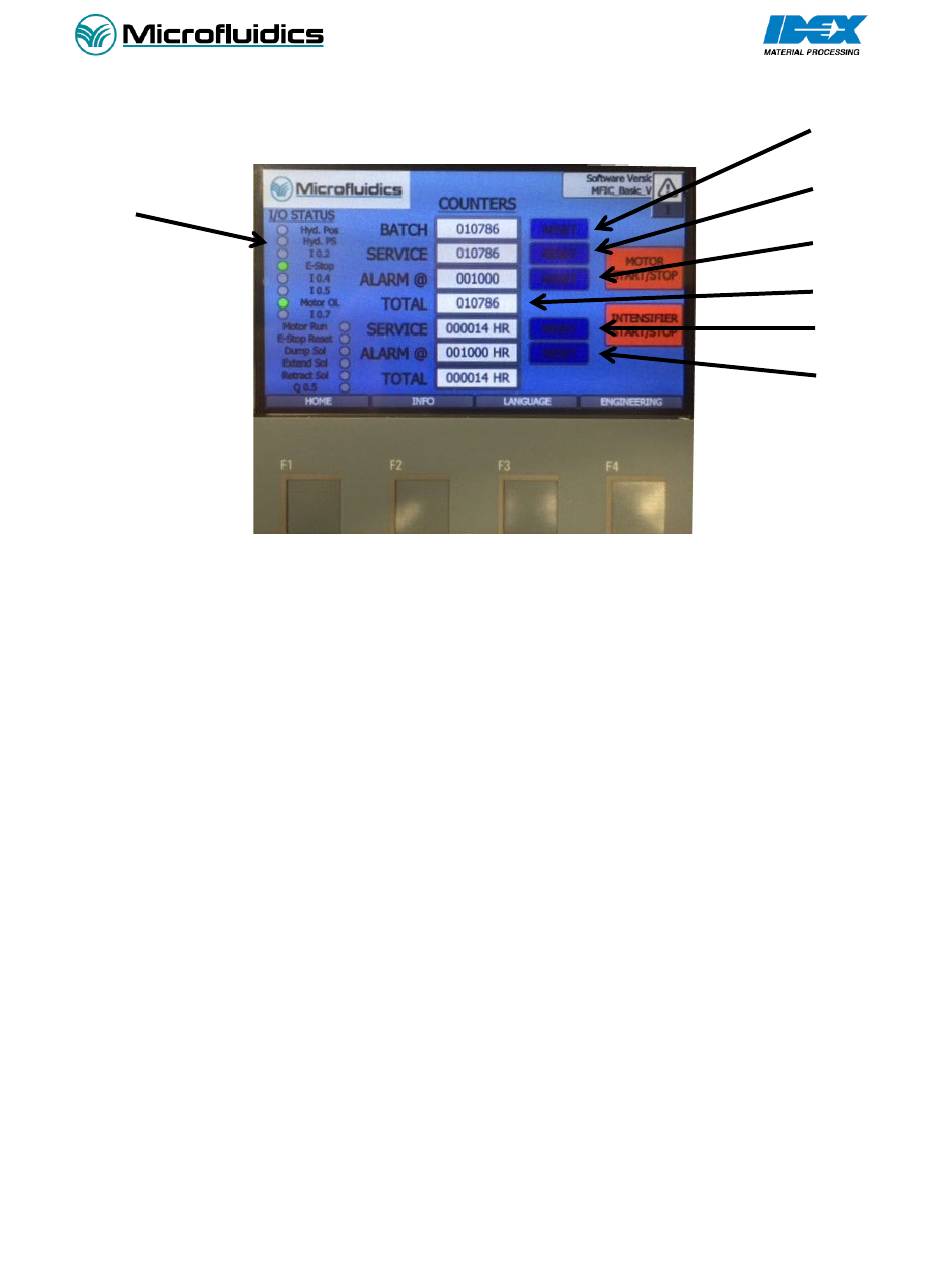

Figure 4 - Info Screen
Revision C January 2023
1
2
3
4
5
6
Page 19 of 52
