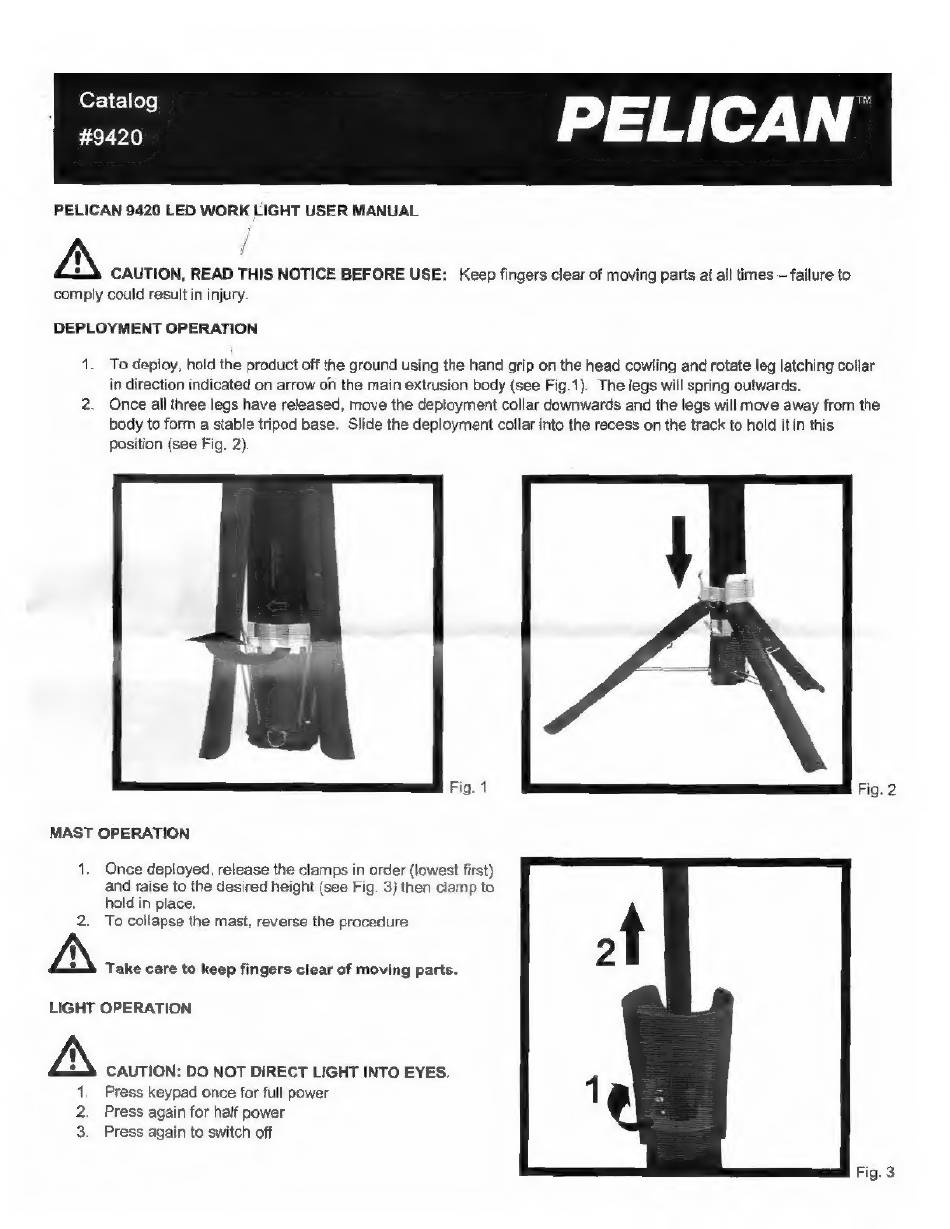

PELICAN 9420 LED WORK LIGHT USER MANUAL
A CAUTION, READ THIS NOTICE BEFORE USE: Keep fingers clear of moving parts at all times — failure to
comply could result in injury.
DEPLOYMENT OPERATION
1. To deploy, hold the product off the ground using the hand grip on the head cowling and rotate leg latching collar
in direction indicated on arrow on the main extrusion body (see Fig.1). The legs will spring outwards.
2. Once all three legs have released, move the deployment collar downwards and the legs will move away from the
body to form a stable tripod base. Slide the deployment collar into the recess on the track to hold itin this
Position (see Fig. 2).
Fig. 1 Fig. 2
MAST OPERATION
1. Once deployed, release the clamps in order (lowest first)
and raise to the desired height (see Fig. 3) then clamp to
hold in place.
2. To collapse the mast, reverse the procedure
A Take care to keep fingers clear of moving parts.
LIGHT OPERATION
A CAUTION: DO NOT DIRECT LIGHT INTO EYES.
1. Press keypad once for full power
2. Press again for half power
3. Press again to switch off
Fig. 3
