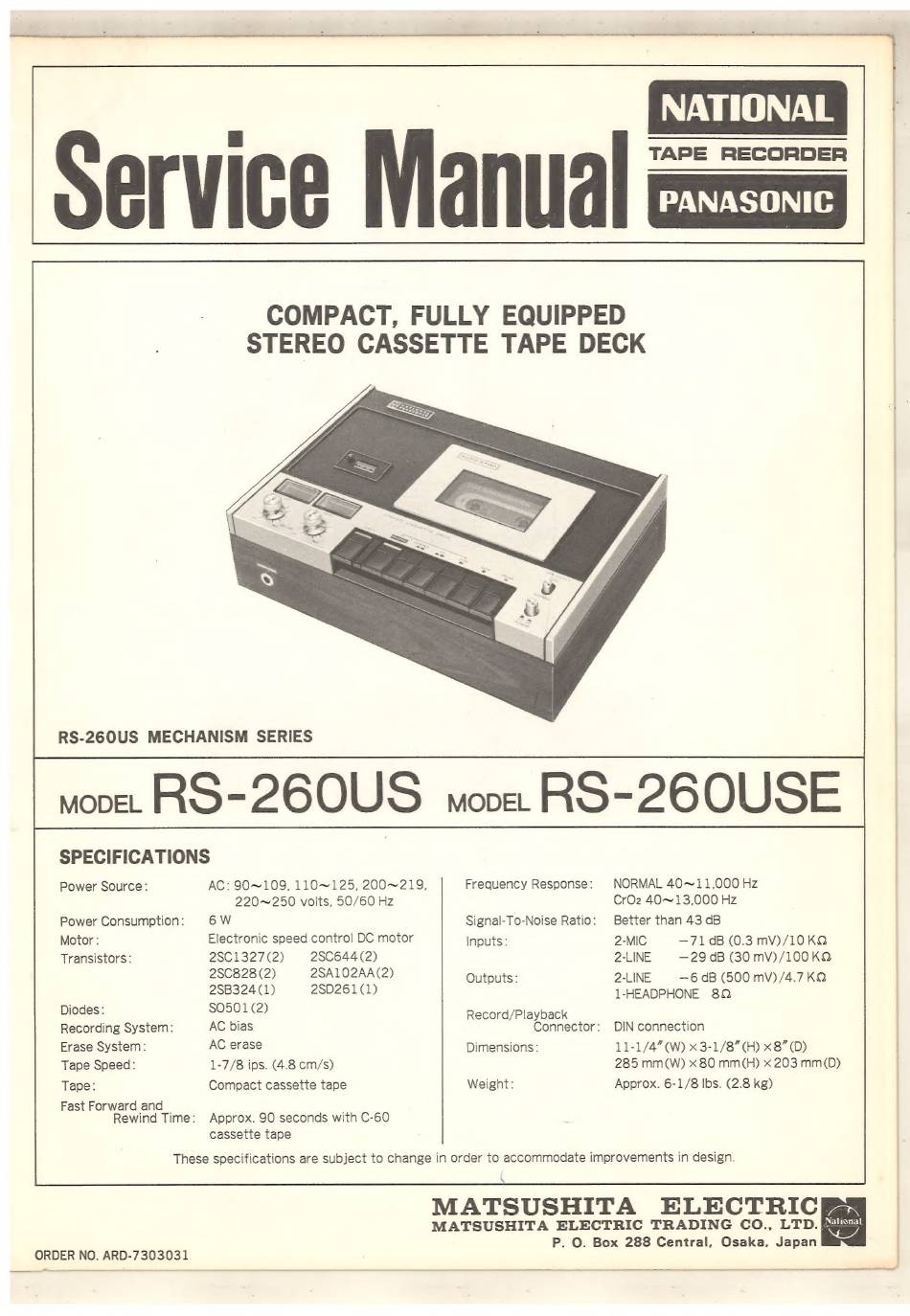

Matsushita Electric PANASONIC RO-260US Service Manual

TAPE RECORDER
Service Manual czaxs
COMPACT, FULLY EQUIPPED
STEREO CASSETTE TAPE DECK
RS-260US MECHANISM SERIES
more. RO-260US
SPECIFICATIONS
Power Source: AC: 90~109, 110~125, 200~219,
220~250 volts, 50/60 Hz
Power Consumption: 6W
Motor :
Electronic speed control DC motor
Transistors: 28C1327 (2) 2SC644 (2)
2SC828 (2) 2SA102AA (2)
2SB324 (1) 2SD261(1)
Diodes: $0501 (2)
Recording System: AC bias
Erase System: AC erase
Tape Speed: 1-7/8 ips. (4.8 cm/s)
Tape: Compact cassette tape
Fast Forward and_
Rewind Time: Approx. 90 seconds with C-60
cassette tape
move. RO-260USE
Frequency Response:
Signal-To-Noise Ratio:
Inputs:
Outputs:
Record/Playback
Connector :
Dimensions:
Weight:
NORMAL 40~11,000 Hz
CrOz 40~13,000 Hz
Better than 43 dB
2-MIC —71 dB (0.3 mV)/10 KQ
2-LINE —29 dB (30 mV)/100 KQ
2-LINE —6 dB (500 mV) /4.7 KQ
1-HEADPHONE 80
DIN connection
11-1/4" (W) x 3-1/8" (H) x8" (D)
285 mm(W) x80 mm(H) x 203 mm(D)
Approx. 6-1/8 Ibs. (2.8 kg)
These specifications are subject to change in order to accommodate improvements in design.
ORDER NO. ARD-7303031
MATSUSHITA ELECTRICKA
MATSUSHITA ELECTRIC TRADING CO., LTD. BOR
P. O. Box 288 Central, Osaka, Japan
