Installations- and Operating Instructions

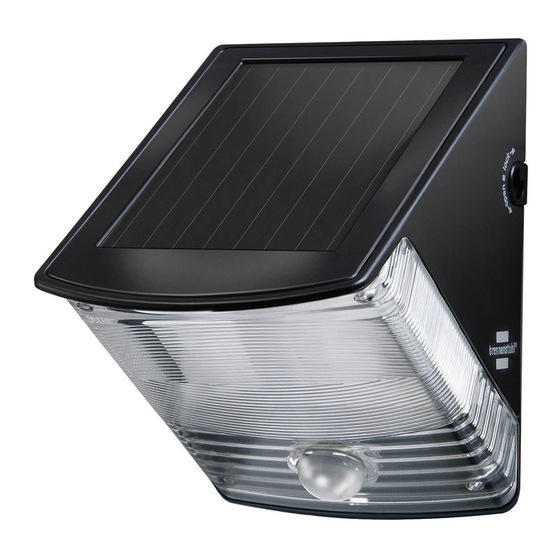

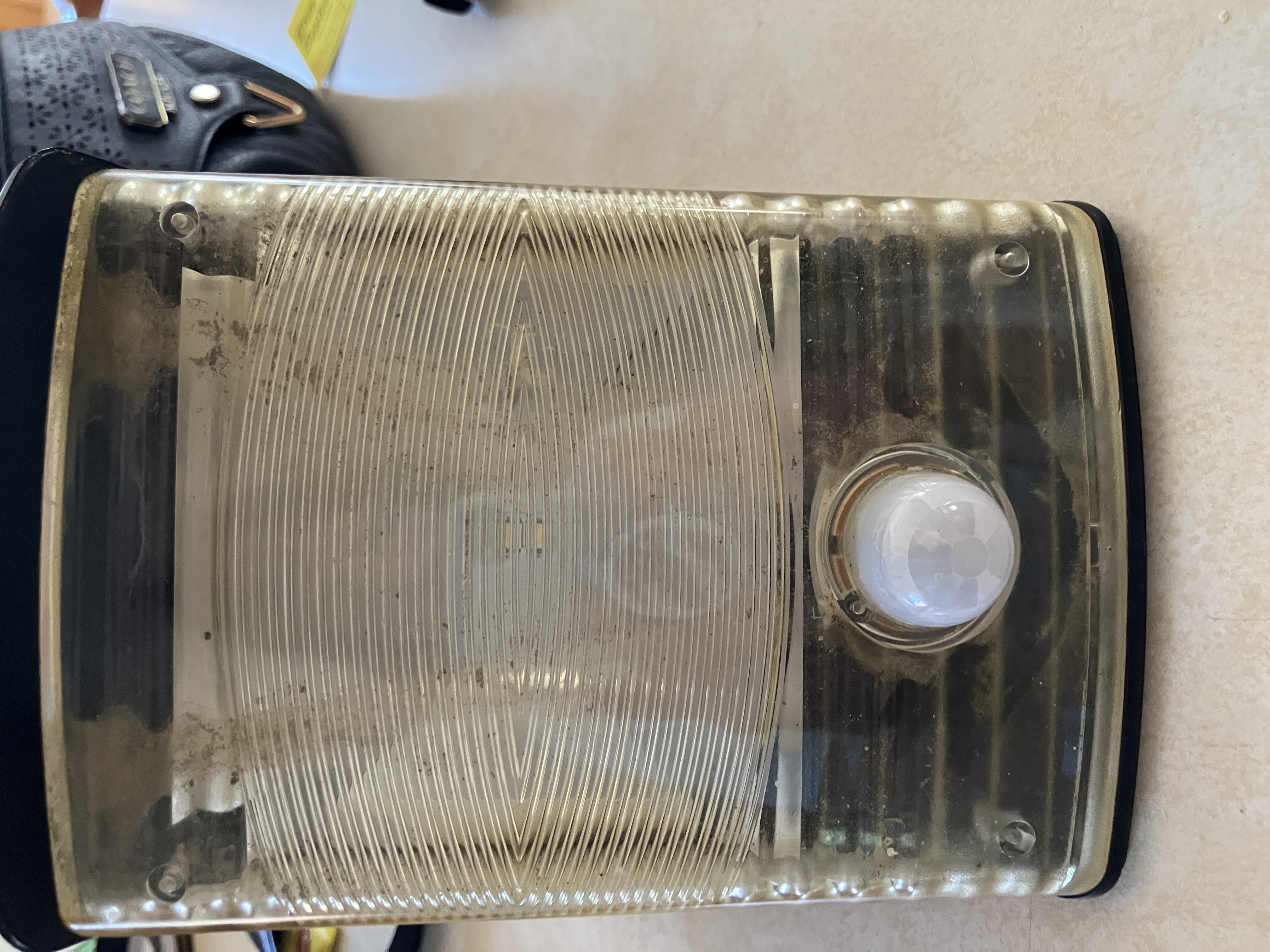

Solar LED wall lamp SOL 04 PLUS
Introduction
The lamp works with a built-in motion detector that constant scans for heat sources
moving in its monitoring area. As soon as a heat source (such as a person or a car) is
detected in this area, the light comes on and remains on as long as the heat source moves
in the monitored area.
INSTALLATION TIPS

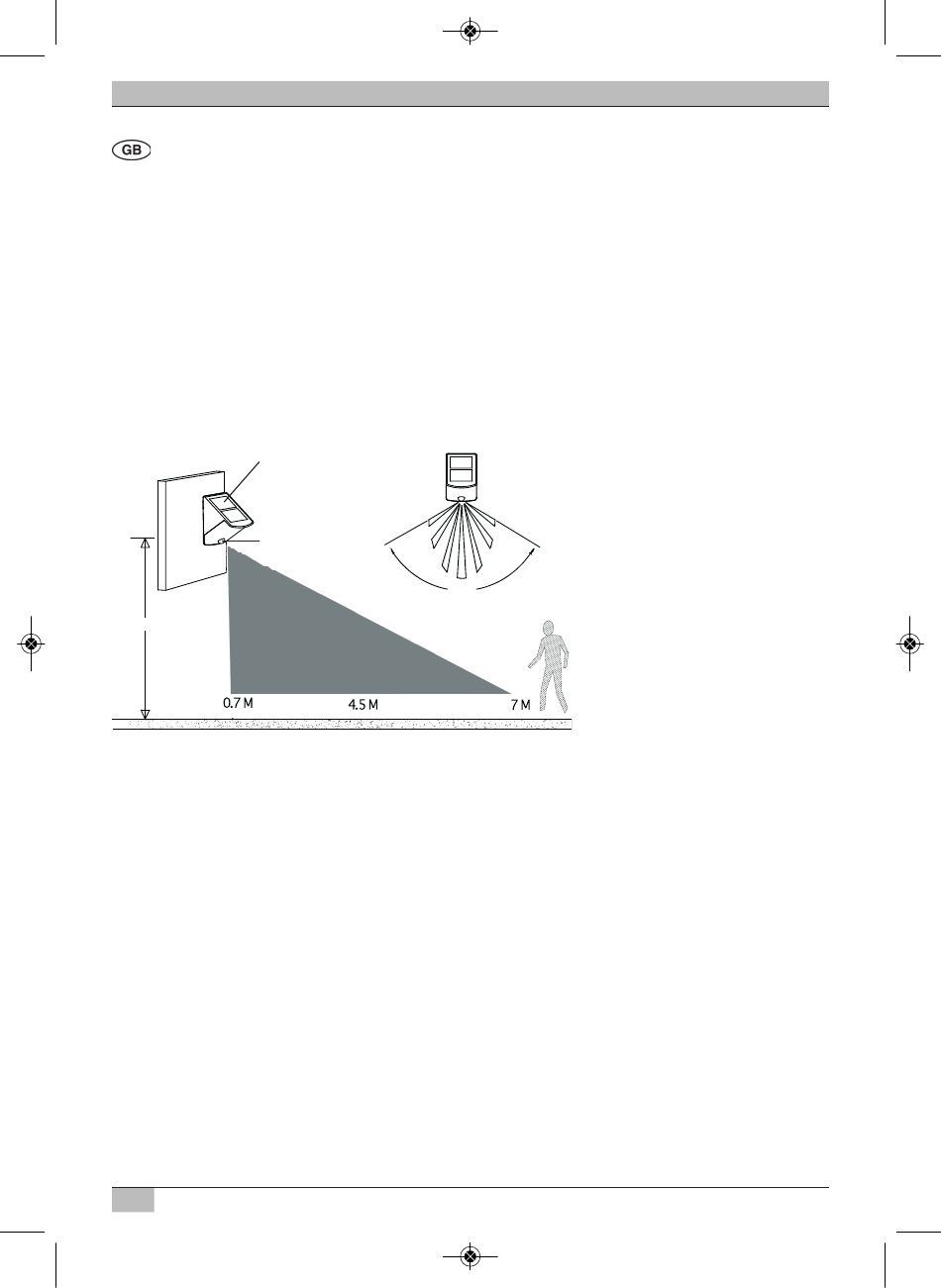

• The lamp should ideally be installed at a height of 1.8 to 2.5 metres to cover the maxi-
mum monitored area (see Fig. 1A).
1,8-2,5 m
• To avoid false alarms, the light should be installed away from heat sources such as air
conditioners, other outside lights, running cars, exhaust vents, and strong sources of
electromagnetic disturbance.
• Do not aim the sensor at reflective surfaces such as smooth, white walls, swimming
pools, etc.
• The motion detector's monitored area (about 7 metres at 100° monitoring field) can
change somewhat depending on the height at which it is installed and the installation
site. The monitored area can also change due to ambient temperature.
• Before you choose an installation site, please note that the motion detector reacts with
greater sensitivity to movement across the monitored area than movements directly to
ward or away from the sensor (see Fig. 1B).
6
Solar module
1A
Motion detector
100°
100°
