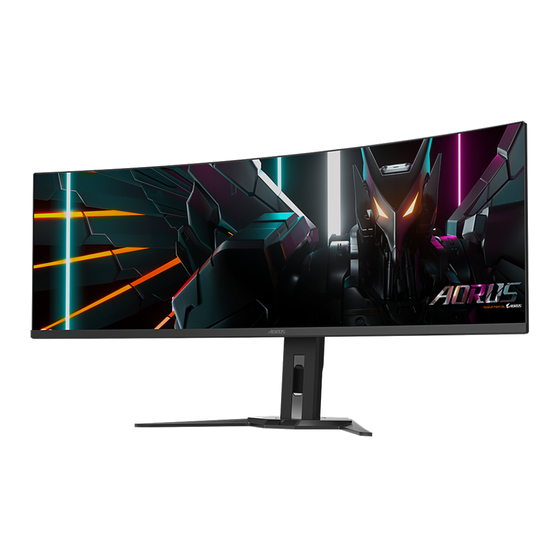

Gigabyte AORUS CO49DQ User Manual

Gaming monitor
Hide thumbs Also See for AORUS CO49DQ:
Table of Contents

Advertisement

Quick Links

GAMING MONITOR
U SE R GUI DE
AORUS CO 49DQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AORUS CO49DQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte AORUS CO49DQ

Summary of Contents for Gigabyte AORUS CO49DQ

  • Page 1 GAMING MONITOR U SE R GUI DE AORUS CO 49DQ...
  • Page 2 Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission. •...

  • Page 3: Table Of Contents

    GIGABYTE Service Information . . . . . . . . . . . . . . . . . . .

  • Page 4: Introduction

    INTRODUCTION Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Stand Power Cable HDMI Cable DP Cable USB Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials for possible transportation of the monitor.

  • Page 5: Product Overview

    Product Overview Front View Control button Power LED Rear View HDMI-1 HDMI-2 TYPE-C USB 3.2 AC IN jack Headphone jack HDMI ports (x2) DisplayPort USB Type-C port USB upstream port USB 3.2 ports (x2) - 5 -...

  • Page 6: Preparing Your Monitor For Wall-Mounting

    Preparing your Monitor for Wall-Mounting Note: Use only a 100 x 100 mm VESA compatible wall mount kit to mount the monitor on the wall. Refer to the installation guide included in the wall-mount bracket kit. VESA mounting screw size: M4 x 10mm minimum. USING THE DEVICE Turning the Power On/Off Power On...

  • Page 7: Selecting The Input Source

    Selecting the Input Source Input Control Move the button right ( ) to enter the Input menu. Control Move the button up/down ( ) HDMI 1 to select the desired input source. Then Control press the button to confirm. HDMI 2 DisplayPort Type-C Select Exit OPERATIONS...
  • Page 8 • Control button down ( ) to enter the Picture Mode menu. Move the Control Move the button up/down ( ) to select the desired option and press the Picture Mode Control button to confirm. Standard MOBA Racing Movie Select Exit •...

  • Page 9: Function Key Guide

    Function Key Guide • Control Press the button to display the Main menu. Settings SETTING OLED Care Game Assist OLED CARE EXIT GAME ASSIST Exit Power Off POWER OFF Control Then use the button to select a function page and configure the related settings.
  • Page 10 OLED Care • When the Main menu appears on the screen, move the Control button left ( ) to enter the OLED Care menu. OLED Care Care+ Easy Usage Time Advance Pixel Clean Static Control Pixel Shift APL Stabilize Sub-Logo Dim Select Exit •...
  • Page 11 Game Assist • When the Main menu appears on the screen, move the Control button right ( ) to enter the Game Assist menu. GameAssist GAME INFO Gaming Timer Gaming Counter Count Up Crosshair Refresh Rate Count Down Dashboard Info Location Display Alignment Select Exit...
  • Page 12 Gaming Configure the game related settings. AMD FreeSync Resolution Black Equalizer Picture Mode Audio Mode Refresh Rate Premium Pro 5120x1440 Standard 60 HZ Picture Mode Gaming Black Equalizer Picture Super Resolution Display Display Mode PIP/PBP FreeSync Premium Pro System Reset all Exit Move/Adjust Enter/Confirm...
  • Page 13 Picture Configure the image related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Gaming Brightness Picture Racing Contrast Display Movie 6 axis Color PIP/PBP Reader Color Vibrance System sRGB Sharpness Reset all Custom Gamma Exit Move/Adjust Enter/Confirm Item Description Picture Select different predefined settings to optimize the visual...
  • Page 14 Display Configure the display screen related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Gaming Input HDMI 1 Picture HDMI 2 Display RGB Range DisplayPort PIP/PBP Apply Picture Mode Type-C System Reset all Exit Move/Adjust Enter/Confirm Item Description Input Select the input source.
  • Page 15 PIP/PBP Configure the Picture-In-Picture and Picture-By-Picture related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Gaming Picture Display PIP/PBP System Reset all Exit Move/Adjust Enter/Confirm Note: PIP/PBP function cannot be enabled when receiving HDR and FreeSync signals. - 15 -...
  • Page 16 System Configure the system related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Gaming Language Picture Audio Display Audio Mode PIP/PBP OSD Settings System Quick Switch Reset all Other Settings Exit Move/Adjust Enter/Confirm Item Description Language Select the desired language for the OSD menu. Audio Configure the audio related settings.
  • Page 17 Reset All Restore the monitor to its factory default settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Gaming Picture Display PIP/PBP System Reset all Exit Move/Adjust Enter/Confirm - 17 -...

  • Page 18: Appendices

    APPENDICES Specifications Item Specifications Panel Size 49-inch Aspect Ratio 32:9 Resolution 5120 x 1440 LED Life 30,000 H Pixel Pitch 233 x 233 um Brightness 250 nits (Typ, SDR APL 100%) 1000 nits (Typ, HDR APL 3%) Contrast Ratio 1.5M:1 Color Depth 1.07B (10 Bit) Active Display Area...

  • Page 19: Supported Timing List

    Supported Timing List Timing List HDMI 1 HDMI 2 DP (Type-C) 640x480 / 60Hz 640x480 / 67Hz 640x480 / 72Hz 640x480 / 75Hz 720x400 / 70Hz 720x480 / 60Hz 800x600 / 56Hz 800x600 / 60Hz 800x600 / 72Hz 800x600 / 75Hz 832x624 / 75Hz 1024x768 / 60Hz 1024x768 / 70Hz 1024x768 / 75Hz...
  • Page 20 Timing List HDMI 1 HDMI 2 DP (Type-C) 3840x1080 / 60Hz 3840x2160 / 24Hz 3840x2160 / 25Hz 3840x2160 / 30Hz 3840x2160 / 50Hz 3840x2160 / 60Hz 3840x2160 / 100Hz 3840x2160 / 120Hz 5120x1440 / 60Hz 5120x1440 / 100Hz 5120x1440 / 120Hz 5120x1440 / 144Hz - 20 -...

  • Page 21: Troubleshooting

    • Make sure that the cloth is damp, but not wet. • When wiping, avoid applying excessive pressure on the screen. • Acidic or abrasive cleaners can damage the screen. GIGABYTE Service Information More service information, please visit GIGABYTE official website. https://www.gigabyte.com/ - 21 -...

  • Page 22: Safety Information

    SAFETY INFORMATION Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 23: Stability Hazard Precautions

    • Eye exercise can help reduce eye strain. Repeat these exercises frequently: (1) look up and down (2) slowly roll your eye (3) move your eyes diagonally. This model has passed Flicker Free and Low Blue Light verification by TÜV Rheinland. To learn more: https://www.gigabyte.com/tw/Support/FAQ/4310 - 23 -...

  • Page 24: Regulatory Information

    European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 25 European Union (EU) Community Waste Electrical & Electronic Equipment (WEEE) Directive Statement GIGABYTE will fulfill the national laws as interpreted from the 2012/19/EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components. Under the Directive, used equipment must be marked, collected separately, and disposed of properly.
  • Page 26 CE declaração de conformidade Este produto estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/UE; Diretiva CEM 2014/30/UE; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/CE e a Diretiva (UE) 2015/863 que altera o Anexo II. A conformidade com estas diretivas é verificada utilizando as normas europeias harmonizadas.
  • Page 27 CE Declaraţie de conformitate Acest aparat este conform cu: Compatibilitatea electromagnetică Directiva 2014/30/ UE, Directiva privind echipamentele de joasă tensiune 2014/35/UE, Directiva privind proiectarea ecologică 2009/125/CE, Directiva RoHS 2011/65/UE & Directiva (UE) 2015/863 de modificare a Anexei II. Conformitatea cu aceste directive este evaluatăutilizând Standardele europene armonizate aplicabile.
  • Page 28 CE Vyhlásenie o zhode Toto zariadenie vyhovuje nasledujúcim smerniciam: Smernica elektromagnetickej kompatibility 2014/30/EÚ, Smernica o nízkom napätí 2014/35/EÚ, Smernica o výrobkoch týkajúcich sa energie 2009/125/ES, Smernica RoHS 2011/65/EÚ & Smernica (EÚ) 2015/863 ktorou sa mení príloha II. Zhoda s týmito smernicami sa hodnotí použitím príslušných európskych harmonizovaných štandardov.
  • Page 29 China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球 ， 当用户不再需要此产品或产品寿命终止时 ， 请遵守国家废弃电 器电子产品回收处理相关法律法规， 将其交给当地具有国家认可的回收处理资质的厂商进 行回收处理。 环保使用期限 Environment-friendly use period 此标识指期限（十年），电子电气产品中含有的有害物质不会发生外泄或突 变、电子电气产品用户正常使用该电子电气产品不会对环境造成严重污染或 对其人身、财产造成严重损害的期限。 产品中有害物质的名称及含量: 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷电路板及其电子组件 × ○ ○ ○ ○ ○ 液晶面板 × ○ ○ ○...
