Summary of Contents for Solenco 5LLE

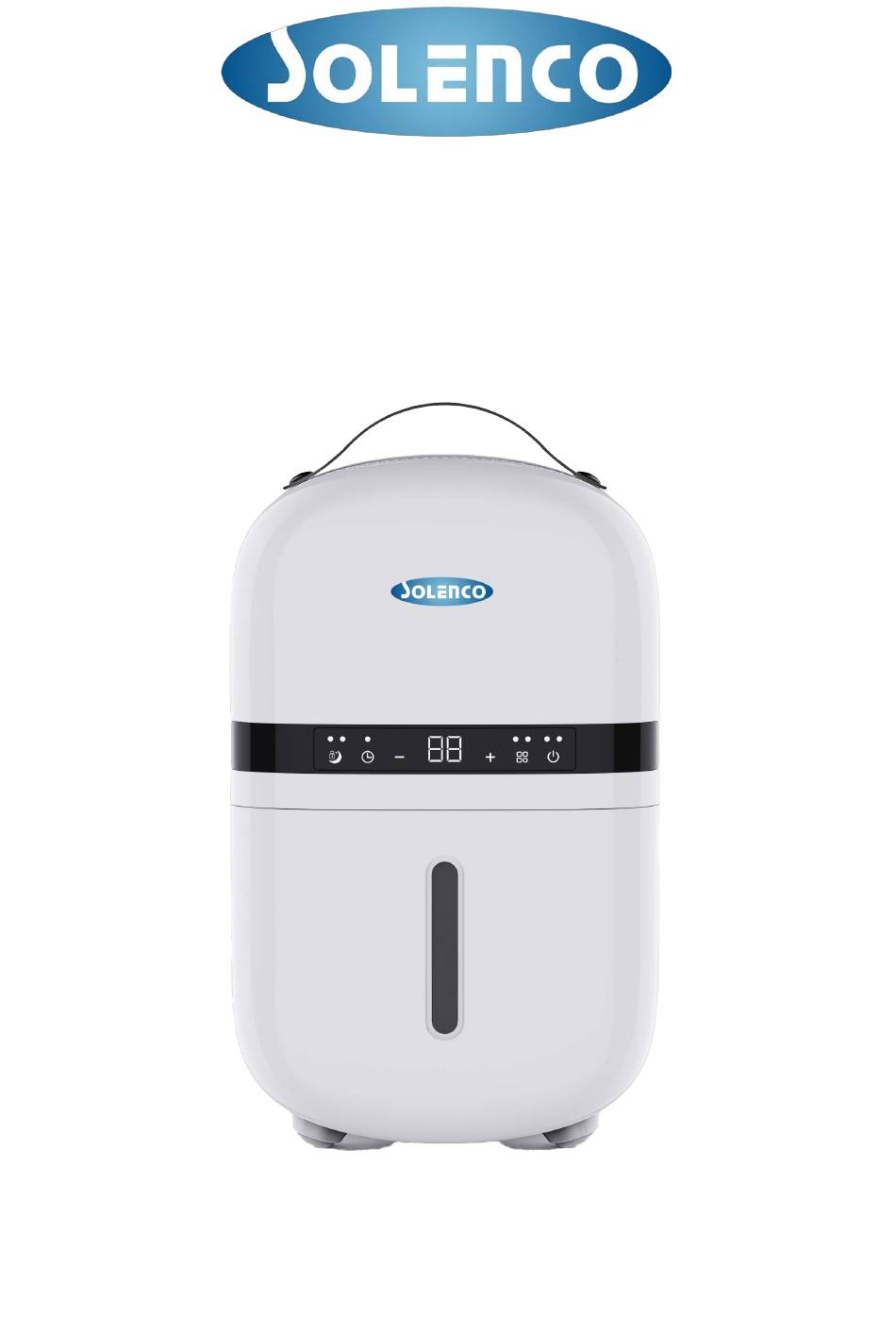

- Page 1 DEHUMIDIFIER USER MANUAL MODEL:5LLE...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Carefully read the instructions before operating the unit. This appliance is for indoor use only and intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. Installation must be in accordance with regulations of the country where the unit is used. -
Page 3: Features And Functions
the unit by a suitably qualified engineer. The refrigerant system should not be perforated or punctured. ENERGY SAVING AND UNIT SAFETY PROTECTIONTIPS · Do not cover or restrict the airflow from the outlet or inlet grills. For maximum performance the minimum distance from a wall or objects should be 20 cm. ·... -
Page 4: Overview Of The Components
OVERVIEW OF THE COMPONENTS Handle Air outlet Control panel Water tank Silicone pad Air inlet Pre-filter Power cord... -
Page 5: Control Panel
CONTROL PANEL POWER Button Turn the appliance on/off. MODE Button Select the function of the unit between SMART and FAN modes. The corresponding light will show which mode is selected. SMART MODE: This is designed for maximum convenience and aims to reduce the relative humidity to the level set and maintain the room at that level. - Page 6 TIMER Press the TIMER button to program the timer. When the timer is activated the "TIMER" light will be illuminated. Before programming the timer, ensure the timer function has not been activated (the light must be off). The following timer programs are available.
-
Page 7: Installation
TANK FULL When the water tank is full, removed or incorrectly inserted the unit will stop dehumidifying, the tank full light will illuminate, and the unit will beep. Empty the tank and reinsert it correctly to resume operation. HUMIDITY LEVEL & TIMER 2 DIGIT DISPLAY The led indicator performs the following functions: When the unit is plugged in, it will indicate the humidity level of the room. -
Page 8: Water Drainage
WARNING: Any commercial or industrial use will invalidate the warranty. Use in an enclosed area for maximum efficiency. Close all doors, windows to create an effective operating environment. Do not use outdoors. Your dehumidifier will begin to protect your space from the harmful effects of excessive moisture as soon as it is turned on. - Page 9 NOTES: When you remove the water tank, do not touch sensors or any parts which are situated behind the tank. Doing so may damage the product. Be sure to push the water tank gently all the way into the unit. Banging the bucket against anything or failing to push it in securely into place may cause the unit not to operate.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. When it is not in use for long periods, it is advised to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol, or gasoline) as they may cause irreversible damage to the unit. - Page 11 Clean the water tank. Every few weeks, clean the tank to prevent growth of mould, mildew and bacteria. Partially fill the tank with clean water and add a little mild detergent. Wash it around and then empty the tank and rinse. NOTE: Do not use a dishwasher to clean the tank.
-
Page 12: Troubleshooting
TROUBLESHOOTING Issue Cause Solution When the unit is in dehumidifying mode, it absorbs humid air from the room and reduces the humidity. Hot or cold air Normal Operation During the fan and defrost cycle, there should be cold air coming being produced out of the unit. - Page 13 EXTRACTION RATE Room Conditions Maximum Water Extraction Wattage 10℃ and 60%RH 1.31L/day 133W 15℃ and 60%RH 1.58L/day 138W 20℃ and 60%RH 2.01L/day 146W 25℃ and 60%RH 2.63L/day 154W 30℃ and 60%RH 3.02L/day 180W 10℃ and 80%RH 1.96L/day 135W 15℃ and 80%RH 2.6L/day 144W 20℃...
-
Page 14: Technical Data
TECHNICAL DATA... -
Page 15: Warranty
The purchase receipt will consist of proof of this guarantee. Without it, it will not be possible to do any free exchange or repair. In the event of a warranty, please email info@solenco.co.za with your purchase receipt and collection address. We will troubleshoot with you and if the unit needs to be repaired or replaced, we will arrange couriers to collect the unit.
