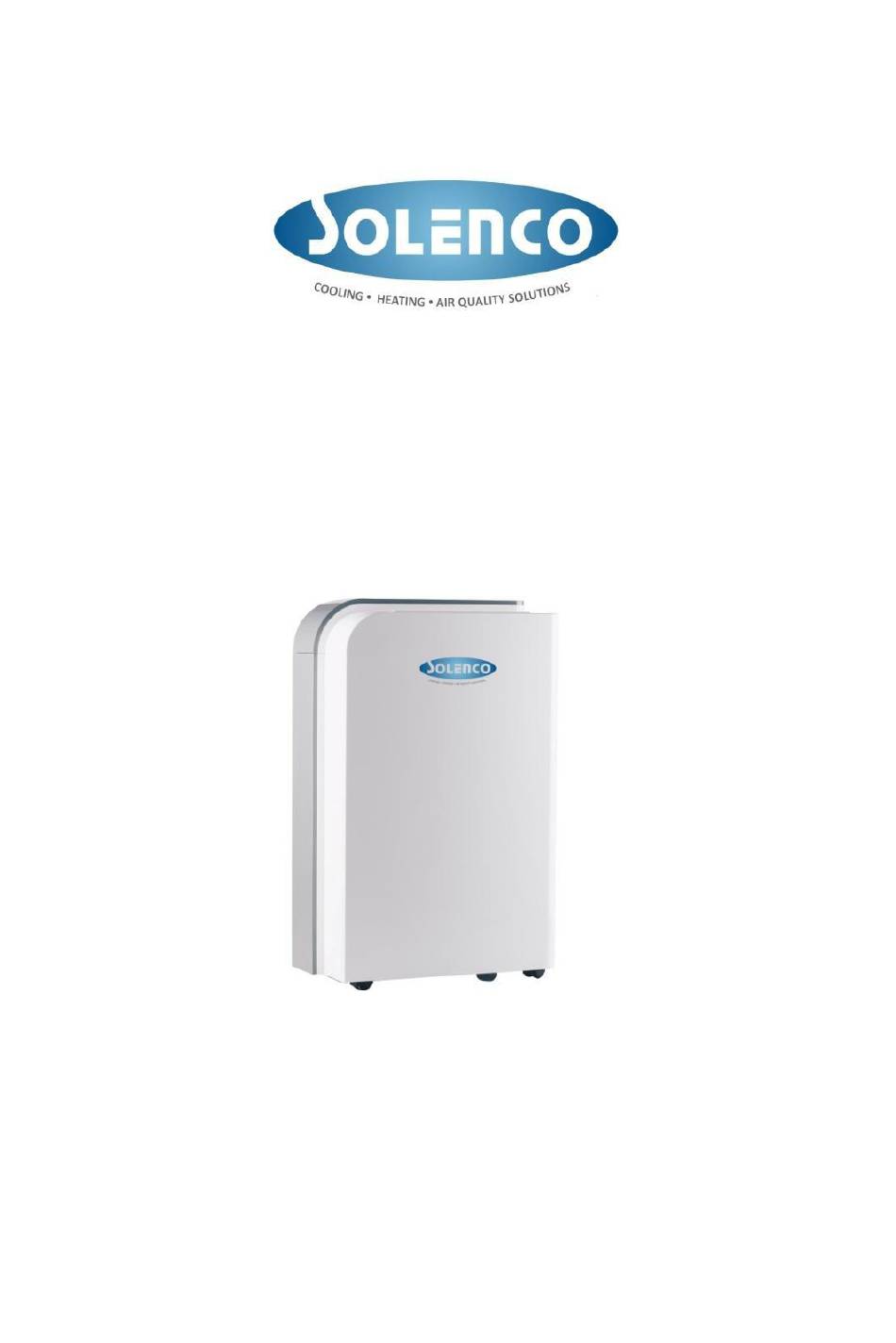

- Page 1 Solenco UD30L User Manual Please read this user manual before using this innovative dehumidifier and keep it safe for future reference.
-
Page 3: Table Of Contents
Contents Safety Instructions Energy saving and unit safety protection tips Safety guide Installation Parts Accessories Control Panel 8,9&10 Quick reference guide Other features and indicators Positioning the dehumidifier Water drainage Notes Care and maintenance Frequently Asked Questions Troubleshooting Technical Data www.solencosa.co.za | info@solencosa.co.za | 086 606 8915... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Important Carefully read the instructions before operating the unit. • • This appliance is only intended for use in an indoor domestic environment. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. •... -
Page 5: Energy Saving And Unit Safety Protection Tips
• Never use the mains plug or an external timer as a switch to start and turn off the dehumidifier. Only use the provided ON/OFF button located on the control panel. • Always place the unit on a dry and flat stable surface. •... -
Page 6: Safety Guide
Quick visual safety guide on where or when not to use your dehumidifier Where small If the power cable Exposed to the children Near water wires are frayed or weather outdoors may be left unattended On a slope or If an extension lead Where the power Where there is risk uneven... -
Page 7: Installation
They are easy to move around on castors. With the units’ intelligent logic they are designed to remove unwanted humidity while minimising operating costs. The Solenco UD30L features an intelligent humidistat which is adjustable in increments of 5% from 35-80% RH giving you the ability to ensure your room is not dried too much and power is not wasted. -
Page 8: Parts
PARTS Handle Air outlet Louvres Castors Power cord Control Panel Pre-filter/activated Carbon filter (Optional) Continuous Drain Port Water tank www.solencosa.co.za | info@solencosa.co.za | 086 606 8915... -
Page 9: Accessories
ACCESSORIES Activated carbon filter (Optional) HEPA FILTER 6 stage dual action dehumidifier and purifier great for improving indoor air quality Clean dry air Polluted Humidity Ioniser Activated Antibacterial HEPA Dehumidifier Carbon filter filter filter UV light www.solencosa.co.za | info@solencosa.co.za | 086 606 8915... -
Page 10: Control Panel 8,9&10
CONTROL PANEL POWER Button Turns the appliance on and off. MODE Button - Select the mode of the unit between: SMART / HIGH / LOW / and FAN. The unit will default to SMART mode the first time it is switched on and remains in this mode until another option is chosen. - Page 11 UV Light Button ( For air purification ) To select “UV” press the “UV” button and the indicator light to the right of the button will illuminate. The UV light improves the air quality by destroying germs, bacteria and fungi. PLASMA IONIZER Button (ionization function) To activate the ionizer press the Plasma ionizer button.
- Page 12 OPERATION The Operation light will illuminate when the compressor within the unit is running to extract moisture from the air. Please note this may not light up immediately when the unit has started, and will go out when the desired humidity is reached. Humidity Level &...
-
Page 13: Quick Reference Guide
QUICK REFERENCE GUIDE Power Button ss the power button to turn the dehumidifier on and off. Swing control Button Press once to make the louvres swing and press again to lock at 45 degrees, press again to lock at 90 degrees. Do not operate the unit if the self- opening louvers do not open when the unit is powered on. -
Page 14: Other Features And Indicators
Please Note: If a permanent drainage pipe is fitted, the unit will not stop operation. Setting the desired humidity to around 35% is good for a drying boost, on the units initial run, or in emergencies. It is not recommended to use it with these settings for normal operation in domestic/ office environment over a long period of time, as the air may become uncomfortably dry. -
Page 15: Positioning The Dehumidifier
Do not use outdoors. Your Solenco dehumidifier will begin to protect your space from the harmful effects of excessive moisture as soon as it is turned on. Excess moisture is dispersed throughout your home. -
Page 16: Water Drainage
Please note the unit should not be placed directly against a radiator or other heat source. When positioning your Solenco dehumidifier, ensure that it is placed clear of any obstacles that may limit the air movement, and it should be placed on a dry flat surface. - Page 17 Please make sure the water tank cover is put back into place correctly before the water tank is reinserted. If the water-tank is inserted incorrectly, the tank full indicator will flash. Remove the water tank and reinsert to turn the indicator off and resume normal use.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE Always switch off the unit and unplug it from the mains before cleaning or performing any maintenance. When it is not in use for long periods, it is advised to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 19: Frequently Asked Questions
Clean the water tank Every few weeks, clean the tank to prevent growth of mould, mildew and bacteria. Partially fill the tank with clean water and add a little mild detergent. Swish it around and then empty the tank and rinse. NOTE: Do not use a dishwasher to clean the tank. -
Page 20: Troubleshooting
TROUBLESHOOTING Issue Cause Solution Hot or cold air Normal The dehumidifier uses refrigerant gas to being Operation dehumidify. This reduces the ambient produced temperature by up to 5°C. Before the air is returned to the room, it is warmed slightly above the ambient air temperature so not to send cold air into the room. - Page 21 Empty the tank and replace in the right position. Any other malfunctions will need to be reported to Solenco service centre. Do not attempt unauthorised repairs as these may invalidate the warranty. www.solencosa.co.za | info@solencosa.co.za | 086 606 8915...
-
Page 22: Technical Data
TECHNICAL DATA Model Solenco UD30L Voltage 1Ph, 220-240V~ 50Hz Dehumidifying 30L/Day (30 C RH80%) capacity 17L/Day (26.7 C RH60%) Max Power Input: 480W Tank Capacity 5 litres Humidity settings 35%~80% range Refrigerant R410a/265g Airflow 200 m High / Low Pressure 1.7/0.6MPa...
