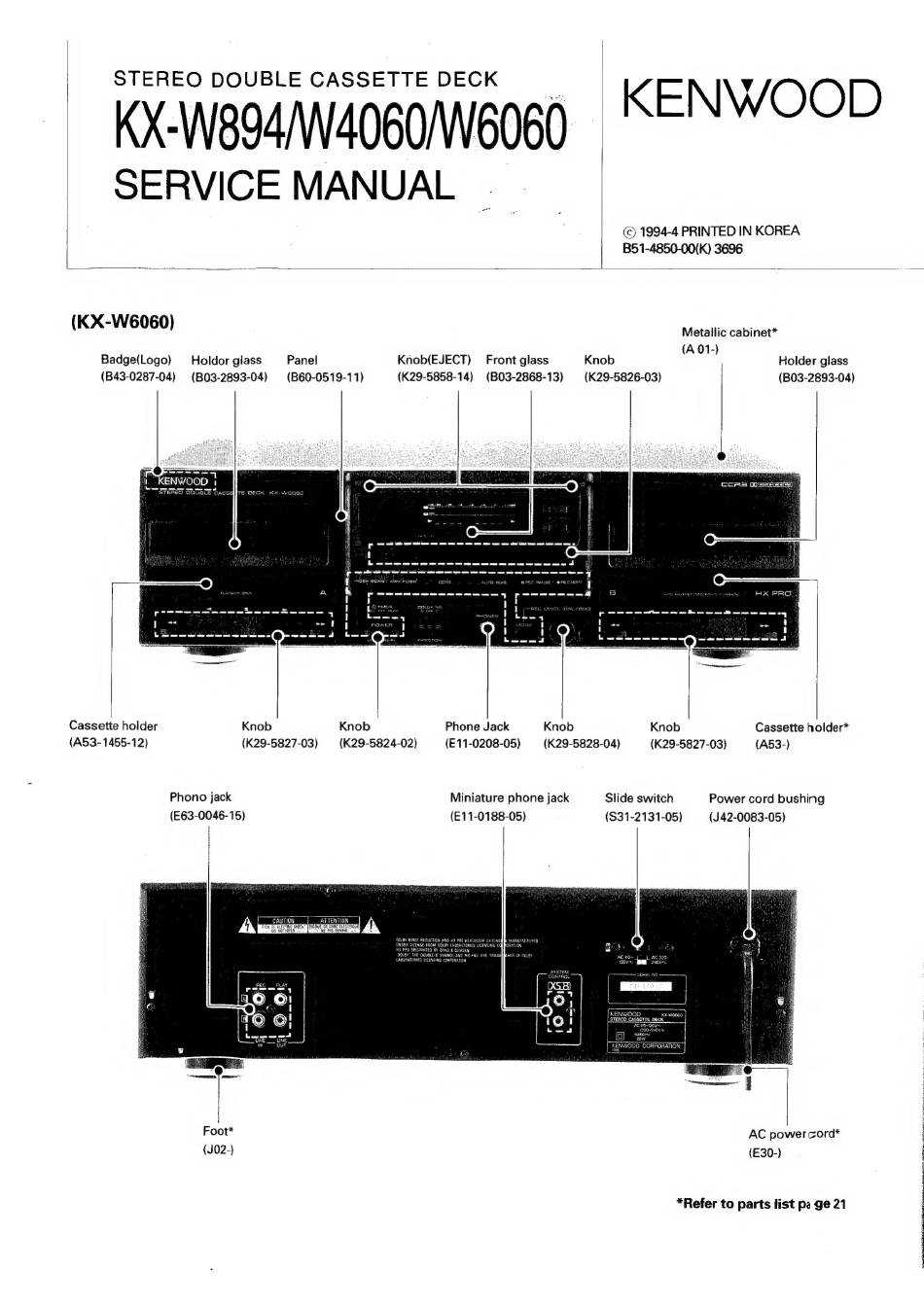

Kenwood KX-W894 Service Manual

STEREO DOUBLE CASSETTE DECK
KX-W894/W4060/W6060
SERVICE MANUAL |
KENWOOD
© 1994-4 PRINTED IN KOREA
B51-4850-00(K) 3696
(KX-W6060)
Badge(Logo)
(B43-0287-04)
Holdor glass Panel
(BO3-2893-04) (B60-0519-11)
Knob(EJECT) Front glass
(K29-5858-14) (B03-2868-13)
Cassette holder Knob Knob
(A53-1455-12) (K29-5827-03) (K29-5824-02)
Phono jack
(E63-0046-15)
Foot*
(J02-)
Phone Jack Knob
(E11-0208-05)
Miniature phone jack
(E11-0188-05)
(K29-5828-04)
Metallic cabinet*
(A 01-)
Knob Holder glass
(K29-5826-03)
(B03-2893-04)
Knob Cassette holder*
(K29-5827-03) (A53-)
Slide switch
(S31-2131-05)
Power cord bushing
(J42-0083-05)
—e——_
AC power cord*
(E30-)
*Refer to parts list pa ge 21
