Reel planTEc N70XAR Quick Start Manual

Planar navigation antenna gps high gain

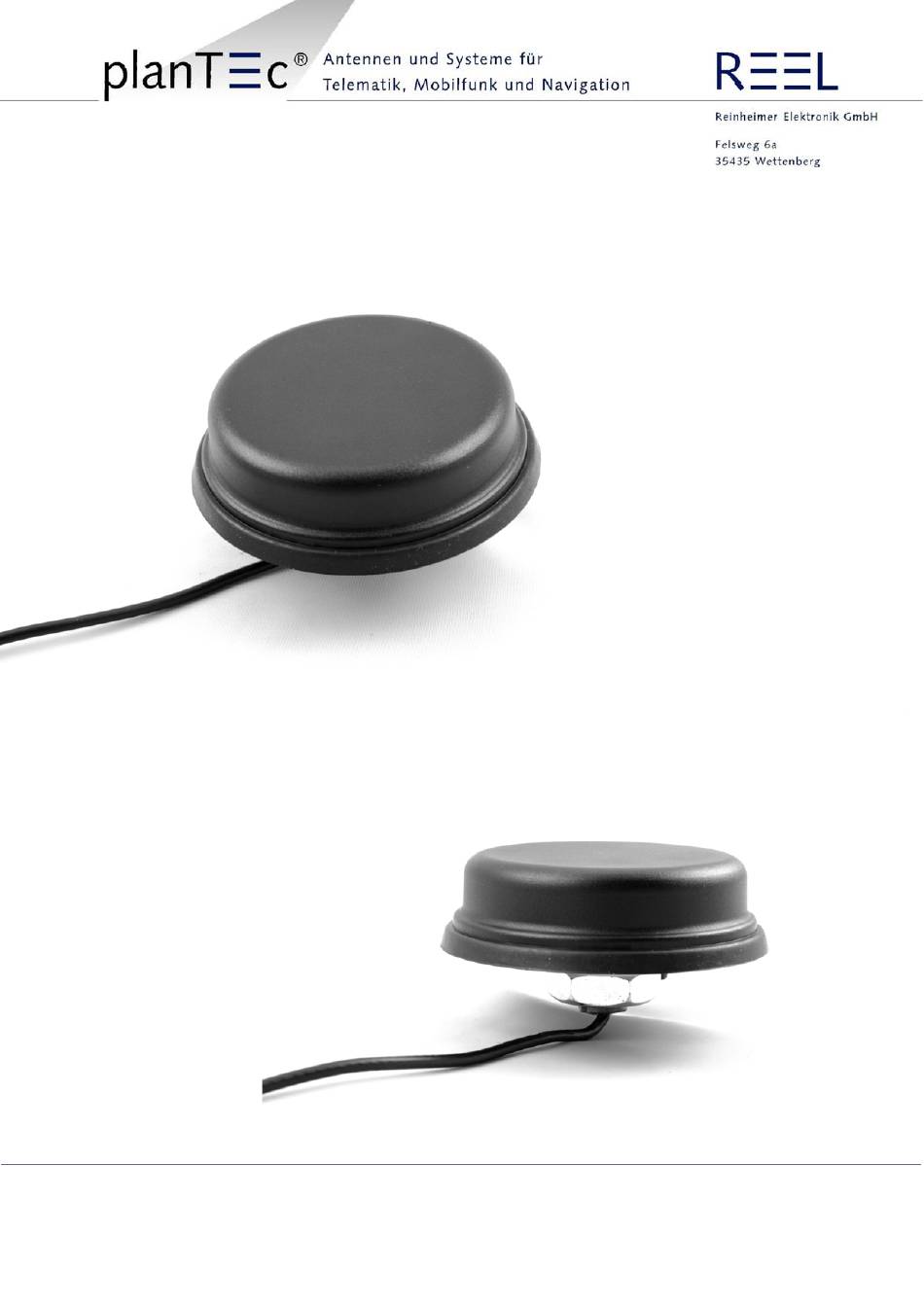

Planar Navigation Antenna N70XAR

GPS high gain

• Waterproof TüV passed IP69K mounted

• Antenna available in black, white and blue

• Other colours on demand

Technical changes reserved.

Liability excluded for printing mistakes,

also for mistakes in technical data and

illustrations.

Status 10/08

Site 1 of 3

Roof Mounting

Made

Germany

Table of Contents

Need help?

Do you have a question about the planTEc N70XAR and is the answer not in the manual?

Page 1 Planar Navigation Antenna N70XAR GPS high gain Roof Mounting Made Germany • Waterproof TüV passed IP69K mounted • Antenna available in black, white and blue • Other colours on demand Technical changes reserved. Liability excluded for printing mistakes, also for mistakes in technical data and Status 10/08 illustrations.
Page 2 Technical Data Frequency Range 1575,42 MHz VSWR* 1,5 typ. Peak Gain* 25 dBi typ. Power Supply 3V to 5V; 25mA typ. * measured with 0.60m cable on 30x30cm ground plane Mechanical Data Dimensions (ØxH) ca. 76 mm x 21 mm Temperature Range -25°C to +85°C Connection (Standard)
Page 3 Accrediation E-Code high gain (A) 13 02 1510 E-Code gain (L) 13 02 1509 E-Code low current (V) 13 03 6371 Mounting Instructions • No extra ground planes are necessary for this antenna (ground plane inside). • Mountable on all clean, smooth and rost free surfaces. •...
