Planar Navigation Antenna N40XPW
GPS passive
• Mounting by adhesive bonding without any tools (adhesive bonding
antenna)
• No changes and modifications on the car body, rather the housing
• No parts outside the car body
Technical changes reserved.
Liability excluded for printing mistakes,
also for mistakes in technical data and
illustrations.
Status 10/08
Site 1 of 3
Window Mounting
Made
in
Germany
Advertisement
Table of Contents
Related Manuals for Reel Plantec N40XPW
Summary of Contents for Reel Plantec N40XPW

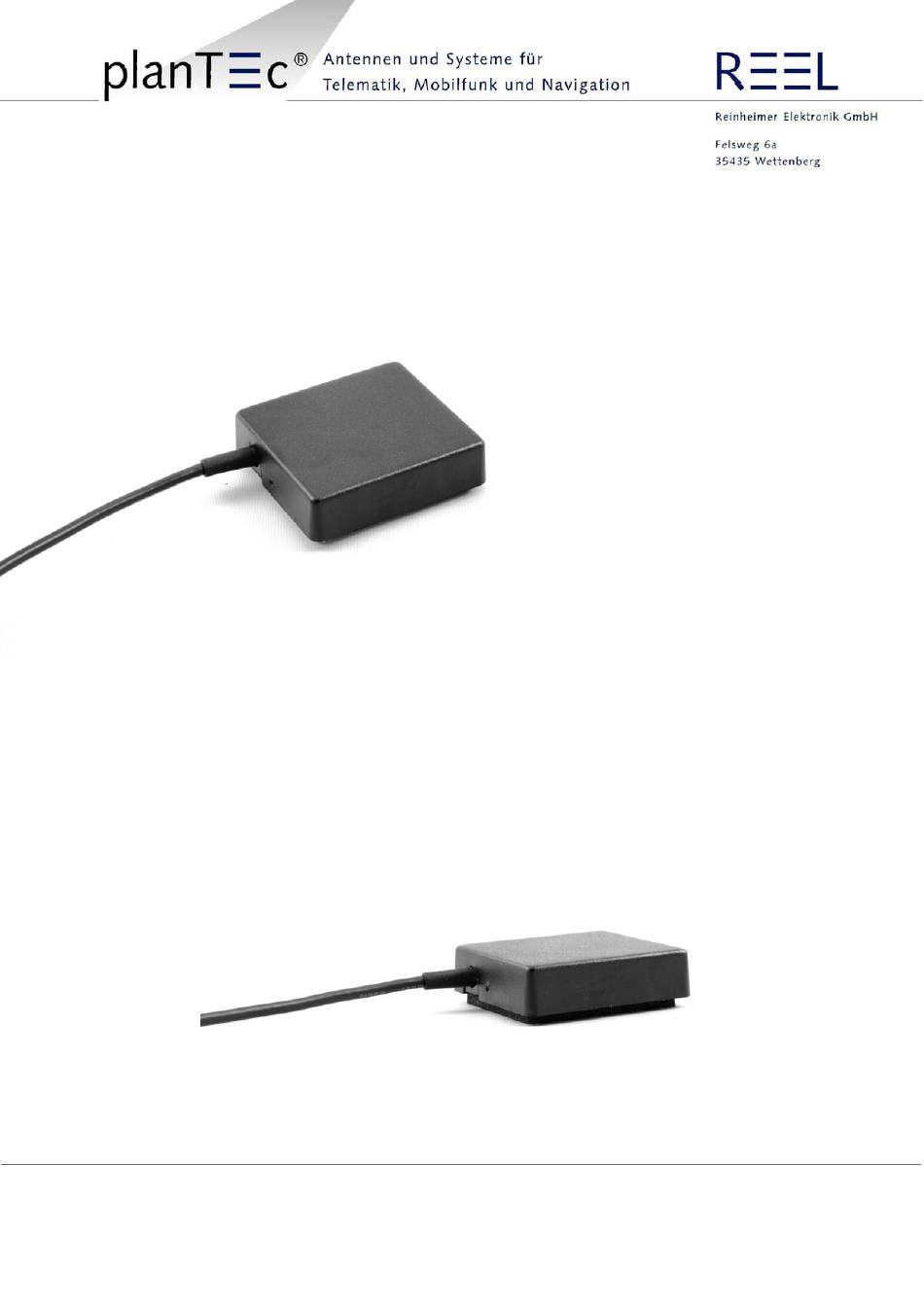

- Page 1 Planar Navigation Antenna N40XPW GPS passive Window Mounting Made Germany • Mounting by adhesive bonding without any tools (adhesive bonding antenna) • No changes and modifications on the car body, rather the housing • No parts outside the car body Technical changes reserved.
- Page 2 Technical Data Frequency Range 1575.42 MHz VSWR* 1.5 typ. Peak Gain* 0 dBi typ. * measured with 0.60m cable on 30x30cm ground plane Mechanical Data Dimensions (LxBxH) ca. 44 mm x 41 mm x 11 mm Temperature Range -25°C to +85°C Connection (Standard) ca.
- Page 3 Accrediation E-Code high gain (A) 13 02 1510 E-Code gain (L) 13 02 1509 E-Code low current (V) 13 03 6371 Mounting Instructions • To avoid mechanical stress the antenna should not be attached on doors or flaps. • No extra ground planes are necessary for this antenna (ground plane inside). •...
