up! 2017 ➤ , up! 2020 ➤
Electrical system - Edition 10.2019
3

Rear window wiper system

⇒ "3.1 Assembly overview - rear window wiper system",
page 62
⇒ "3.2 Removing and installing wiper blade", page 63
⇒ "3.3 Removing and installing wiper arm", page 63
⇒ "3.4 Adjusting wiper arm", page 64
⇒ "3.5 Removing and installing rear window wiper motor V12 ",
page 65
3.1

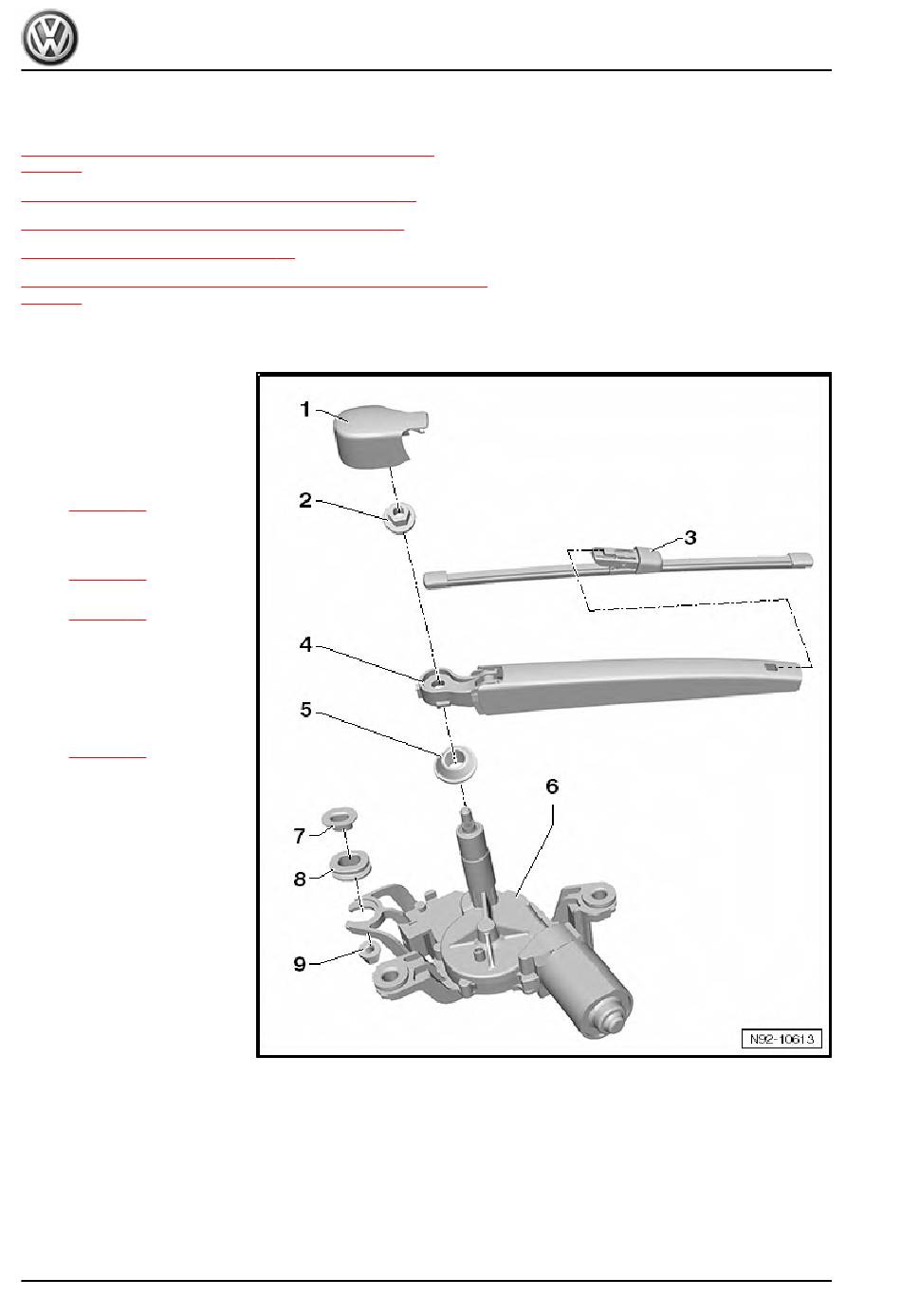

Assembly overview - rear window wiper system

1 - Cap
2 - Securing nut
❑ 12 Nm
3 - Joint-free wiper blade
❑ Removing and installing
⇒ page 63
4 - Wiper arm
❑ Removing and installing
⇒ page 63
❑ Adjusting park position
⇒ page 64
5 - Seal
❑ In rear window
6 - Rear window wiper motor -
V12-
❑ Removing and installing
⇒ page 65
7 - Spacer
8 - Rubber ring
9 - Securing nut
❑ 8 Nm
62
Rep. gr.92 - Windscreen wash/wipe system
