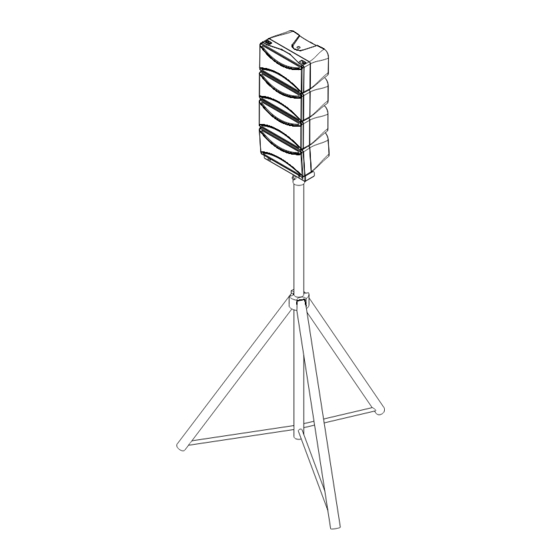

BUTTERFLY Series Pole Mount Application
205mm
164mm
Pole Mount Accessory
80mm
60mm
∅36mm
Base Support Accessory
BUTTERFLY Series Wall Mount Line Array Application
90mm
67mm
164mm
205mm
Flying Mount Accessory
Wall Mount Accessory
318mm
338mm
299mm
The length of the ledges can be adjusted according to the number of speakers.
MANUAL OF BUTTERFLY SERIES
BUTTERFLY Serise Parameters
LowZPower
HighZ
Power
(Continuous/Peak)
Mesh color
291mm
MANUAL OF BUTTERFLY SERIES
BUTTERFLY SERIES
BUTTERFLY 4PRO
BUTTERFLY 4CA
LF 1x4"
LF 1x4"
HF 2x1"
HF 2x1"
100Hz-22kHz
100Hz-22kHz
100°
100°
20°
20°
60W
60W
/
2.5W/5W/10W/20W
/
5W/10W/20W
111dB/117dB
16Ω
ABS
metallic grey
metallic grey,black,greyish white,red
yellow,green,camouflage color
U-shaped wall mounting bracket
Pole Mount,
Flying Mount,
Wall Mount Line Array
215*122*165mm
2.3kg
2.5kg
User's Manual
BUTTERFLY SERIES
Multipurpose Line Array
Revision A0-2023-06
Advertisement
Table of Contents
Related Manuals for Audiocenter BUTTERFLY Series
Summary of Contents for Audiocenter BUTTERFLY Series
- Page 1 Multipurpose Line Array metallic grey metallic grey,black,greyish white,red Mesh color yellow,green,camouflage color U-shaped wall mounting bracket Pole Mount, Flying Mount, Wall Mount Line Array BUTTERFLY Series Wall Mount Line Array Application 215*122*165mm 2.3kg 2.5kg 90mm 67mm 291mm 164mm 205mm Flying Mount Accessory...
- Page 2 MANUAL OF BUTTERFLY SERIES MANUAL OF BUTTERFLY SERIES MANUAL OF BUTTERFLY SERIES Thank you for purchasing Audiocenter BUTTERFLY Multipurpose Line Array audio system Dimension of BUTTERFLY SERIES solution which are professional speakers that integrated the latest technology and the best materials.
