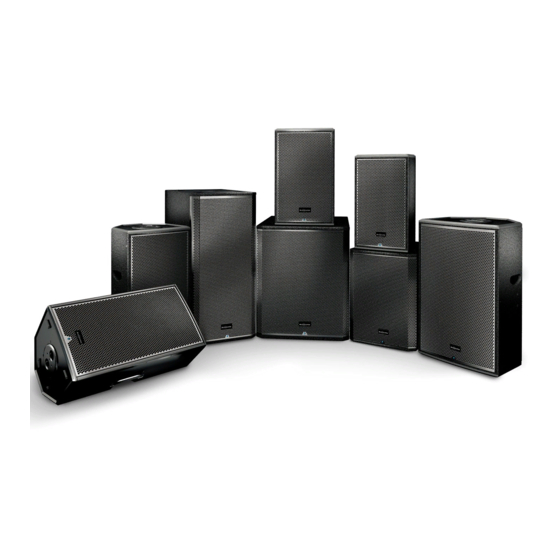

- Page 1 TS/TS-SW Series User’s Manual TS08,TS10,TS12,TS12P,TS15, TS-112SW,TS-118SW,TS-212SW A1-2014-05...
- Page 2 Contents Product Introduction Safety precautions Warranty TS / TS-SW Technical Features Presets for TS series and TS-SW series TS series back panel control and function TS-SW series back panel control and functions TS Series Operation Instruction TS-SW Series Operation Instruction...
-
Page 3: Safety Precautions
There can be danger in any step during hanging installation. Everyone should pay attention to personal safety. All purchasers of Audiocenter should be professional people qualified to conduct the work related to such equipments. We strongly suggest the users pay full attention to local rules, regulations and laws. - Page 4 T S / T S - S W When any of the following situations occurs, please cut the power immediately, and pull out the power plug from the socket, and ask qualified Audiocenter maintenance worker to repair. -- Wear or damage of the power cable or plug.
- Page 5 If Audiocenter products are out of warranty period, reasonable fee will be charged for repair. 8、 Audiocenter reserve the right for explaining of above items. If any change, we will keep you informed. If any query, please contact us by phone: support@ac-pro.net or visit our website: www.ac-pro.net.
- Page 6 Power cable User’s manual Warranty card and quality certificate Rubber feet ( for TS12/15，TS-12P only) Please check above items carefully. If any questions, please advise Audiocenter representative, dealers, distributors, or contact by email box: support@ac-pro.net Optional accessories: U horizontal bracket...
- Page 7 9、 Input A and Input B can either input signal individually, or input. Presets for TS series and TS-SW series There are 5 presets in TS series speakers for users to recall for usage in different applications. 1 preset- AC...
- Page 8 T S / T S - S W Audiocenter subwoofers or subwoofers of other brands are recommended to work with To match with Audiocenter TS series or third party 2-way speaker systems, TS-SW series are designed with 3 different kinds of presets:80Hz,100Hz and 120Hz. .
- Page 9 T S / T S - S W the amplifier over heated DC output overload currency power activation voltage too high or too low the amplifier in stand-by mode Then the Speaker output is mute, and power supply is cut off, LCD display will be off. When the power is turned on: The LED is on for 3 seconds with power supply.
- Page 10 T S / T S - S W Inputs socket (LINE B) Balanced XLR and phone type multi-function input socket. OUTPUTS Socket（LINE B） This is balanced XLR output socket. Parallel to INPUT socket (Line B), input signal can be bypass, without influence. INPUTS Socket（AUX）...
- Page 11 T S / T S - S W overload currency power activation voltage too high or too low the amplifier in stand-by mode Then the Speaker output is mute,and power supply is cut off,LCD display will be off. When the power is turned on: The LED is on for 3 second.
- Page 12 T S / T S - S W TS Series Operation Instruction MIX OUT A OUTPUT A Full range speaker: VOL A When selecting from menu navigation key, there is an underline below the content. Choose it by pressing the Enter key, and the content will flash. Now you can change its volume by navigation key.
- Page 13 T S / T S - S W standby time by navigation key. For example, 5' means standby after 5 minutes. Off means no standby. Finally, you can exit by pressing Enter key. TS-SW Series Operation Instruction PROTECT PROTECT VOL A VOL A PHASE PHASE...
- Page 14 MIX OUT A OUTPUT A Basic system with subwoofer: Below is the basic system with 2pcs of TS series full range speakers and 2pcs of subwoofers with coupling bars. This system is ideal for small size touring performance church and small stadium,etc..
- Page 15 5、 System with Microphone： Below is the application of TS Series speakers with one microphone. In this situation, please recall the “Vocal” preset, and set the switch at “MIX” position. This system is ideal for seminar, product launch, etc. MIX OUT A...
- Page 16 T S / T S - S W Dimension of TS and TS-SW series 322mm 322mm 325mm 292mm 292mm 295mm 295mm TS08 TS10 TS12 TS12P 326mm 326mm 326mm 326mm 355mm 358mm Page 15...
- Page 17 T S / T S - S W 386mm 430mm 586mm 372mm TS15 586mm 372mm 694mm 510mm Page 16...
- Page 18 T S / T S - S W Installation guidance for TS and TS-SW series Accessories inside package: rubber feet (only for TS12, TS15, TS12P) 0 degree -10 degree adjustable according to different applications. Page 17...
- Page 19 Single point mounting bracket Bracke Coupling bar,Flight case, Durable cover bag ," " Technical Support and After-sales Service Global applcation support team, EASE GLL files available AUDIOCENTER Reserves the rights to change specifications without prior notice in case Page 18...
- Page 20 1 base holes Φ35mm on the top Optional Accessories Coupling bar,Flight case, waterproof cover bag Global applcation support team, EASE GLL files for free Technical Support and After-sales Service AUDIOCENTER Reserves the rights to change specifications without prior notice in case Page 19...
-
Page 21: Trouble Shooting
T S / T S - S W Trouble Shooting Symptom Possible reasons Solution Connect the cable correctly Power LED not light Cable not connected correctly Connect with input socket No sound Cable not connected correctly. correctly. Adjust speaker output gain Or too small gain.
