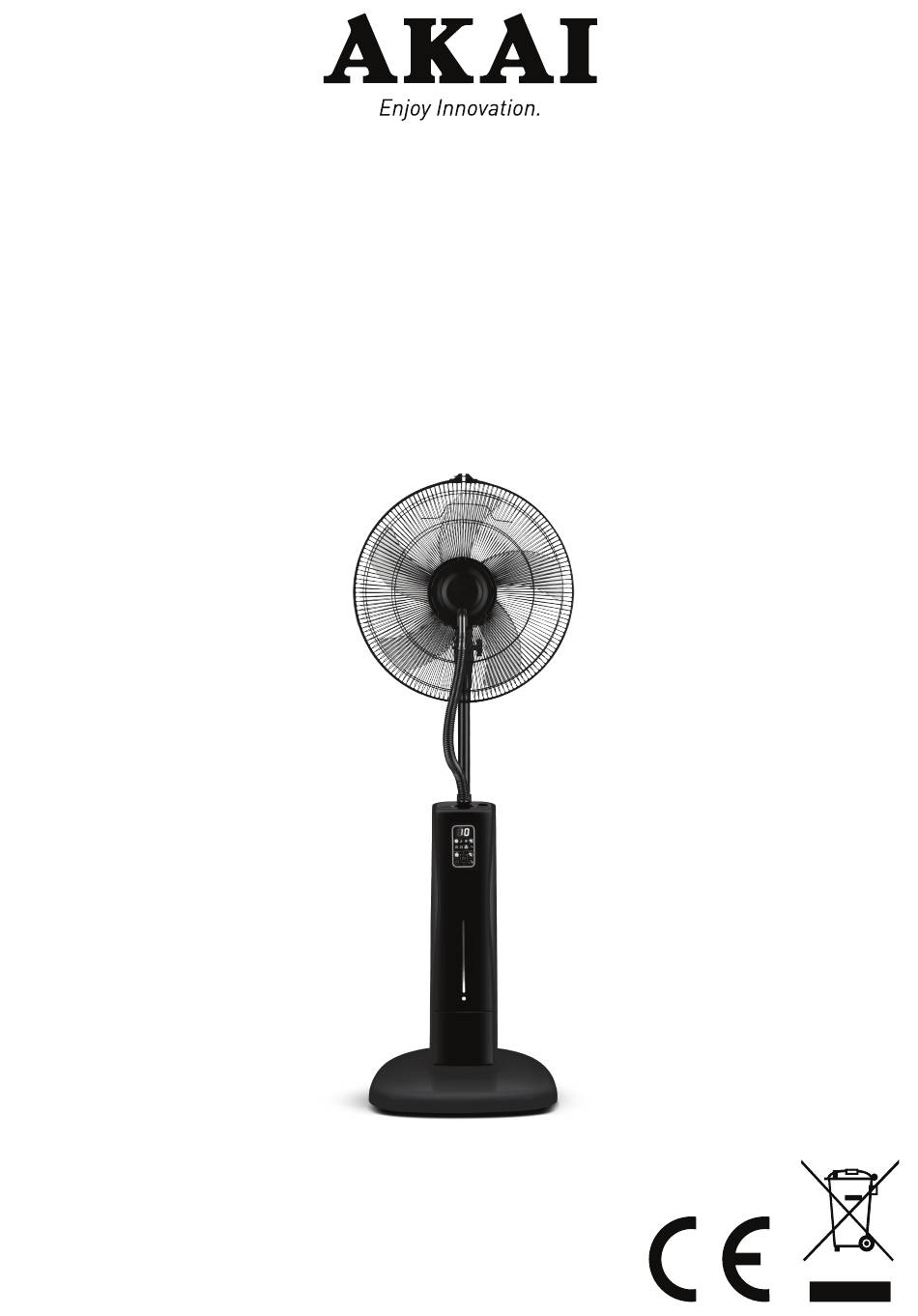

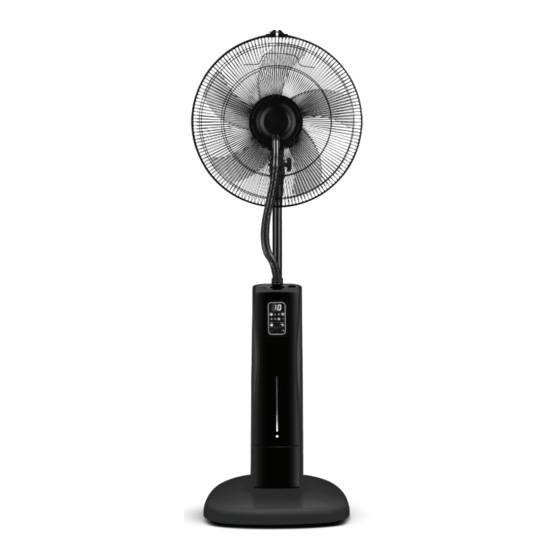

- Page 1 VENTILATORE PIANTANA Con Nebulizzatore & Telecomando VP42ACQ-R MANUALE Barni Carlo Spa Via Arconate n.63 20038 Busto Garolfo (MI) Fabricatto In Cina www.barni.it Made in China / Fabbricato In Cina Batch No. 0308-01/2023 Model No. VP42ACQ-R / LB-FS06...
-
Page 9: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS: In accordance with European directives applicable to this product. Class II symbol: this appliance is designed with double insulation. It is not necessary to connect it to earth connection. Clean the water tank every three days The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. -
Page 10: Preparation For Use
leave the room for an extended period. witch off the appliance and unplug from the mains socket when not in use, before filling, cleaning or other maintain. o not permit the area around the appliance to become damp or wet, Be aware that high humidity levels may encourage the growth of biological organisms in the environment. - Page 11 3.Lay the pedestal (12) with the white side facing downwards, so that you are looking at the dark heavy plate. Cover the metal rod of the 4 castors (13) with the 4 black plastic sleeves and insert them in the four holes under the base.
- Page 12 Display & operation Timer display (hours) “Natural” wind setting display “Sleep” wind setting display Mist humidification display “Normal”wind setting display “Light” wind speed 1 display “Medium” wind speed 2 display Oscillation display “Strong” wind speed 3 display Mist humidification ON/OFF Fan ON &...
- Page 13 • Press the “Mist” button to switch the ultrasonic mist on / off. 5.Automatic on/off timer • If you press the “Timer” button when the fan is off, the display will then show the time remaining until the fan is due to switch on. You can select between 1 and 12 hours. •...
-
Page 14: Faults And Troubleshooting
bacteria. •If the fan will not be used for a longer period of time, empty the water tank and dry the water unit with a microfiber cloth. •If the fan will be placed in storage for a longer period of time (over winter, etc.), always cover it with a suitable cover to prevent dust from entering the device in key places. - Page 15 ERP TEST DATA Description Symbol Value Unit Maximum fan 38.64 m³/min flow rate Fan power input 48.23 Service value 0.80 (m³/min)/ Standby power 0.30 consumption Seasonal 15.77 kWh/a electricity consumption Fan sound 60.09 dB(A) power level Maximum air 2.44 meters/sec velocity Test standard(s) (EU) No 206/2012 + (EU) 2016/2282...
-
Page 16: Condizioni Di Garanzia
CONDIZIONI DI GARANZIA Il prodotto è coperto da garanzia per il primo utente sulla base delle norme di legge vigenti. I componenti che risultassero difettosi per accertate cause di fabbrica verranno riparati o sostituiti gratuitamente dal servizio assistenza interno all'azienda, si riserva il diritto , in alcuni casi, di decidere la sostituzione di questo apparecchio con un altro uguale o simile nel caso il modello non sia disponibile. - Page 17 Si prega inoltre di conservare gli imballi originali fino alla scadenza della garanzia. Qualora il prodotto risultasse difettoso o non funzionante si prega di rivolgersi al rivenditore presso il quale è stato effettuato l'acquisto . DATI PROPRIETARIO Cognome, nome, indirizzo DATI DEL PRODOTTO Marca Modello...
