2E -CJSPBPL-BK User Manual

2E -CJSPBPL-BK User Manual

Five-in-one multi-function air pump 10000mah/37wh
Hide thumbs Also See for 2E-CJSPBPL-BK:

Advertisement

Quick Links

10000mAh/37Wh
Five-in-one multi-function air pump
Product Instruction Manual
Welcome to choose this product!
Please read the product instructions carefully before using.
After reading, please save it for subsequent reference.
Please note that this manual does not contain the software
and hardware configuration instructions and related
information of the product. If you need help, please consult

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2E-CJSPBPL-BK and is the answer not in the manual?

Questions and answers

Summary of Contents for 2E 2E-CJSPBPL-BK

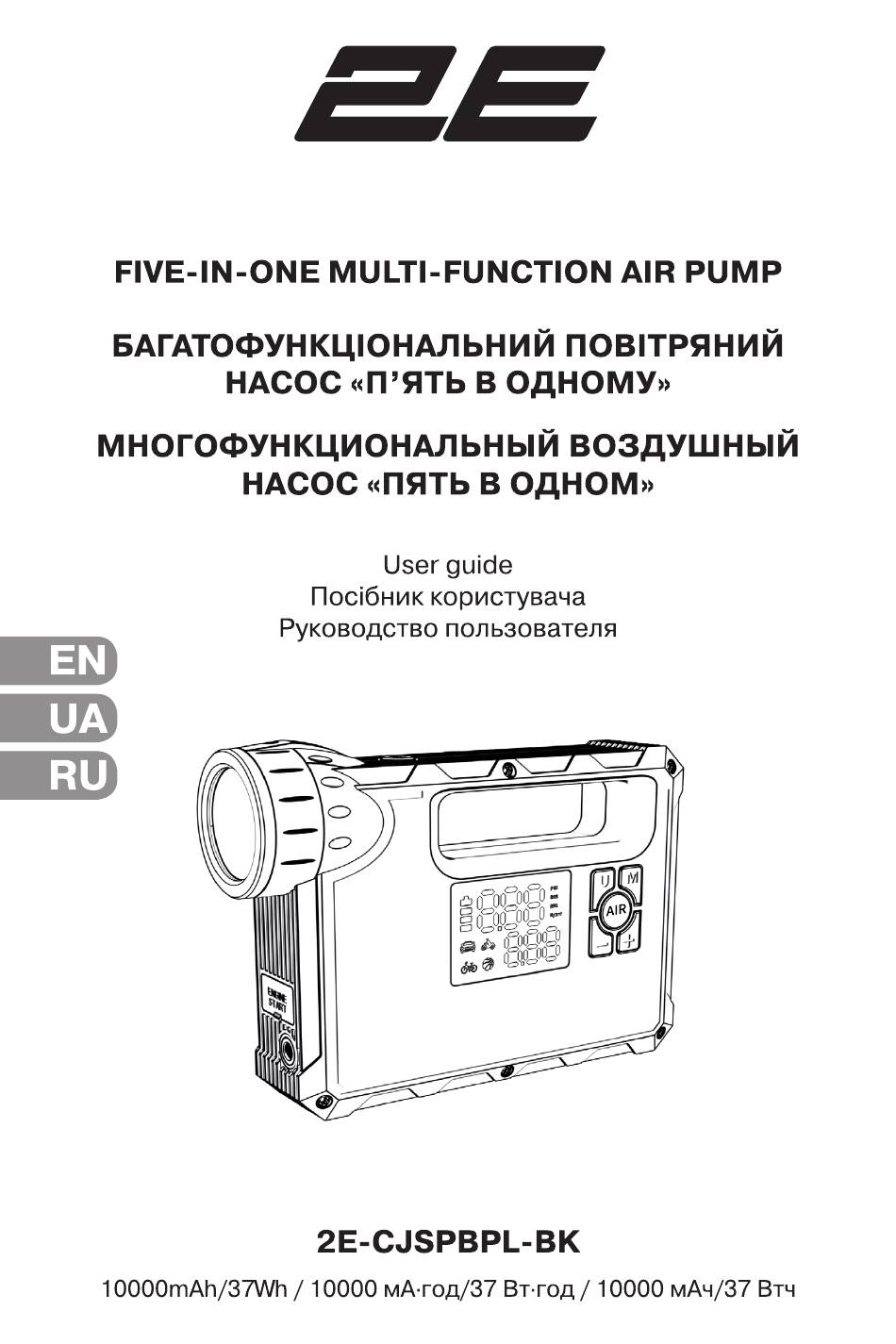

  • Page 1 10000mAh/37Wh Five-in-one multi-function air pump Product Instruction Manual Welcome to choose this product! Please read the product instructions carefully before using. After reading, please save it for subsequent reference. Please note that this manual does not contain the software and hardware configuration instructions and related information of the product.

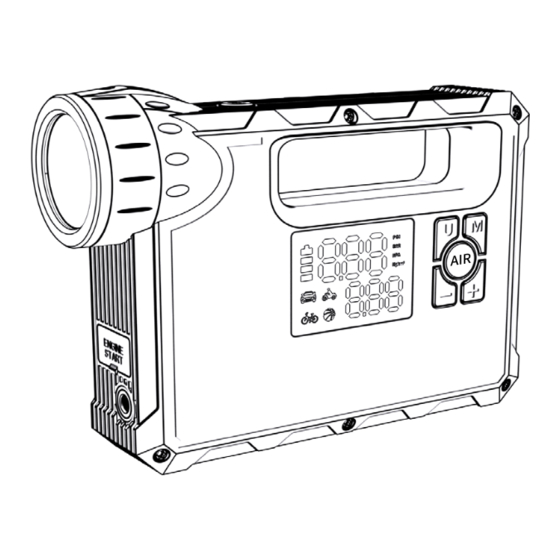

  • Page 3 【1】 Usage specification Product side schematic LED Flashlight ON/OFF Switch Unit switch Menu key Air pump key Up turn key Down turn key Display screen Air Pump interface 12V Car emergency start output 5VUSB OUT 5V IN PUT Reading light...
  • Page 4 【2】How to use the light (divided into four modes) LED Flashlight ON/OFF Switch Operation: Press and hold "ON/OFF Switch" to start the machine; click "ON/OFF Switch" to turn on LED lights, and cycle as following: 1. Turn on LED Flashlight 2.
  • Page 5 Inflatable object : Range BAR Range PSI 1.Motor vehicles for domestic use 2.3 - 2.5 33 - 36 (tyres with air pressure up to 3.3 Bar) 2. Motorcycles 1.8 - 3.0 26 -4 3 3. Bicycles 2.4 - 4.1 35 - 60 4.
  • Page 7 【5】 How to charge the machine Operation: Before charging, please ensure that this product is in power-off state. A: It is charged by an AC power supply(AC power supply is optional, need to buy it separately). 1. Connect the mobile phone 5V charger to the TPYE-C input port. 2.
  • Page 8 Parameter Numerical value Unit 10000 Battery capacity JUMP Start EC5 Maximum start/peak current 400/1000 Gasoline Maximum starting vehicle displacement Diesel <3.0 USB-5V OUT Maximum current USB-C 5V IN Charging time Power High beam - 1300 lumens LED flashlight Light Mode Strobe Reading light Power...
  • Page 13 Предмет: Діапазон BAR Діапазон PSI 1. Автомобілі 2.3 - 2.5 33 - 36 2. Мотоцикли 1.8 - 3.0 26 -4 3 3. Велосипеди 2.4 - 4.1 35 - 60 4. Шосейні велосипеди 6.9 - 8.2 100 - 120 5. Баскетбольний м’яч 0.5 - 0.6 7 - 9 5.
  • Page 15 【5】 How to charge the machine Operation: Before charging, please ensure that this product is in power-off state. A: It is charged by an AC power supply(AC power supply is optional, need to buy it separately). 1. Connect the mobile phone 5V charger to the TPYE-C input port. 2.
  • Page 16 Одиниці Характеристика Цифрове значення вимірювання 10000 мА·год Ємність акумулятора Вт·год Пускова напруга В Максимальний пусковий/піковий струм 400/1000 Бензин Максимальний об’єм двигуна Дизель <3.0 Вихід USB-А 5 В Максимальний струм Вхід USB-С 5 В Час зарядки год Потужність Вт Далеке світло - 1300 люмен LED ліхтарик...
  • Page 22 Предмет: Диапазон BAR Диапазон PSI 1. Автомобили 2.3 - 2.5 33 - 36 2. Мотоциклы 1.8 - 3.0 26 -4 3 3. Велосипеды 2.4 - 4.1 35 - 60 4. Шоссейные велосипеды 6.9 - 8.2 100 - 120 5. Баскетбольный мяч 0.5 - 0.6 7 - 9 5.
  • Page 24 【5】 How to charge the machine Operation: Before charging, please ensure that this product is in power-off state. A: It is charged by an AC power supply(AC power supply is optional, need to buy it separately). 1. Connect the mobile phone 5V charger to the TPYE-C input port. 2.
  • Page 25 Цифровое Характеристика Еденицы измерения значение 10000 мА·ч Емкость батареи Вт·ч Пусковое напряжение В Максимальный пусковой/пиковый ток 400/1000 Бензин Максимальный объем мотора Дизель <3.0 USB-5В выход Максимальный ток USB-C 5В вход Время зарядки ч Мощность Вт Дальний свет - 1300 люмен LED фонарик...
  • Page 28: Гарантійний Талон

    (Час зарядки визначається інтенсивністю сонячного світла). Підтримується заряджання від сонячної фотоелектричної панелі MPPT Фактичні показники продуктивності можуть відрізнятися залежно від Гарантія середовища використання, методу використання та інших факторів. я Холодна погода Холодна погода може вплинути на ємність батареї. При мінусовій температурі Гарантійний...
