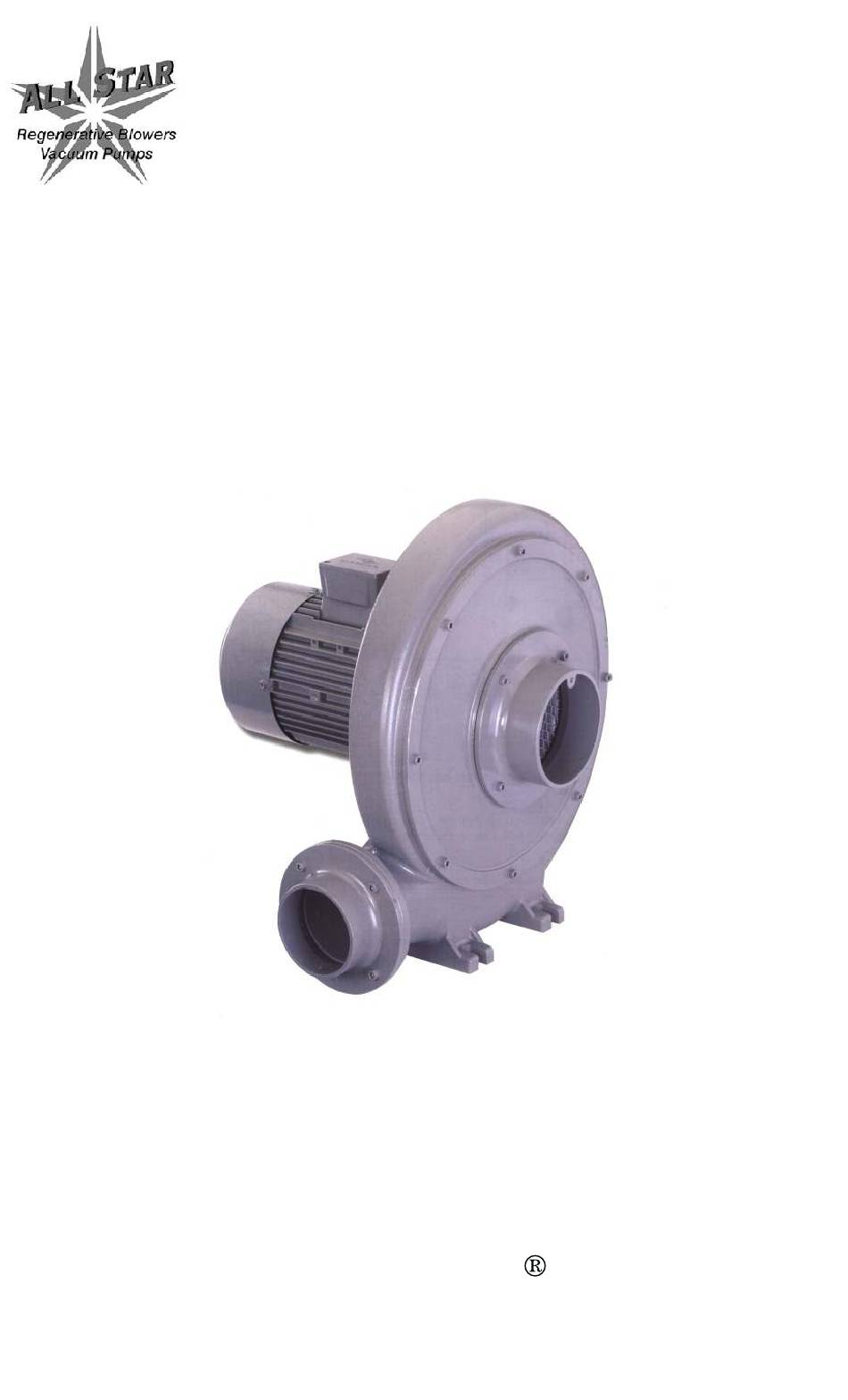

- Page 1 OPERATION / MAINTENANCE INSTRUCTIONS ALL-STAR TurboBlower All-Star Series and Big Bertha Blower are registered trademarks of All-Star Products.
- Page 2 INTRODUCTION To insure safe operation of your All-Star blower, please read this instruction manual and pay particular attention to instructions marked with the following signs: DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 3: Performance Specifications
Performance Specifications All blower motors are 2 pole design and operate at approximately 3450 rpm at 60HZ. Motors are suitable for operation on 3/50/220/380. Motor nameplate currents vary from time to time. If the current listed below is different from the current on your motor nameplate, use the nameplate current for sizing and selection purposes. -
Page 4: Operation
OPERATION Transport and Storage When lifted by crane, All-Star blowers must be secured at the eyebolt on the pump casing. Attention should be paid to the load-bearing capacity of the hoisting equipment. Installation All-Star blowers can be installed and mounted in any horizontal or vertical position. - Page 5 CAUTION High surface temperatures of more than 70 Deg C (158 Deg F) can occur on the blower's surface. No heat-sensitive parts such as normal electrical leads or electronic components can make contact with or be attached to the blower. Warning signs and protective screens must be installed around the blower surfaces to prevent accidental contact by individuals.
-
Page 6: Bearing Types
Lubrication DANGER Before any work is performed on the blower, equipment and especially when removing covers on moving parts, the motor needs to be disconnected from the electrical power supply. DANGER Do not connect the electrical power supply until the blower and other equipment have been completely reassembled. -
Page 7: Maintenance
DANGER Covers which prevent contact with rotating parts are not to be opened during operation. MAINTENANCE DANGER Before any work is performed on the blower, equipment and especially when removing covers on moving parts, the motor needs to be disconnected from the electrical power supply. -
Page 8: Troubleshooting
Troubleshooting Problem Cause Corrective Steps At least two power Eliminate interruption by Motor does not start, supply conductors means of fuses, no rotor noise. interrupted terminals or lead feeder. Interruption in one power See "Motor does not start, Motor does not start, supply conductor no running noise."... - Page 9 TurboBlower...
-
Page 10: Connection Diagram
CONNECTION DIAGRAM The blower is designed to operate on: 60HZ Single Phase 115/230 volts 50HZ Single Phase 220 volts Three Phase 208, 230, 460 volts Three Phase 220, 380 volts Single phase motors include two types of thermal protectors, which can be connected in several methods. - Page 11 THREE PHASE MOTOR CONNECTION DIAGRAM WYE CONNECT DELTA CONNECT 460 (380-460) 220 (208-240) DIMENSIONS MODEL TB-05-3 8.26 7.28 7.28 2.76 7.99 14.76 13.98 15.55 3.93 1.96 TB1-3 9.92 7.48 9.05 2.63 9.64 17.71 14.45 17.71 6.02 4.92 4.92 2.16 TB2-3 6.10 10.35 7.48...
- Page 12 All-Star Products and All-Star Products is able to enforce, but such items are not warranted by All-Star Products in any way. All Star Products is not responsible for product failures caused by the purchaser or their...
